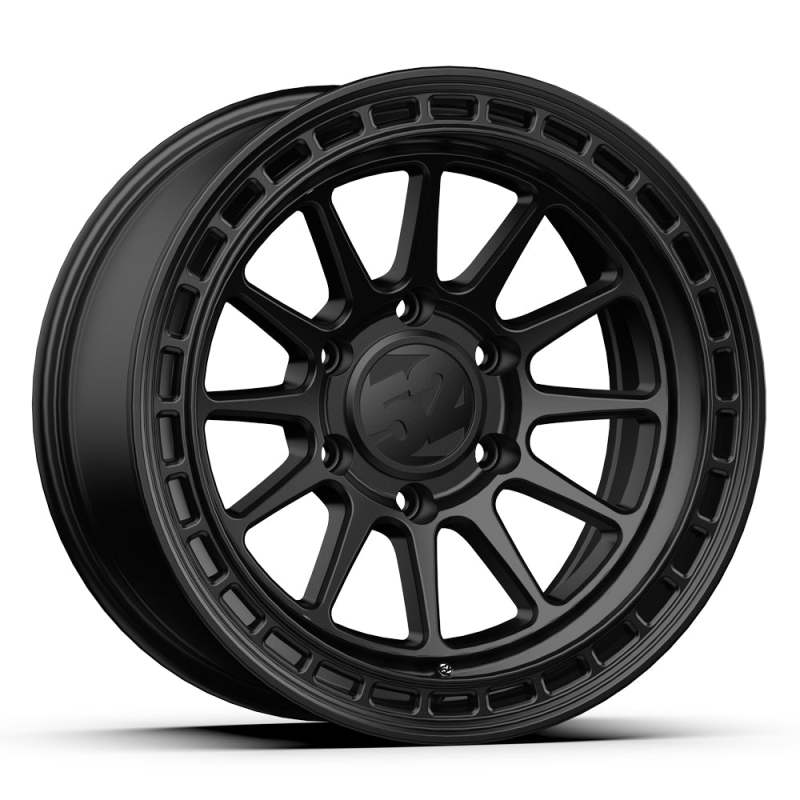

Fifteen52 Range HD Asphalt Black Wheels GHDAB-178569-00

Fifteen52 Range HD Asphalt Black Wheels GHDAB-178569-00

Regular price $390.00 AUD
Regular price $325.00 AUD Sale price $390.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

18 in stock

Product Description

Expect the unexpected. Sometimes you don't know where life will take you or what obstacles lie ahead—but rest assured the Fifteen52 Range HD Asphalt Black wheels have been engineered to make sure you're ready to meet the challenge head-on. These one-piece cast aluminum rims combine a technical multi-spoke rally design with proven Rock Ring Technology, offered in core bolt patterns and tried-and-true HD spec to ensure the same fit and clearance that Fifteen52 customers have come to expect and appreciate. Range HD wheels introduce a distinct motorsport style to a rugged HD lineup. Popular vehicle fitments include: Ford F-150/Raptor, Toyota Tacoma, Tundra, Jeep Wrangler, Gladiator, Toyota 4Runner, and many more! ROCK RING DETAILS: In designing the Traverse HD, Fifteen52 explored new ways to approach the simulated beadlock often found on wheels in the off-road market. This resulted in the Rock Ring, a stylish and functional feature that runs around the circumference of the wheel lip and is CNC-machined with signature Turbo Vanes. The Rock Ring still provides protection to keep the valve stem from being damaged on rocks—and it adds rigidity to the bead for any potential hard hits that may come on the trail. Turbo Vanes cut down on weight around the lip, where weight reduction matters most; while providing room for water, snow, and sludge to run out, rather than stay trapped as it does on many simulated beadlock applications.

Application Summary

Specifications

Brand fifteen52
Name Range HD
Diameter 17 inches
Width 8.5 inches
Bolt Pattern 6x139.7
Offset 0 millimeters
Bore Diameter 106.2 millimeters
Finish Asphalt Black

Part Type

Overview

Brand fifteen52
Manufacturer's Part Number GHDAB-178569-00
Part Type Wheels
Product Line Fifteen52 Range HD Asphalt Black Wheels
Wheel Diameter 17 in.
Wheel Width (in.) 8.50
Wheel Size 17x8.5
Wheel Bolt Pattern (application) 6 x 139.70mm 6 x 5 1/2 in.
Wheel Material Cast aluminum
Designed for Dually Truck No
Wheel Face Color Black
Wheel Face Finish Matte/Satin
Wheel Barrel/Lip Color Black
Wheel Barrel/Lip Finish Matte/Satin
Manufacturers Wheel Series Fifteen52 Range HD Series
Backspacing (in.) 4.75
Offset 0.00mm
Wheel Construction 1-piece
TPMS Sensor Compatible Yes
Beadlock Included No
Beadlock Functional No
Lug Nut Seat Style Conical seat - 60 degree
Hub Centric Ring Compatible Yes
Center Bore Diameter (in.) 4.18
Center Bore Diameter (mm) 106.20mm
Center Cap Included Yes
Load Rating (lbs.) 2,500 lbs.
Lug Nuts Included No
Small Diameter Lug Nuts Required No
Valve Stems Included No
Quantity Sold individually.
