Edelbrock Throttle Body Intake Elbows 3848
Edelbrock Throttle Body Intake Elbows 3848
Regular price
$209.94 AUD
Regular price
Sale price
$209.94 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
11 in stock
Couldn't load pickup availability
Product Description
For forward mounted throttle bodies. Low profile design. Maximum airflow. Available in cast or black finish.
These Edelbrock throttle body intake elbows are designed using the latest technology for unbeatable flow and performance. They adapt GM LS1, LS2, and Ford 5.0L based throttle bodies to EFI intake manifolds with a traditional square bore, 4150 type, mounting flange. Edelbrock throttle body intake elbows are available in standard or box-style configurations to fit a wide variety of engine and hood combinations. Cast from high-quality aluminum, the throttle body elbows feature several bore inlet sizes with your choice of natural or black powdercoated finishes.
Extended Description
- Low Profile Intake Elbow
- 90mm Throttle Body to Square-Bore Flange
- as-cast finish
Application Summary
Part Type
Fuel Injection Throttle Body Adapter
Additional Information 2
- The Edelbrock #9768 Intake Valve is a 1.90" 1-piece, swirl-polished, hardened tip stainless steel valve with undercut stems for increased flow. Fits Edelbrock #60379 Cylinder Heads.
description
| aaia_ |
Fuel Injection Throttle Body Adapter |
|---|---|
| associated_ |
The Edelbrock #9768 Intake Valve is a 1.90" 1-piece, swirl-polished, hardened tip stainless steel valve with undercut stems for increased flow. Fits Edelbrock #60379 Cylinder Heads. |
| key_ |
Edelbrock, Throttle Body, EFI, Manifold, Elbow, 70mm, 75mm, 80mm, 85mm, 90mm, Ford, Chevy, Honda, LS, 5.0, 5.7, T.B., 4150, Victor, Jr., Low, Ultra Low, Big Block, Small Block, Acura, Bracket, Adaptor, 3835, 3845, 3848, 38112, 38353, 38453, 38483 |
| label_ |
Throttle Body Intake Elbow #3848 Low Profile; 90mm Opening; Satin Finish |
| market_ |
For forward mounted throttle bodies. Low profile design. Maximum airflow. Available in cast or black finish. |
| product_ |
Adapter |
| product_ |
Low Profile Intake Elbow; 90mm Throttle Body to Square-Bore Flange; as-cast finish |
| product_ |
Edelbrock Fuel Injection |
| product_ |
Low Profile Intake Elbow; 90mm Throttle Body to Square-Bore Flange; as-cast fini |
| product_ |
INTAKE ELBOW |
| shipping_ |
{"eo":"2"} |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Fuel Injection |
| name | Edelbrock Throttle Body Intake Elbows 3848 |
| brand | Edelbrock |
| price | 174.95 |
| blurb | Throttle Body Elbow, Low Profile, Aluminum, 90mm Throttle Body to Square-Bore Flange, Ford 5.0L, GM LS1, Each |
| title | Edelbrock Throttle Body Intake Elbows |
| description | These Edelbrock throttle body intake elbows are designed using the latest technology for unbeatable flow and performance. They adapt GM LS1, LS2, and Ford 5.0L based throttle bodies to EFI intake manifolds with a traditional square bore, 4150 type, mounting flange. Edelbrock throttle body intake elbows are available in standard or box-style configurations to fit a wide variety of engine and hood combinations. Cast from high-quality aluminum, the throttle body elbows feature several bore inlet sizes with your choice of natural or black powdercoated finishes. |
item_row
| handle | EDE-3848 |
|---|---|
| item_ |
128475 |
| brand_ |
231 |
| brand_ |
Edelbrock |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/df699553f206a2bb9743ef9acf1a6b28.JPG |
| item_ |
3848 |
| item_ |
Edelbrock Low Profile Intake Elbow 90mm Throttle Body to Square-Bore Flange As-Cast Finish |
| item_ |
Engine Components |
| item_ |
Throttle Bodies |
| item_ |
85347038480 |
| item_ |
174.95 |
| item_ |
|
| t14_ |
0 |
| mfr_ |
|
| dim_ |
5.80 |
| dim_ |
14.30 |
| dim_ |
7.10 |
| dim_ |
6.90 |
| shipping_ |
14.52 |
| item_ |
ede3848 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Edelbrock |
|---|---|

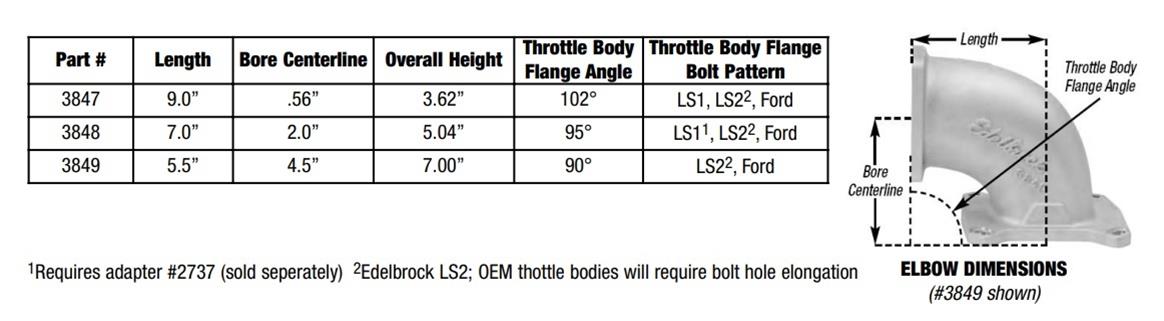

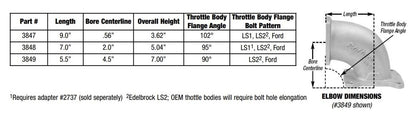

| Notes | Throttle bore center measures 7.0 in. forward and 2.0 in. above the intake manifold mounting flange. |
| Quantity | Sold individually. |
| Part Type | Throttle Body Intake Elbows |
| Product Line | Edelbrock Throttle Body Intake Elbows |
| Intake Elbow Type | Elbow |
| Intake Elbow Color | Natural |
| Intake Elbow Material | Aluminum |
| Throttle Body Bore Size | 90mm |
| Intake Elbow Height (in.) | 5.04 |
| Manufacturer's Part Number | 3848 |
