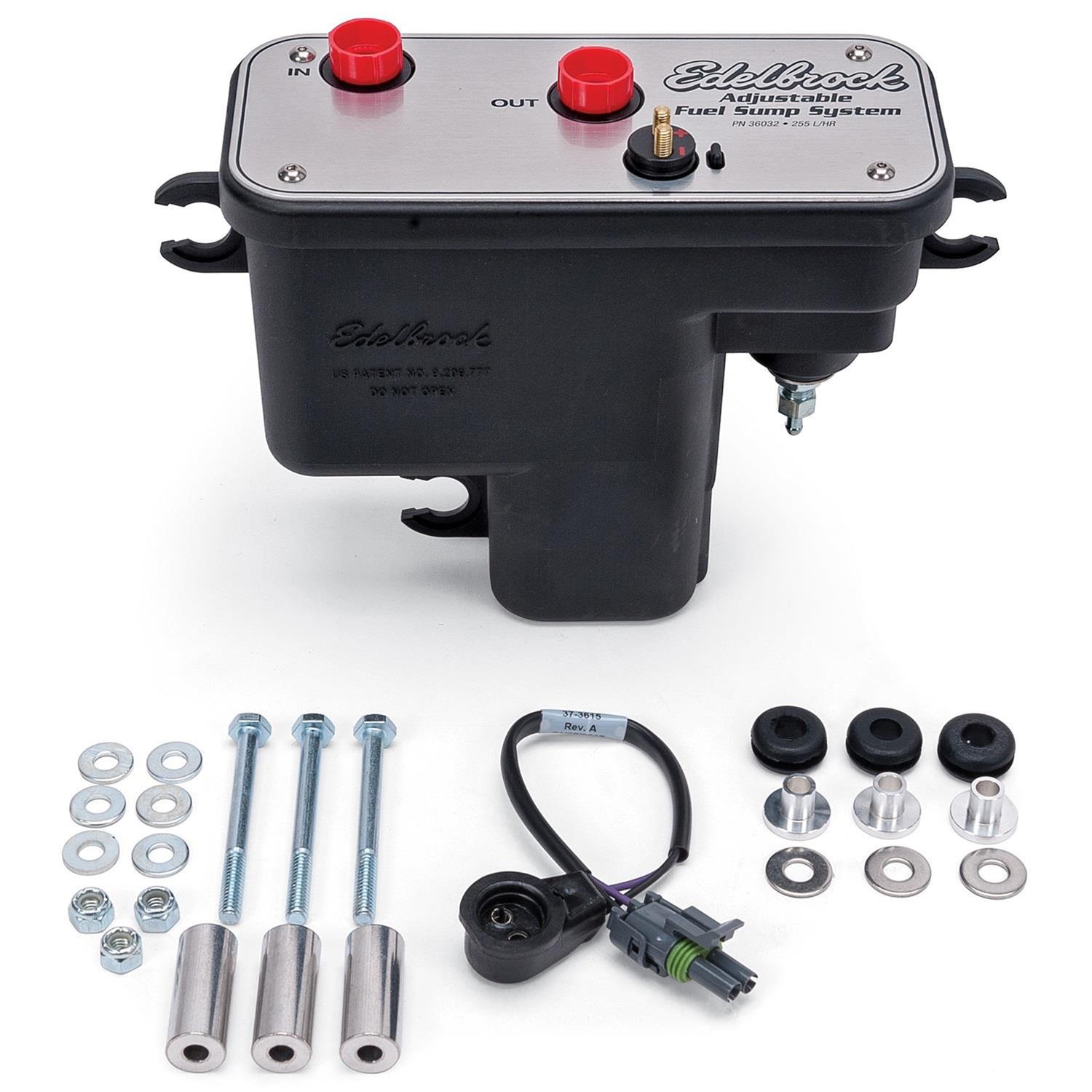

Edelbrock Universal EFI Sump Fuel Systems 36032
Edelbrock Universal EFI Sump Fuel Systems 36032
5 in stock
Couldn't load pickup availability
Product Description

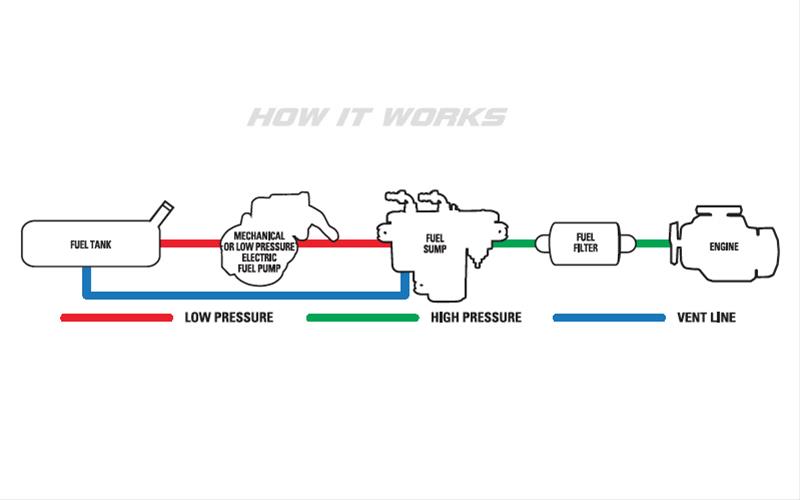

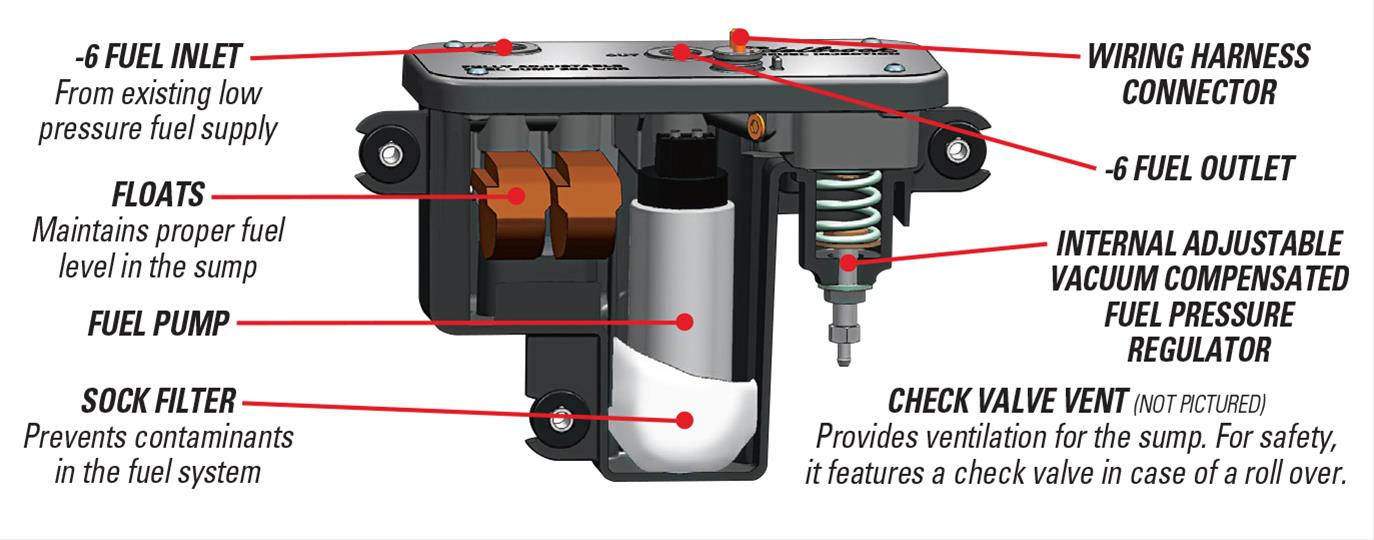

These Universal Sump Fuel Kits are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low pressure carbureted fuel system. They are a complete self-contained system that can be easily installed under the hood. The unique design of these systems allow them to deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. They are compatible with the existing factory fuel tank and pump. They are ideal for use with aftermarket EFI systems and with many popular engine swap applications that require constant 35-90 psi fuel pressure. These Fuel Sump Kits feature a compact design that is adjustable from 35 to 90 psi and include a vacuum reference port. They are available in a 67 gph flow rate and can support up to 600 HP. They're great solutions when used with a Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI system. Complete kit #36031 includes a durable, lightweight plastic fuel sump tank with high pressure fuel pump, wiring harness, hose and fittings. Fuel Sump Tank Assembly #36032 are for builders and consumers that want to utilize their own hose and fittings. Will require the installation of a vent line from the sump overflow vent port to the fuel tank. Edelbrock Universal EFI Sump Fuel Kits are the most affordable way to make your fuel system EFI ready.
Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator—and they're compatible with the existing factory fuel tank and pump. These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 gph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system. Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings, and all of the necessary hardware for installation.
Extended Description
- Universal EFI Fuel Sump tank Kit w/pump, tank, mounting
Application Summary
Part Type
Fuel Tank Sump
Additional Information 2
- Edelbrock Metering Rods .057 X .049 Pair.
description
| aaia_ |
Fuel Tank Sump |
|---|---|
| associated_ |
Edelbrock Metering Rods .057 X .049 Pair. |
| features_ |
Requires Vent Line From Sump Overflow Vent to Fuel Tank |
| key_ |
Edelbrock #36054; #36054; Sump; Fuel Pump Relay; Fuel Pump Relay Harness; Pump Relay Harness; Return-Style Fuel Kit #3604; Fuel Sump; #3605; #3607; #36052; E-Street TBI; E-Street EFI |
| label_ |
Universal EFI Fuel Sump #36032, 35-90 PSI, 67 GPH/255 LPH |
| market_ |
These Universal Sump Fuel Kits are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low pressure carbureted fuel system. They are a complete self-contained system that can be easily installed under the hood. The unique design of these systems allow them to deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. They are compatible with the existing factory fuel tank and pump. They are ideal for use with aftermarket EFI systems and with many popular engine swap applications that require constant 35-90 psi fuel pressure. These Fuel Sump Kits feature a compact design that is adjustable from 35 to 90 psi and include a vacuum reference port. They are available in a 67 gph flow rate and can support up to 600 HP. They're great solutions when used with a Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI system. Complete kit #36031 includes a durable, lightweight plastic fuel sump tank with high pressure fuel pump, wiring harness, hose and fittings. Fuel Sump Tank Assembly #36032 are for builders and consumers that want to utilize their own hose and fittings. Will require the installation of a vent line from the sump overflow vent port to the fuel tank. Edelbrock Universal EFI Sump Fuel Kits are the most affordable way to make your fuel system EFI ready. |
| product_ |
EFI Fuel Smp |
| product_ |
Universal EFI Fuel Sump tank Kit w/pump, tank, mounting |
| product_ |
Universal EFI Fuel Sump tank Kit |
| product_ |
EFI Sump Fuel Tank |
| product_ |
PUMPS |
| shipping_ |
{ eo : 9in.} |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Fuel Pumps & Regulators |
| name | Edelbrock Universal EFI Sump Fuel Systems 36032 |
| brand | Edelbrock |
| price | 406.95 |
| blurb | Fuel Pump, Electric, External, Universal EFI Sump, 67 gph, 35-90 psi, Supports up to 600 hp, Each |
| title | Edelbrock Universal EFI Sump Fuel Systems |
| description | Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator—and they're compatible with the existing factory fuel tank and pump. These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 gph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system. Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings, and all of the necessary hardware for installation. |
item_row
| handle | EDE-36032 |
|---|---|
| item_ |
126730 |
| brand_ |
231 |
| brand_ |
Edelbrock |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/cb014285e69c14b2d5a92f1a7585e739.JPG |
| item_ |
36032 |
| item_ |
Edelbrock Fuel System Universal Fuel Sump Module Adjustable Fuel Sump Tank Only 255 LPH |
| item_ |
Fuel Delivery |
| item_ |
Fuel Tanks |
| item_ |
85347360321 |
| item_ |
406.95 |
| item_ |
|
| t14_ |
5 |
| mfr_ |
0 |
| dim_ |
4.30 |
| dim_ |
13.60 |
| dim_ |
10.60 |
| dim_ |
4.30 |
| shipping_ |
15.86 |
| item_ |
ede36032 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Edelbrock 36032 Fuel Tanks These Universal Sump Fuel Kits are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low pressure carbureted fuel system. They are a complete self-contained system that can be easily installed under the hood. The unique design of these systems allow them to deliver a constant fuel pressure with no fuel return line, external fuel pressure regulator or fuel tank modifications. They are compatible with the existing factory fuel tank and pump. They are ideal for use with aftermarket EFI systems and with many popular engine swap applications that require constant 35-90 psi fuel pressure. These Fuel Sump Kits feature a compact design that is adjustable from 35 to 90 psi and include a vacuum reference port. They are available in a 67 gph flow rate and can support up to 600 HP. They're great solutions when used with a Pro-Flo 3, Pro-Flo 4 or other aftermarket EFI system. Complete kit #36031 includes a durable, lightweight plastic fuel sump tank with high pressure fuel pump, wiring harness, hose and fittings. Fuel Sump Tank Assembly #36032 are for builders and consumers that want to utilize their own hose and fittings. Will require the installation of a vent line from the sump overflow vent port to the fuel tank. Edelbrock Universal EFI Sump Fuel Kits are the most affordable way to make your fuel system EFI ready. Edelbrock universal EFI sump fuel systems are designed to provide the necessary high fuel pressure required for EFI applications in vehicles equipped with an existing low-pressure carbureted fuel system. They're complete self-contained systems that can be easily installed under the hood. The unique design of these systems allows them to deliver constant fuel pressure with no fuel return line or external fuel pressure regulator—and they're compatible with the existing factory fuel tank and pump.
These units are ideal for use with various aftermarket EFI systems and with many popular engine swap applications that require constant 35 to 90 psi fuel pressure. The systems feature a new compact design that's adjustable from 35 to 90 psi and include a vacuum reference port. These 67 gph pumps are a great solution when used with an Edelbrock Pro-Flo 4 or 4+, or other aftermarket EFI system.
Edelbrock universal EFI sump fuel systems are also available in a kit. Each complete kit includes a wiring harness, universal mounting brackets, hose, fittings, and all of the necessary hardware for installation. |
Overview
| Brand | Edelbrock |
|---|---|
| Quantity | Sold individually. |
| Flow Rate | 67 gph/255 lph |
| Part Type | Surge Tanks |

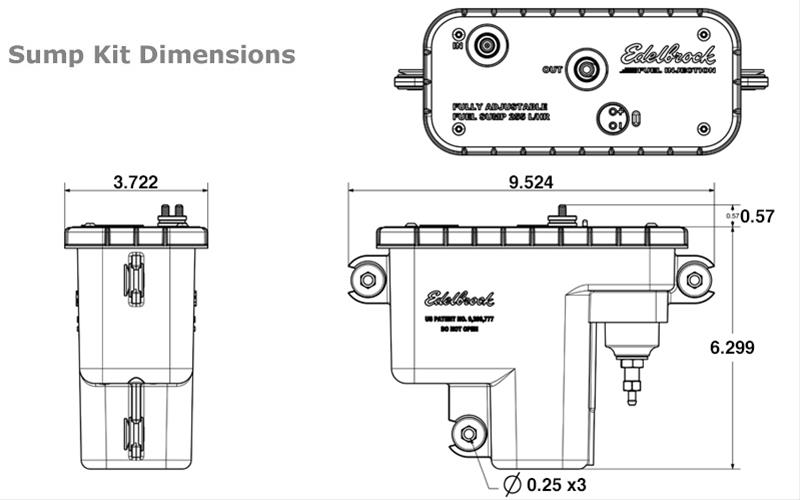

| Width (in.) | 3.750 in. |
| Height (in.) | 10.000 in. |
| Length (in.) | 9.000 in. |
| Product Line | Edelbrock Universal EFI Sump Fuel Systems |
| Inlet Quantity | 1 |
| Gasket Included | No |
| Outlet Quantity | 1 |
| Inlet Attachment | Female O-ring |
| Outlet Attachment | Female O-ring |
| Fuel Pump Included | Yes |
| Fuel Pump Inlet Size | -6 AN |
| Fuel Pump Outlet Size | -6 AN |
| Sending Unit Included | No |
| Maximum Pressure (psi) | 90 psi |
| Wiring Harness Included | Yes |
| Mounting Bracket Included | Yes |
| Manufacturer's Part Number | 36032 |
| Mounting Hardware Included | Yes |
| Fuel Pressure Regulator Included | Yes |
