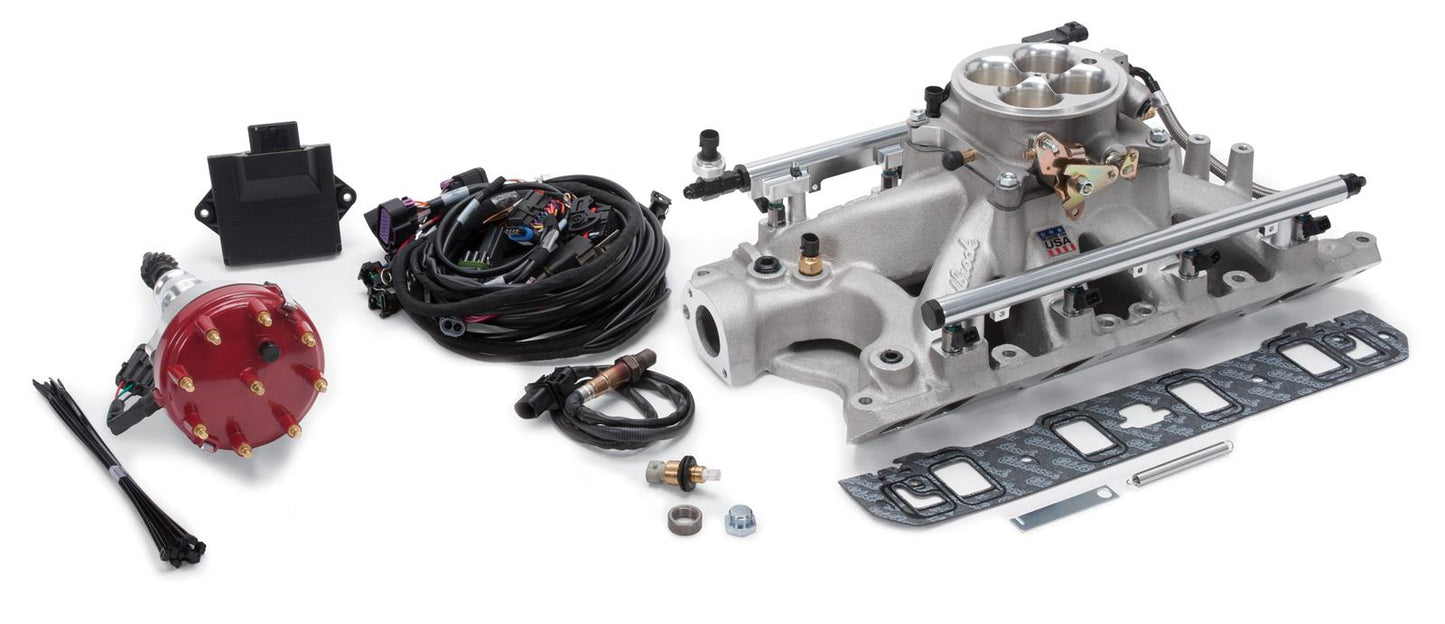

Edelbrock Pro-Flo 4 EFI Systems 35930
Edelbrock Pro-Flo 4 EFI Systems 35930
Tags
Product Description
When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock's Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it's a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App's easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar! ** INSTALLATION NOTE: These systems will require a high pressure EFI compatible fuel delivery system. Fuel delivery kits are available and sold separately. LS kits will require a coil harness which is sold separately. 24(x) reluctor applications will require #37-1633 and 58(x) reluctor applications will require #37-1632. #35760/#35770 manifold height: 4.58". #35780 Manifold height: 4.58". #35700/#35710 manifold height: 4.95". #35740/#35750 manifold height: 7.40". #35830/#35840 manifold height: 5.90". #35850/#35860 manifold height: 5.90". #359300 manifold height: 6.30". #335910 manifold height: 6.10". #35930/#35940 manifold height: 6.35". #35950 manifold height: 6.25". #35960 manifold height: 6.49". #35970/#35980 manifold height: 6.60". Throttle body height: 2.25"
Edelbrock Pro-Flo 4 EFI systems provide you with a high performance traditional-style intake and 4150-style throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno. Edelbrock Pro-Flo 4 EFI systems include and feature: * Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design * Fully assembled intake manifold with air valve, fuel rails, and injectors * Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation * E-Tuner application for setup and engine monitoring * Wideband oxygen sensor * Distributor (not included with LS kits) * Gaskets and hardware * Installation instructions * Ready to run out of the box with pre-loaded calibrations * Self-learning technology--no tuning experience or laptop tuning required * Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg * Offered with multiple fuel injector choices * Now boost compatible up to 15 psi by switching to a 2-bar MAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control. * Systems automatically compensate for altitude and weather changes * E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel.
Extended Description
- PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT FORD 289-302 550 HP 29 LbHr INJECTORS SATIN
Application Summary
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)
Fitment
Fitment
Part Type
Fuel Injector Kit
Additional Information 2
- Edelbrock Non-Adjustable Inlet Needle with Viton Tip 0.110" for use with Holley 2300, 4150, 4160, 4165, 4175 and 4500 Series, Quick Fuel 4500, Professional Series and Q-Series, as well as various Demon carburetors.
description
aaia_ |
Fuel Injector Kit |
---|---|
application_ |
Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L) |
associated_ |
Edelbrock Non-Adjustable Inlet Needle with Viton Tip 0.110" for use with Holley 2300, 4150, 4160, 4165, 4175 and 4500 Series, Quick Fuel 4500, Professional Series and Q-Series, as well as various Demon carburetors. |
key_ |
Edelbrock, EFI, Pro-Flo, Pro-Flo XT, EFI, Fuel Injection, Electronic Fuel Injection, Ford, Small-Block, 35930 |
label_ |
Pro-Flo 4 EFI Traditional 4150-Style Kit #35930 Ford SB Windsor 289, 302 C.I.D. |
market_ |
When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock''s Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it''s a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App''s easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar! ** INSTALLATION NOTE: These systems will require a high pressure EFI compatible fuel delivery system. Fuel delivery kits are available and sold separately. LS kits will require a coil harness which is sold separately. 24(x) reluctor applications will require #37-1633 and 58(x) reluctor applications will require #37-1632. #35760/#35770 manifold height: 4.58". #35780 Manifold height: 4.58". #35700/#35710 manifold height: 4.95". #35740/#35750 manifold height: 7.40". #35830/#35840 manifold height: 5.90". #35850/#35860 manifold height: 5.90". #359300 manifold height: 6.30". #335910 manifold height: 6.10". #35930/#35940 manifold height: 6.35". #35950 manifold height: 6.25". #35960 manifold height: 6.49". #35970/#35980 manifold height: 6.60". Throttle body height: 2.25" |
product_ |
EFI System |
product_ |
PRO FLO 4 FUEL INJECTION KIT SEQUENTIAL PORT FORD 289-302 550 HP 29 LbHr INJECTORS SATIN |
product_ |
Edelbrock Fuel Injection |
product_ |
Pro-Flo 4 EFI Kit for Ford 289W-302W C.I.D. Engines |
product_ |
FUEL INJECTION |
shipping_ |
{"eo":"7"} |
s_item
department | Air & Fuel Delivery |
---|---|
section | Fuel Injection |
name | Edelbrock Pro-Flo 4 EFI Systems 35930 |
brand | Edelbrock |
price | 2420.95 |
blurb | Fuel Injection System, Pro-Flo 4, Self-Learning, Sequential Multi-Port, Satin, 450 HP Max, Small Block Ford, Kit |
title | Edelbrock Pro-Flo 4 EFI Systems |
description | Edelbrock Pro-Flo 4 EFI systems provide you with a high performance traditional-style intake and 4150-style throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno. Edelbrock Pro-Flo 4 EFI systems include and feature: * Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design * Fully assembled intake manifold with air valve, fuel rails, and injectors * Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation * E-Tuner application for setup and engine monitoring * Wideband oxygen sensor * Distributor (not included with LS kits) * Gaskets and hardware * Installation instructions * Ready to run out of the box with pre-loaded calibrations * Self-learning technology--no tuning experience or laptop tuning required * Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg * Offered with multiple fuel injector choices * Now boost compatible up to 15 psi by switching to a 2-bar MAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control. * Systems automatically compensate for altitude and weather changes * E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel. |
item_row
handle | EDE-35930 |
---|---|
item_ |
197032 |
brand_ |
231 |
brand_ |
Edelbrock |
item_ |
https://d32vzsop7y1h3k.cloudfront.net/e9e5819db79207777f2796bd30e3f435.JPG |
item_ |
35930 |
item_ |
Edelbrock Pro Flo 4 Fuel Injection Kit Seq Port Ford 289-302 ci 550 HP 29 LbHr Injectors Satin |
item_ |
Fuel Delivery |
item_ |
Fuel Injection Control Modules |
item_ |
85347359301 |
item_ |
2420.95 |
item_ |
|
t14_ |
2 |
mfr_ |
|
dim_ |
38.30 |
dim_ |
30.30 |
dim_ |
25.20 |
dim_ |
10.70 |
shipping_ |
17.85 |
item_ |
ede35930 |
taxonomy_ |
|
collection_ |
|
collection_ |
|
status | Active |
item_ |
1 |
bodyHtml | Edelbrock 35930 Fuel Injection Control Modules When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock's Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it's a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App's easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar! ** INSTALLATION NOTE: These systems will require a high pressure EFI compatible fuel delivery system. Fuel delivery kits are available and sold separately. LS kits will require a coil harness which is sold separately. 24(x) reluctor applications will require #37-1633 and 58(x) reluctor applications will require #37-1632. #35760/#35770 manifold height: 4.58". #35780 Manifold height: 4.58". #35700/#35710 manifold height: 4.95". #35740/#35750 manifold height: 7.40". #35830/#35840 manifold height: 5.90". #35850/#35860 manifold height: 5.90". #359300 manifold height: 6.30". #335910 manifold height: 6.10". #35930/#35940 manifold height: 6.35". #35950 manifold height: 6.25". #35960 manifold height: 6.49". #35970/#35980 manifold height: 6.60". Throttle body height: 2.25" Edelbrock Pro-Flo 4 EFI systems provide you with a high performance traditional-style intake and 4150-style throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno.
Edelbrock Pro-Flo 4 EFI systems include and feature:
* Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design
* Fully assembled intake manifold with air valve, fuel rails, and injectors
* Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation
* E-Tuner application for setup and engine monitoring
* Wideband oxygen sensor
* Distributor (not included with LS kits)
* Gaskets and hardware
* Installation instructions
* Ready to run out of the box with pre-loaded calibrations
* Self-learning technology--no tuning experience or laptop tuning required
* Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg
* Offered with multiple fuel injector choices
* Now boost compatible up to 15 psi by switching to a 2-bar MAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control.
* Systems automatically compensate for altitude and weather changes
* E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel. |
Overview
Brand | Edelbrock |
---|---|
Manufacturer's Part Number | 35930 |
Part Type | Fuel Injection Systems |
Product Line | Edelbrock Pro-Flo 4 EFI Systems |
Fuel Injection Style | Multi-port |
Fuel Injection System Type | Single 4-Barrel Throttle Body (4150 Flange) |
Maximum Horsepower with Gas | 450 |
Timing Control Compatible | Yes |
Power Adder Compatible | Yes |
ECM Included | Yes |
Self Tuning | Yes |
User Tunable | Yes |
Fuel Pump Included | No |
EGR | No |
Transmission Controller Included | No |
Metering Style | Speed density |
Intake Manifold Included | Yes |
Intake Section Included | Complete |
Intake Material | Aluminum |
Intake Color | Natural |
Engine Block Deck Height | Standard deck |
Multi-Port Fuel Rails Included | Yes |
Throttle Body Included | Yes |
Throttle Body Mounting Flange | 4-barrel square bore |
Venturi Quantity | 4 |
Venturi Diameter (mm) | 44.45mm |
Airflow Rate (cfm) | 1,000 cfm |
Throttle Body Material | Cast aluminum |
Throttle Body Color | Natural |
Injectors Included | Yes |
Injector Size (lbs/hr) | 29 lbs./hr. |
Calibration Module Included | No |
Wiring Harness Included | Yes |
Oxygen Sensor Included | Yes |
Fuel Pressure Regulator Included | No |
Distributor Included | Yes |
MAP Sensor Included | Yes |
IAT Sensor Included | Yes |
TPS Sensor Included | Yes |
IAC Motor Included | Yes |
Quantity | Sold as a kit. |
Notes | Boosted engines require a 2-bar MAP sensor. The distributor gear is compatible with iron flat tappet camshafts and austempered iron hydraulic roller camshafts. Not for use with factory steel hydraulic roller cams. Factory steel hydraulic roller camshafts will need to use the EDL-22735 distributor gear. The E-Tuner 4 app communicates wireless via Bluetooth and is available for IOS or Android platforms. |
