Edelbrock Pro-Flo 4 XT EFI Systems 35920

Edelbrock Pro-Flo 4 XT EFI Systems 35920

$3,271.14 AUD
$3,271.14 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Product Description

When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock's Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it's a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App's easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar!

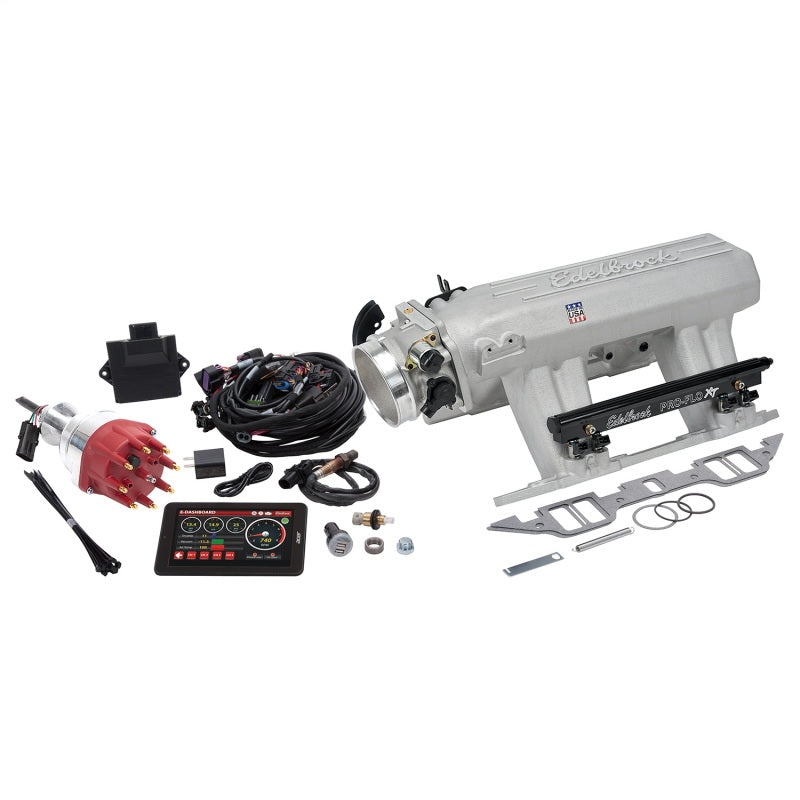

Edelbrock Pro-Flo 4 XT EFI systems provide you with a high performance Pro-Flo XT-style intake and 90mm throttle body. Unlike regular throttle body EFI systems, Pro-Flo 4 features the fuel rails and individual injectors for each cylinder mounted on the manifold. This Edelbrock design produces the best fuel atomization and distribution for the ultimate performance, as well as delivering the most control and the most efficient way to deliver fuel to your engine. Along with innovative design, Pro-Flo 4 systems have the latest technology with an all-new ECU, and even more features for advanced tuning, with the key being their exclusive E-Tuner app with base calibrations developed on their dyno. Edelbrock Pro-Flo 4 XT EFI systems include and feature: * Engine Control Unit with faster processor and upgraded Bluetooth chip in a thinner waterproof design * Fully assembled XT intake manifold with air valve, fuel rails, and injectors * Fully assembled OEM high-quality wiring harness with pre-terminated connectors and labeled connection for a simplified installation * E-Tuner application for setup and engine monitoring * Wideband oxygen sensor * Distributor * Gaskets and hardware * Installation instructions * Ready to run out of the box with pre-loaded calibrations * Self-learning technology--no tuning experience or laptop tuning required * Ignition control--adjust ignition curve with the E-Tuner 4 App for optimal performance and mpg * Offered with multiple fuel injector choices * Now boost compatible up to 15 psi by switching to a 2.5-bar TMAP sensor and downloading the new firmware update from Edelbrock for free! It is recommended to regularly check for firmware updates even if not utilizing boost control. * Systems automatically compensate for altitude and weather changes * E-Tuner 4 app with Bluetooth connectivity between ECU and Android phone or tablet. Includes multiple dash display configurations for monitoring engine vitals and performance; multiple control functions including two adjustable cooling fan outputs, idle speed, AFR set points, acceleration fuel tuning, ignition control, cold start fuel, and cranking fuel.

Extended Description

  • PRO FLO 4 FUEL INJECTION KIT XT SEQUENTIAL PORT BB CHRYSLER RB 413

  • 426

  • 440 ci 625 MAX HP 35 LbHr INJECTORS SATIN

Application Summary

Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)

Fitment

Jensen Interceptor 1972–1976
Chrysler Imperial 1959–1975 Chrysler New Yorker 1959–1978 Chrysler Newport 1959–1978 Chrysler Town & Country 1959–1977 Chrysler 300 1959–1971
Dodge B200 1975–1978 Dodge B300 1975–1978 Dodge CB300 1977–1979 Dodge Coronet 1965–1976 Dodge D100 1975–1978 Dodge D150 1978 Dodge D200 1975–1978 Dodge D300 1975–1978 Dodge Monaco 1965–1978 Dodge Ramcharger 1974–1978 Dodge Royal Monaco 1975–1977 Dodge W100 1975–1977 Dodge W150 1978 Dodge W200 1975–1978 Dodge W300 1975–1978 Dodge 330 1963–1964 Dodge 440 1963–1964 Dodge 880 1963–1965 Dodge B100 Van 1974 Dodge B200 Van 1974 Dodge B300 Van 1974 Dodge Challenger 1970–1972 Dodge Charger 1967–1974 Dodge D100 Pickup 1973–1974 Dodge D200 Pickup 1973–1974 Dodge D300 Pickup 1972–1974 Dodge Dart 1961–1962 Dodge Lancer 1961 Dodge M300 1974 Dodge Polara 1961–1973 Dodge W100 Pickup 1973–1974 Dodge W200 Pickup 1973–1974 Dodge W300 Pickup 1972–1974 Dodge Truck 1960 Dodge Custom 1961 Dodge MB300 1974
Plymouth Fury 1961–1975, 1977–1978 Plymouth Gran Fury 1972–1977 Plymouth PB200 1976–1978 Plymouth PB300 1976–1978 Plymouth Trailduster 1974–1978 Plymouth Barracuda 1970–1972 Plymouth Belvedere 1961–1967 Plymouth Cuda 1970–1972 Plymouth Fleet Special 1961–1963 Plymouth Fury I 1968–1974 Plymouth Fury II 1968–1974 Plymouth Fury III 1968–1974 Plymouth GTX 1967–1971 Plymouth PB200 Van 1974 Plymouth PB300 Van 1974 Plymouth Road Runner 1969–1974 Plymouth Satellite 1965–1967, 1973–1974 Plymouth Savoy 1961–1964 Plymouth Sport Wagon 1961 Plymouth Suburban 1961 Plymouth Superbird 1970 Plymouth VIP 1967 Plymouth Belvedere II 1967 Plymouth Custom 1961

Part Type

Fuel Injector Kit

Additional Information 2

  • Edelbrock Nitrous Pressure Gauge #73800 has a 1-1/2" diameter and can support up to 1400 psi. This gauge may be fitted onto a nitrous bottle or just in front of the solenoid.

Overview

Brand Edelbrock
Manufacturer's Part Number 35920
Part Type Fuel Injection Systems
Product Line Edelbrock Pro-Flo 4 XT EFI Systems
Fuel Injection Style Multi-port
Fuel Injection System Type Multi-port Throttle Body
Maximum Horsepower with Gas 550
Timing Control Compatible Yes
Power Adder Compatible Yes
ECM Included Yes
Self Tuning Yes
User Tunable Yes
Fuel Pump Included No
EGR No
Transmission Controller Included No
Metering Style Speed density
Intake Manifold Included Yes
Intake Section Included Complete
Intake Material Aluminum
Intake Color Natural
Engine Block Deck Height Standard deck
Multi-Port Fuel Rails Included Yes
Throttle Body Included Yes
Venturi Quantity 1
Venturi Diameter (mm) 90.00mm
Airflow Rate (cfm) 1,100 cfm
Throttle Body Material Aluminum
Throttle Body Finish Natural
Injectors Included Yes
Injector Size (lbs/hr) 35 lbs./hr.
Calibration Module Included No
Wiring Harness Included Yes
Oxygen Sensor Included Yes
Fuel Pressure Regulator Included No
Distributor Included Yes
MAP Sensor Included Yes
IAT Sensor Included Yes
TPS Sensor Included Yes
IAC Motor Included Yes
Quantity Sold as a kit.
Notes Supports up to 550 HP; BB Chrysler. Tuning and set-up app can be downloaded to a Bluetooth capable tablet or smart phone from either the Apple or Google app stores. Use with boosted applications requires a 2.5-bar MAP sensor.
