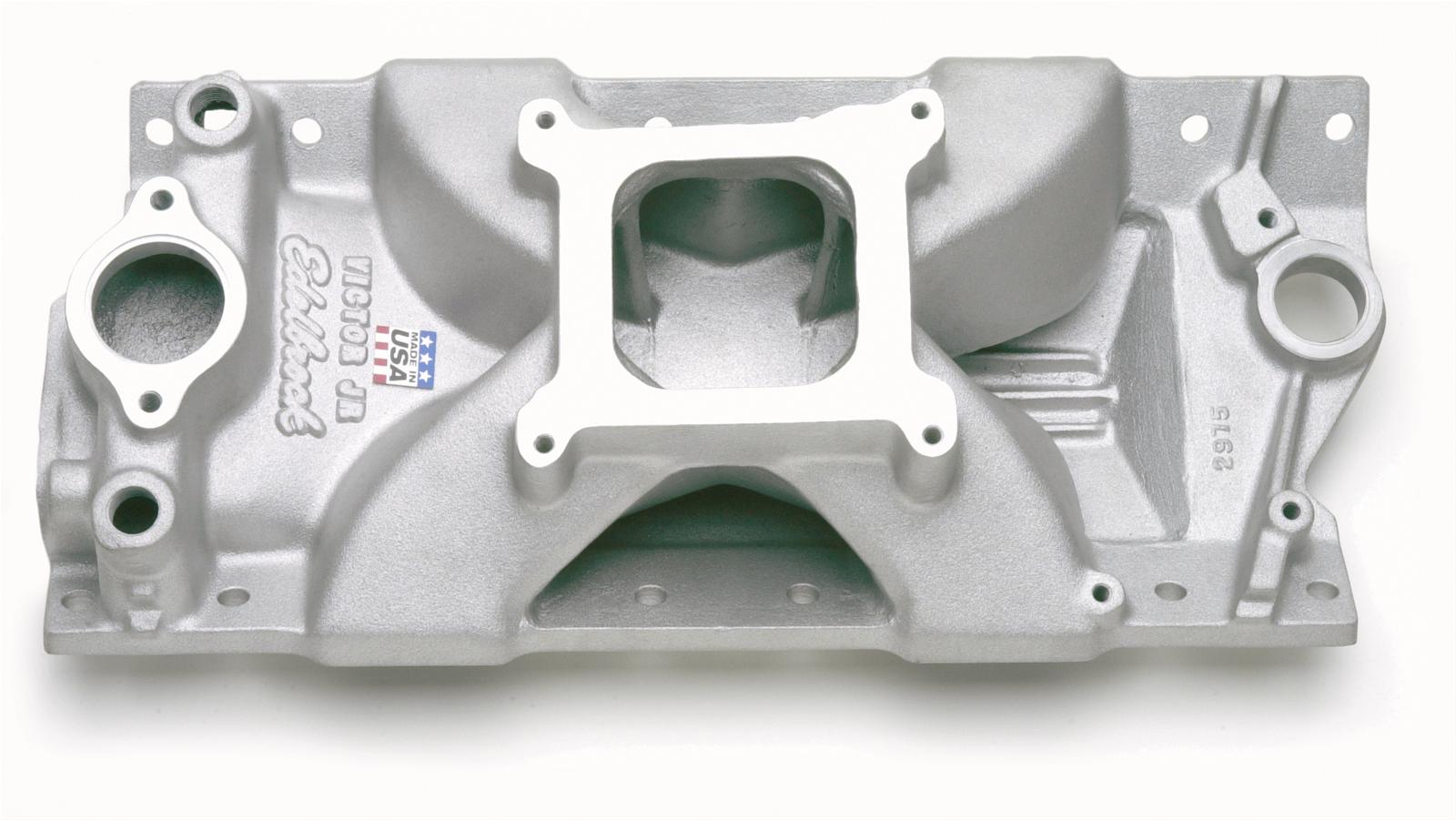

Edelbrock Victor Jr. Intake Manifolds 2975
Edelbrock Victor Jr. Intake Manifolds 2975
Out of stock
Couldn't load pickup availability
Product Description
These versatile manifolds are excellent for many applications from drag to circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. #72975 features a pre-assembled ready to bolt-on direct port nitrous system out-of-the-box, see page 27. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. Installation Notes: Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206.
Low-profile, single-plane Edelbrock Victor Jr. intake manifolds are very versatile and can be used for drag racing and Oval Track competition, as well as for street applications. Power bands range from 3,500 to 7,000 rpm, on up to 4,500 to 8,000 rpm. There are applications for small block and big block engines, as well as for 2-barrel and 4-barrel carburetors. Some manifolds accept standard restrictor plates and carb adapters.
Extended Description
- Edelbrock Victor Jr. Manifold
Application Summary
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Part Type
Engine Intake Manifold
Additional Information 2
- Edelbrock part #8130 Fuel Filter is for high volume fuel systems this high-quality fuel filter is manufactured of billet aluminum. This Fuel Filter is 3" long by 1-1/4" in diameter and include a 40-micron disc element.
description
| aaia_ |
Engine Intake Manifold |
|---|---|
| application_ |
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| associated_ |
Edelbrock part #8130 Fuel Filter is for high volume fuel systems this high-quality fuel filter is manufactured of billet aluminum. This Fuel Filter is 3" long by 1-1/4" in diameter and include a 40-micron disc element. |
| key_ |
2975, Chevy, Chevrolet, Edelbrock, Intake Manifold, Intake, Manifold, Single-Plane, Victor JR., Satin |
| label_ |
Victor Jr. 23 Degree Intake Manifold Small-Block Chevy |
| market_ |
These versatile manifolds are excellent for many applications from drag to circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. #72975 features a pre-assembled ready to bolt-on direct port nitrous system out-of-the-box, see page 27. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. Installation Notes: Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206. |
| product_ |
Intake Mnfld |
| product_ |
Edelbrock Victor Jr. Manifold |
| product_ |
Edelbrock Manifold-Race |
| product_ |
Victor Jr. Manifold |
| product_ |
MANIFOLD-RACE |
| shipping_ |
{"eo":"2"} |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Intake Manifolds |
| name | Edelbrock Victor Jr. Intake Manifolds 2975 |
| brand | Edelbrock |
| price | 404.95 |
| blurb | Intake Manifold, Victor Jr., Single Plane, Aluminum, Natural, Square Bore, Chevy, Small Block, Each |
| title | Edelbrock Victor Jr. Intake Manifolds |
| description | Low-profile, single-plane Edelbrock Victor Jr. intake manifolds are very versatile and can be used for drag racing and Oval Track competition, as well as for street applications. Power bands range from 3,500 to 7,000 rpm, on up to 4,500 to 8,000 rpm. There are applications for small block and big block engines, as well as for 2-barrel and 4-barrel carburetors. Some manifolds accept standard restrictor plates and carb adapters. |
item_row
| handle | EDE-2975 |
|---|---|
| item_ |
129086 |
| brand_ |
231 |
| brand_ |
Edelbrock |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/934fc107e69e9f35d4c8ffe63c0f5843.JPG |
| item_ |
2975 |
| item_ |
Edelbrock Victor Jr Manifold |
| item_ |
Engine Components |
| item_ |
Intake Manifolds |
| item_ |
85347029754 |
| item_ |
404.95 |
| item_ |
|
| t14_ |
1 |
| mfr_ |
|
| dim_ |
20.40 |
| dim_ |
23.20 |
| dim_ |
14.80 |
| dim_ |
7.80 |
| shipping_ |
15.78 |
| item_ |
ede2975 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
| bodyHtml | Edelbrock 2975 Intake Manifolds These versatile manifolds are excellent for many applications from drag to circle track racing. They provide maximum performance for engines with standard port location, iron and aluminum cylinder heads. The low-profile of the #2975 works well in applications with minimal hood clearance and where 1" or 2" spacers can be used for performance tuning. When carb spacers are not allowed, the #2999 should be used. #72975 features a pre-assembled ready to bolt-on direct port nitrous system out-of-the-box, see page 27. The Victor Jr. Port Matched manifold has CNC-blended port exits that match any competition head using Fel-Pro gasket #1206. Installation Notes: Recommended intake gasket: Edelbrock #7201 or Fel-Pro #1206. Low-profile, single-plane Edelbrock Victor Jr. intake manifolds are very versatile and can be used for drag racing and Oval Track competition, as well as for street applications. Power bands range from 3,500 to 7,000 rpm, on up to 4,500 to 8,000 rpm. There are applications for small block and big block engines, as well as for 2-barrel and 4-barrel carburetors. Some manifolds accept standard restrictor plates and carb adapters. |
Overview
| EGR | No |
|---|---|
| Brand | Edelbrock |
| Notes | Low-profile design for applications with limited underhood clearance. |
| Quantity | Sold individually. |
| Part Type | Intake Manifolds, Carbureted |
| Intake Color | Natural |
| Intake Style | Single plane |
| Product Line | Edelbrock Victor Jr. Intake Manifolds |
| Intake Material | Aluminum |
| Carburetor Quantity | One |
| Intake Manifold Height | 4.580 in. |
| Intake Section Included | Complete |
| Engine Block Deck Height | Standard deck |
| Basic Operating RPM Range | 3,500-8,000 |
| Manufacturer's Part Number | 2975 |
