Edelbrock E-Force FR-S and BRZ Supercharger Kits 1556
Edelbrock E-Force FR-S and BRZ Supercharger Kits 1556
Out of stock
Couldn't load pickup availability
Tags
Product Description

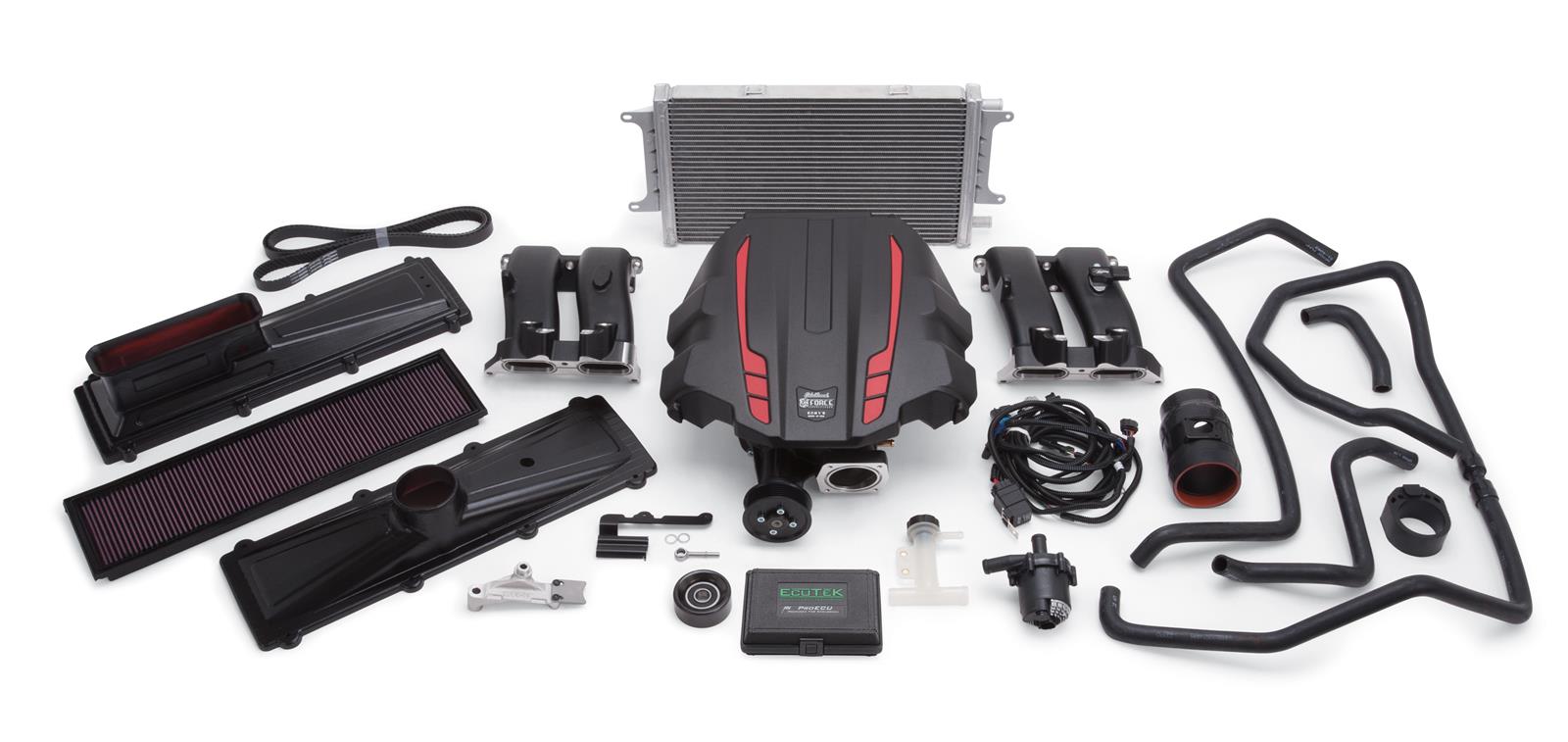

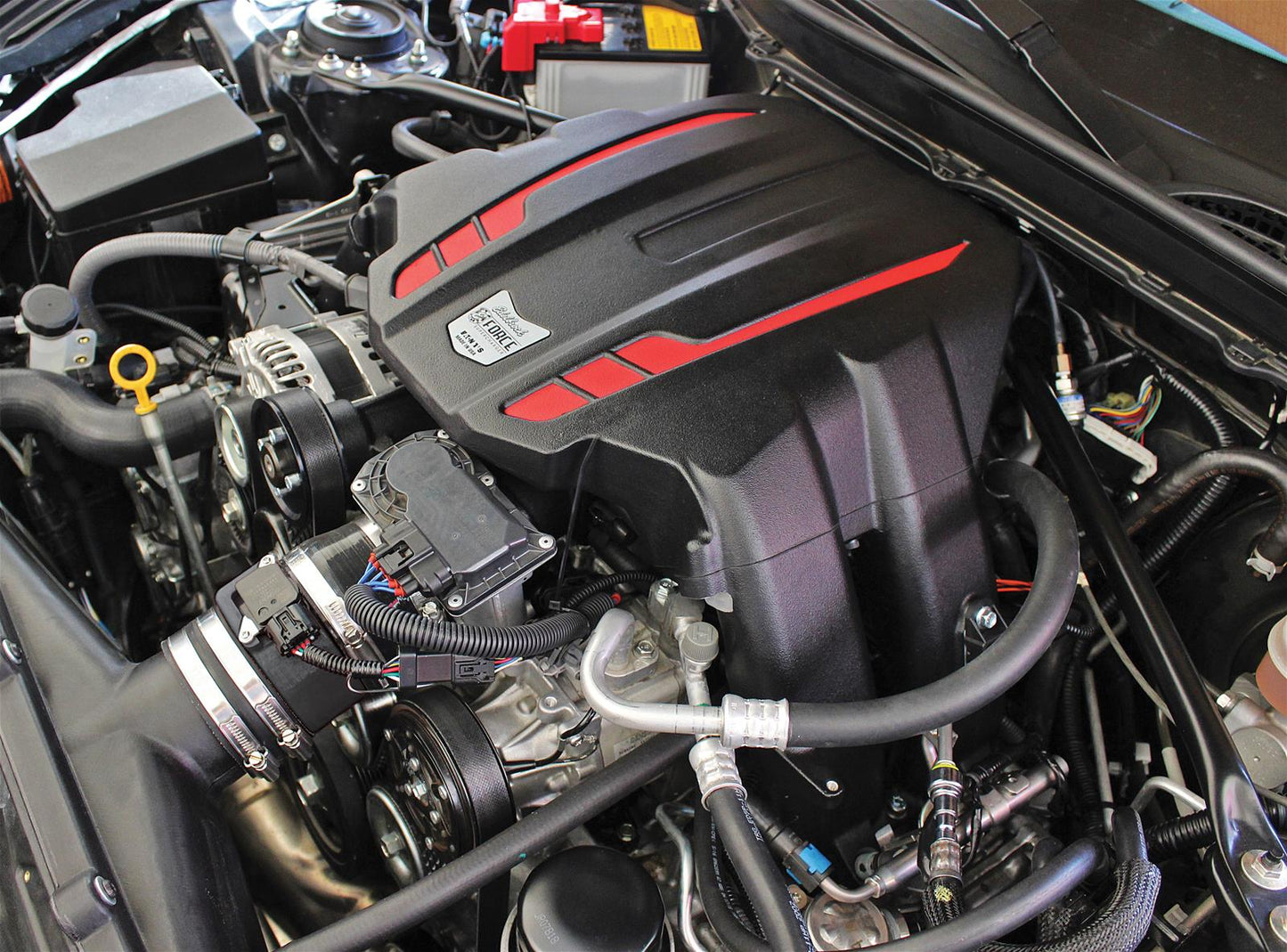

The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged!
Edelbrock E-Force FR-S and BRZ Supercharger kits have finally arrived for your 2.0L equipped FR-S and BRZ. These kits are designed exclusively for the FA20/4U-GSE engine. The unique inverted design features long runners that allow for maximum flow at high rpm, while retaining great daily driving characteristics. The superchargers have been designed from the ground-up and utilize Eaton 1320 TVS rotor assemblies for maximum efficiency in a compact package. As with all Edelbrock E-Force superchargers, these systems feature an efficient high-flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. A large dual pass air-to-water intercooler and heat exchanger cool the incoming air. All of these features help the E-Force supercharger to deliver dramatically improved performance—especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, each supercharger assembly is finished in a durable black powdercoat with red accents for a unique look that will let everyone know your car is E-Force powered! Kits are available with or without tuner. Order the model recommended for your vehicle. Additional product features: * High-flow intake box and filter that allows for twice the airflow * Compact design fits under the stock hood without modification * Supplied with preformed hoses for ease of installation * Bolt-on installation; everything fits right out of the box with no cutting or welding required * Features Eaton Gen VI 1320 TVS rotor assembly—the same high-quality rotors used by many OEM manufacturers * Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required) * Includes an EcuTek ProECU Programming Kit with E-Force tune pre-installed * Integrated bypass valve for minimal decrease in fuel economy * 50-state emissions pending with Edelbrock tune * 3-year / 36,000 mile powertrain warranty
Extended Description
- Supercharger
- Stage 1-Street Kit
- 2013-2015
- Scion FR-S/Subaru BRZ/Toyota GT86
- 2.0L
- With Tuner
Application Summary
Subaru:Opposed 4-Cylinder:122 (2.0L)
Fitment
Fitment
Part Type
Additional Information 2
- High Flow intake box and filter that allows for 2x more air flow
- Compact design fits under the stock hood
- Supplied with preformed hoses for ease of installation - no trimming needed
- Bolt-on installation - everything fits right out of the box
- with no cutting or welding needed
- Utilizes Eaton Gen VI 1320 TVS rotor assembly
- the same
- high-quality rotors used by many OEM manufacturers
- Self contained oil system with 100,000 mile service interval
- Includes an EcuTek ProECU Programming Kit with E-Force tune pre-installed
- Integrated bypass valve for minimal decrease in fuel economy
description
| application_ |
Subaru:Opposed 4-Cylinder:122 (2.0L) |
|---|---|
| associated_ |
High Flow intake box and filter that allows for 2x more air flow; Compact design fits under the stock hood; Supplied with preformed hoses for ease of installation - no trimming needed; Bolt-on installation - everything fits right out of the box; with no cutting or welding needed; Utilizes Eaton Gen VI 1320 TVS rotor assembly; the same; high-quality rotors used by many OEM manufacturers; Self contained oil system with 100,000 mile service interval; Includes an EcuTek ProECU Programming Kit with E-Force tune pre-installed; Integrated bypass valve for minimal decrease in fuel economy |
| key_ |
Edelbrock; Scion; Subaru; Toyota; 2013; 2014; 2015; 2016; 2017; FRS; 86; BRZ; 2.0L Supercharger; 1556 |
| label_ |
Edelbrock Supercharger #1556 13-17 Subaru BRZ/Scion FR-S/Toyota 86 2.0L W/Tune |
| market_ |
The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! |
| product_ |
SuperchrgrKt |
| product_ |
Supercharger; Stage 1-Street Kit; 2013-2015; Scion FR-S/Subaru BRZ/Toyota GT86; 2.0L; With Tuner |
| product_ |
Edelbrock Supercharger |
| product_ |
2013-2015 Scion FR-S/Subaru BRZ/ Toyota GT86 Supercharger |
| product_ |
Supercharger |
| shipping_ |
{"eo":"1","eo_carb_number":"D-215-116","eo_carb_link":"https://ww3.arb.ca.gov/msprog/aftermkt/devices/eo/d-215-116.pdf"} |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Superchargers & Turbochargers |
| name | Edelbrock E-Force FR-S and BRZ Supercharger Kits 1556 |
| brand | Edelbrock |
| price | 7000.87 |
| blurb | E-Force Supercharger, Stage 1, Street, Black Powdercoated, Scion FR-S, Subaru BRZ, Toyota 86, 2.0L, With Tuner, Kit |
| title | Edelbrock E-Force FR-S and BRZ Supercharger Kits |
| description | Edelbrock E-Force FR-S and BRZ Supercharger kits have finally arrived for your 2.0L equipped FR-S and BRZ. These kits are designed exclusively for the FA20/4U-GSE engine. The unique inverted design features long runners that allow for maximum flow at high rpm, while retaining great daily driving characteristics. The superchargers have been designed from the ground-up and utilize Eaton 1320 TVS rotor assemblies for maximum efficiency in a compact package. As with all Edelbrock E-Force superchargers, these systems feature an efficient high-flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. A large dual pass air-to-water intercooler and heat exchanger cool the incoming air. All of these features help the E-Force supercharger to deliver dramatically improved performance—especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, each supercharger assembly is finished in a durable black powdercoat with red accents for a unique look that will let everyone know your car is E-Force powered! Kits are available with or without tuner. Order the model recommended for your vehicle. Additional product features: * High-flow intake box and filter that allows for twice the airflow * Compact design fits under the stock hood without modification * Supplied with preformed hoses for ease of installation * Bolt-on installation; everything fits right out of the box with no cutting or welding required * Features Eaton Gen VI 1320 TVS rotor assembly—the same high-quality rotors used by many OEM manufacturers * Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required) * Includes an EcuTek ProECU Programming Kit with E-Force tune pre-installed * Integrated bypass valve for minimal decrease in fuel economy * 50-state emissions pending with Edelbrock tune * 3-year / 36,000 mile powertrain warranty |
item_row
| handle | EDE-1556 |
|---|---|
| item_ |
128280 |
| brand_ |
231 |
| brand_ |
Edelbrock |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5f8585b170d95149c28841b736408b45.JPG |
| item_ |
1556 |
| item_ |
Edelbrock Supercharger Stage 1 - Street Kit 12-19 Scion FR-S/Subaru BRZ/Toyota GT86 2.0L |
| item_ |
Forced Induction |
| item_ |
Superchargers |
| item_ |
85347015566 |
| item_ |
7000.87 |
| item_ |
|
| t14_ |
1 |
| mfr_ |
|
| dim_ |
96.00 |
| dim_ |
32.60 |
| dim_ |
25.70 |
| dim_ |
17.70 |
| shipping_ |
41.89 |
| item_ |
ede1556 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Fits:
Edelbrock 1556 Superchargers The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! Edelbrock E-Force FR-S and BRZ Supercharger kits have finally arrived for your 2.0L equipped FR-S and BRZ. These kits are designed exclusively for the FA20/4U-GSE engine. The unique inverted design features long runners that allow for maximum flow at high rpm, while retaining great daily driving characteristics. The superchargers have been designed from the ground-up and utilize Eaton 1320 TVS rotor assemblies for maximum efficiency in a compact package. As with all Edelbrock E-Force superchargers, these systems feature an efficient high-flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. A large dual pass air-to-water intercooler and heat exchanger cool the incoming air. All of these features help the E-Force supercharger to deliver dramatically improved performance—especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, each supercharger assembly is finished in a durable black powdercoat with red accents for a unique look that will let everyone know your car is E-Force powered! Kits are available with or without tuner. Order the model recommended for your vehicle.
Additional product features:
* High-flow intake box and filter that allows for twice the airflow
* Compact design fits under the stock hood without modification
* Supplied with preformed hoses for ease of installation
* Bolt-on installation; everything fits right out of the box with no cutting or welding required
* Features Eaton Gen VI 1320 TVS rotor assembly—the same high-quality rotors used by many OEM manufacturers
* Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required)
* Includes an EcuTek ProECU Programming Kit with E-Force tune pre-installed
* Integrated bypass valve for minimal decrease in fuel economy
* 50-state emissions pending with Edelbrock tune
* 3-year / 36,000 mile powertrain warranty |
Overview
| Brand | Edelbrock |
|---|---|
| Quantity | Sold as a kit. |
| Emissions | California EO Approved |
| Part Type | Superchargers, Roots Style Kits |
| Product Line | Edelbrock E-Force FR-S and BRZ Supercharger Kits |
| Pulley Style | Serpentine |
| Damper Included | No |
| Linkage Included | Yes |
| CARB EO Number(s) | D-215-116 |
| PTFE Lined Rotors | No |
| Fuel Pump Included | No |
| Regulator Included | No |
| Supercharger Model | Eaton TVS 1320 |
| Supercharger Finish | Black |
| Intercooler Included | Yes |
| Belt Tensioner Included | Yes |
| Fuel Injectors Included | No |
| Wiring Harness Included | Yes |
| Engine Block Deck Height | Standard deck |
| Manufacturer's Part Number | 1556 |
| Cylinder Head Configuration | Stock |
| Supercharger Pulley Included | Yes |
| Multi-Port Fuel Rails Included | No |
| Computer Chip/Programmer Included | Yes |
