DeatschWerks Inline Fuel Filters 8-03-160-100K
DeatschWerks Inline Fuel Filters 8-03-160-100K
Out of stock
Couldn't load pickup availability
Product Description
DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and a fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.
E85 ethanol and other blended fuels have many contaminates capable of destroying fuel injectors and pumps. DeatschWerks inline fuel filters provide an extra layer of protection with their dual-stage, magneto-mechanical elements. In the first stage, zero flow restrictions are accomplished through magnetic filtration. This process uses a 35mm neodymium magnet at the filter inlet to trap ferrous contaminants, keeping them from destroying fuel injectors and pumps. For maximum filtration and minimum flow restrictions, DW filters use serviceable pleated 304-series stainless steel elements to capture non-ferrous materials in stage two. They're compatible with a wide range of fuels, including pump gas, race gas, MTBE, ethanol, methanol, and diesel. DW fuel filters are available in two bore sizes, three housing sizes, and are constructed from T6061 aluminum with -8 AN ORB inlets and outlets. Unique surge tank fuel filters that fit directly onto their popular 250iL and 350iL pumps are also available. For high temperature tolerance, incredible life spans, and excellent filtration, buy DeatschWerks inline fuel filters.
Extended Description

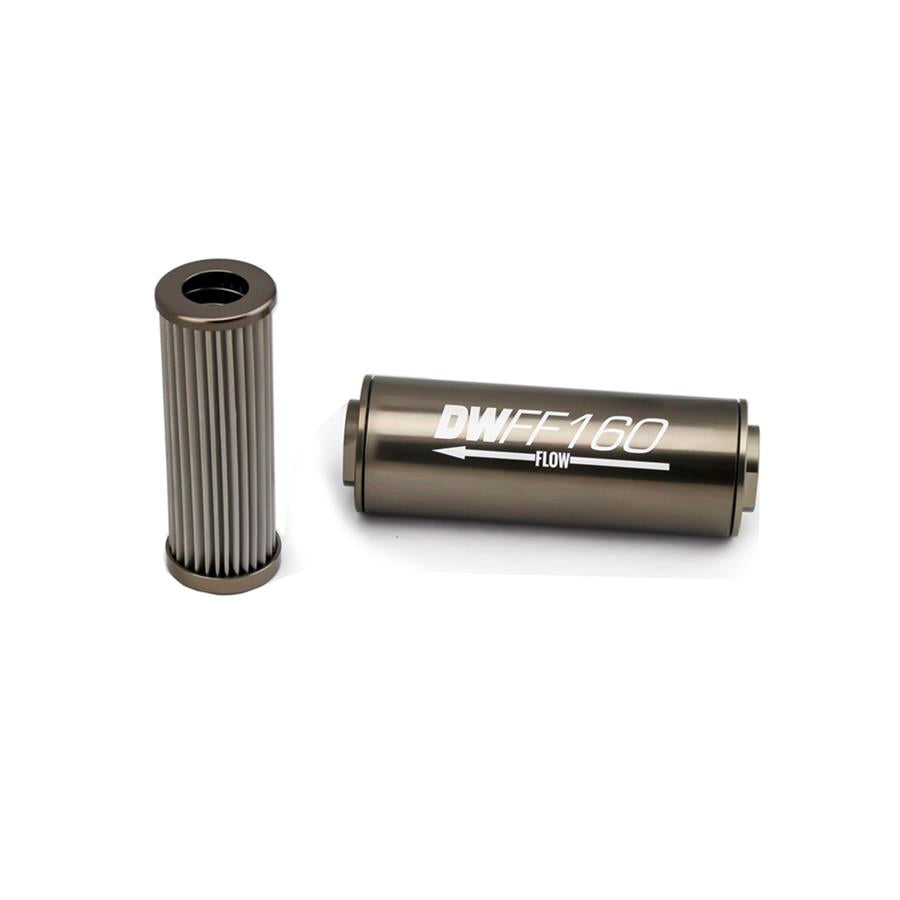

- In-line fuel filter element and housing kit, stainless steel 100 micron,-8AN,160mm. Universal
Application Summary
Part Type
Fuel Filter
description
| aaia_ |
Fuel Filter |
|---|---|
| label_ |
Filtration |
| market_ |
DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and a fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications. |
| product_ |
In-line fuel filter element and housing kit, stainless steel 100 micron,-8AN,160mm. Universal |
| product_ |
in-line fuel filter and housing kit |
| product_ |
DeatschWerks Stainless Steel 8AN 100 Micron Universal Inline Fuel Filter Housing Kit (160mm) |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Fuel Filters |
| name | DeatschWerks Inline Fuel Filters 8-03-160-100K |
| brand | DeatschWerks |
| price | 167 |
| blurb | Fuel Filter, Inline Mount, Billet Aluminum, 100 Microns, -10 AN O-Ring Inlet/Outlet, 160mm Length, Each |
| title | DeatschWerks Inline Fuel Filters |
| description | E85 ethanol and other blended fuels have many contaminates capable of destroying fuel injectors and pumps. DeatschWerks inline fuel filters provide an extra layer of protection with their dual-stage, magneto-mechanical elements. In the first stage, zero flow restrictions are accomplished through magnetic filtration. This process uses a 35mm neodymium magnet at the filter inlet to trap ferrous contaminants, keeping them from destroying fuel injectors and pumps. For maximum filtration and minimum flow restrictions, DW filters use serviceable pleated 304-series stainless steel elements to capture non-ferrous materials in stage two. They're compatible with a wide range of fuels, including pump gas, race gas, MTBE, ethanol, methanol, and diesel. DW fuel filters are available in two bore sizes, three housing sizes, and are constructed from T6061 aluminum with -8 AN ORB inlets and outlets. Unique surge tank fuel filters that fit directly onto their popular 250iL and 350iL pumps are also available. For high temperature tolerance, incredible life spans, and excellent filtration, buy DeatschWerks inline fuel filters. |
item_row
| handle | DWK-8-03-160-100K |
|---|---|
| item_ |
4387375 |
| brand_ |
19 |
| brand_ |
DeatschWerks |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/abf5ae5344f9750cf71267f6078cf456.JPG |
| item_ |
8-03-160-100K |
| item_ |
DeatschWerks Stainless Steel 10AN 100 Micron Universal Inline Fuel Filter Housing Kit (160mm) |
| item_ |
Fuel Delivery |
| item_ |
Fuel Filters |
| item_ |
00887753528896 |
| item_ |
167.00 |
| item_ |
167.00 |
| t14_ |
0 |
| mfr_ |
10 |
| dim_ |
2.00 |
| dim_ |
7.00 |
| dim_ |
5.00 |
| dim_ |
4.00 |
| shipping_ |
14.52 |
| item_ |
dwk8-03-160-100K |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | DeatschWerks |
|---|---|
| Notes | 160mm. |
| Quantity | Sold individually. |
| Part Type | Fuel Filters |
| Product Line | DeatschWerks Inline Fuel Filters |
| Inlet Quantity | 1 |
| Clamps Included | No |
| Outlet Quantity | 1 |
| Inlet Attachment | Female straight cut O-ring |
| Fittings Included | No |
| Fuel Filter Style | Inline |
| Outlet Attachment | Female straight cut O-ring |
| Filter Housing Color | Silver/Gray anodized |
| Overall Length (in.) | 6.30 in. |
| Fuel Filter Inlet Size | -10 AN |
| Filter Element Included | Yes |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Material | Billet aluminum |
| Fuel Filter Outlet Size | -10 AN |
| Mounting Bracket Included | No |
| Manufacturer's Part Number | 8-03-160-100K |
| Smallest Particle Filtered | 100 microns |
