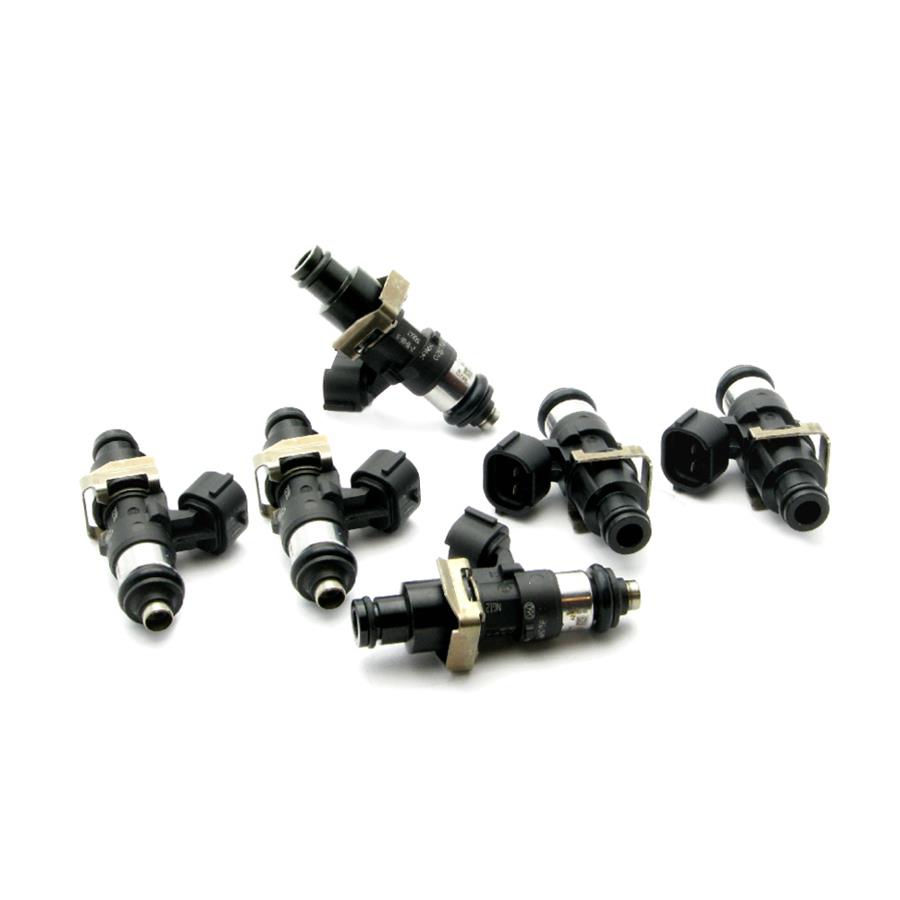

DeatschWerks Bosch EV14 Universal Fuel Injectors 16S-10-2200-6
DeatschWerks Bosch EV14 Universal Fuel Injectors 16S-10-2200-6
Out of stock
Couldn't load pickup availability
Product Description
DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and a fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications.
DeatschWerks Bosch EV14 Universal fuel injectors represent Bosch's most advanced multi-port fuel injector technology! These injectors deliver an excellent spray pattern and atomization for optimized idle and tuning. They are provided with tuning data and a custom flow report for an easier tuning process. They have 10 different flow rates; so you can choose the combination of features that best meets your needs. EV14 injectors are offered in three different lengths, two different O-ring diameters, and 10 different flow rates; so you can choose the combination of features that best meets your needs. DeatschWerks Bosch EV14 Universal fuel injectors feature low inertia, ball and seat pintle design, and high quality copper coils to deliver fast and precise opening times.
Extended Description
- Bosch EV14 Universal 48mm/11mm matched set of 6 injectors 220lb/hr
Application Summary
Part Type
description
| label_ |
Fuel Injectors |
|---|---|
| market_ |
DeatschWerks, LLC provides high-performance fuel system solutions for the automotive aftermarket. Located in Oklahoma City, OK, DW houses all of the company?s functions including design, end-manufacturing, quality assurance, sales, marketing, and administration in its 36,000sf facility. DeatschWerks? roots were established in 2004 by offering high flow drop-in fitment fuel injectors. In 2009 DW expanded into fuel pumps with the DW300, the highest flowing in-tank fuel pump of its time. Since then, DW has developed a wide range of innovative fuel system components which include in-tank and in-line pumps, surge tanks, fuel rails, fuel filters, pressure regulators, and a fuel-specific lines, fittings, and adaptors. Today, the DeatschWerks line-up of fuel system components includes over 800 SKU?s covering Sport Compact, Modern Muscle, Euro, and Powersport applications. |
| product_ |
Bosch EV14 Universal 48mm/11mm matched set of 6 injectors 220lb/hr |
| product_ |
Fuel Injector |
| product_ |
Matched set of 6 injectors 220b/hr |
| product_ |
DeatschWerks Bosch EV14 Universal 48mm/11mm 220lb/hr Injectors (Set of 6) |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Fuel Injection |
| name | DeatschWerks Bosch EV14 Universal Fuel Injectors 16S-10-2200-6 |
| brand | DeatschWerks |
| price | 1229 |
| blurb | Fuel Injectors, EV14, 200 lbs./hr., 48mm Length, Set of 6 |
| title | DeatschWerks Bosch EV14 Universal Fuel Injectors |
| description | DeatschWerks Bosch EV14 Universal fuel injectors represent Bosch's most advanced multi-port fuel injector technology! These injectors deliver an excellent spray pattern and atomization for optimized idle and tuning. They are provided with tuning data and a custom flow report for an easier tuning process. They have 10 different flow rates; so you can choose the combination of features that best meets your needs. EV14 injectors are offered in three different lengths, two different O-ring diameters, and 10 different flow rates; so you can choose the combination of features that best meets your needs. DeatschWerks Bosch EV14 Universal fuel injectors feature low inertia, ball and seat pintle design, and high quality copper coils to deliver fast and precise opening times. |
item_row
| handle | DWK-16S-10-2200-6 |
|---|---|
| item_ |
271956 |
| brand_ |
19 |
| brand_ |
DeatschWerks |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/d0e685b488da1209a63d6b4cc40357c8.JPG |
| item_ |
16S-10-2200-6 |
| item_ |
DeatschWerks Bosch EV14 Universal 48mm/11mm 220lb/hr Injectors (Set of 6) |
| item_ |
Fuel Delivery |
| item_ |
Fuel Injector Sets - 6Cyl |
| item_ |
00887753526083 |
| item_ |
1229.00 |
| item_ |
1229.00 |
| t14_ |
0 |
| mfr_ |
10 |
| dim_ |
2.00 |
| dim_ |
6.00 |
| dim_ |
4.00 |
| dim_ |
2.00 |
| shipping_ |
14.52 |
| item_ |
dwk16S-10-2200-6 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
Overview
| Brand | DeatschWerks |
|---|---|
| Notes | 48mm length (standard design) with a 11mm fuel rail bore. These connectors have a pigtail end and must be soldered in. |
| Quantity | Sold as a set of 6. |
| Part Type | Fuel Injectors |
| Product Line | DeatschWerks Bosch EV14 Universal Fuel Injectors |
| OEM Replacement | No |
| O-Rings Included | Yes |
| Injector Impedance | 8.8 ohms |
| Injector Plug Style | Sumitomo |
| Wiring Harness Included | No |
| Seat to Seat Height (in.) | 1.890 in. |
| Manufacturer's Part Number | 16S-10-2200-6 |
| Fuel Rail O-Ring Outside Diameter (in.) | 0.433 in. |
| Injector Advertised Flow Rate (cc/min.) | 2,200.0cc/min. |
| Injector Advertised Flow Rate (lbs./hr.) | 215 lbs./hr. |
