COMETIC GASKET C5330-040
191070006785

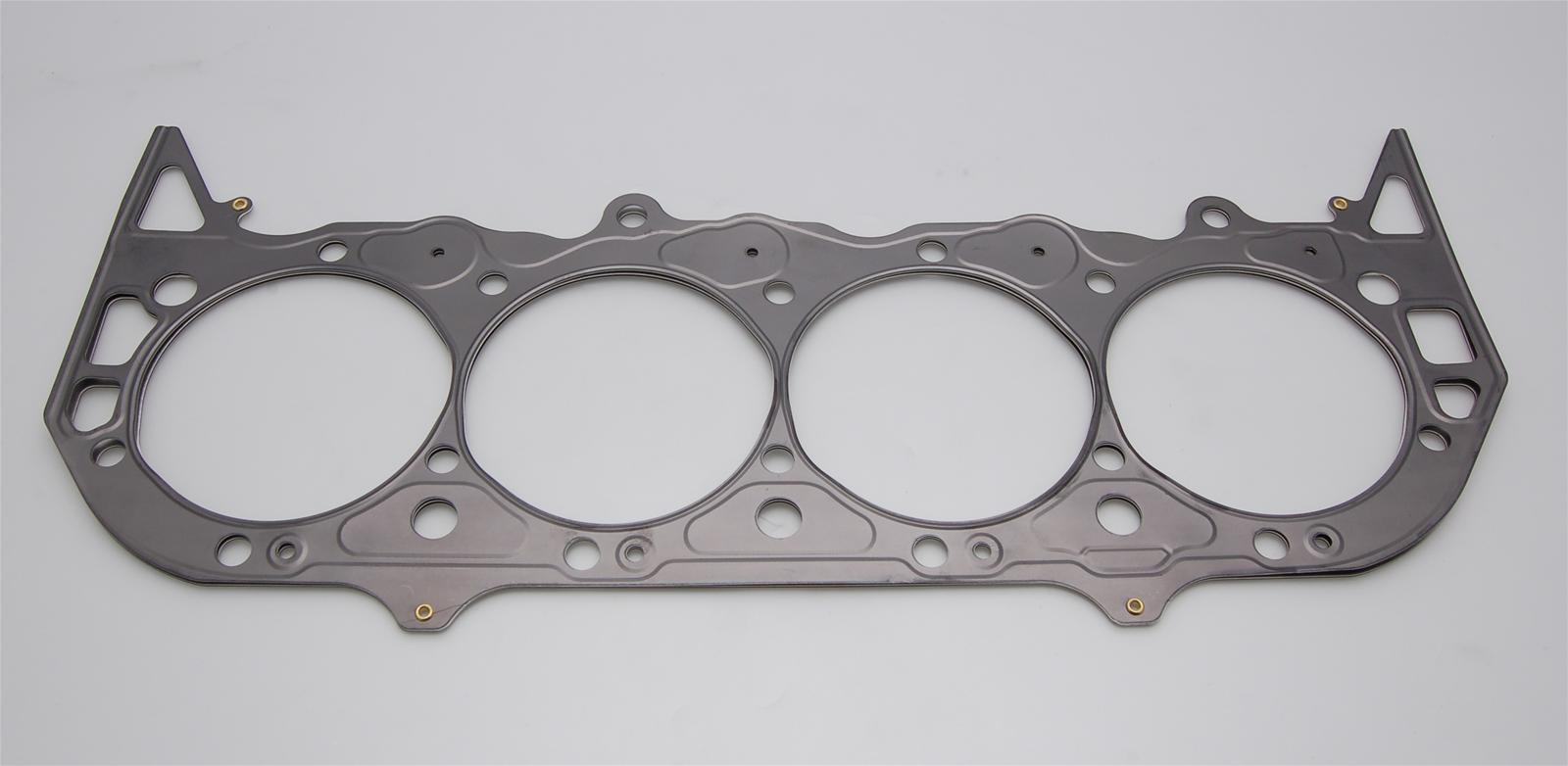

Cometic MLS Head Gaskets C5330-040

Cometic MLS Head Gaskets C5330-040

$118.73 AUD
$109.94 AUD $118.73 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Out of stock

Product Description

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.

Extended Description

  • Chevrolet Mark-IV Big Block V8 .040" MLS Cylinder Head Gasket, 4.540" Bore.

Application Summary

Fitment

Chevrolet Bel Air 1965–1975 Chevrolet K5 Blazer 1976–1978 Chevrolet C10 1975–1980 Chevrolet C10 Suburban 1968–1980 Chevrolet C1500 1990 Chevrolet C20 1975–1986 Chevrolet C20 Suburban 1968–1986 Chevrolet C30 1975–1986 Chevrolet C3500 1988–1990 Chevrolet Caprice 1966–1976 Chevrolet El Camino 1966–1975 Chevrolet G20 1976 Chevrolet G30 1975–1976, 1988–1990 Chevrolet Impala 1965–1976 Chevrolet K10 1976, 1979–1980 Chevrolet K10 Suburban 1968–1974, 1976, 1979–1980 Chevrolet K20 1976–1978, 1980 Chevrolet K20 Suburban 1968–1974, 1976–1978, 1980, 1985 Chevrolet K30 1977, 1980–1986 Chevrolet K3500 1988–1990 Chevrolet Laguna 1973–1975 Chevrolet Malibu 1965–1967, 1973–1975 Chevrolet Monte Carlo 1970–1975 Chevrolet P20 1976, 1979 Chevrolet P30 1975–1989 Chevrolet R20 1987–1988 Chevrolet R20 Suburban 1987–1988 Chevrolet R2500 1989 Chevrolet R2500 Suburban 1989–1990 Chevrolet R30 1987–1988 Chevrolet R3500 1989–1990 Chevrolet V20 Suburban 1987–1988 Chevrolet V2500 Suburban 1990 Chevrolet V30 1987–1988 Chevrolet V3500 1989–1990 Chevrolet Biscayne 1965–1972 Chevrolet Blazer 1973–1974 Chevrolet Brookwood 1969–1972 Chevrolet C10 Pickup 1968–1974 Chevrolet C20 Pickup 1968–1974 Chevrolet C30 Pickup 1968–1974 Chevrolet Camaro 1967–1972 Chevrolet Chevelle 1965–1973 Chevrolet Chevy II 1968 Chevrolet Corvette 1965–1974 Chevrolet G10 Van 1973–1974 Chevrolet G20 Van 1973–1974 Chevrolet G30 Van 1973–1974 Chevrolet K10 Pickup 1968–1974 Chevrolet K20 Pickup 1968–1974 Chevrolet K30 Pickup 1968–1974 Chevrolet Kingswood 1969–1972 Chevrolet Nova 1969–1972 Chevrolet P10 Van 1973 Chevrolet P20 Van 1970–1971, 1973 Chevrolet P30 Van 1970–1974 Chevrolet Townsman 1969–1972 Chevrolet Estate 1969–1970
GMC C15 1975–1978 GMC C1500 1979–1980 GMC C15 Suburban 1975–1978 GMC C1500 Suburban 1979–1980 GMC C25 1975–1978 GMC C2500 1979–1986 GMC C25 Suburban 1975–1978 GMC C2500 Suburban 1979–1986 GMC C35 1975–1978 GMC C3500 1979–1986, 1988–1990 GMC G25 1975–1976 GMC G35 1976 GMC G3500 1988–1990 GMC Jimmy 1973–1974, 1976 GMC K15 1976 GMC K1500 1979–1980 GMC K25 1976–1978 GMC K25 Suburban 1976–1977 GMC K3500 1979–1986, 1988–1990 GMC P1500 1979 GMC P35 1975–1978 GMC P3500 1979–1989 GMC R2500 1987–1989 GMC R2500 Suburban 1987–1990 GMC R3500 1987–1990 GMC Sprint 1971–1975 GMC V3500 1987–1990 GMC C15/C1500 Pickup 1968–1974 GMC C15/C1500 Suburban 1968–1974 GMC C25/C2500 Pickup 1968–1974 GMC C25/C2500 Suburban 1968–1974 GMC C35/C3500 Pickup 1968–1974 GMC G35/G3500 Van 1973–1974 GMC K15/K1500 Pickup 1968–1974 GMC K15/K1500 Suburban 1968–1974 GMC K25/K2500 Pickup 1968–1974 GMC K25/K2500 Suburban 1968–1974 GMC K35/K3500 Pickup 1968–1974 GMC P25/P2500 Van 1970–1971 GMC P35/P3500 Van 1970–1971, 1973–1974 GMC Transmode 1973–1974

Part Type

Engine Cylinder Head Gasket

Additional Information 2

  • .040" MLS Cylinder Head Gasket, 4.540" Gasket Bore. Each

Overview

Brand Cometic
Quantity Sold individually.
Bore (mm) 115.316mm
Lock Wire No
Part Type Head Gaskets
Bore (in.) 4.540 in.
Product Line Cometic MLS Head Gaskets
Gasket Material Multi-layer stainless steel
Compressed Volume (cc) 10.611cc
Compressed Thickness (in.) 0.040 in.
Manufacturer's Part Number C5330-040
