Cometic MLS Head Gaskets C4556-036
Cometic MLS Head Gaskets C4556-036
Low stock: 1 left
Couldn't load pickup availability
Tags
Product Description
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
Extended Description

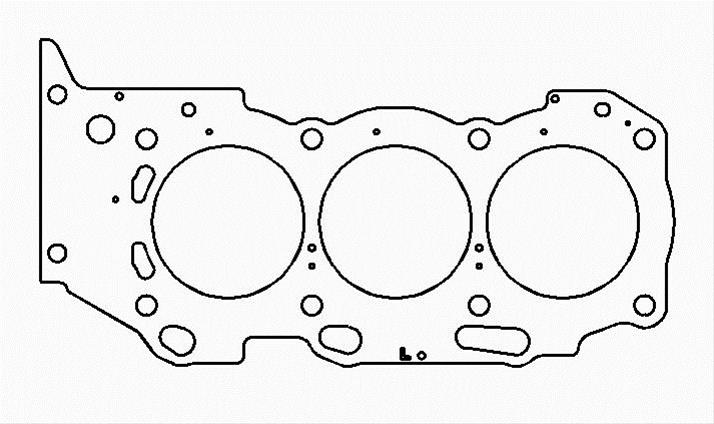

- Toyota 1GR-FE .036" MLS Cylinder Head Gasket, 95.5mm Bore, LHS.
Application Summary
Fitment
Fitment
Part Type
Engine Cylinder Head Gasket
description
| aaia_ |
Engine Cylinder Head Gasket |
|---|---|
| market_ |
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. |
| product_ |
Toyota 1GR-FE .036" MLS Cylinder Head Gasket, 95.5mm Bore, LHS. |
| product_ |
Toyt 1GR-FE Cylinder Head Gasket L |
| product_ |
Toyota 1GR-FE Cylinder Head Gasket |
| product_ |
Head Gasket |
s_item
| department | Gaskets & Seals |
|---|---|
| section | Engine Gaskets & Seals |
| name | Cometic MLS Head Gaskets C4556-036 |
| brand | Cometic |
| price | 96.5 |
| blurb | Head Gasket, MLS, 95.50mm Bore, .036 in. Compressed Thickness, Toyota, Each |
| title | Cometic MLS Head Gaskets |
| description | Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required. |
item_row
| handle | CGS-C4556-036 |
|---|---|
| item_ |
25184 |
| brand_ |
14 |
| brand_ |
Cometic Gasket |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/62deaa6174f8b877e54a18b907b05ce5.JPG |
| item_ |
C4556-036 |
| item_ |
Cometic 02+ Toyota FJ Cruiser 4.0L V6 95.5mm MLS .036in LHS Headgasket |
| item_ |
Engine Components |
| item_ |
Head Gaskets |
| item_ |
191070115579 |
| item_ |
96.50 |
| item_ |
107.22 |
| t14_ |
4 |
| mfr_ |
|
| dim_ |
0.80 |
| dim_ |
17.50 |
| dim_ |
8.20 |
| dim_ |
0.25 |
| shipping_ |
14.52 |
| item_ |
cgsC4556-036 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Cometic |
|---|---|
| Notes | For use with the left bank only. |
| Quantity | Sold individually. |
| Bore (mm) | 95.500mm |
| Lock Wire | No |
| Part Type | Head Gaskets |
| Bore (in.) | 3.760 in. |
| Product Line | Cometic MLS Head Gaskets |
| Gasket Material | Multi-layer stainless steel |
| Compressed Volume (cc) | 6.550cc |
| Compressed Thickness (in.) | 0.036 in. |
| Manufacturer's Part Number | C4556-036 |
