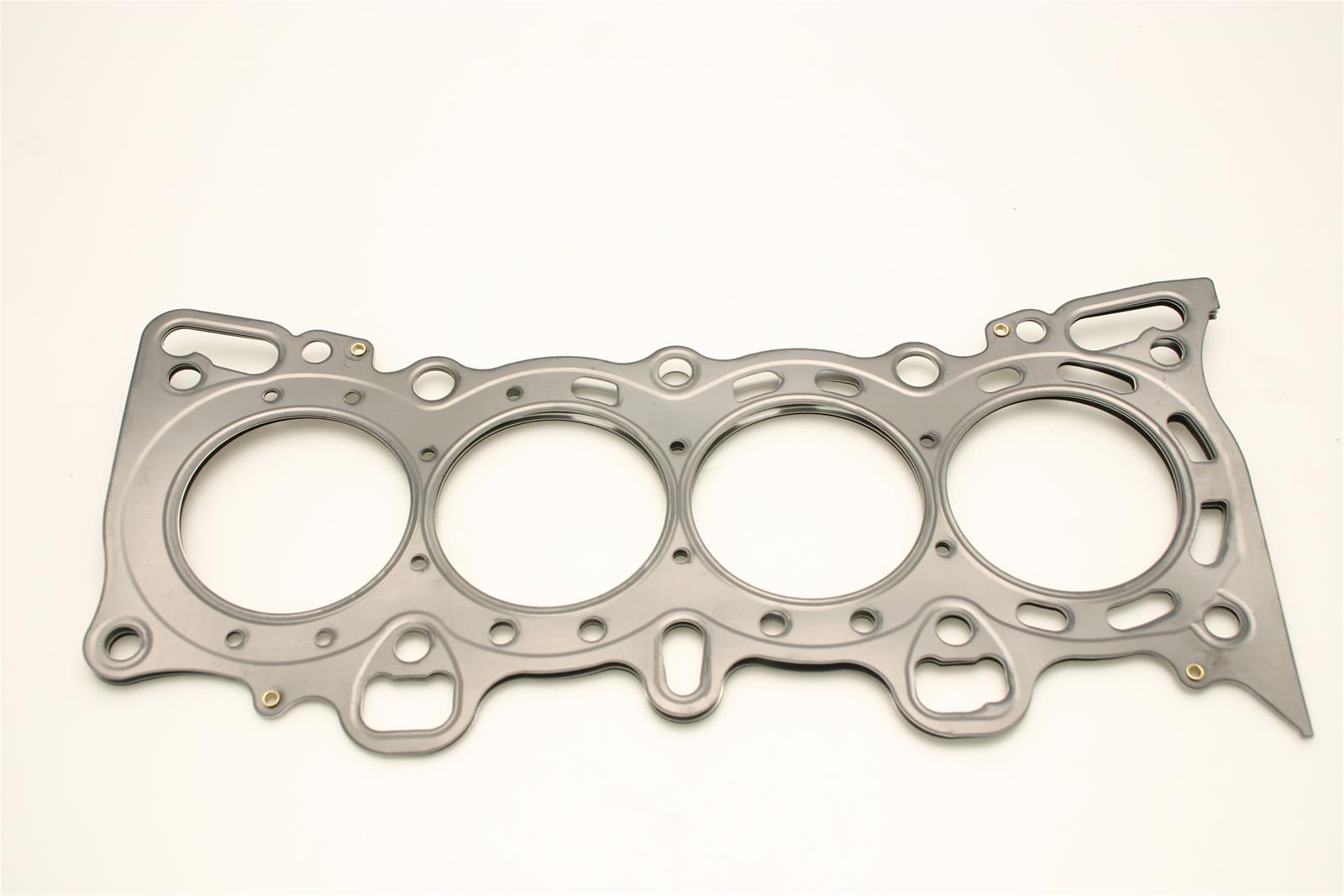

Cometic MLS Head Gaskets C4251-056
Cometic MLS Head Gaskets C4251-056
8 in stock
Couldn't load pickup availability
Tags
Product Description
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.056". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required.
Extended Description
- Honda D15Z1/D16Y5/D16Y7/D16Y8/D16Z6 .056" MLS Cylinder Head Gasket, 75.5mm Bore.
Application Summary
Fitment
Fitment
Part Type
Engine Cylinder Head Gasket
Additional Information 2
- .056" MLS Cylinder Head Gasket, 75.5mm Gasket Bore. Each
description
| aaia_ |
Engine Cylinder Head Gasket |
|---|---|
| associated_ |
.056" MLS Cylinder Head Gasket, 75.5mm Gasket Bore. Each |
| market_ |
Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.056". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. |
| product_ |
Honda D15Z1/D16Y5/D16Y7/D16Y8/D16Z6 .056" MLS Cylinder Head Gasket, 75.5mm Bore. |
| product_ |
Cometic Cylinder Head Gasket |
| product_ |
Honda D15Z1/D16Y5/D16Y7/D16Y8/D16Z6 Cylinder Head Gasket |
| product_ |
Cylinder Head Gasket |
s_item
| department | Gaskets & Seals |
|---|---|
| section | Engine Gaskets & Seals |
| name | Cometic MLS Head Gaskets C4251-056 |
| brand | Cometic |
| price | 117.89 |
| blurb | .056" MLS-5 HEAD D15/16 |
| title | Cometic MLS Head Gaskets |
| description | Cometic MLS head gaskets are constructed from multiple layers of stainless steel for strength and contain load-controlled embossments that conform load distribution across the sealing area. This creates an exceptional seal by requiring less clamp load—resulting in less bore distortion. The stainless steel outer layers utilize FKM (Viton®) rubber coating, a high-temperature and chemical-resistant polymer. A topcoat of PTFE aids in resistance to fret and increased cold sealing. MLS head gaskets are available for most aftermarket cylinder heads; as with all of Cometic's MLS head gaskets, no sealants or re-torque is required. |
item_row
| handle | CGS-C4251-056 |
|---|---|
| item_ |
492113 |
| brand_ |
14 |
| brand_ |
Cometic Gasket |
| item_ |
https://d5otzd52uv6zz.cloudfront.net/002b0ab4-d50e-4fdf-a359-4c9ef0a6ee22-100.jpg |
| item_ |
C4251-056 |
| item_ |
Cometic 92-00 Honda Civic D15Z1/D16Y5/D16Y7/D16Y8/D16Z6 75.5mm Bore .056in MLS Cylinder Head Gasket |
| item_ |
Engine Components |
| item_ |
Head Gaskets |
| item_ |
191070106201 |
| item_ |
117.89 |
| item_ |
131.00 |
| t14_ |
6 |
| mfr_ |
|
| dim_ |
0.90 |
| dim_ |
17.20 |
| dim_ |
8.20 |
| dim_ |
0.50 |
| shipping_ |
14.52 |
| item_ |
cgsC4251-056 |
| taxonomy_ |
5372 |
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| productTaxonomy | 5372 |
Overview
| Brand | Cometic |
|---|---|
| Notes | With SOHC, D16Z6, D16Y5, D16Y7, D16Y8 engines. |
| Quantity | Sold individually. |
| Bore (mm) | 75.500mm |
| Lock Wire | No |
| Part Type | Head Gaskets |
| Bore (in.) | 2.973 in. |
| Product Line | Cometic MLS Head Gaskets |
| Gasket Material | Multi-layer stainless steel |
| Compressed Volume (cc) | 6.370cc |
| Compressed Thickness (in.) | 0.056 in. |
| Manufacturer's Part Number | C4251-056 |
