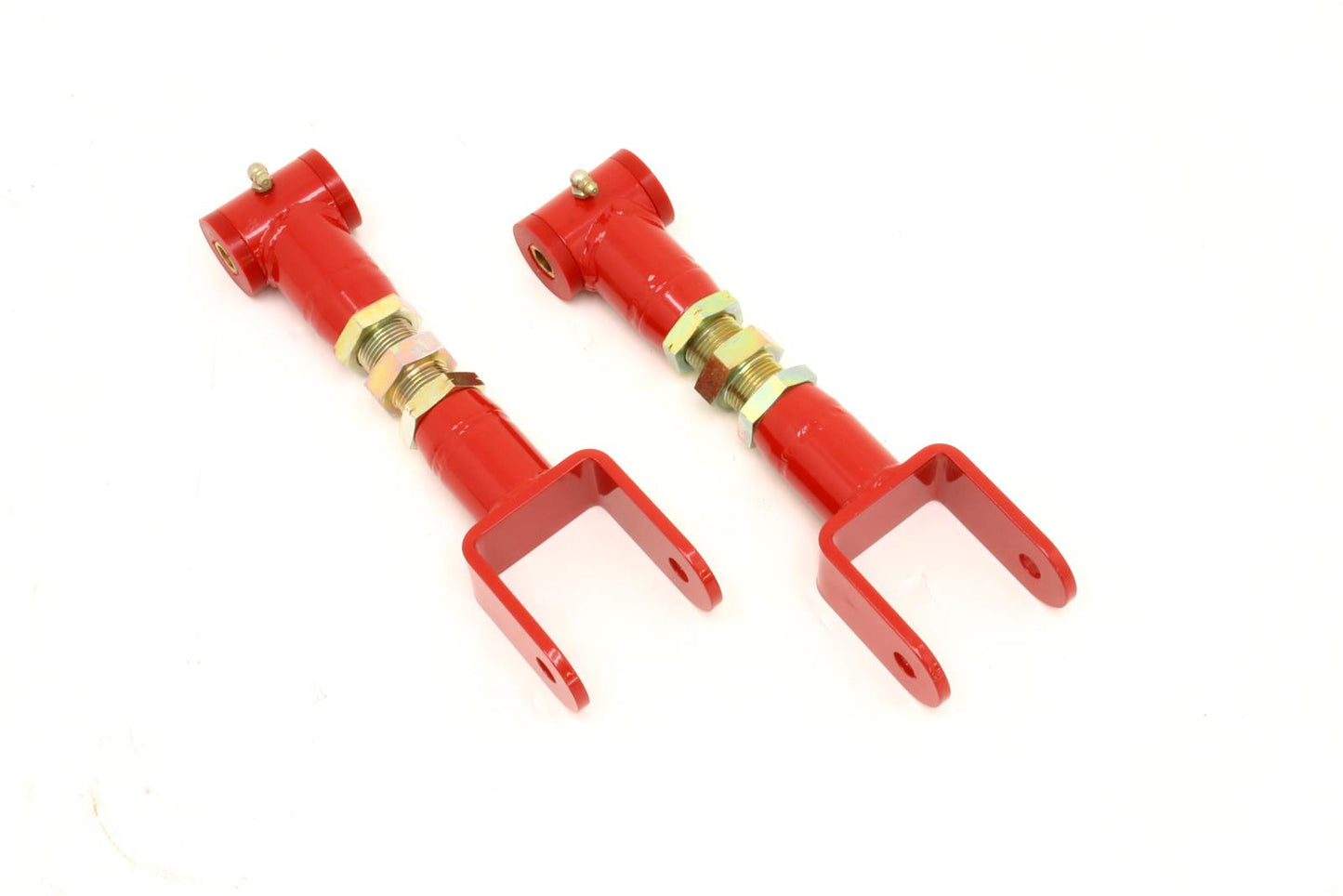

BMR Control Arms UTCA005R
BMR Control Arms UTCA005R
Tags
Product Description
Launching harder, reducing wheel hop, and adding cornering consistency to your 1968-1972 GM A-body is easy with upper control arms from BMR Suspension. Stock control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR?s polyurethane, on-car adjustable tubular control arms for A-bodies (UTCA005) are manufactured from heavy-duty 1 5/8 inch, 0.120-inch wall DOM steel tubing. The center adjuster is CNC-machined from chrome-moly steel with rolled threads for the ultimate in strength and durability. The arms feature TIG-welded chrome-moly tube adapters. This design gives you a strong control arm that greatly improves performance. Two-inch greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR?s bushings are internally fluted, which keeps grease in the bushing, even under heavy load. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.
Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings. BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling. These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings. BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!
Extended Description
- BMR Suspension designed the UTCA005 to excel in street performance, drag race, and road race applications.
Application Summary
Fitment
Fitment
Part Type
Suspension Control Arm
Additional Information 2
- Fits 1968-1972 GM A-Body
- On-car adjustable design
- High-durometer internally fluted polyurethane greasable bushings
- CNC-machined chrome-moly center adjuster
- TIG-welded chrome-moly tube adapters
- MIG-welded 1 5/8-inch DOM steel tubing
- Dramatically reduces control arms flex
- Greatly reduces bushing deflection
- Improved Performance with OEM-like NVH levels
- Designed for street performance, drag race, and road race applications
- Durable powdercoat finish
- 1-2 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
description
aaia_ |
Suspension Control Arm |
---|---|
associated_ |
Fits 1968-1972 GM A-Body;On-car adjustable design;High-durometer internally fluted polyurethane greasable bushings;CNC-machined chrome-moly center adjuster;TIG-welded chrome-moly tube adapters;MIG-welded 1 5/8-inch DOM steel tubing;Dramatically reduces control arms flex;Greatly reduces bushing deflection;Improved Performance with OEM-like NVH levels;Designed for street performance, drag race, and road race applications;Durable powdercoat finish;1-2 hour installation time;Proudly designed in the U.S.A.;Proudly made in the U.S.A. |
market_ |
Launching harder, reducing wheel hop, and adding cornering consistency to your 1968-1972 GM A-body is easy with upper control arms from BMR Suspension. Stock control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR?s polyurethane, on-car adjustable tubular control arms for A-bodies (UTCA005) are manufactured from heavy-duty 1 5/8 inch, 0.120-inch wall DOM steel tubing. The center adjuster is CNC-machined from chrome-moly steel with rolled threads for the ultimate in strength and durability. The arms feature TIG-welded chrome-moly tube adapters. This design gives you a strong control arm that greatly improves performance. Two-inch greasable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMR?s bushings are internally fluted, which keeps grease in the bushing, even under heavy load. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings. |
product_ |
BMR Suspension designed the UTCA005 to excel in street performance, drag race, and road race applications. |
product_ |
BMR Suspension - UTCA005R |
product_ |
Upper Control Arms, DOM, On-car Adjustable, Polyurethane Bushings |
product_ |
Upper Control Arms |
s_item
department | Chassis & Suspension |
---|---|
section | Suspension Components |
name | BMR Control Arms UTCA005R |
brand | BMR Suspension |
price | 209.95 |
blurb | Control Arms, Tubular, Rear Upper, Steel, Red Powdercoated, GM, A-Body, Pair |
title | BMR Control Arms |
description | Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings. BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling. These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings. BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension! |
item_row
handle | BMR-UTCA005R |
---|---|
item_ |
202150 |
brand_ |
278 |
brand_ |
BMR Suspension |
item_ |
https://d32vzsop7y1h3k.cloudfront.net/ab55a9f88390375cbf5640afbbd34dbb.JPG |
item_ |
UTCA005R |
item_ |
BMR 68-72 A-Body Upper Control Arms On-Car Adj. (Polyurethane) - Red |
item_ |
Suspension (Other) |
item_ |
Control Arms |
item_ |
887753330208 |
item_ |
209.95 |
item_ |
209.95 |
t14_ |
0 |
mfr_ |
2 |
dim_ |
14.00 |
dim_ |
14.00 |
dim_ |
10.00 |
dim_ |
4.00 |
shipping_ |
14.83 |
item_ |
bmrUTCA005R |
taxonomy_ |
5383 |
collection_ |
273964630058 |
collection_ |
Suspension (Other) |
status | Active |
item_ |
1 |
item_ |
Suspension |
productTaxonomy | 5383 |
Overview
Brand | BMR Suspension |
---|---|
Quantity | Sold as a pair. |
Part Type | Control Arms |
Adjustable | Yes |
Product Line | BMR Control Arms |
Bushing Material | Polyurethane |
Bushings Included | Yes |
Control Arm Color | Red |
Control Arm Style | Tubular |
Hardware Included | No |
Ball Joint Included | No |
Control Arm Material | Steel |
Manufacturer's Part Number | UTCA005R |
