Product Description

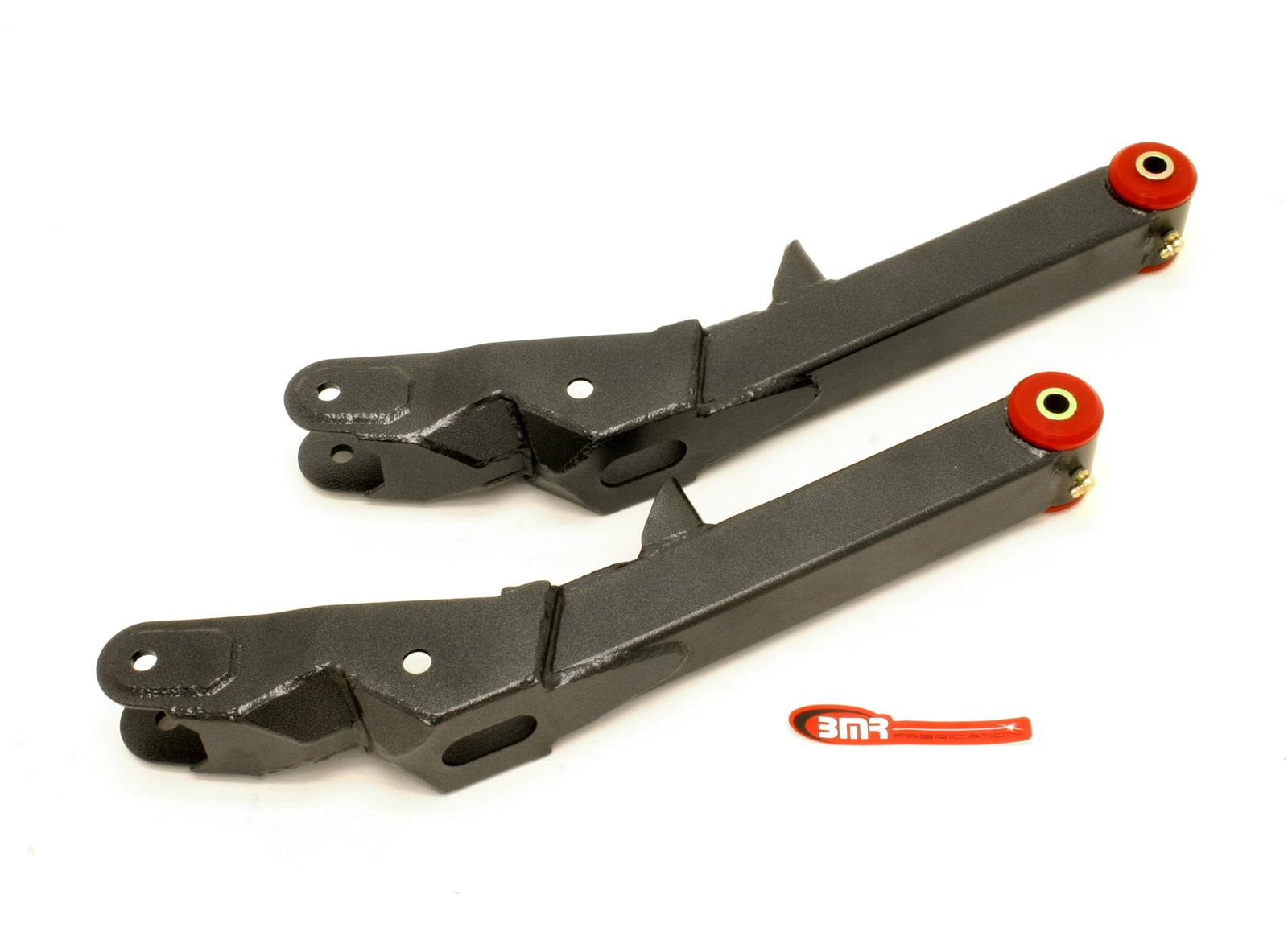

Launching harder, reducing wheel hop, and adding cornering consistency to your 2010-2015 Chevrolet Camaro, Pontiac G8, or Chevy SS is easy with these non-adjustable lower control arms. BMR Suspension?s lower control arms with polyurethane bushings will deflect less and transfer power more efficiently than stock stamped steel control arms with soft rubber bushings. The TCA028 non-adjustable tubular control arms are fully TIG-welded and constructed from heavy-duty 2-inch square tubing and CNC-formed, laser-cut steel plates. They include internal gussets for additional strength. The greasable, 95-durometer, polyurethane bushings are internally fluted, which allows grease to evenly coat the inner sleeve, keeping grease in the bushing under high compression loads. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated and quiet. This design gives you a strong control arm that greatly improves performance without significantly increasing NVH.
Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings. BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling. These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings. BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!
Extended Description
- BMR Suspension designed its TCA028 Lower control arms to work well in street performance, drag race, and handling applications.
Application Summary
Fitment
Fitment
Part Type
Suspension Control Arm
Additional Information 2
- Fits all 2010-2015 Chevrolet Camaro, Pontiac G8, or Chevy SS
- Non-adjustable adjustable
- High-durometer internally fluted polyurethane greasable bushings
- TIG-welded 2-inch DOM steel tubing and laser cut plates
- Internally gusseted design
- FE3/FE4 compatible
- Dramatically reduces control arm flex
- Greatly reduces bushing deflection
- Improved Performance with acceptable NVH levels
- Designed for street performance, drag race, and road race applications
- Durable powdercoat finish
- 2-3 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
description
| aaia_ |
Suspension Control Arm |
|---|---|
| associated_ |
Fits all 2010-2015 Chevrolet Camaro, Pontiac G8, or Chevy SS ;Non-adjustable adjustable;High-durometer internally fluted polyurethane greasable bushings;TIG-welded 2-inch DOM steel tubing and laser cut plates;Internally gusseted design;FE3/FE4 compatible;Dramatically reduces control arm flex;Greatly reduces bushing deflection;Improved Performance with acceptable NVH levels;Designed for street performance, drag race, and road race applications;Durable powdercoat finish;2-3 hour installation time;Proudly designed in the U.S.A.;Proudly made in the U.S.A. |
| market_ |
Launching harder, reducing wheel hop, and adding cornering consistency to your 2010-2015 Chevrolet Camaro, Pontiac G8, or Chevy SS is easy with these non-adjustable lower control arms. BMR Suspension?s lower control arms with polyurethane bushings will deflect less and transfer power more efficiently than stock stamped steel control arms with soft rubber bushings. The TCA028 non-adjustable tubular control arms are fully TIG-welded and constructed from heavy-duty 2-inch square tubing and CNC-formed, laser-cut steel plates. They include internal gussets for additional strength. The greasable, 95-durometer, polyurethane bushings are internally fluted, which allows grease to evenly coat the inner sleeve, keeping grease in the bushing under high compression loads. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated and quiet. This design gives you a strong control arm that greatly improves performance without significantly increasing NVH. |
| product_ |
BMR Suspension designed its TCA028 Lower control arms to work well in street performance, drag race, and handling applications. |
| product_ |
BMR Suspension - TCA028H |
| product_ |
Lower Control Arms, Rear, Non-adjustable, Poly Bushings |
| product_ |
Lower Control Arms |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | BMR Control Arms TCA028H |
| brand | BMR Suspension |
| price | 369.95 |
| blurb | Control Arms, Steel, Rear Lower, Black Hammertone Powdercoat, Lowered Vehicles Only, Chevy, Pontiac, Pair |
| title | BMR Control Arms |
| description | Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings. BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling. These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings. BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension! |
item_row
| handle | BMR-TCA028H |
|---|---|
| item_ |
202020 |
| brand_ |
278 |
| brand_ |
BMR Suspension |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/c33dc3a843917eae0196b5439c81924c.JPG |
| item_ |
TCA028H |
| item_ |
BMR 10-15 5th Gen Camaro Rear Lower Control Arms Non-Adj. (Polyurethane) - Black Hammertone |
| item_ |
Suspension (Other) |
| item_ |
Control Arms |
| item_ |
887753329028 |
| item_ |
369.95 |
| item_ |
369.95 |
| t14_ |
5 |
| mfr_ |
11 |
| dim_ |
17.30 |
| dim_ |
21.20 |
| dim_ |
14.40 |
| dim_ |
6.00 |
| shipping_ |
14.83 |
| item_ |
bmrTCA028H |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | BMR Suspension |
|---|---|
| Notes | Will only fit lowered vehicles. When using on 2012 models it is important to use a 2010 or 2011-style rear sway bar and end links. |
| Quantity | Sold as a pair. |
| Part Type | Control Arms |
| Adjustable | No |
| Product Line | BMR Control Arms |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Style | Tubular/Boxed |
| Hardware Included | No |
| Ball Joint Included | No |
| Control Arm Material | Steel |
| Manufacturer's Part Number | TCA028H |
