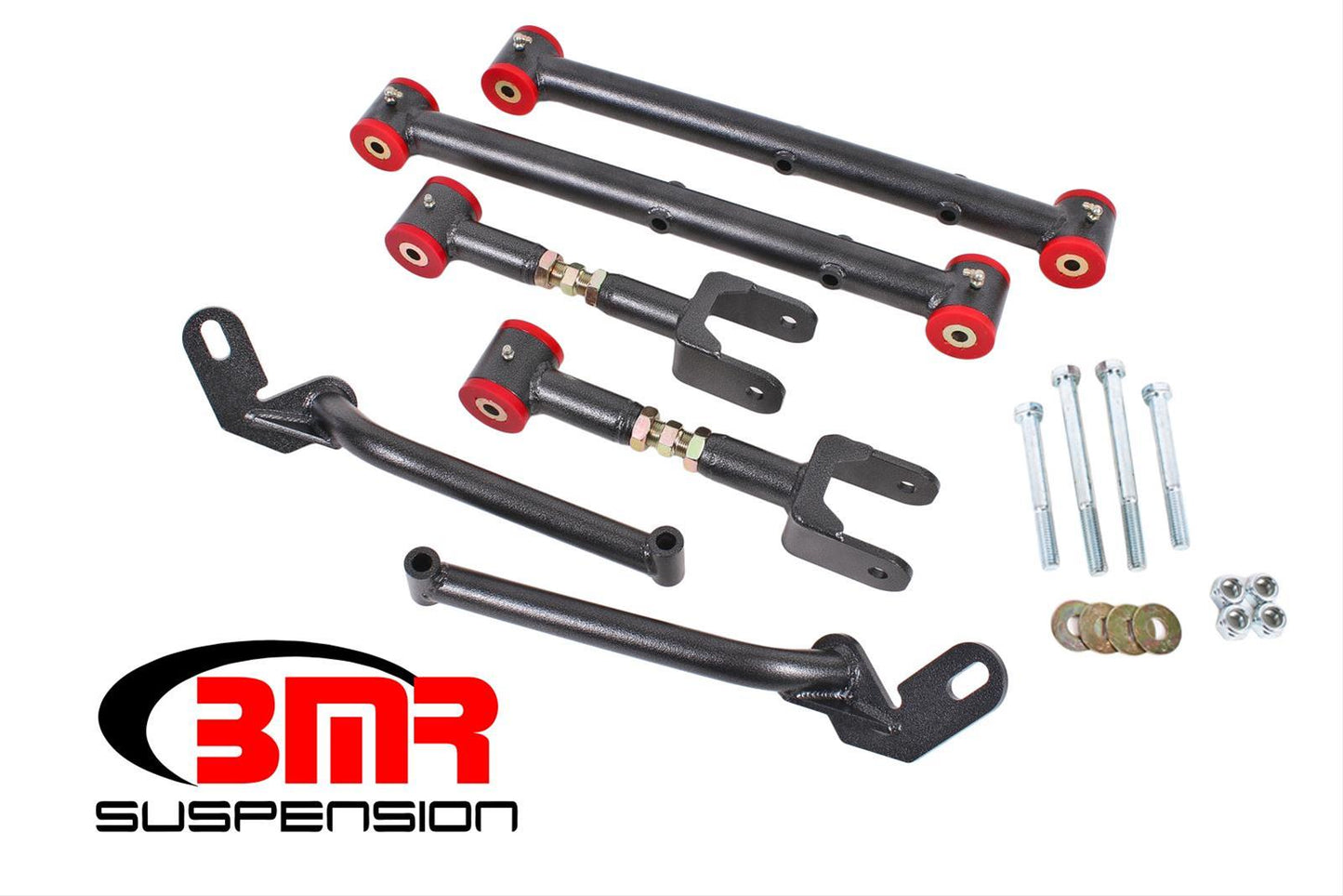

BMR Control Arms RSK028H
BMR Control Arms RSK028H
Low stock: 3 left
Couldn't load pickup availability
/update?link=products%2Fbmr-rsk028h_xl_1492e9ca-9446-4d2c-b2e7-55dc92cd2d4b.jpg){kind=link}
Tags
Product Description
Launching harder, reducing wheel hop, and adding cornering consistency to your 1978-1987 GM G-body is easy with a Rear Suspension Kit from BMR Suspension. Stock stamped steel control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR?s polyurethane, non-adjustable Rear Suspension Kit (RSK028) consists of non-adjustable lower control arms, on-car adjustable upper control arms, and control arm reinforcement braces. The lower control arms are manufactured from heavy-duty 1.50-inch diameter, 0.120-inch wall, DOM steel tubing, the lower control arms provide all the strength you?ll need for any performance application. The upper control arms are manufactured from 1.25-inch diameter, 0.120-inch wall, DOM steel tubing, strong enough for any compression load. The center adjuster is CNC-machined from chrome-moly steel with rolled threads for the ultimate in strength and durability. This design gives you a strong control arm that greatly improves performance. The reinforcement braces are made from 1.0-inch diameter, 0.156-inch wall, steel tubing to help reduce frame deflection. The upper and lower control arms come with greasable, 95-durometer polyurethane bushings that add a solid, more responsive feel over the stock rubber bushings. BMR?s bushings are internally fluted, which keeps grease in the bushing, even under heavy load.
Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings. BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling. These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings. BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension!
Extended Description
- BMR Suspension designed its Rear Suspension Kits to work well in street performance, drag race, and handling applications.
Application Summary
Fitment
Fitment
Part Type
Suspension Kit
Additional Information 2
- Fits 1978-1987 GM G-bodies
- Non-adjustable design (lower control arms)
- On-car adjustable design (upper control arms)
- 95-durometer internally fluted polyurethane greasable bushings
- Zinc-coated inner sleeves
- DOM steel tubing
- 1.25-inch diameter, 0.120-inch wall, tubing upper control arms
- 1.50-inch diameter, 0.120-inch wall, tubing lower control arms
- 1.0-inch diameter, 0.156-inch wall, tubing control arm reinforcement braces
- MIG-welded lower control arms
- TIG-welded upper control arms and control arm reinforcement braces
- Drastically reduces control arm flex
- Drastically reduces bushing deflection
- Improved Performance with acceptable NVH levels
- Control arm reinforcement braces reduce frame deflection
- Designed for street performance, drag race, and road race applications
- Durable powdercoat finish
- 3-4 hour installation time
- Proudly designed in the U.S.A.
- Proudly made in the U.S.A.
description
| aaia_ |
Suspension Kit |
|---|---|
| associated_ |
Fits 1978-1987 GM G-bodies;Non-adjustable design (lower control arms);On-car adjustable design (upper control arms);95-durometer internally fluted polyurethane greasable bushings;Zinc-coated inner sleeves;DOM steel tubing;1.25-inch diameter, 0.120-inch wall, tubing upper control arms;1.50-inch diameter, 0.120-inch wall, tubing lower control arms;1.0-inch diameter, 0.156-inch wall, tubing control arm reinforcement braces;MIG-welded lower control arms;TIG-welded upper control arms and control arm reinforcement braces;Drastically reduces control arm flex;Drastically reduces bushing deflection;Improved Performance with acceptable NVH levels;Control arm reinforcement braces reduce frame deflection;Designed for street performance, drag race, and road race applications;Durable powdercoat finish;3-4 hour installation time;Proudly designed in the U.S.A.;Proudly made in the U.S.A. |
| market_ |
Launching harder, reducing wheel hop, and adding cornering consistency to your 1978-1987 GM G-body is easy with a Rear Suspension Kit from BMR Suspension. Stock stamped steel control arms with soft rubber bushings deflect under load and absorb power instead of transferring it to the tires. BMR?s polyurethane, non-adjustable Rear Suspension Kit (RSK028) consists of non-adjustable lower control arms, on-car adjustable upper control arms, and control arm reinforcement braces. The lower control arms are manufactured from heavy-duty 1.50-inch diameter, 0.120-inch wall, DOM steel tubing, the lower control arms provide all the strength you?ll need for any performance application. The upper control arms are manufactured from 1.25-inch diameter, 0.120-inch wall, DOM steel tubing, strong enough for any compression load. The center adjuster is CNC-machined from chrome-moly steel with rolled threads for the ultimate in strength and durability. This design gives you a strong control arm that greatly improves performance. The reinforcement braces are made from 1.0-inch diameter, 0.156-inch wall, steel tubing to help reduce frame deflection. The upper and lower control arms come with greasable, 95-durometer polyurethane bushings that add a solid, more responsive feel over the stock rubber bushings. BMR?s bushings are internally fluted, which keeps grease in the bushing, even under heavy load. |
| product_ |
BMR Suspension designed its Rear Suspension Kits to work well in street performance, drag race, and handling applications. |
| product_ |
BMR Suspension - RSK028H |
| product_ |
Rear Suspension Kit, On-car Adjustable, Poly |
| product_ |
Rear Suspension Kit |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | BMR Control Arms RSK028H |
| brand | BMR Suspension |
| price | 459.95 |
| blurb | Control Arms, Rear, Tubular, Steel, Black Hammertone Powdercoated, Buick, Chevy, Oldsmobile, Pontiac, Kit) |
| title | BMR Control Arms |
| description | Stabilize your ride with BMR control arms. They are CNC-machined and made, depending on the application, from heavy-duty DOM steel tubing, chromoly steel, or 6061-T6 aluminum. BMR polyurethane bushings are designed to be compliant enough to give you a comfortable ride and absorb NVH, while remaining firm enough to stand up to high loads of any performance environment. Their greasable bushings are internally fluted to allow grease to coat the inner sleeve, while keeping the thrust surface lubricated—ensuring quiet, reliable operation over the life of the bushings. BMR's heavy-duty spherical bearings are designed to eliminate deflection and wheel alignment changes. Their spherical bearings can withstand the extreme stresses of the performance environment, offering all of the bind-free suspension articulation needed for great handling. These design features result in incredibly strong control arms that greatly improve performance and work well in street performance, drag race, and handling applications. Many are adjustable, allowing you to dial-in pinion angles for correct driveline geometry, or correct, add, or reduce negative camber and other alignment settings. BMR control arms are the perfect upgrade for the enthusiast looking to improve performance at an affordable price, while maintaining acceptable NVH levels and ride quality. When performance is a must, rely on BMR Suspension! |
item_row
| handle | BMR-RSK028H |
|---|---|
| item_ |
201631 |
| brand_ |
278 |
| brand_ |
BMR Suspension |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/181e47ce774ce2039fbcdd566621e72a.JPG |
| item_ |
RSK028H |
| item_ |
BMR 78-87 G-Body Adj. Rear Suspension Kit - Black Hammertone |
| item_ |
Suspension (Other) |
| item_ |
Suspension Packages |
| item_ |
887753325600 |
| item_ |
459.95 |
| item_ |
459.95 |
| t14_ |
0 |
| mfr_ |
7 |
| dim_ |
25.00 |
| dim_ |
25.00 |
| dim_ |
11.00 |
| dim_ |
7.00 |
| shipping_ |
14.83 |
| item_ |
bmrRSK028H |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | BMR Suspension |
|---|---|
| Notes | Kit includes control arm reinforcement braces. |
| Quantity | Sold as a kit. |
| Part Type | Control Arms |
| Adjustable | Yes |
| Product Line | BMR Control Arms |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Control Arm Color | Black |
| Control Arm Style | Tubular |
| Hardware Included | No |
| Ball Joint Included | No |
| Control Arm Material | Steel |
| Manufacturer's Part Number | RSK028H |
