Bilstein M 7100 Series Shocks B46-0930S
Bilstein M 7100 Series Shocks B46-0930S
Low stock: 2 left
Couldn't load pickup availability
Product Description

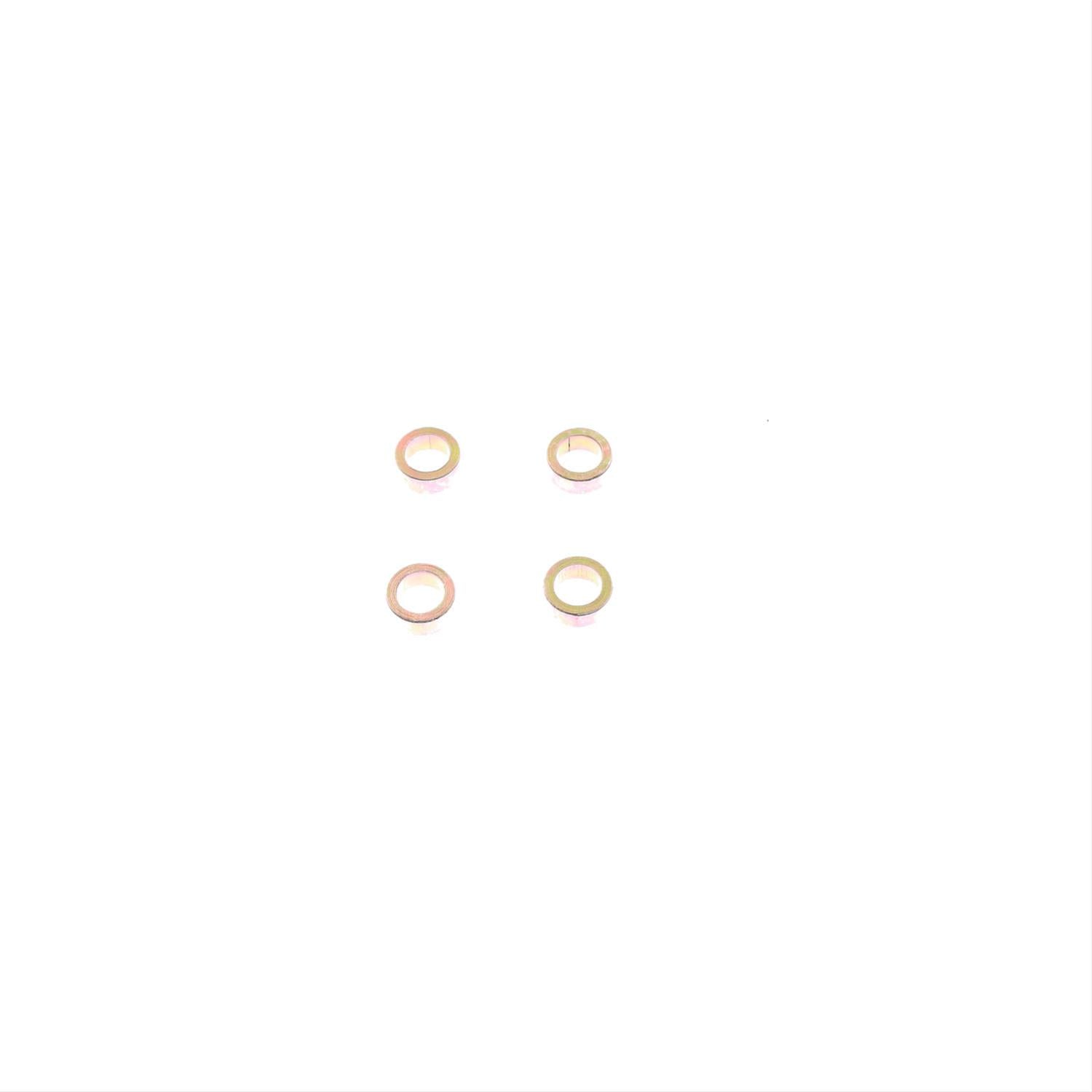

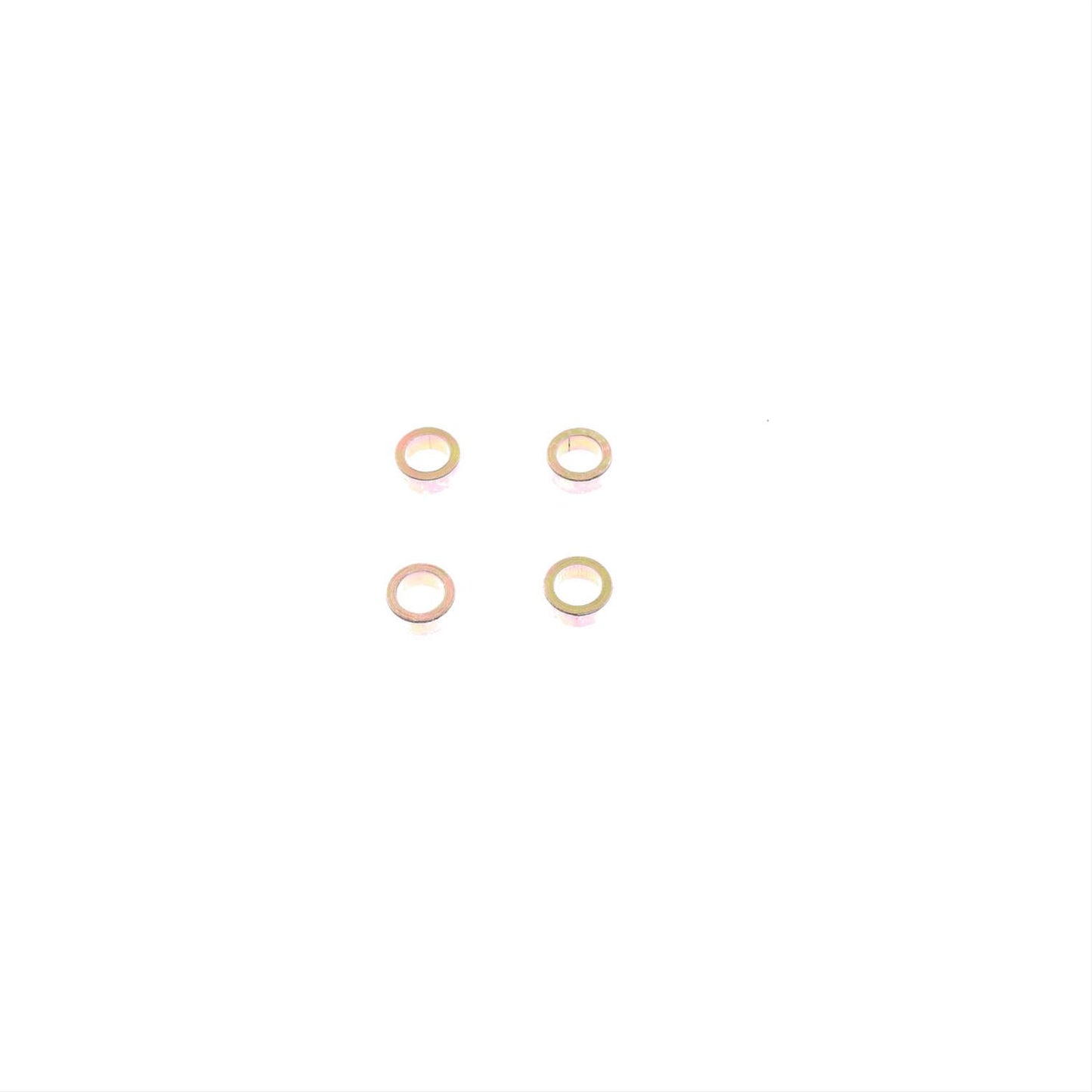

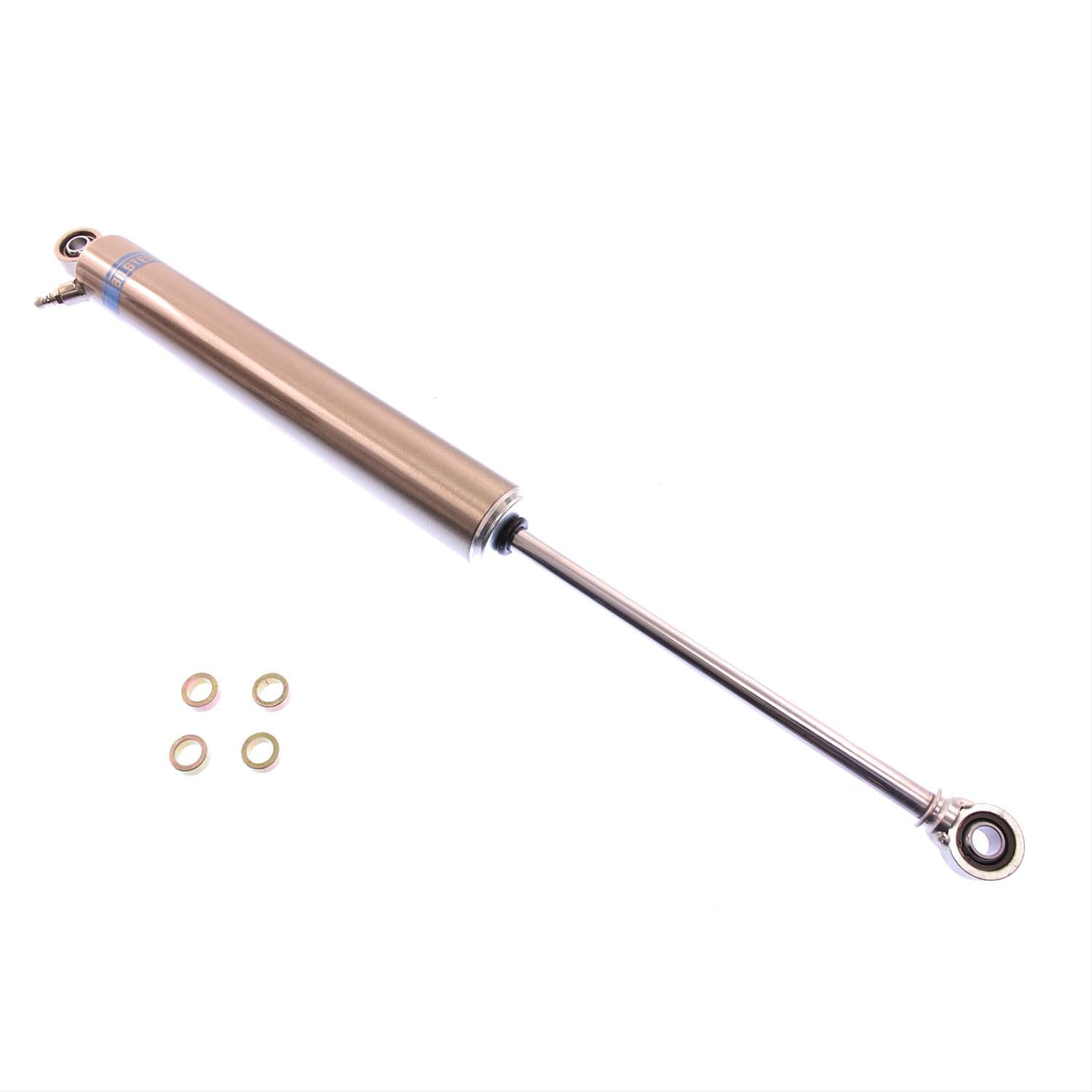

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application. Additional features: * Schrader valve shocks use dividing piston * Independent rebound and compression tuning * High-flow piston reduces harshness * 1/2 in. Heim ends * Easily rebuildable * True high-pressure gas shocks, no emulsion * 14mm centerless-ground, case-hardened, chromed, and super-polished rods * Aluminum one-piece rod guide
Extended Description
- 46mm Monotube Shock Absorber
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| features_ |
High-flow piston reduces harshness |
| label_ |
M 7100 - Shock Absorber |
| market_ |
Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands. |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
5" W/SHRDR 345/135 |
| product_ |
M 7100-Shock Absorber |
| product_ |
Shock |
| shipping_ |
M 7100 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein M 7100 Series Shocks B46-0930S |
| brand | Bilstein |
| price | 192 |
| blurb | Shock, M7100 Series, Monotube, Non-Reservoir, Gas Charged, 16.04 in. Extended Length, 10.81 in. Collapsed Length, 345/135 Valving, Each |
| title | Bilstein M 7100 Series Shocks |
| description | Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application. Additional features: * Schrader valve shocks use dividing piston * Independent rebound and compression tuning * High-flow piston reduces harshness * 1/2 in. Heim ends * Easily rebuildable * True high-pressure gas shocks, no emulsion * 14mm centerless-ground, case-hardened, chromed, and super-polished rods * Aluminum one-piece rod guide |
item_row
| handle | BIL-B46-0930S |
|---|---|
| item_ |
284052 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/6ad8d77eba79643ade25794e2337c0b4.JPG |
| item_ |
B46-0930S |
| item_ |
Bilstein Motorsport 5in. W/SHRDR 345/135 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
790832512078 |
| item_ |
192.00 |
| item_ |
192.00 |
| t14_ |
0 |
| mfr_ |
2 |
| dim_ |
3.72 |
| dim_ |
26.00 |
| dim_ |
2.75 |
| dim_ |
2.50 |
| shipping_ |
15.86 |
| item_ |
bilB46-0930S |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
| bodyHtml | Bilstein B46-0930S Shocks and Struts Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands. Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application.
Additional features:
* Schrader valve shocks use dividing piston
* Independent rebound and compression tuning
* High-flow piston reduces harshness
* 1/2 in. Heim ends
* Easily rebuildable
* True high-pressure gas shocks, no emulsion
* 14mm centerless-ground, case-hardened, chromed, and super-polished rods
* Aluminum one-piece rod guide |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Non-reservoir shock. 1/2 in. Heim ends top and bottom. Smooth non-threaded shock body is nickel plated with clear powdercoat. Shock stroke is 5.23 inches. Rebound is 3450 and compression is 1350. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Bearing |
| Ride Height | Custom |
| Upper Mount | Bearing |
| Product Line | Bilstein M 7100 Series Shocks |
| Boot Included | No |
| Bushing Color | Natural |
| Internal Design | Monotube |
| Bushing Material | Spherical bearing |
| Adjustable Valving | Yes |
| Body Diameter (in.) | 1.811 |
| Extended Length (in.) | 16.04 |
| Collapsed Length (in.) | 10.81 |
| Manufacturer's Part Number | B46-0930S |
