Bilstein M 7100 Series Shocks B46-0493VW
Bilstein M 7100 Series Shocks B46-0493VW
Out of stock
Couldn't load pickup availability
Product Description

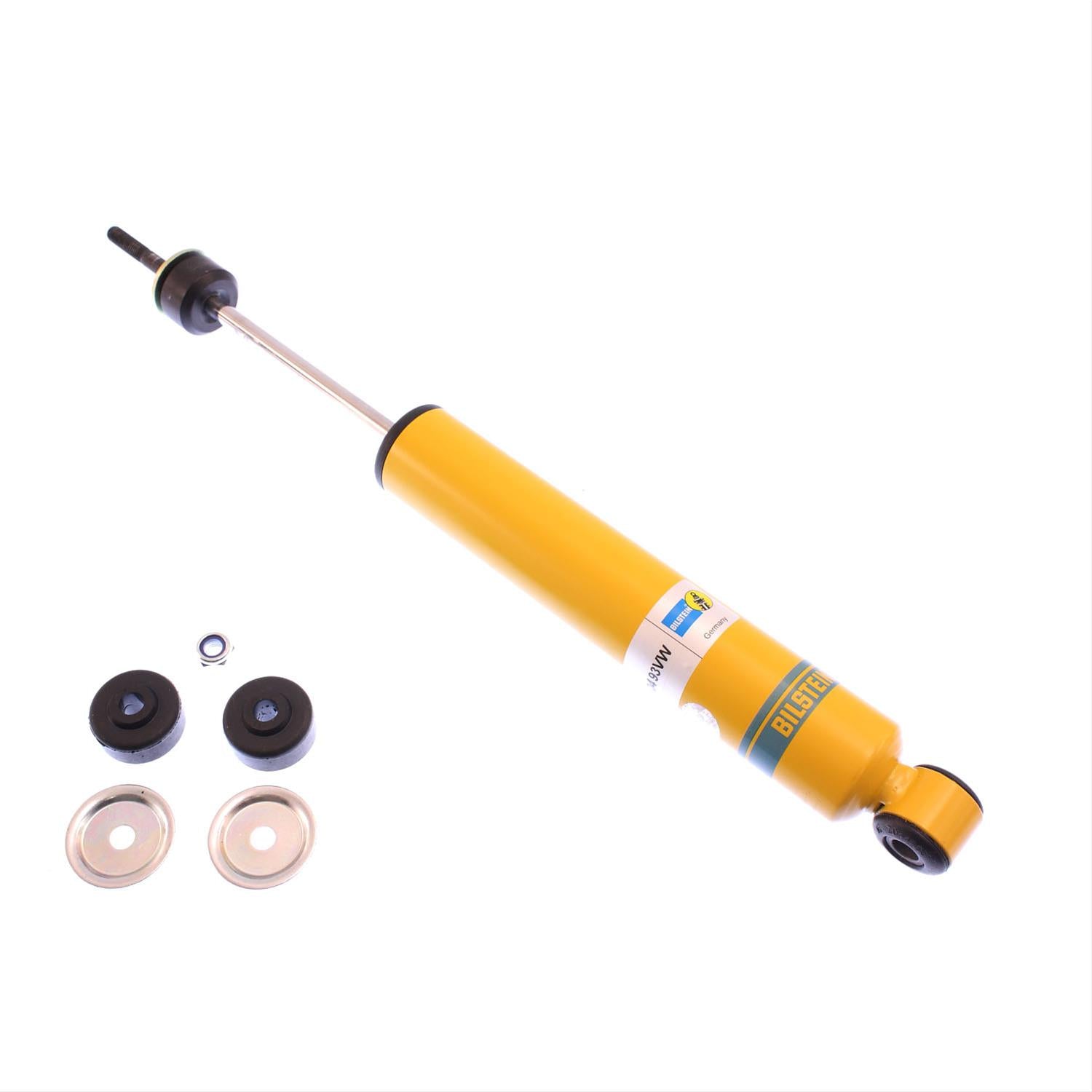

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.
Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application. Additional features: * Schrader valve shocks use dividing piston * Independent rebound and compression tuning * High-flow piston reduces harshness * 1/2 in. Heim ends * Easily rebuildable * True high-pressure gas shocks, no emulsion * 14mm centerless-ground, case-hardened, chromed, and super-polished rods * Aluminum one-piece rod guide
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
M 7100 Classic - Shock Absorber |
| market_ |
Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70''s, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance. |
| product_ |
VW OFF-ROAD FRONT |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
Shock |
| shipping_ |
M 7100 Classic |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein M 7100 Series Shocks B46-0493VW |
| brand | Bilstein |
| price | 106 |
| blurb | Shock, M7100 Series, Monotube, Non-Reservoir, Gas Charged, 18.6 in. Extended Length, 11.7 in. Collapsed Length, 265/70 Valving, Each |
| title | Bilstein M 7100 Series Shocks |
| description | Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application. Additional features: * Schrader valve shocks use dividing piston * Independent rebound and compression tuning * High-flow piston reduces harshness * 1/2 in. Heim ends * Easily rebuildable * True high-pressure gas shocks, no emulsion * 14mm centerless-ground, case-hardened, chromed, and super-polished rods * Aluminum one-piece rod guide |
item_row
| handle | BIL-B46-0493VW |
|---|---|
| item_ |
4337865 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/849540c4bdd13821841f9b1752405319.JPG |
| item_ |
B46-0493VW |
| item_ |
Bilstein 7100 Classic Series 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
790832526815 |
| item_ |
106.00 |
| item_ |
106.00 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
4.30 |
| dim_ |
26.70 |
| dim_ |
3.00 |
| dim_ |
2.80 |
| shipping_ |
14.52 |
| item_ |
bilB46-0493VW |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Non-reservoir shock. Smooth non-threaded shock body is painted yellow. Shock stroke is 9.67 inches. Rebound is 2650 and compression is 700. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Custom |
| Upper Mount | Stud |
| Product Line | Bilstein M 7100 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Adjustable Valving | Yes |
| Body Diameter (in.) | 1.811 |
| Extended Length (in.) | 18.60 |
| Collapsed Length (in.) | 11.70 |
| Manufacturer's Part Number | B46-0493VW |
