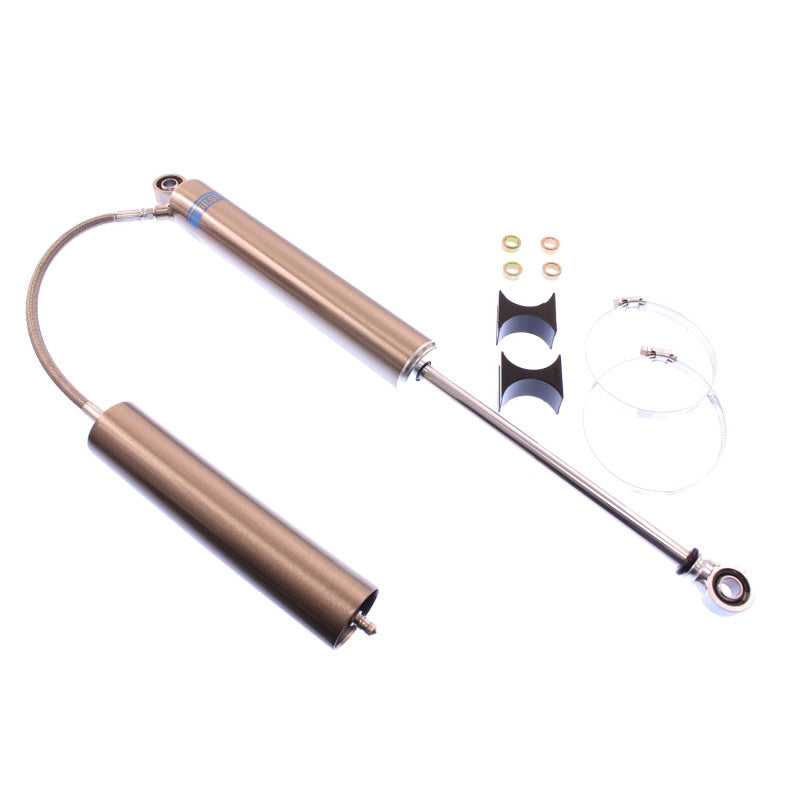

Bilstein M 7100 Series Shocks AK7112SB06
Bilstein M 7100 Series Shocks AK7112SB06
Low stock: 2 left
Couldn't load pickup availability
Product Description
Bilstein Off Road Racing Shocks are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications.
Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application. Additional features: * Schrader valve shocks use dividing piston * Independent rebound and compression tuning * High-flow piston reduces harshness * 1/2 in. Heim ends * Easily rebuildable * True high-pressure gas shocks, no emulsion * 14mm centerless-ground, case-hardened, chromed, and super-polished rods * Aluminum one-piece rod guide
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
M 7100 - Shock Absorber |
| market_ |
Bilstein Off Road Racing Shocks are filled with the technology perfected over 3 decades of off-road dominance. Bilstein''s monotube gas pressure design maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while under extreme working conditions. Available for lifted truck, custom truck, rock crawling and off-road racing applications. |
| product_ |
RSVR., 10" BODY 12"ROD 360/80 |
| product_ |
M 7100-Shock Absorber |
| product_ |
Shock |
| shipping_ |
M 7100 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein M 7100 Series Shocks AK7112SB06 |
| brand | Bilstein |
| price | 267 |
| blurb | Shock/Strut, 7100 Series, Monotube, 27.680 in. Extended, 16.100 in. Collapsed, Universal, Each |
| title | Bilstein M 7100 Series Shocks |
| description | Bilstein M 7100 Series shocks are designed for racing and specialty high performance applications. They feature a self-adjusting, deflective disc valving system with multiple valvings available. The shocks are available in a wide variety of extended and collapsed lengths; upper and lower mount options; body diameters; and more. Order the model best suited for your vehicle application. Additional features: * Schrader valve shocks use dividing piston * Independent rebound and compression tuning * High-flow piston reduces harshness * 1/2 in. Heim ends * Easily rebuildable * True high-pressure gas shocks, no emulsion * 14mm centerless-ground, case-hardened, chromed, and super-polished rods * Aluminum one-piece rod guide |
item_row
| handle | BIL-AK7112SB06 |
|---|---|
| item_ |
284002 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/2a743a63445b60b231faa9b6eb1f4bc4.JPG |
| item_ |
AK7112SB06 |
| item_ |
Bilstein Motorsport RSVR. 10in. BODY 12in.ROD 360/80 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
790832511255 |
| item_ |
267.00 |
| item_ |
267.00 |
| t14_ |
0 |
| mfr_ |
27 |
| dim_ |
8.30 |
| dim_ |
38.20 |
| dim_ |
7.90 |
| dim_ |
2.50 |
| shipping_ |
14.52 |
| item_ |
bilAK7112SB06 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Manufacturer's Part Number | AK7112SB06 |
| Part Type | Shocks and Struts |
| Product Line | Bilstein M 7100 Series Shocks |
| Ride Height | Custom |
| Extended Length (in.) | 27.68 |
| Collapsed Length (in.) | 16.10 |
| Internal Design | Monotube |
| Adjustable Valving | No |
| Gas Charged | Yes |
| Upper Mount | Bearing |
| Lower Mount | Bearing |
| Bushing Material | Spherical bearing |
| Bushing Color | Natural |
| Boot Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Notes | Electroless nickel with clear powdercoated finish, 1/2 in. rod ends, remote reservoir, non coil-over. Compression @0.52m/s: 800, rebound @0.52m/s: 3,600. |
