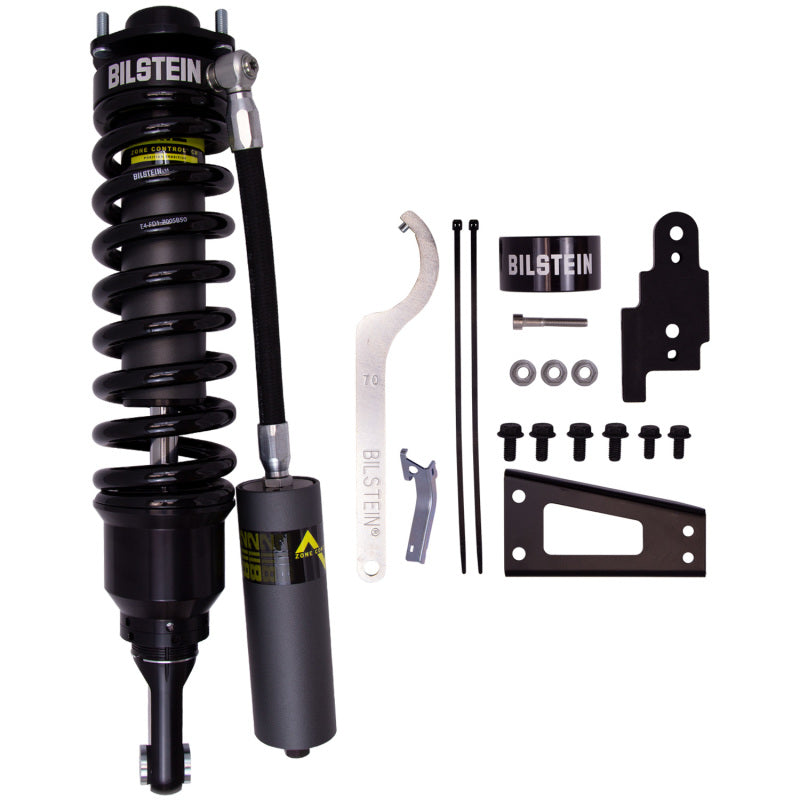

Bilstein B8 8112 Zone Control Coilover Shocks 41-322697
Bilstein B8 8112 Zone Control Coilover Shocks 41-322697
10 in stock
Couldn't load pickup availability
/update?link=products%2Fed7b0225aa692beb650ee016da295146.jpg){kind=link}
Tags
Product Description

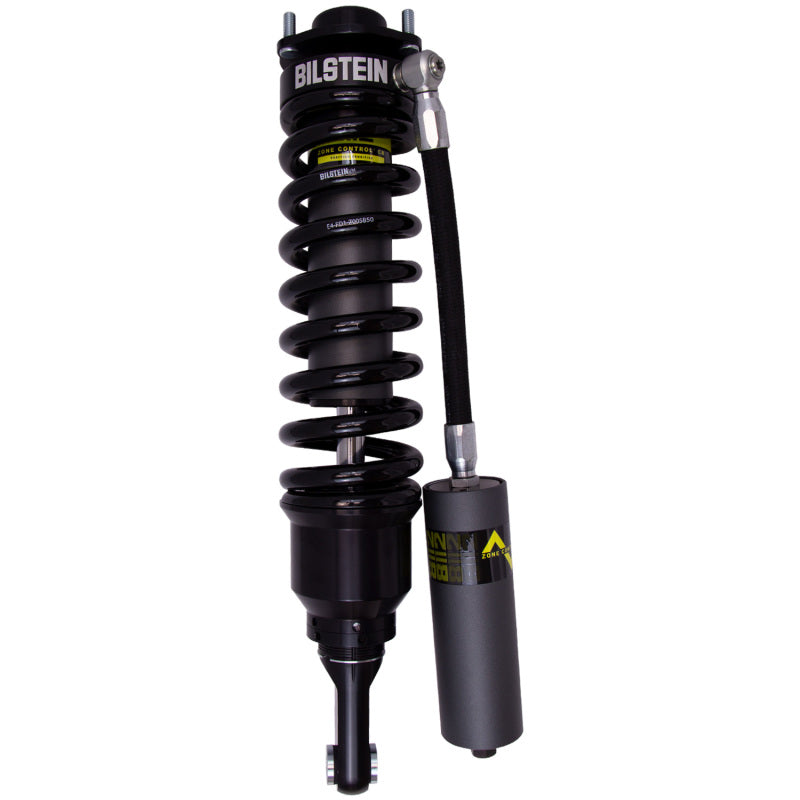

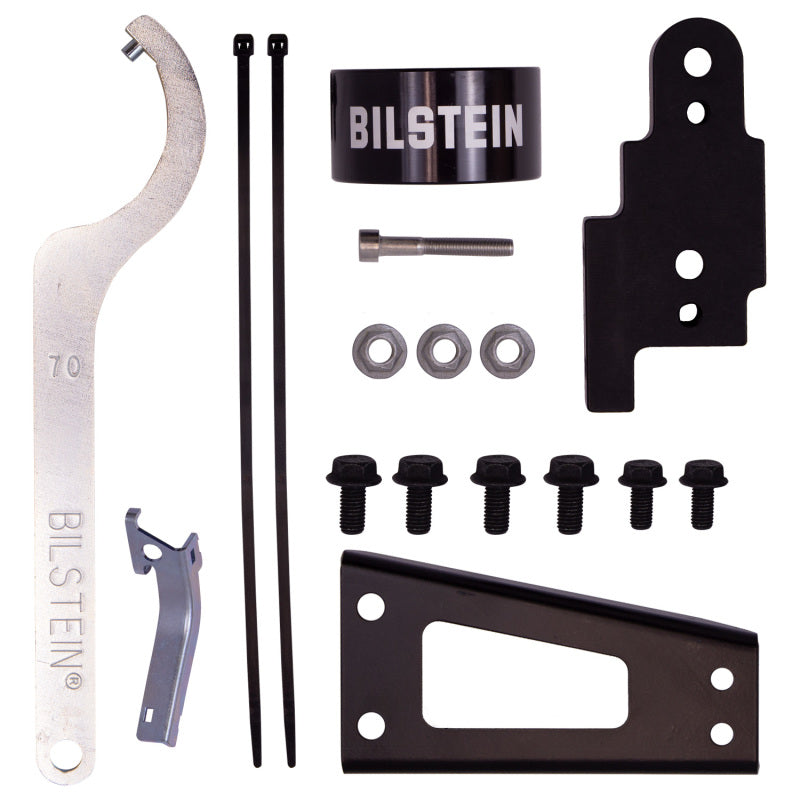

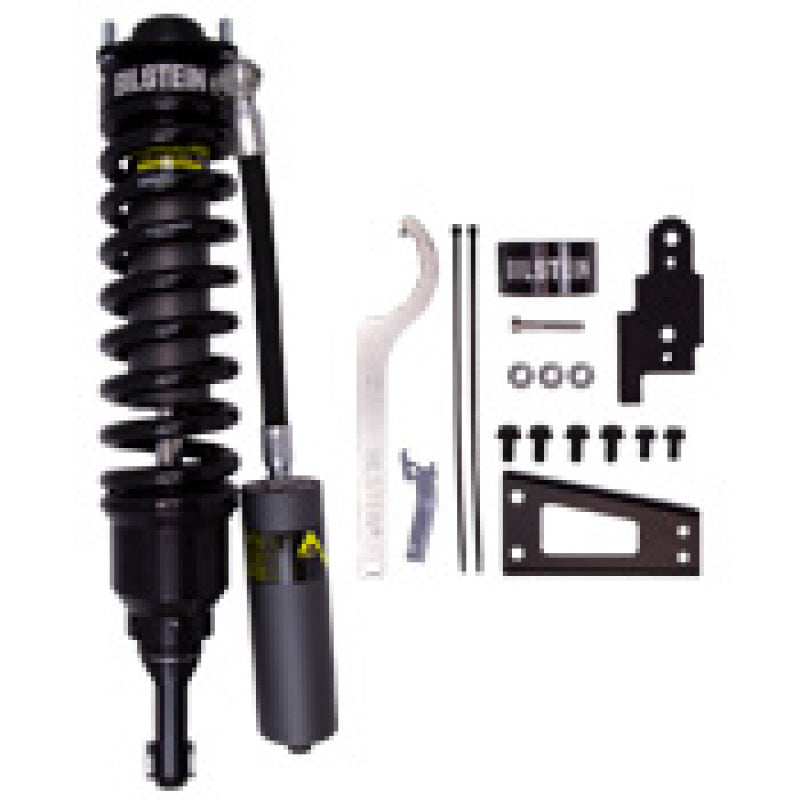

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Extended Description
- 60mm Front Right Corner Module
Application Summary
Toyota Tacoma 2022-2005
Fitment
Fitment
Part Type
Shock Absorber and Coil Spring Assembly
description
| aaia_ |
Shock Absorber and Coil Spring Assembly |
|---|---|
| application_ |
Toyota Tacoma 2022-2005 |
| label_ |
B8 8112 (ZoneControl CR) - Front Right Corner Module |
| market_ |
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
| product_ |
60mm Front Right Corner Module |
| product_ |
Toyota Tacoma 8112; Module Assy; FR; EVO |
| product_ |
Front Corner Module |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8112 Zone Control Coilover Shocks 41-322697 |
| brand | Bilstein |
| price | 981.9 |
| blurb | Coilover Shocks and Struts, B8 8112 Zone Control Series, Non-Adjustable, Monotube, 60mm Zinc Plated Body, Front Right, Toyota, Lexus, Each |
| title | Bilstein B8 8112 Zone Control Coilover Shocks |
| description | Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
item_row
| handle | BIL-41-322697 |
|---|---|
| item_ |
519807 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/1fa02bed3216857c002e8f33a20d44f4.JPG |
| item_ |
41-322697 |
| item_ |
Bilstein B8 8112 Series 05-22 Toyota Tacoma Zone Control CR Front Right Corner Module |
| item_ |
Suspension (Other) |
| item_ |
Suspension Packages |
| item_ |
651860887128 |
| item_ |
1091.00 |
| item_ |
1189.90 |
| t14_ |
3 |
| mfr_ |
0 |
| dim_ |
36.60 |
| dim_ |
33.00 |
| dim_ |
11.90 |
| dim_ |
9.10 |
| shipping_ |
15.65 |
| item_ |
bil41-322697 |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Manufacturer's Part Number | 41-322697 |
| Part Type | Coilover Shocks and Struts |
| Product Line | Bilstein B8 8112 Zone Control Coilover Shocks |
| Coilover Shock Type | Non-adjustable |
| Shock Body Material | Steel |
| Shock Body Finish | Zinc plated |
| Adjustable Valving | No |
| Extended Length (in.) | 22.39 |
| Collapsed Length (in.) | 17.43 |
| Internal Design | Monotube |
| Gas Charged | Yes |
| Body Diameter (in.) | 2.362 |
| Coilover Springs Included | Yes |
| Spring Finish | Black |
| Adjustable Mounting Bracket Included | No |
| Hardware Included | No |
| Quantity | Sold individually. |
