Bilstein B8 8112 Zone Control Coilover Shocks 41-319581
Bilstein B8 8112 Zone Control Coilover Shocks 41-319581
Low stock: 1 left
Couldn't load pickup availability
Tags
Product Description

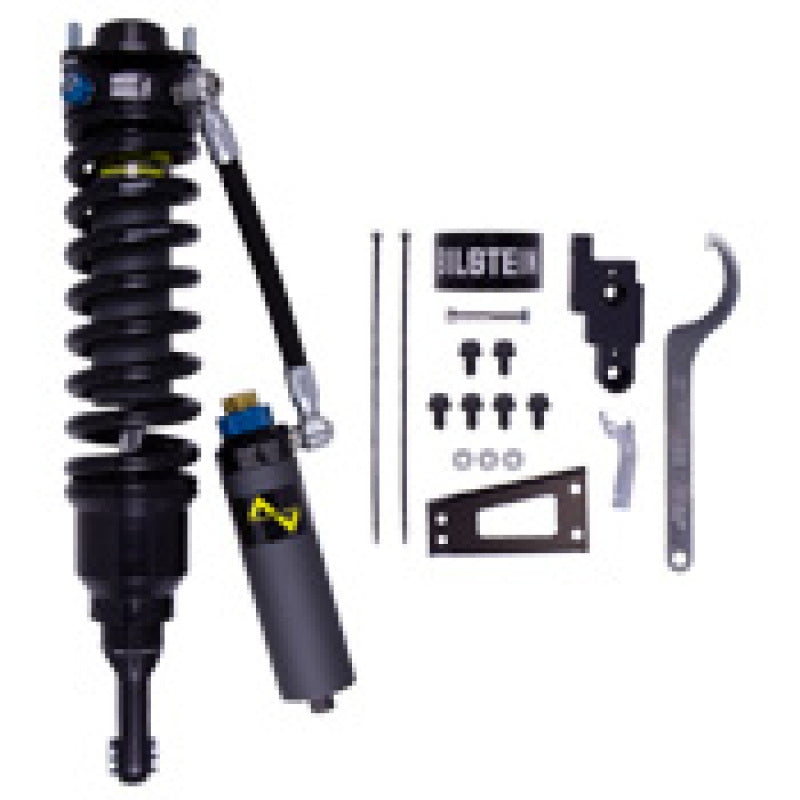

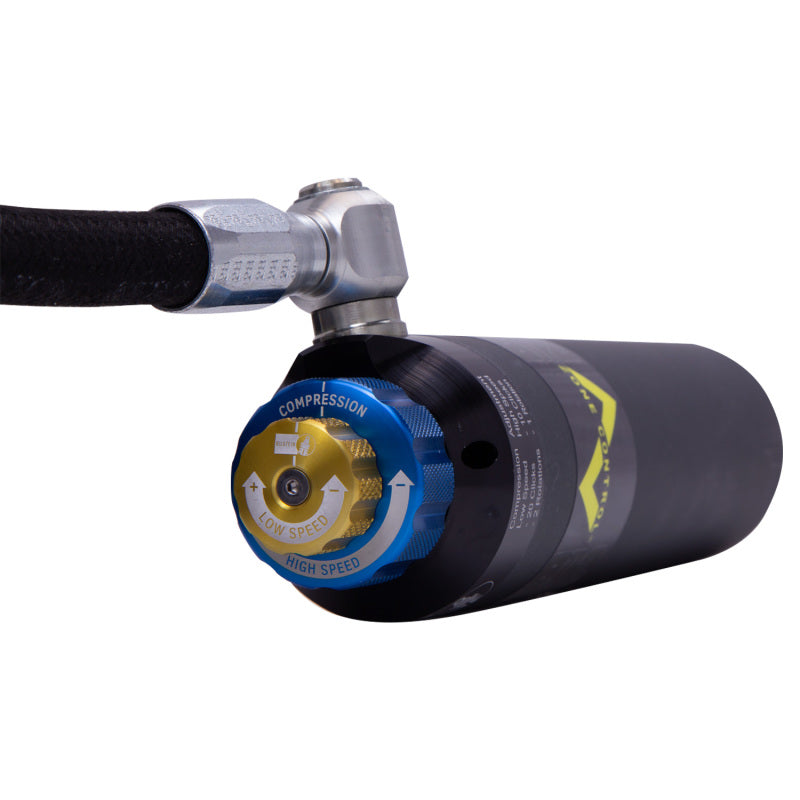

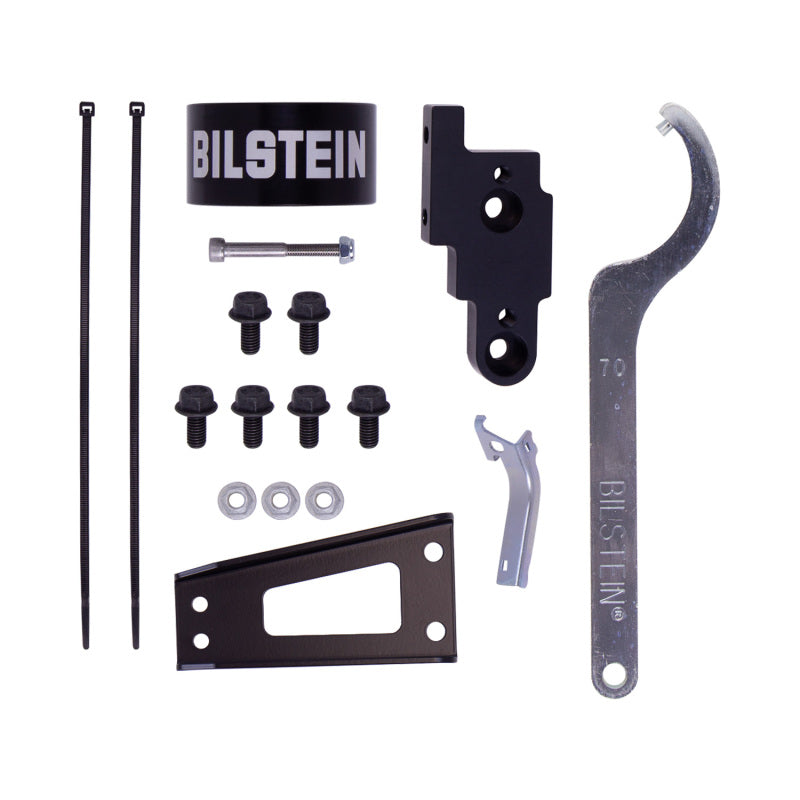

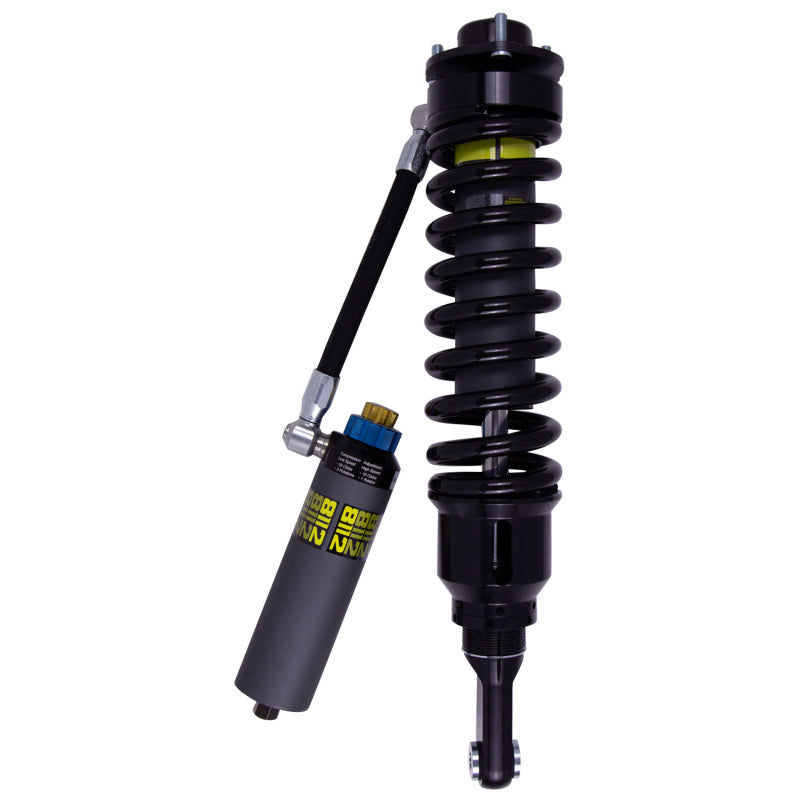

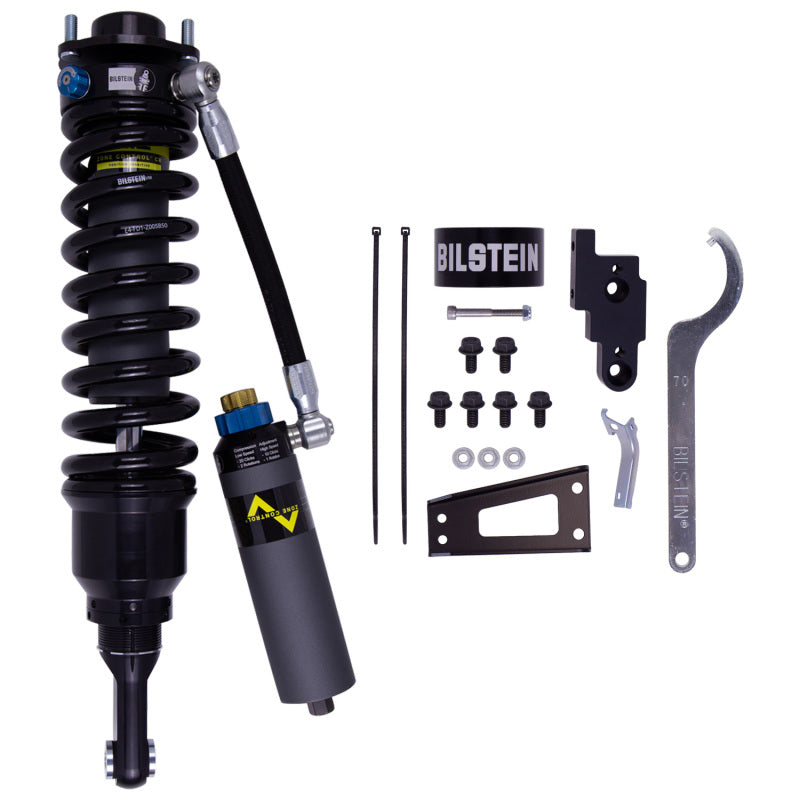

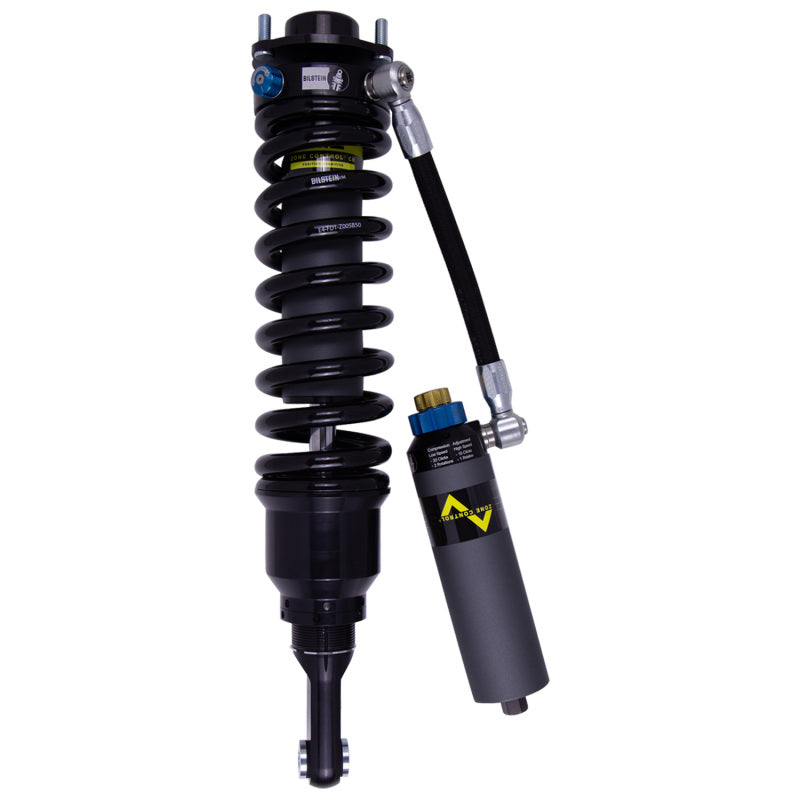

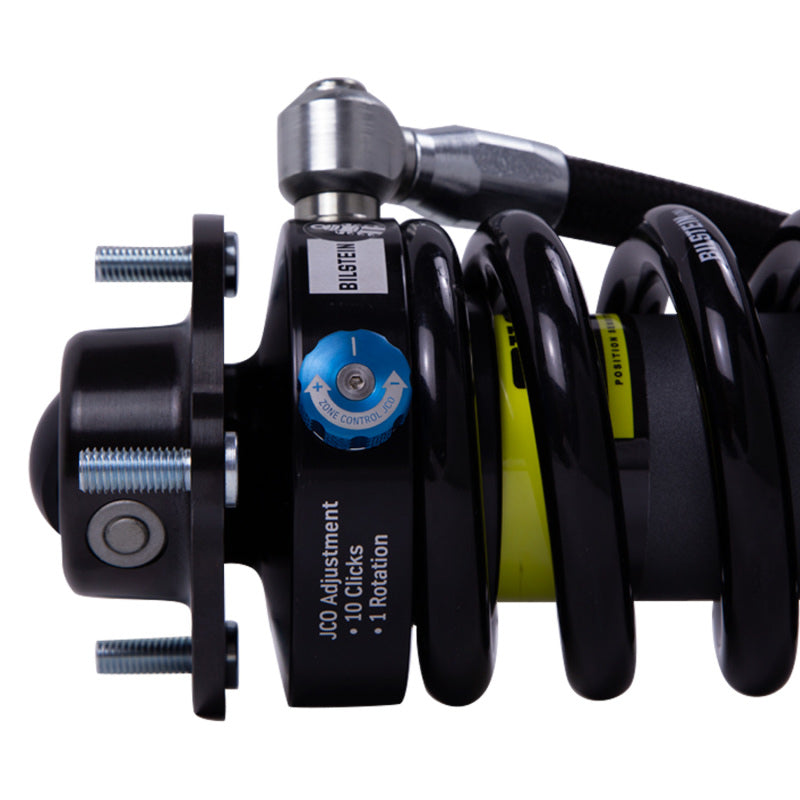

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.
Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Extended Description
- 60mm Front Right Corner Module
Application Summary
Toyota Tacoma 2022-2005
Fitment
Fitment
Part Type
Shock Absorber and Coil Spring Assembly
Additional Information 2
- Coming Soon
description
| aaia_ |
Shock Absorber and Coil Spring Assembly |
|---|---|
| application_ |
Toyota Tacoma 2022-2005 |
| associated_ |
Coming Soon |
| label_ |
B8 8112 (ZoneControl CR DSA+) - Front Right Corner Module |
| market_ |
Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 60mm, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-2.6” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain. |
| product_ |
60mm Front Right Corner Module |
| product_ |
Tacoma; FR; EVO 8112 Adj Res/JCO; Module |
| product_ |
Front Corner Module |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8112 Zone Control Coilover Shocks 41-319581 |
| brand | Bilstein |
| price | 1176.3 |
| blurb | Shock And Coil Spring Assembly, B8 8112 Zone Control Series, Front Passenger Side, Toyota Tacoma, Each |
| title | Bilstein B8 8112 Zone Control Coilover Shocks |
| description | Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
item_row
| handle | BIL-41-319581 |
|---|---|
| item_ |
542838 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/8d639f17df6830bbf208f666325158fb.JPG |
| item_ |
41-319581 |
| item_ |
Bilstein B8 8112 Series 05-22 Toyota Tacoma Front Right Shock Absorber and Coil Spring Assembly |
| item_ |
Suspension (Other) |
| item_ |
Suspension Packages |
| item_ |
651860885810 |
| item_ |
1307.00 |
| item_ |
1425.90 |
| t14_ |
1 |
| mfr_ |
2 |
| dim_ |
37.50 |
| dim_ |
33.20 |
| dim_ |
11.90 |
| dim_ |
9.20 |
| shipping_ |
15.80 |
| item_ |
bil41-319581 |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Manufacturer's Part Number | 41-319581 |
| Part Type | Coilover Shocks and Struts |
| Product Line | Bilstein B8 8112 Zone Control Coilover Shocks |
| Coilover Shock Type | Triple-adjustable |
| Suspension Height Adjustment | 0.0-2.6 in. raised |
| Shock Body Material | Steel |
| Shock Body Finish | Gray painted |
| Adjustable Valving | Yes |
| Number of Valving Selections | 40 |
| Extended Length (in.) | 22.39 |
| Collapsed Length (in.) | 17.42 |
| Threaded Adjustment Range | 1.281 in. |
| Upper Mount | Stock |
| Lower Mount | Stock |
| Internal Design | Monotube |
| Gas Charged | Yes |
| Body Diameter (in.) | 2.362 |
| Coilover Springs Included | Yes |
| Spring Finish | Black |
| Adjustable Mounting Bracket Included | No |
| Hardware Included | No |
| Quantity | Sold individually. |
