Bilstein B8 8112 Zone Control Coilover Shocks 41-298381
Bilstein B8 8112 Zone Control Coilover Shocks 41-298381
Low stock: 1 left
Couldn't load pickup availability
Tags
Product Description

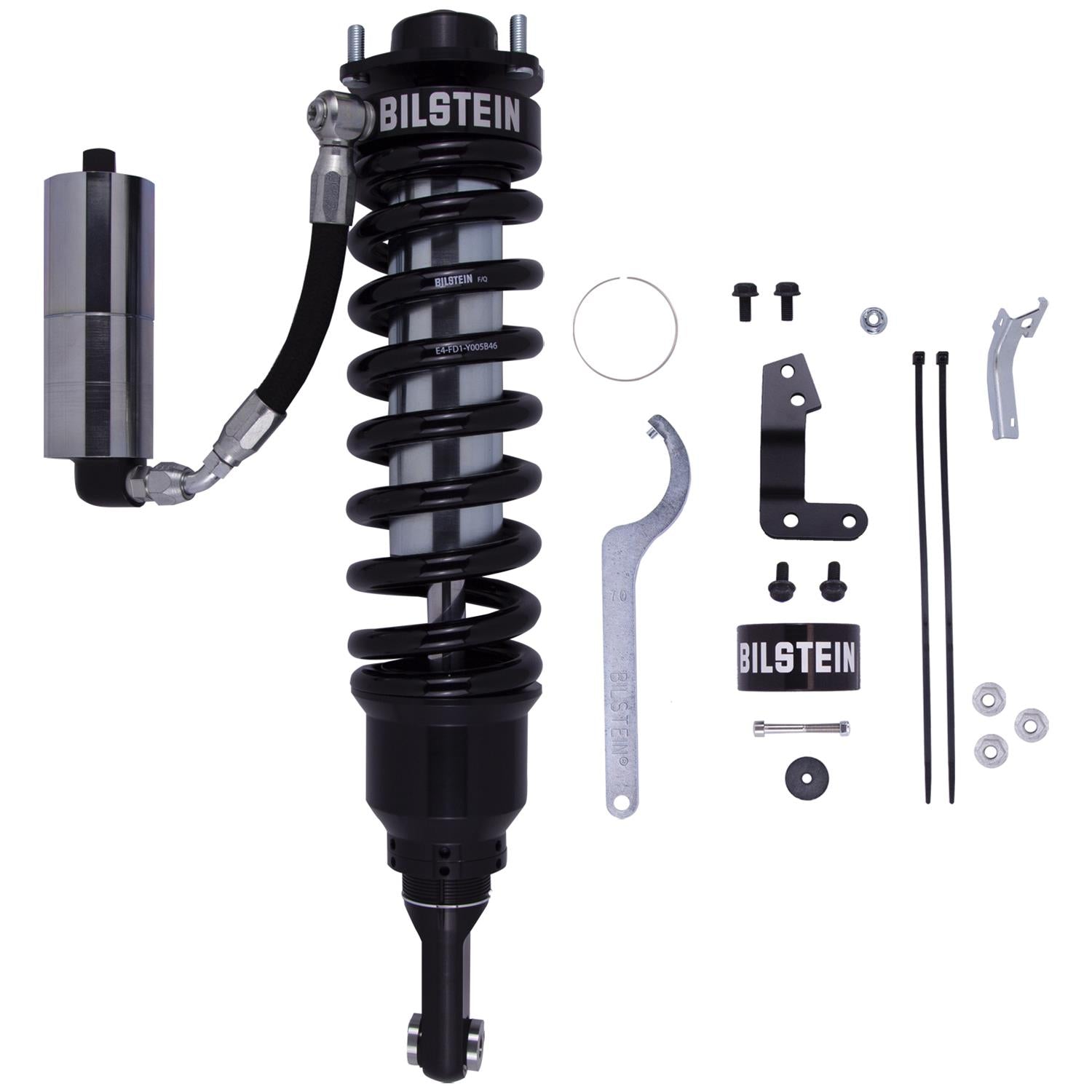

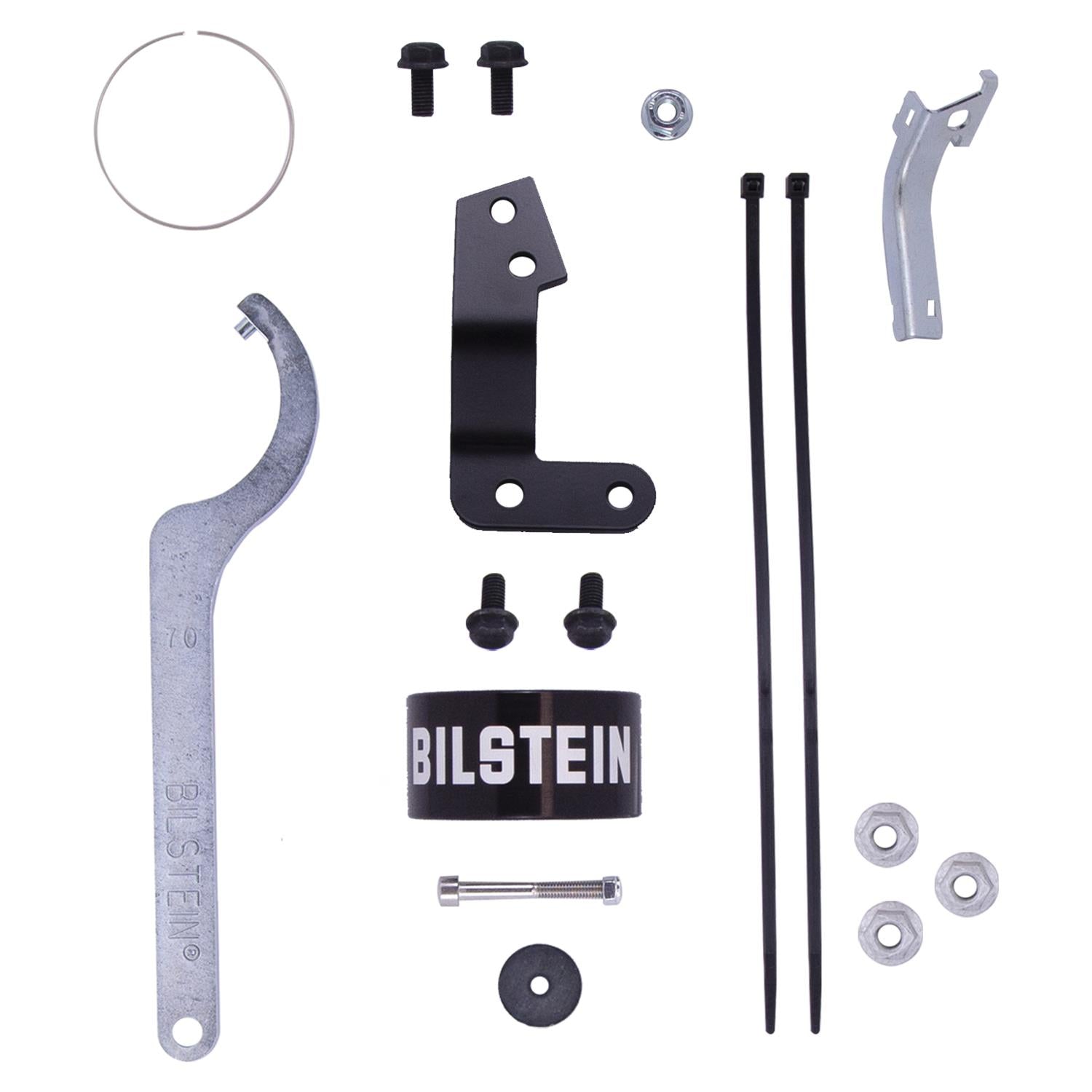

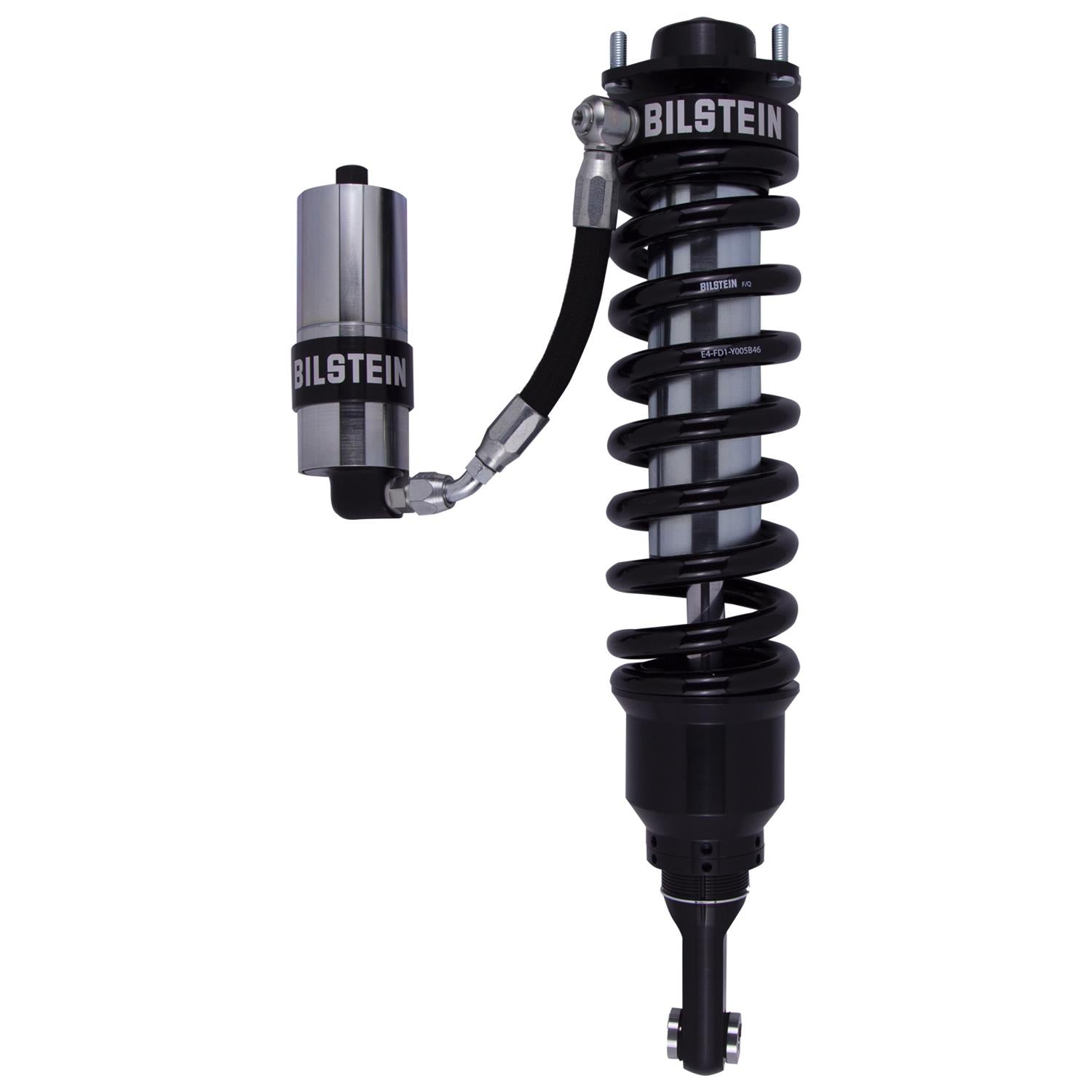

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Extended Description
- 60mm Front Left Corner Module
Application Summary
Lexus GX460 2021-2010, Toyota 4Runner 2021-2010
Fitment
Fitment
Part Type
Shock Absorber and Coil Spring Assembly
description
| aaia_ |
Shock Absorber and Coil Spring Assembly |
|---|---|
| application_ |
Lexus GX460 2021-2010, Toyota 4Runner 2021-2010 |
| market_ |
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
| product_ |
60mm Front Left Corner Module |
| product_ |
Toyota 4Runner KDSS Heavy Ld 10- LF 8112 |
| product_ |
B8 8112 (ZoneControl CR) - Front Left Corner Module |
| product_ |
Front Corner Module |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8112 Zone Control Coilover Shocks 41-298381 |
| brand | Bilstein |
| price | 1091 |
| blurb | Coilover Shocks and Struts, B8 8112 Zone Control Series, Non-Adjustable, Monotube, 60mm Zinc Plated Body, Black Spring, Front Left, Toyota, Each |
| title | Bilstein B8 8112 Zone Control Coilover Shocks |
| description | Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
item_row
| handle | BIL-41-298381 |
|---|---|
| item_ |
430949 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/076037482e191f482da07b5a5dc9956e.JPG |
| item_ |
41-298381 |
| item_ |
Bilstein 10-20 4Runner / 10-20 GX460 B8 8112 (ZoneControl CR) Front Left Shock/Coil Spring Assembly |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860854199 |
| item_ |
1091.00 |
| item_ |
1189.90 |
| t14_ |
2 |
| mfr_ |
|
| dim_ |
34.50 |
| dim_ |
33.10 |
| dim_ |
11.60 |
| dim_ |
9.00 |
| shipping_ |
15.49 |
| item_ |
bil41-298381 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Quantity | Sold individually. |
| Part Type | Coilover Shocks and Struts |
| Gas Charged | No |
| Product Line | Bilstein B8 8112 Zone Control Coilover Shocks |
| Spring Finish | Black |
| Internal Design | Monotube |
| Hardware Included | No |
| Shock Body Finish | Zinc plated |
| Adjustable Valving | No |
| Body Diameter (in.) | 2.362 |
| Coilover Shock Type | Non-adjustable |
| Shock Body Material | Steel |
| Extended Length (in.) | 22.80 |
| Collapsed Length (in.) | 17.99 |
| Coilover Springs Included | Yes |
| Manufacturer's Part Number | 41-298381 |
| Adjustable Mounting Bracket Included | No |
