Bilstein B8 8112 Zone Control Coilover Shocks 41-284834
Bilstein B8 8112 Zone Control Coilover Shocks 41-284834
5 in stock
Couldn't load pickup availability
/update?link=products%2Fbsn-41-284834_cz_xl.jpg){kind=link}
Tags
Product Description

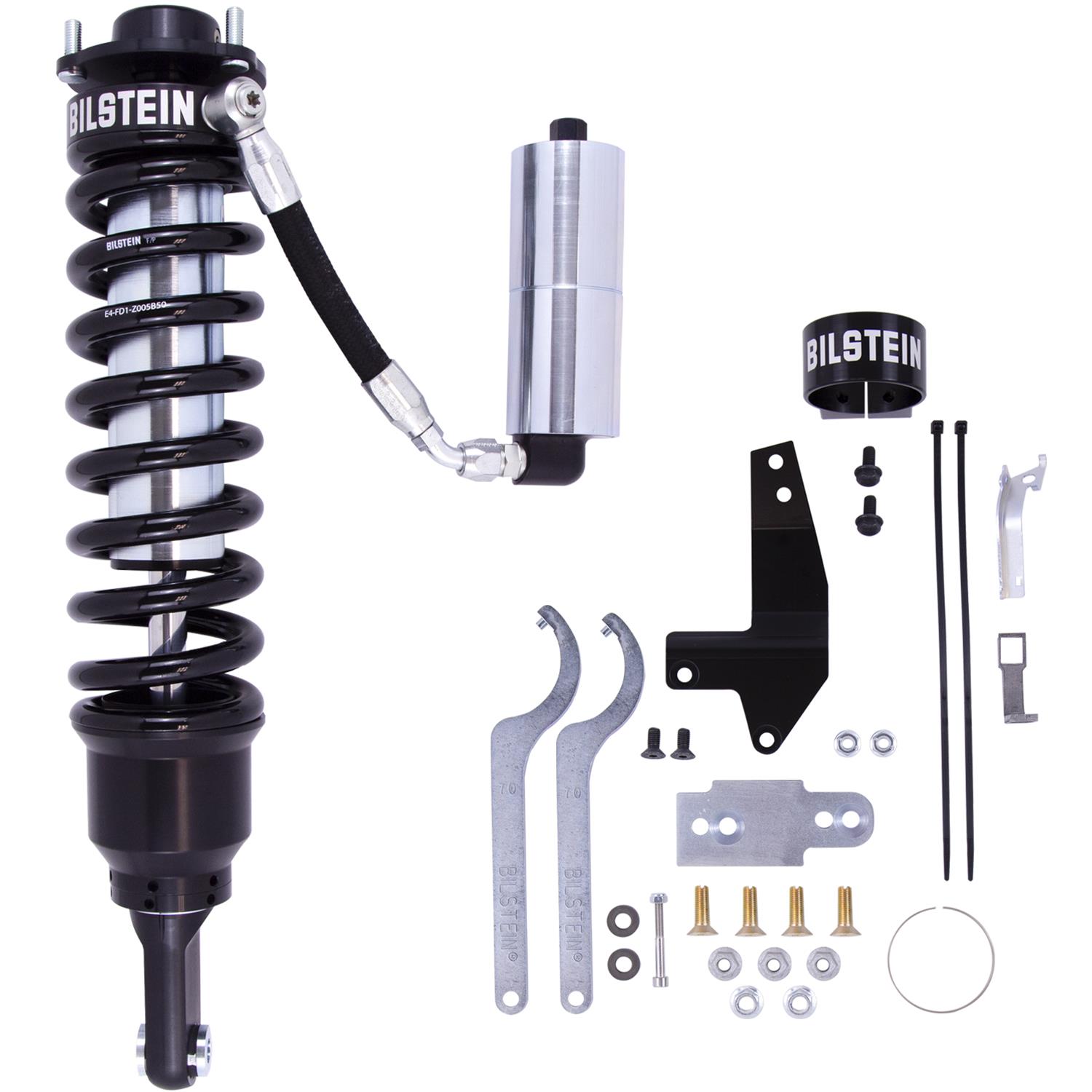

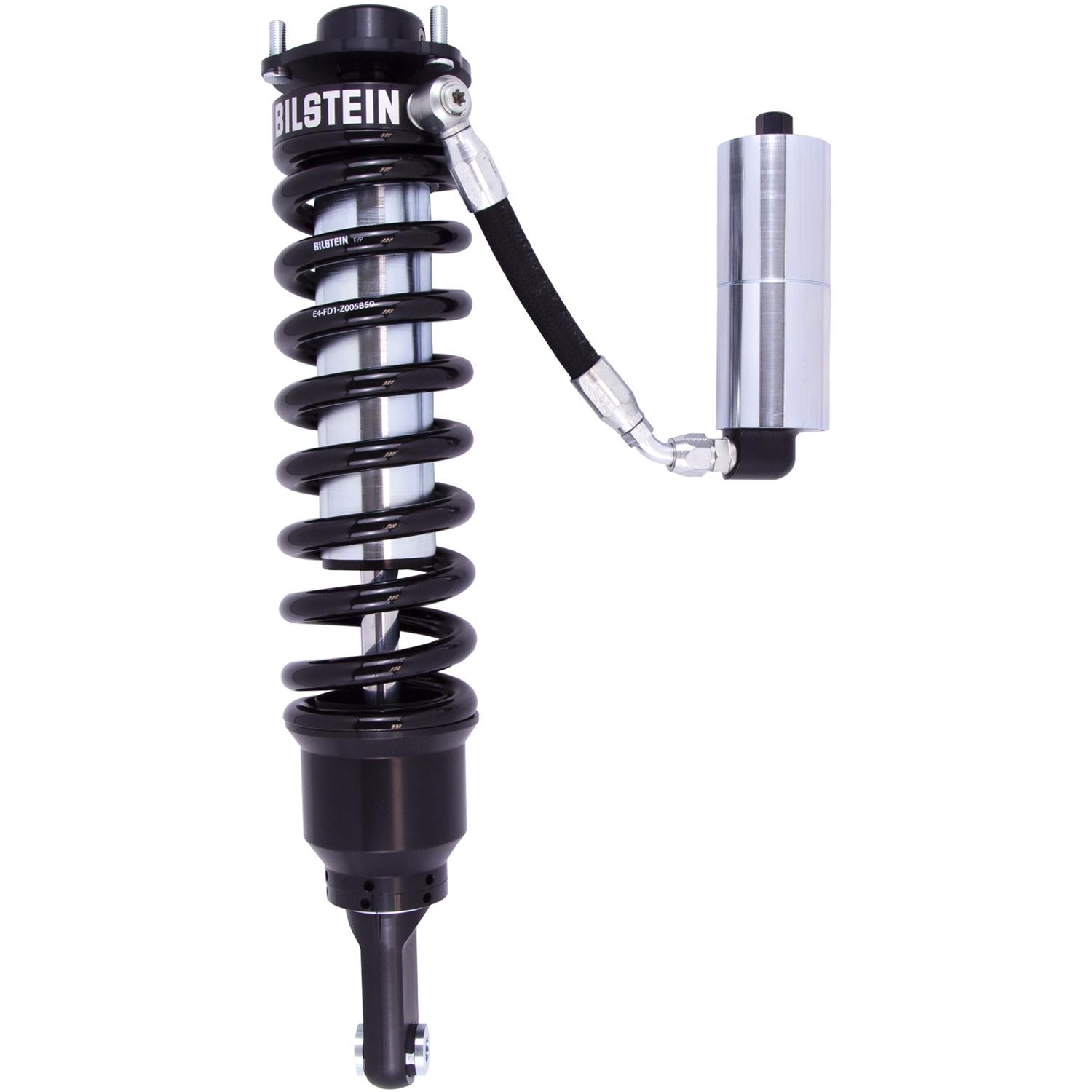

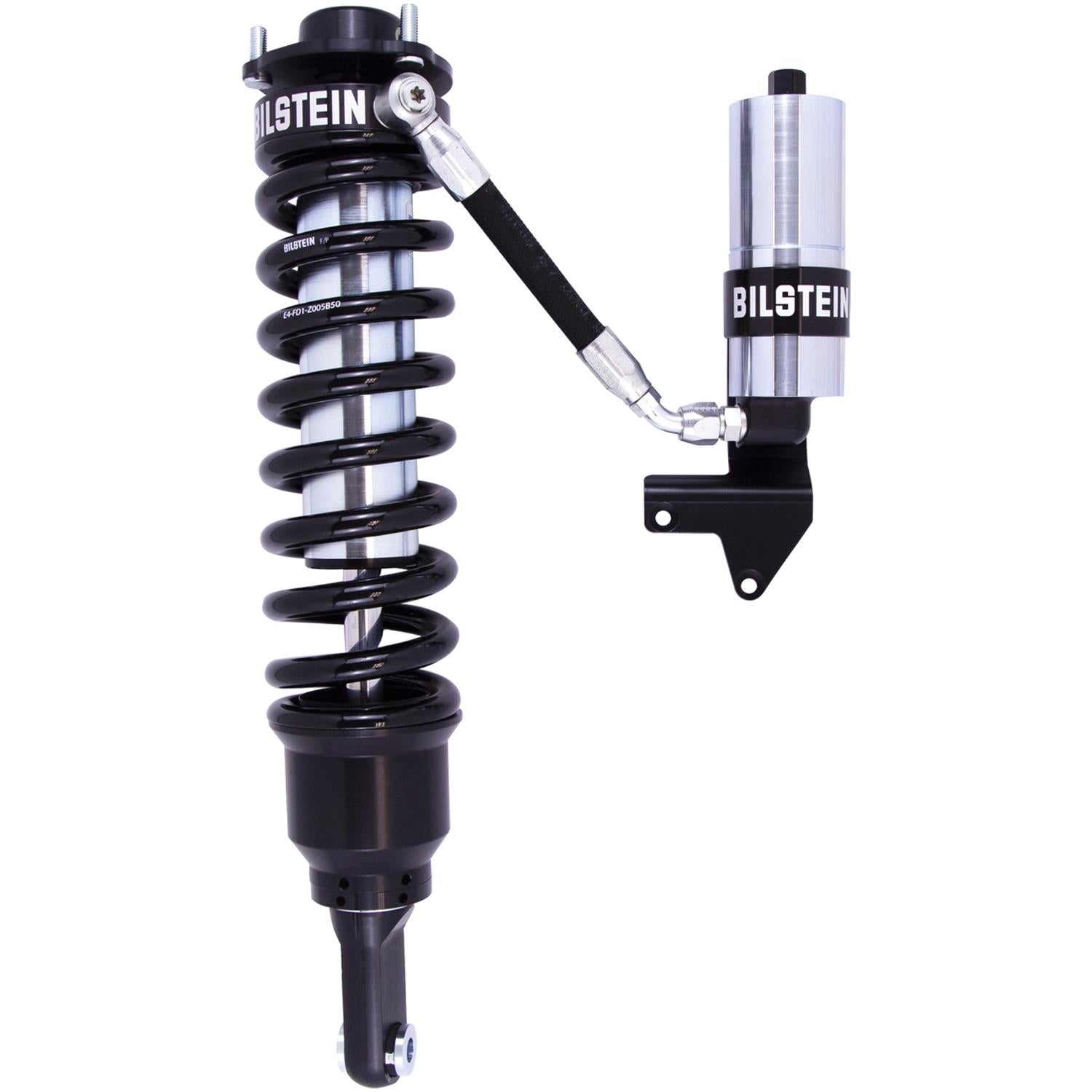

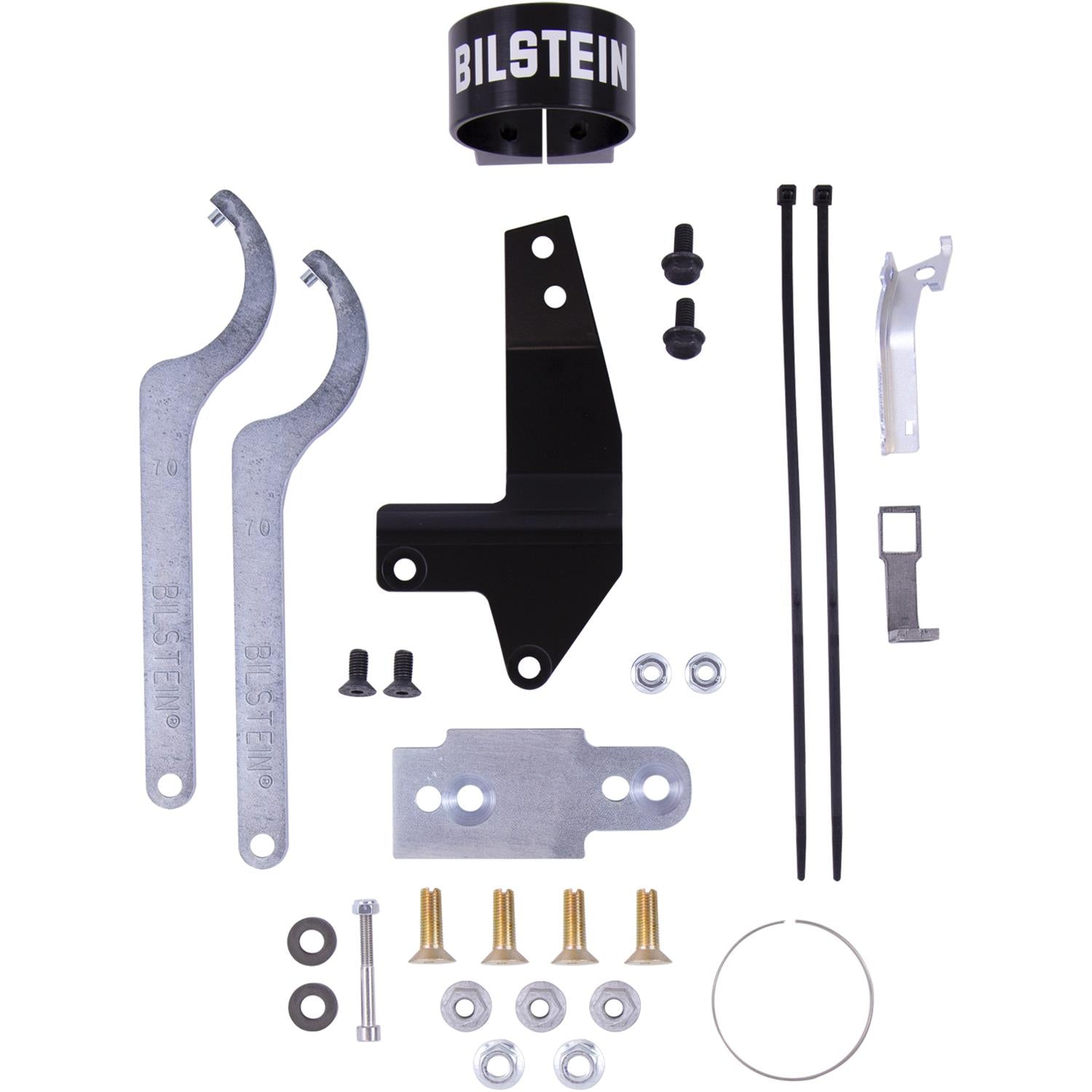

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Extended Description
- 60mm Front Left Corner Module
Application Summary
Lexus GX470 2009-2003, Toyota 4Runner 2009-2003, FJ Cruiser 2009-2007
Fitment
Fitment
Part Type
Shock Absorber and Coil Spring Assembly
description
| aaia_ |
Shock Absorber and Coil Spring Assembly |
|---|---|
| application_ |
Lexus GX470 2009-2003, Toyota 4Runner 2009-2003, FJ Cruiser 2009-2007 |
| market_ |
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
| product_ |
60mm Front Left Corner Module |
| product_ |
Toyota 4Runner 4x4; ''03-''09; FR; B8 8112 |
| product_ |
B8 8112 (ZoneControl CR) - Front Right Corner Module |
| product_ |
Front Corner Module |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8112 Zone Control Coilover Shocks 41-284834 |
| brand | Bilstein |
| price | 1091 |
| blurb | Coilover Shocks and Struts, B8 8112 Zone Control Series, Non-Adjustable, Monotube, 60mm Zinc Plated Body, Black Spring, Frt. Right Toyota, Lexus, Each |
| title | Bilstein B8 8112 Zone Control Coilover Shocks |
| description | Bilstein B8 8112 Zone Control coilover shocks are a direct fit, position sensitive coilover designed for light trucks and SUVs. Zone Control CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering three stages of compression valving and two stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability. The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 Zone Control position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs. |
item_row
| handle | BIL-41-284834 |
|---|---|
| item_ |
428091 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/b9647f6f9727a1a8188383fb0a9eb143.JPG |
| item_ |
41-284834 |
| item_ |
Bilstein B8 8112 Series 07-09 Toyota FJ Cruiser Zone Control Monotube Front Right Corner Module |
| item_ |
Suspension (Other) |
| item_ |
Suspension Packages |
| item_ |
651860847870 |
| item_ |
1091.00 |
| item_ |
1189.90 |
| t14_ |
5 |
| mfr_ |
|
| dim_ |
36.50 |
| dim_ |
28.30 |
| dim_ |
10.90 |
| dim_ |
7.50 |
| shipping_ |
15.65 |
| item_ |
bil41-284834 |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Quantity | Sold individually. |
| Part Type | Coilover Shocks and Struts |
| Gas Charged | Yes |
| Product Line | Bilstein B8 8112 Zone Control Coilover Shocks |
| Spring Finish | Black |
| Internal Design | Monotube |
| Hardware Included | No |
| Shock Body Finish | Zinc plated |
| Adjustable Valving | No |
| Body Diameter (in.) | 2.362 |
| Coilover Shock Type | Non-adjustable |
| Shock Body Material | Steel |
| Extended Length (in.) | 22.80 |
| Collapsed Length (in.) | 17.99 |
| Coilover Springs Included | Yes |
| Manufacturer's Part Number | 41-284834 |
| Adjustable Mounting Bracket Included | No |
