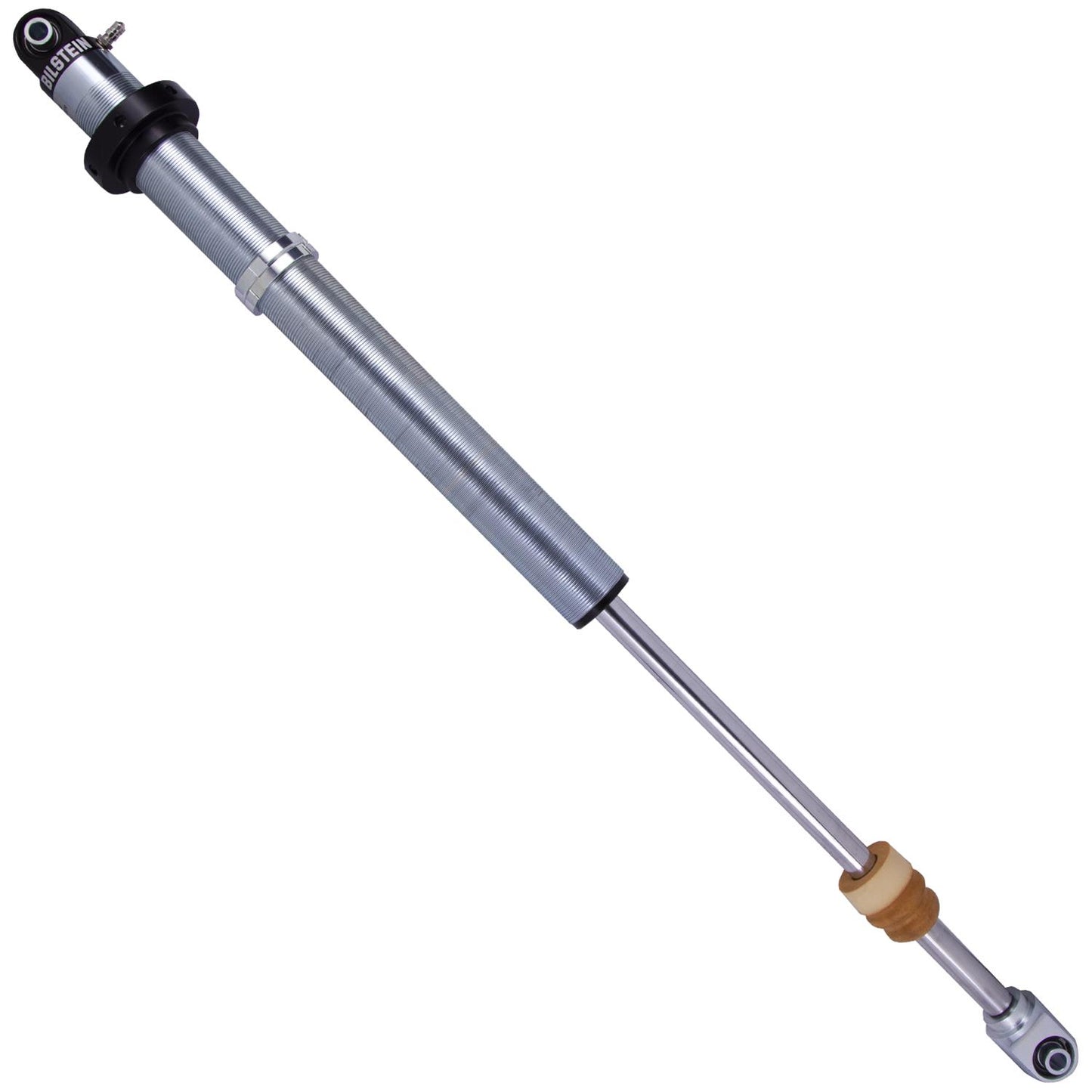

Bilstein M 9200 Coilover Series Shocks 33-243566
Bilstein M 9200 Coilover Series Shocks 33-243566
Low stock: 3 left
Couldn't load pickup availability
Product Description
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.
Bilstein M 9200 Coilover Series shocks are designed specifically for professional off-road competition use, which requires custom lengths and valve settings. The M 9200 features a fully adjustable dual-rate spring hardware system that will complement a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm I.D. remote reservoir and are owner-rebuildable and revalvable. All of this makes the M 9200 coilovers one of the easiest and most effective ways to tune your off-road suspension for ultimate in performance. M 9200 coilover features include; * Threaded body (coilover) design * Monotube internal design * 60mm body diameter * Zinc plated finish
Extended Description
- 46mm Monotube Shock Absorber
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
M 9200 (Coil Carrier) - Shock Absorber |
| market_ |
Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance. |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
46mm Coil-Carrier, 16", 9200 Series |
| product_ |
M 9200 (Coil Carrier)-Shock Absorber |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein M 9200 Coilover Series Shocks 33-243566 |
| brand | Bilstein |
| price | 524 |
| blurb | Shock Absorber M 9200 (Coil Carrier) No Applications |
| title | Bilstein M 9200 Coilover Series Shocks |
| description | Bilstein M 9200 Coilover Series shocks are designed specifically for professional off-road competition use, which requires custom lengths and valve settings. The M 9200 features a fully adjustable dual-rate spring hardware system that will complement a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm I.D. remote reservoir and are owner-rebuildable and revalvable. All of this makes the M 9200 coilovers one of the easiest and most effective ways to tune your off-road suspension for ultimate in performance. M 9200 coilover features include; * Threaded body (coilover) design * Monotube internal design * 60mm body diameter * Zinc plated finish |
item_row
| handle | BIL-33-243566 |
|---|---|
| item_ |
546196 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/33f80102720c8797f203945850d51d78.JPG |
| item_ |
33-243566 |
| item_ |
Bilstein 46mm Coil-Carrier 16in M 9200 Series Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860750699 |
| item_ |
524.00 |
| item_ |
524.00 |
| t14_ |
0 |
| mfr_ |
3 |
| dim_ |
14.80 |
| dim_ |
36.00 |
| dim_ |
7.50 |
| dim_ |
4.50 |
| shipping_ |
15.78 |
| item_ |
bil33-243566 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
| bodyHtml | Bilstein 33-243566 Shocks and Struts Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance. Bilstein M 9200 Coilover Series shocks are designed specifically for professional off-road competition use, which requires custom lengths and valve settings. The M 9200 features a fully adjustable dual-rate spring hardware system that will complement a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm I.D. remote reservoir and are owner-rebuildable and revalvable. All of this makes the M 9200 coilovers one of the easiest and most effective ways to tune your off-road suspension for ultimate in performance.
M 9200 coilover features include;
* Threaded body (coilover) design
* Monotube internal design
* 60mm body diameter
* Zinc plated finish |
Overview
| Brand | Bilstein |
|---|---|
| Quantity | Sold individually. |
| Part Type | Coilover Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Upper Mount | Eyelet |
| Product Line | Bilstein M 9200 Coilover Series Shocks |
| Bushing Color | Natural |
| Internal Design | Monotube |
| Bushing Material | Spherical bearing |
| Hardware Included | No |
| Shock Body Finish | Zinc plated |
| Adjustable Valving | No |
| Body Diameter (in.) | 1.810 |
| Coilover Shock Type | Non-adjustable |
| Shock Body Material | Steel |
| Extended Length (in.) | 39.50 |
| Collapsed Length (in.) | 23.50 |
| Coilover Springs Included | No |
| Manufacturer's Part Number | 33-243566 |
| Recommended Spring Diameter (in.) | 2.50 in. |
| Adjustable Mounting Bracket Included | No |
