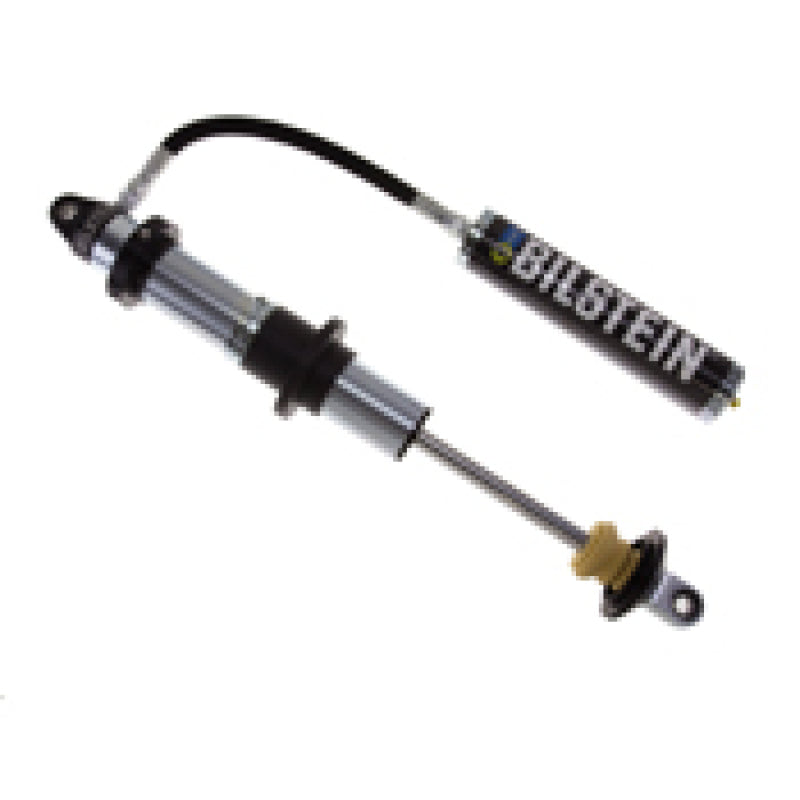

Bilstein B8 8125 Coilover Shocks 33-225517
Bilstein B8 8125 Coilover Shocks 33-225517
11 in stock
Couldn't load pickup availability
Product Description
The 8125 Series are performance coilovers for the serious off-road enthusiast, available in both 60mm (2.65) and 46mm (2) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, the 8125 Series are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, the 8125 Series will withstand the harshest off-road environments. All 8125 Series include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. The 8125 Series are completely owner rebuildable with replacement parts available from BILSTEIN. All components are machined to precise tolerances and made in the USA to insure a high quality product.
Engineered for the serious off-road enthusiast, Bilstein B8 8125 coilover shocks have the features to tackle any terrain. These steel, zinc coated shocks are equipped with: competition-designed, 3-stage seal packs; 22mm hard-chromed, case-hardened piston rods; remote reservoirs with high-temperature hoses; and threaded bodies. Components are precision-machined to precise tolerances to provide quick ride height adjustments, fade-free performance under intense heat, and the ability to tackle the harshest off-road environments. Bilstein B8 8125 coilover shocks are designed for use with dual-rate springs and available in a wide range of travel lengths, making them perfect for custom coilover suspension applications.
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
B8 8125 - Shock Absorber |
| market_ |
The 8125 Series are performance coilovers for the serious off-road enthusiast, available in both 60mm (2.65) and 46mm (2) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, the 8125 Series are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, the 8125 Series will withstand the harshest off-road environments. All 8125 Series include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. The 8125 Series are completely owner rebuildable with replacement parts available from BILSTEIN. All components are machined to precise tolerances and made in the USA to insure a high quality product. |
| product_ |
60mm Coilover W/ Res., 10" Short Body |
| product_ |
B8 8125-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 8125 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8125 Coilover Shocks 33-225517 |
| brand | Bilstein |
| price | 543.6 |
| blurb | Coilover Shocks and Struts, B8 8125 Coilover Shocks, Non-adjustable, Eyelet Mounts, Zinc Plated, 18.50 in. Collapsed/28.50 in. Extended Length, Each |
| title | Bilstein B8 8125 Coilover Shocks |
| description | Engineered for the serious off-road enthusiast, Bilstein B8 8125 coilover shocks have the features to tackle any terrain. These steel, zinc coated shocks are equipped with: competition-designed, 3-stage seal packs; 22mm hard-chromed, case-hardened piston rods; remote reservoirs with high-temperature hoses; and threaded bodies. Components are precision-machined to precise tolerances to provide quick ride height adjustments, fade-free performance under intense heat, and the ability to tackle the harshest off-road environments. Bilstein B8 8125 coilover shocks are designed for use with dual-rate springs and available in a wide range of travel lengths, making them perfect for custom coilover suspension applications. |
item_row
| handle | BIL-33-225517 |
|---|---|
| item_ |
4370966 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/18d980b5ae0ca06796f4e78f19f89cd1.JPG |
| item_ |
33-225517 |
| item_ |
Bilstein 8125 Series 28.5in Extended Length 18.5in Collapsed Length 60mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860754710 |
| item_ |
604.00 |
| item_ |
604.00 |
| t14_ |
0 |
| mfr_ |
4 |
| dim_ |
21.50 |
| dim_ |
46.80 |
| dim_ |
12.80 |
| dim_ |
4.90 |
| shipping_ |
14.83 |
| item_ |
bil33-225517 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Manufacturer's Part Number | 33-225517 |
| Part Type | Coilover Shocks and Struts |
| Product Line | Bilstein B8 8125 Coilover Shocks |
| Coilover Shock Type | Non-adjustable |
| Shock Body Material | Steel |
| Shock Body Finish | Zinc plated |
| Adjustable Valving | No |
| Extended Length (in.) | 28.50 |
| Collapsed Length (in.) | 18.50 |
| Upper Mount | Eyelet |
| Lower Mount | Eyelet |
| Internal Design | Monotube |
| Gas Charged | Yes |
| Body Diameter (in.) | 2.625 |
| Bushing Material | Spherical bearing |
| Bushing Color | Natural |
| Coilover Springs Included | No |
| Recommended Spring Diameter (in.) | 3.00 in. |
| Adjustable Mounting Bracket Included | No |
| Hardware Included | Yes |
| Quantity | Sold individually. |
| Notes | Uses 370/110 valving. Includes pre-charged reservoir. |
