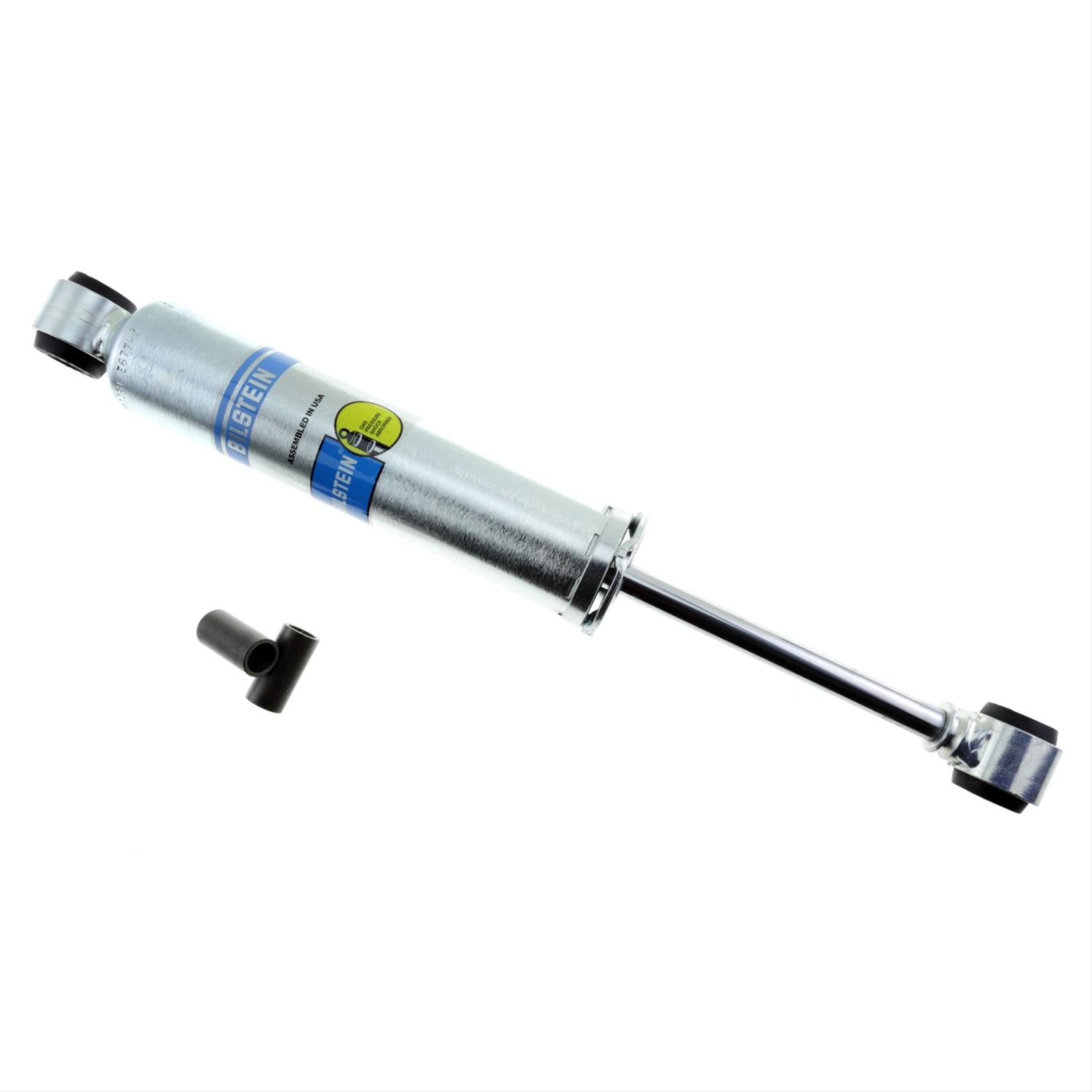

Bilstein B8 5125 Series Shocks 33-187112
Bilstein B8 5125 Series Shocks 33-187112
319 in stock
Couldn't load pickup availability
Product Description

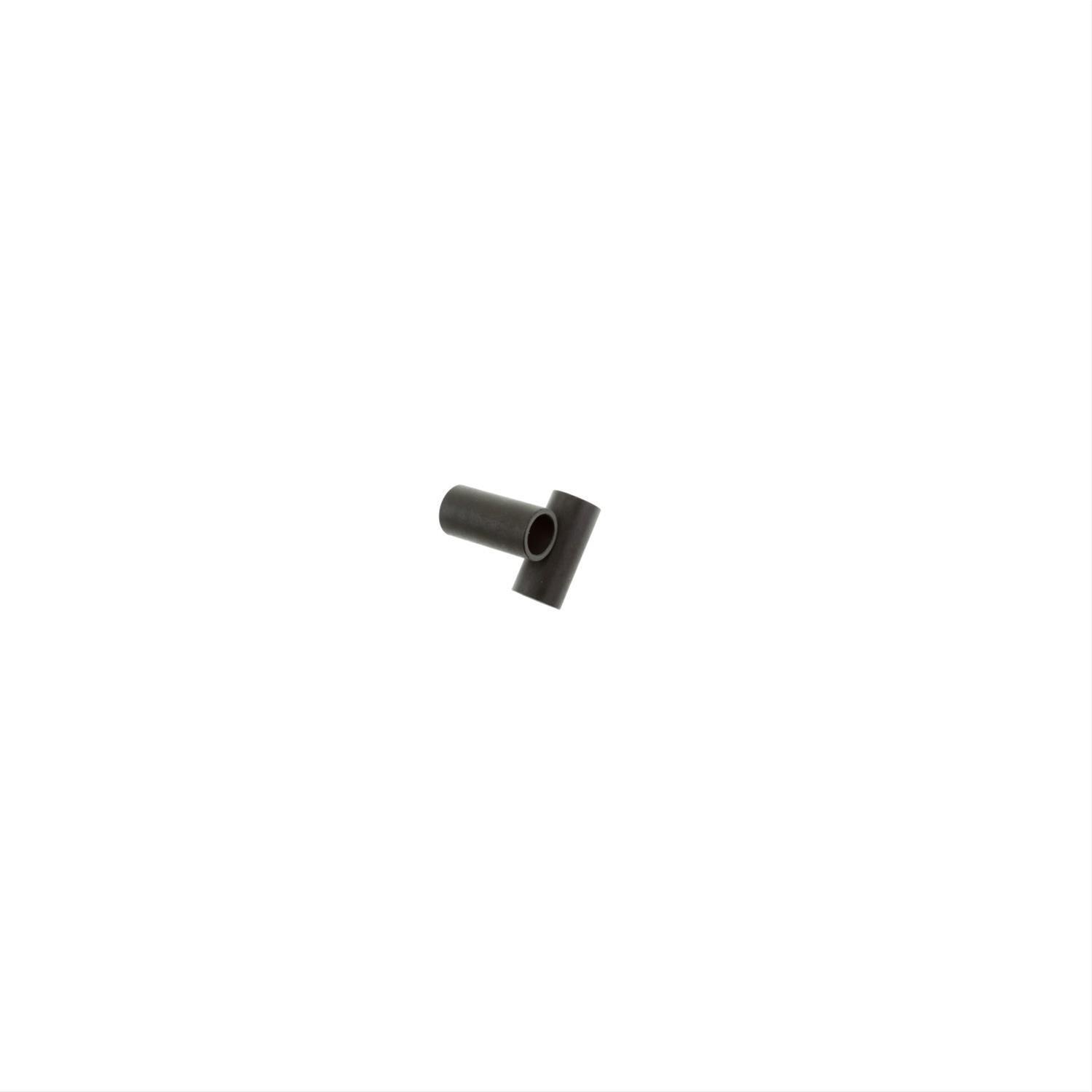

Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving.
Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
B8 5125 - Shock Absorber |
| market_ |
Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. |
| product_ |
LIFTED TRK 5125; 5 TRVL 233/90 |
| product_ |
B8 5125-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5125 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5125 Series Shocks 33-187112 |
| brand | Bilstein |
| price | 110 |
| blurb | Shock/Strut, B8 5125 Series, Monotube, Each |
| title | Bilstein B8 5125 Series Shocks |
| description | Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications |
item_row
| handle | BIL-33-187112 |
|---|---|
| item_ |
282923 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/2851e4c505dc7fb0c688d034d425e466.JPG |
| item_ |
33-187112 |
| item_ |
Bilstein 5100 Series LIFTED TRK 5125 5 in.TRVL 233/90 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860614250 |
| item_ |
110.00 |
| item_ |
153.90 |
| t14_ |
32 |
| mfr_ |
524 |
| dim_ |
3.80 |
| dim_ |
22.00 |
| dim_ |
3.00 |
| dim_ |
3.00 |
| shipping_ |
14.52 |
| item_ |
bil33-187112 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Zinc plated smooth body non-coilover shock with 5/8 in. eyelets at both ends. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Custom |
| Upper Mount | Eyelet |
| Product Line | Bilstein B8 5125 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Adjustable Valving | No |
| Body Diameter (in.) | 1.181 |
| Extended Length (in.) | 16.50 |
| Collapsed Length (in.) | 11.10 |
| Manufacturer's Part Number | 33-187112 |
