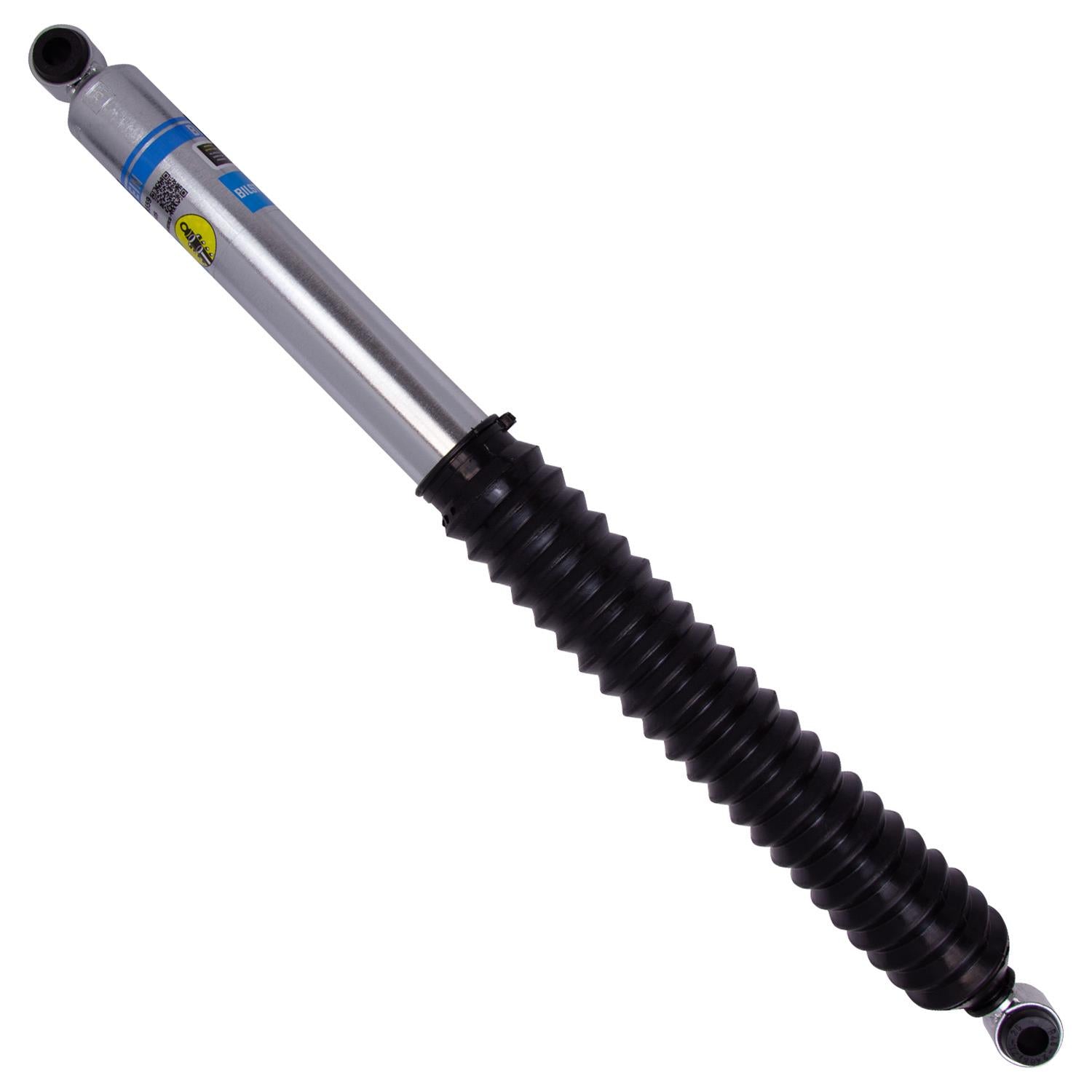

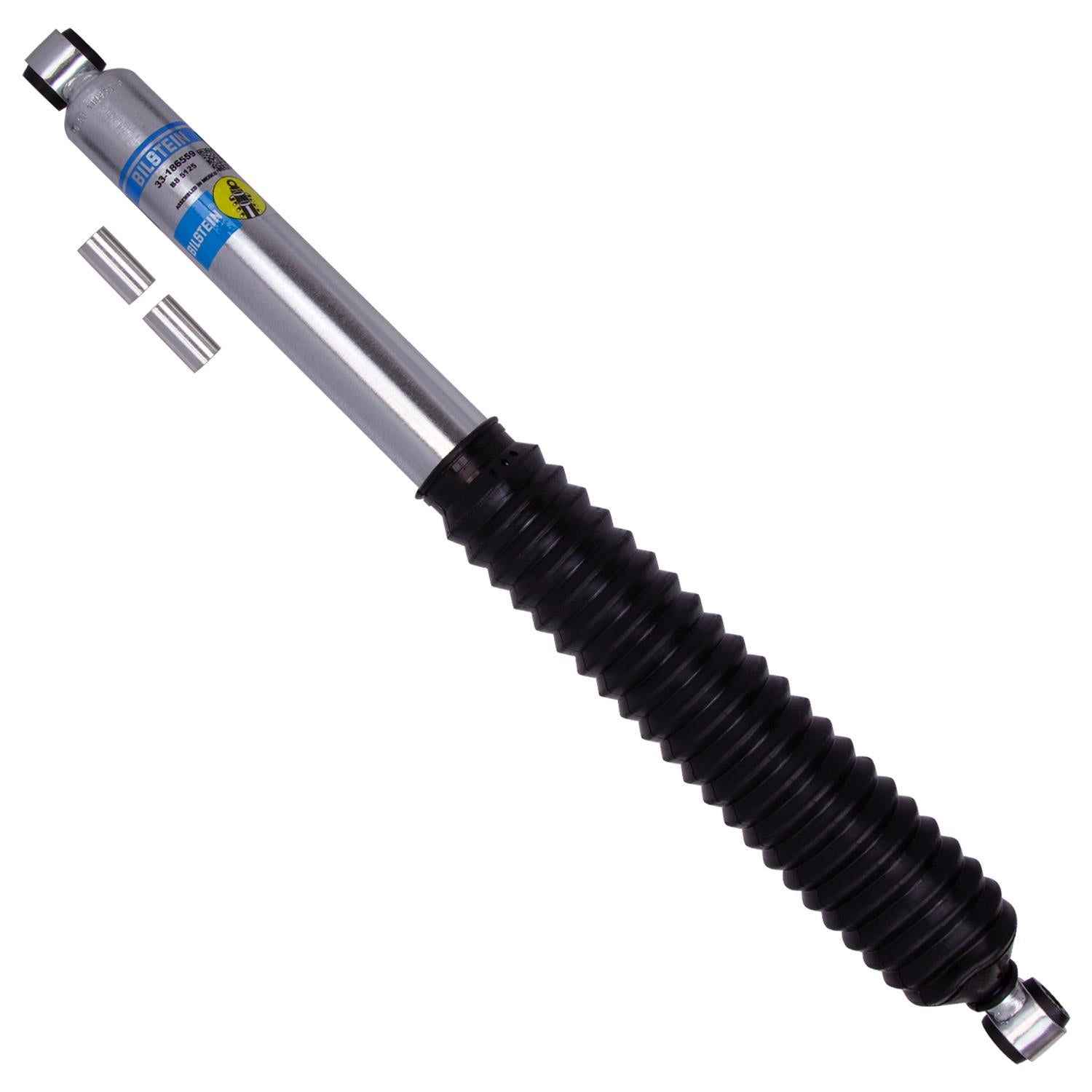

Bilstein B8 5100 Series Shocks 33-186559
Bilstein B8 5100 Series Shocks 33-186559
252 in stock
Couldn't load pickup availability
Product Description
Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving.
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
B8 5125 - Shock Absorber |
| market_ |
Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. |
| product_ |
LIFTED,TRK5100 11"TRVL170/6;0;ksw |
| product_ |
B8 5125-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5125 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 33-186559 |
| brand | Bilstein |
| price | 110 |
| blurb | Shock/Strut, 5100 Series, Monotube, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-33-186559 |
|---|---|
| item_ |
282920 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5149f968730cf594a3e27f65e6f9f36d.JPG |
| item_ |
33-186559 |
| item_ |
Bilstein 5100 Series LIFTEDTRK5100 11in.TRVL170/60ksw 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860591353 |
| item_ |
110.00 |
| item_ |
153.90 |
| t14_ |
8 |
| mfr_ |
218 |
| dim_ |
5.50 |
| dim_ |
27.00 |
| dim_ |
2.90 |
| dim_ |
2.80 |
| shipping_ |
14.52 |
| item_ |
bil33-186559 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | 170/60 valving recommended for use on dual shock setups, 11.00 in. travel. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Boot Color | Black |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Custom |
| Upper Mount | Eyelet |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | Yes |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Adjustable Valving | No |
| Extended Length (in.) | 28.01 |
| Collapsed Length (in.) | 17.00 |
| Manufacturer's Part Number | 33-186559 |
