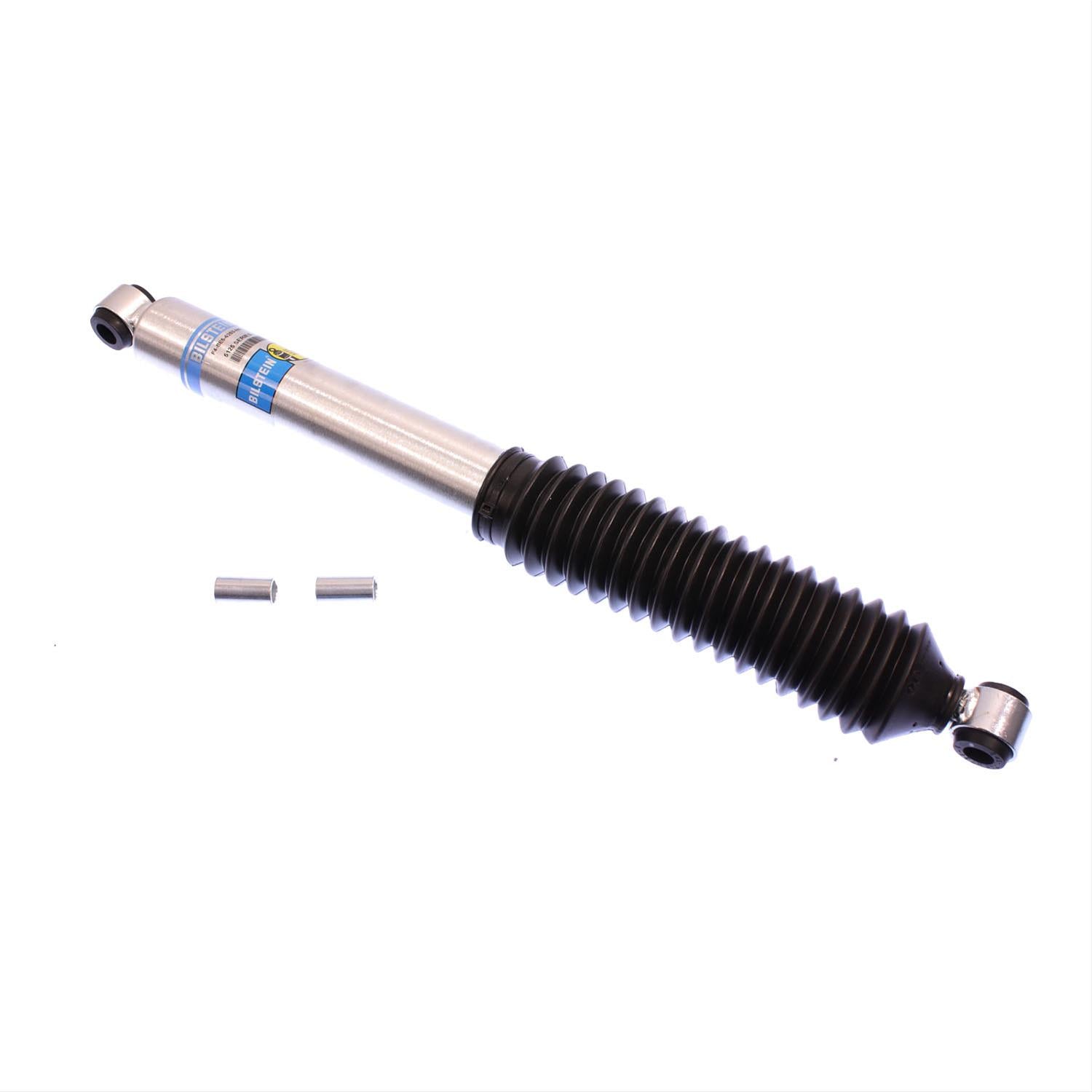

Bilstein B8 5125 Series Shocks 33-185606
Bilstein B8 5125 Series Shocks 33-185606
526 in stock
Couldn't load pickup availability
Tags
Product Description
Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving.
Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications
Application Summary
Jeep CJ5 1983-1959, CJ5A 1968-1966, CJ7 1986-1976, Toyota Land Cruiser 1982-1960
Fitment
Fitment
Part Type
Shock Absorber
Additional Information 2
- Jeep CJ5 1983-1959
- CJ5A 1968-1966
- CJ7 1986-1976
- Toyota Land Cruiser 1982-1960
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Jeep CJ5 1983-1959, CJ5A 1968-1966, CJ7 1986-1976, Toyota Land Cruiser 1982-1960 |
| associated_ |
Jeep CJ5 1983-1959; CJ5A 1968-1966; CJ7 1986-1976; Toyota Land Cruiser 1982-1960 |
| label_ |
B8 5125 - Shock Absorber |
| market_ |
Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. |
| product_ |
LIFT TRK 218.5MM STK 8.60;F/R;B8 |
| product_ |
B8 5125-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5125 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5125 Series Shocks 33-185606 |
| brand | Bilstein |
| price | 110 |
| blurb | Shock, 5125 Series, Monotube, 22.580 in./14.130 in. Extended/Collapsed Lengths, Eyelet Ends, Each |
| title | Bilstein B8 5125 Series Shocks |
| description | Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications |
item_row
| handle | BIL-33-185606 |
|---|---|
| item_ |
282913 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/8f59959b61df5b9a4b74b3e7dd947e0c.JPG |
| item_ |
33-185606 |
| item_ |
Bilstein 5100 Series 1976 Jeep CJ7 Base Front 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860453774 |
| item_ |
110.00 |
| item_ |
153.90 |
| t14_ |
82 |
| mfr_ |
412 |
| dim_ |
4.70 |
| dim_ |
26.80 |
| dim_ |
3.00 |
| dim_ |
3.00 |
| shipping_ |
14.52 |
| item_ |
bil33-185606 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | 255/70 valving, 8.60 in. travel. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Boot Color | Black |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Lifted |
| Upper Mount | Eyelet |
| Product Line | Bilstein B8 5125 Series Shocks |
| Boot Included | Yes |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | No |
| Extended Length (in.) | 22.58 |
| Collapsed Length (in.) | 14.13 |
| Lifted Amount Range (in.) | 0.00-4.00 in. |
| Manufacturer's Part Number | 33-185606 |
