BILSTEIN 33-185590
651860453767

Bilstein B8 5125 Series Shocks 33-185590

Bilstein B8 5125 Series Shocks 33-185590

$134.40 AUD
$156.60 AUD $134.40 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

205 in stock

Product Description

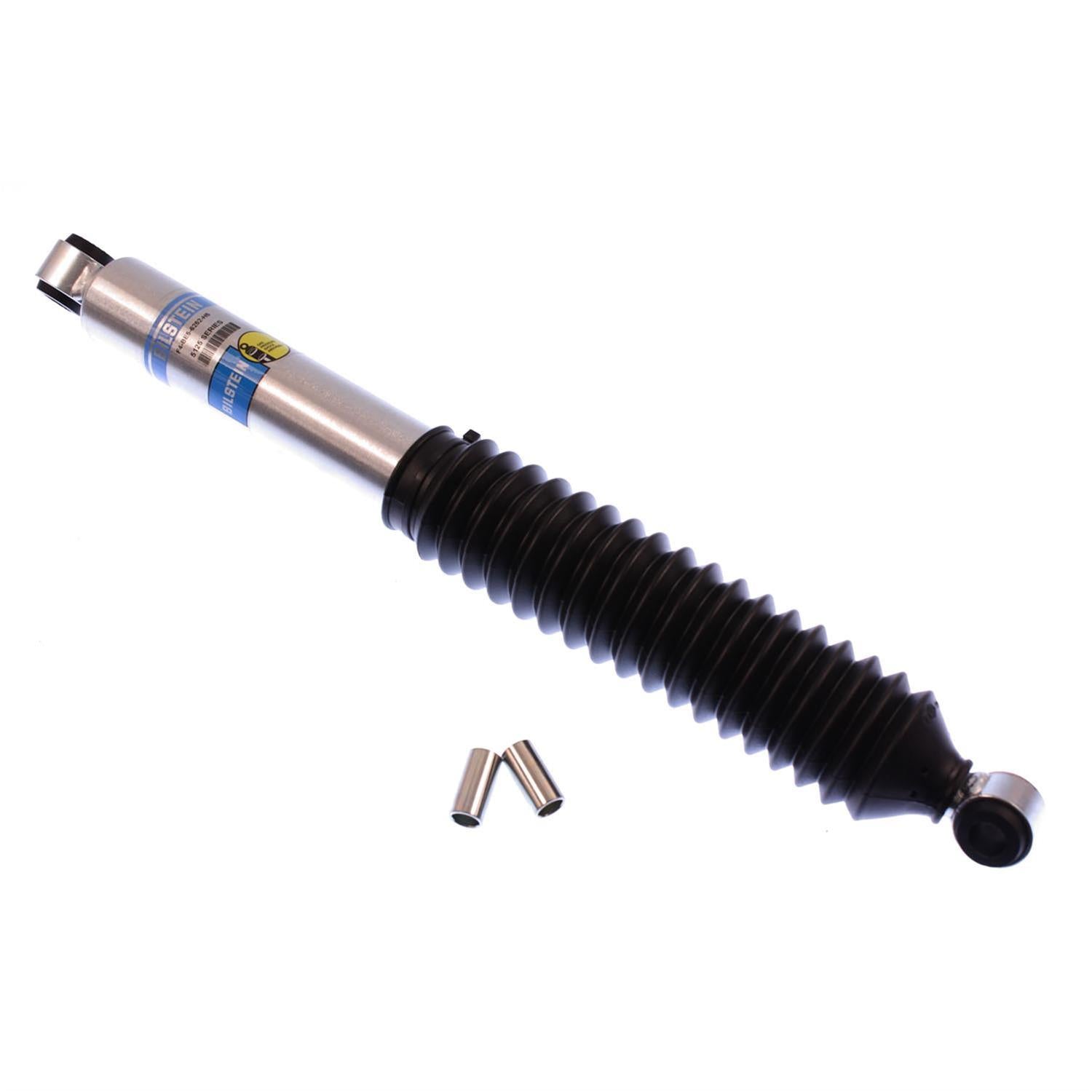

Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving.

Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications

Application Summary

Chevrolet Silverado 1500 2006-2005, Silverado 1500 Classic 2007, GMC Sierra 1500 2006-1999, Sierra 1500 Classic 2007

Fitment

Chevrolet Blazer 1987–1991 Chevrolet K5 Blazer 1975–1986 Chevrolet K10 1975–1986 Chevrolet K10 Suburban 1975–1986 Chevrolet K20 1975–1986 Chevrolet K20 Suburban 1975–1986 Chevrolet K30 1977–1986 Chevrolet Silverado 1500 1999–2006 Chevrolet V10 Suburban 1987–1988 Chevrolet V1500 Suburban 1989–1991 Chevrolet V20 Suburban 1987–1988 Chevrolet V2500 Suburban 1989–1991 Chevrolet K10 Pickup 1969–1974 Chevrolet K20 Pickup 1969–1974 Chevrolet K30 Pickup 1969–1974 Chevrolet Silverado 1500 Classic 2007
GMC C2500 Suburban 1986 GMC Jimmy 1975–1991 GMC K15 1975–1978 GMC K1500 1979–1986 GMC K15 Suburban 1975–1978 GMC K1500 Suburban 1979–1986 GMC K25 1975–1978 GMC K2500 1979–1986 GMC K25 Suburban 1975–1978 GMC K2500 Suburban 1979–1986 GMC K35 1977–1978 GMC K3500 1979–1986 GMC Sierra 1500 1999–2006 GMC V1500 Suburban 1987–1991 GMC V2500 Suburban 1987–1991 GMC C35/C3500 Pickup 1970 GMC K25/K2500 Pickup 1969–1974 GMC K35/K3500 Pickup 1969–1974 GMC Sierra 1500 Classic 2007
Ford Bronco 1966–1977

Part Type

Shock Absorber

Additional Information 2

  • Chevrolet Silverado 1500 2007-2005

  • GMC Sierra 1500 2007-1999

Overview

Brand Bilstein
Notes Zinc plated. 8.130 inch travel 255/70 valving.
Quantity Sold individually.
Part Type Shocks and Struts
Boot Color Black
Gas Charged Yes
Lower Mount Eyelet
Ride Height Lifted
Upper Mount Eyelet
Product Line Bilstein B8 5125 Series Shocks
Boot Included Yes
Bushing Color Black
Internal Design Monotube
Bushing Material Rubber
Ride Height Note Additional ride height information may be available for your vehicle, please refer to the app tab.
Adjustable Valving No
Body Diameter (in.) 1.811
Extended Length (in.) 21.54
Collapsed Length (in.) 13.58
Lifted Amount Range (in.) 6.00 in.
Manufacturer's Part Number 33-185590
View full details
