Bilstein B8 5125 Series Shocks 33-104652
Bilstein B8 5125 Series Shocks 33-104652
924 in stock
Couldn't load pickup availability
Tags
Product Description

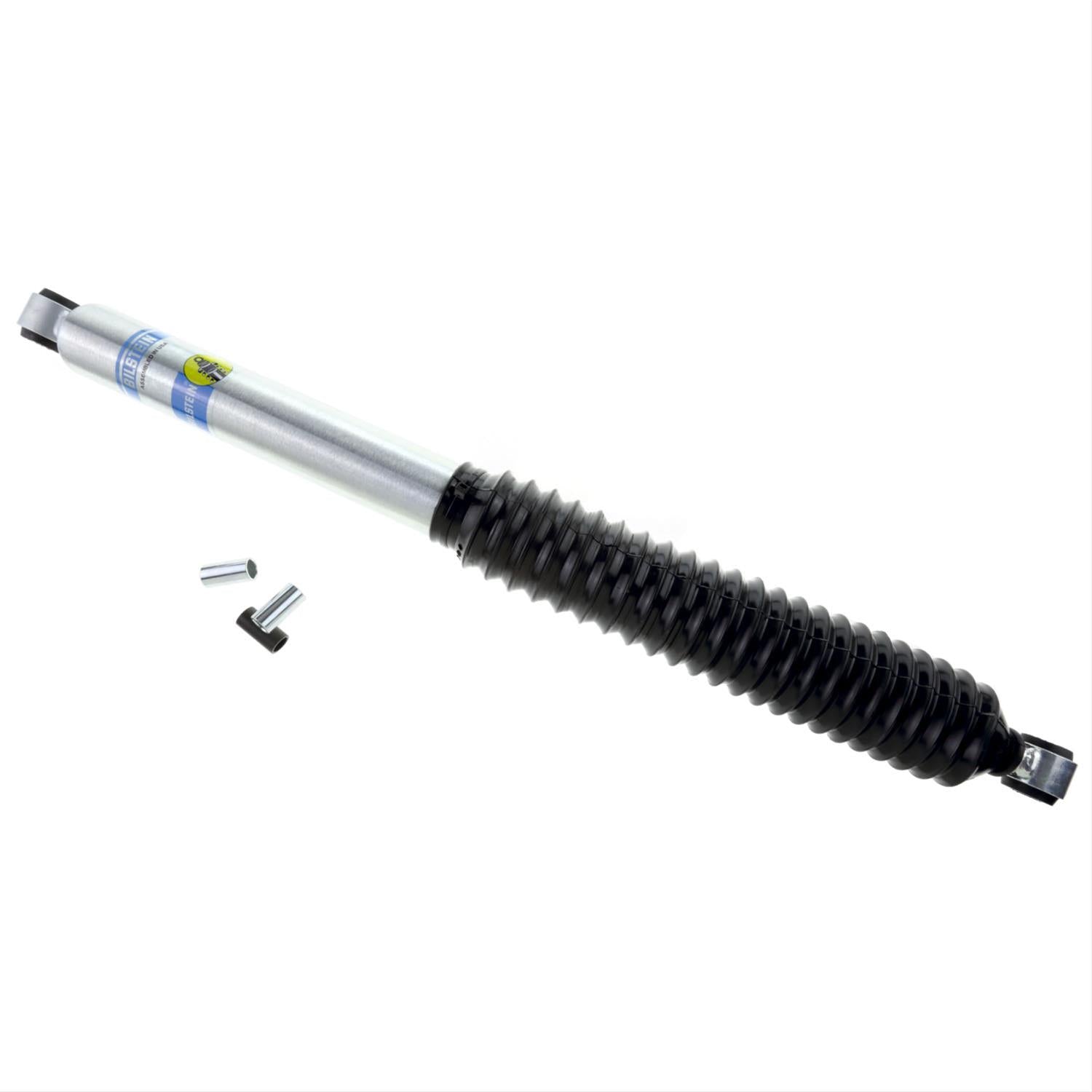

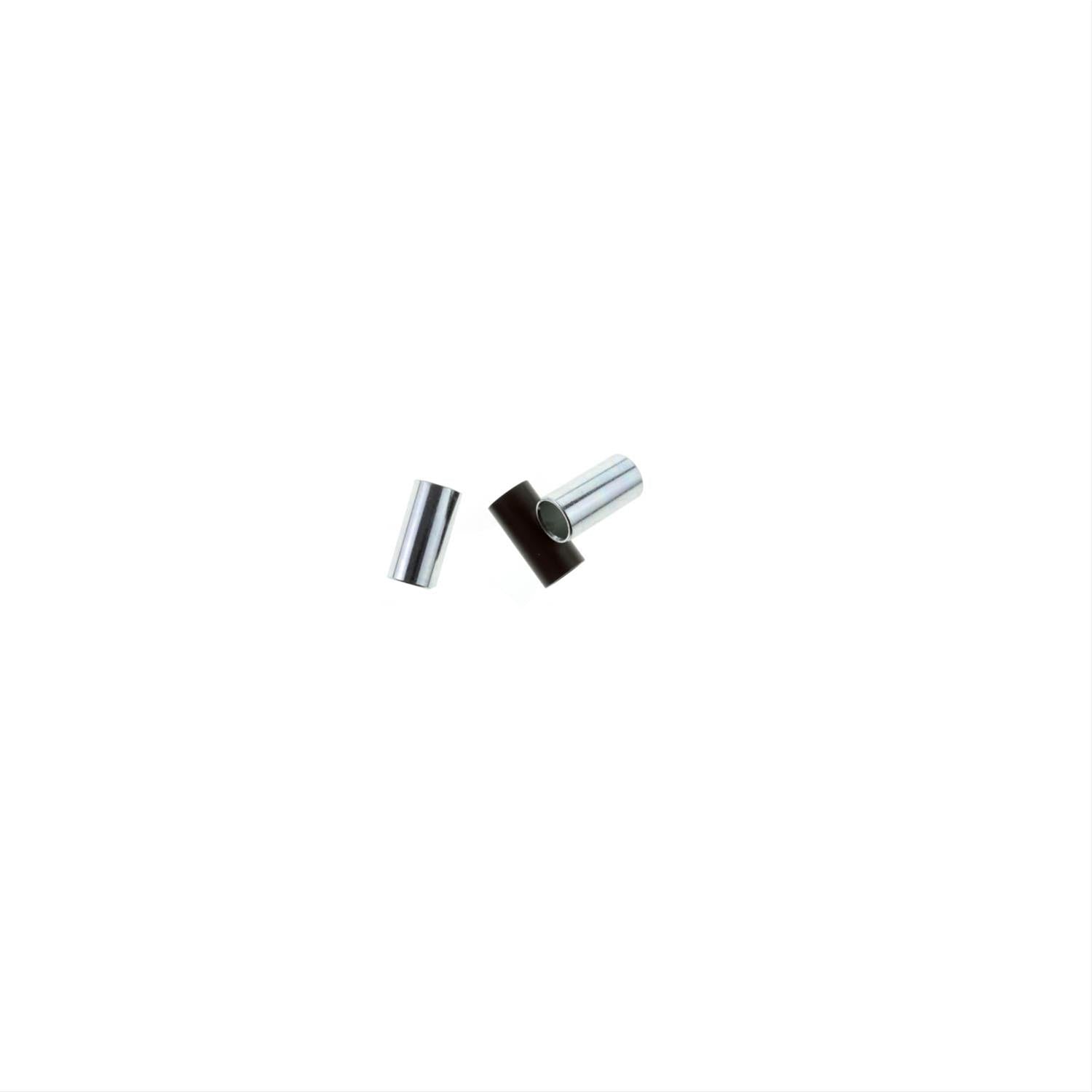

Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving.
Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications
Application Summary
Chevrolet K30 1986-1977, K30 Pickup 1974-1969, GMC K35 1978-1977, K35/K3500 Pickup 1974-1969, K3500 1986-1979
Fitment
Fitment
Part Type
Shock Absorber
Additional Information 2
- Chevrolet K30 1986-1977
- K30 Pickup 1974-1969
- GMC K35 1978-1977
- K35/K3500 Pickup 1974-1969
- K3500 1986-1979
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Chevrolet K30 1986-1977, K30 Pickup 1974-1969, GMC K35 1978-1977, K35/K3500 Pickup 1974-1969, K3500 1986-1979 |
| associated_ |
Chevrolet K30 1986-1977; K30 Pickup 1974-1969; GMC K35 1978-1977; K35/K3500 Pickup 1974-1969; K3500 1986-1979 |
| label_ |
B8 5125 - Shock Absorber |
| market_ |
Bilstein 5125 Series Shock Absorbers are designed to be used on custom vehicles in order to achieve the desired ride. The high gas pressure monotube shocks are sold by lengths and damping rates rather than by application. These shock absorbers all come with 5/8" eyelets with hour glass bushings on both ends. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. |
| product_ |
5125 SERIES;0;ksw |
| product_ |
B8 5125-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5125 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5125 Series Shocks 33-104652 |
| brand | Bilstein |
| price | 110 |
| blurb | Shock, 5125 Series, Monotube, 28 in./17 in. Extended/Collapsed Lengths, 11 in. Travel, Eyelet/Eyelet, Each |
| title | Bilstein B8 5125 Series Shocks |
| description | Bilstein B8 5125 series shocks offer technology for custom applications. They feature Bilstein's superior single-tube, high gas pressure design for the utmost in consistent fade-free performance and long life. Bilstein's patented deflective self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed. Additional features: * High-flow piston to reduce harshness * Independent rebound and compression tuning * Larger working piston area for exact damping * Superior control for large-diameter tires * Available by travel lengths for custom applications |
item_row
| handle | BIL-33-104652 |
|---|---|
| item_ |
4317304 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/c14c077001c32e2be726538bcd60f806.JPG |
| item_ |
33-104652 |
| item_ |
Bilstein 5100 Series 77-86 Chevrolet K30 / K30 Pickup Rear 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860591384 |
| item_ |
110.00 |
| item_ |
153.90 |
| t14_ |
34 |
| mfr_ |
297 |
| dim_ |
5.50 |
| dim_ |
26.70 |
| dim_ |
2.90 |
| dim_ |
2.80 |
| shipping_ |
14.52 |
| item_ |
bil33-104652 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Zinc plated. 11.000 inch travel 255/70 valving. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Boot Color | Black |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Lifted |
| Upper Mount | Eyelet |
| Product Line | Bilstein B8 5125 Series Shocks |
| Boot Included | Yes |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | No |
| Extended Length (in.) | 28.00 |
| Collapsed Length (in.) | 17.00 |
| Lifted Amount Range (in.) | 0.00-2.00 in. |
| Manufacturer's Part Number | 33-104652 |
