Bilstein B8 8100 Series Bypass Shocks 25-288162
Bilstein B8 8100 Series Bypass Shocks 25-288162
23 in stock
Couldn't load pickup availability
Tags
Product Description

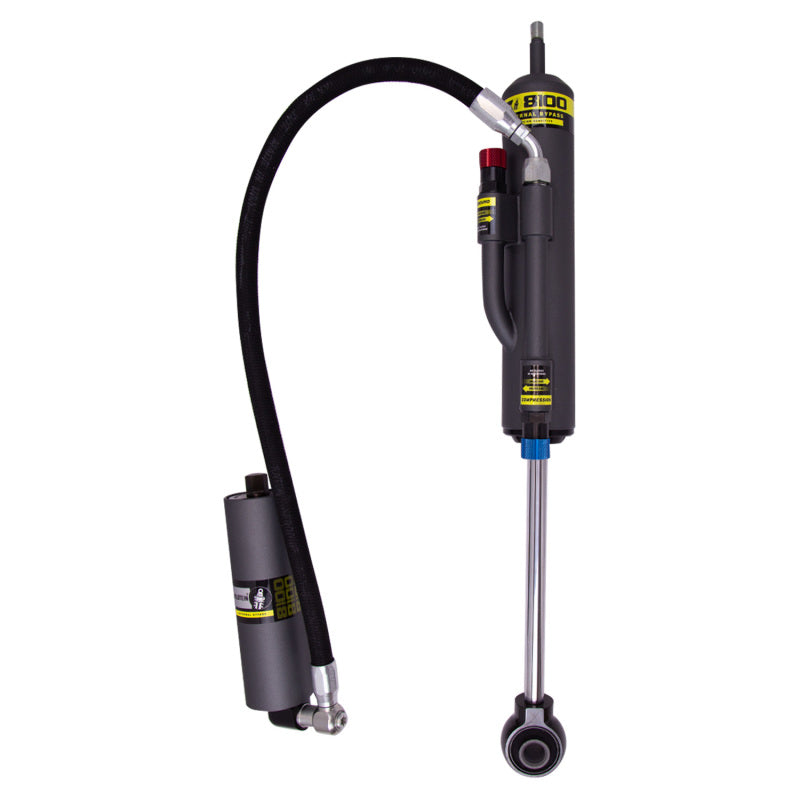

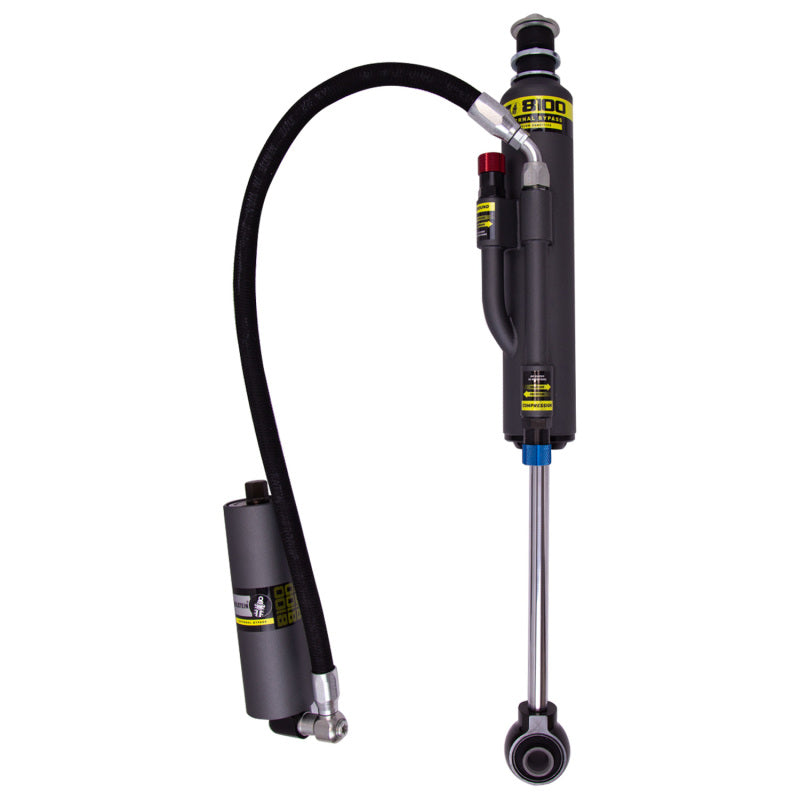

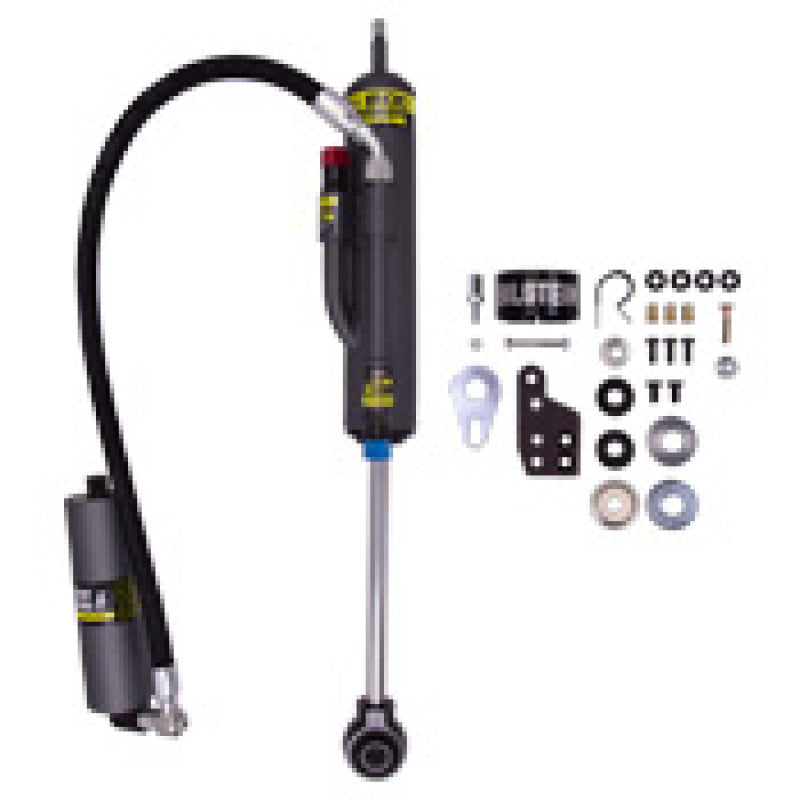

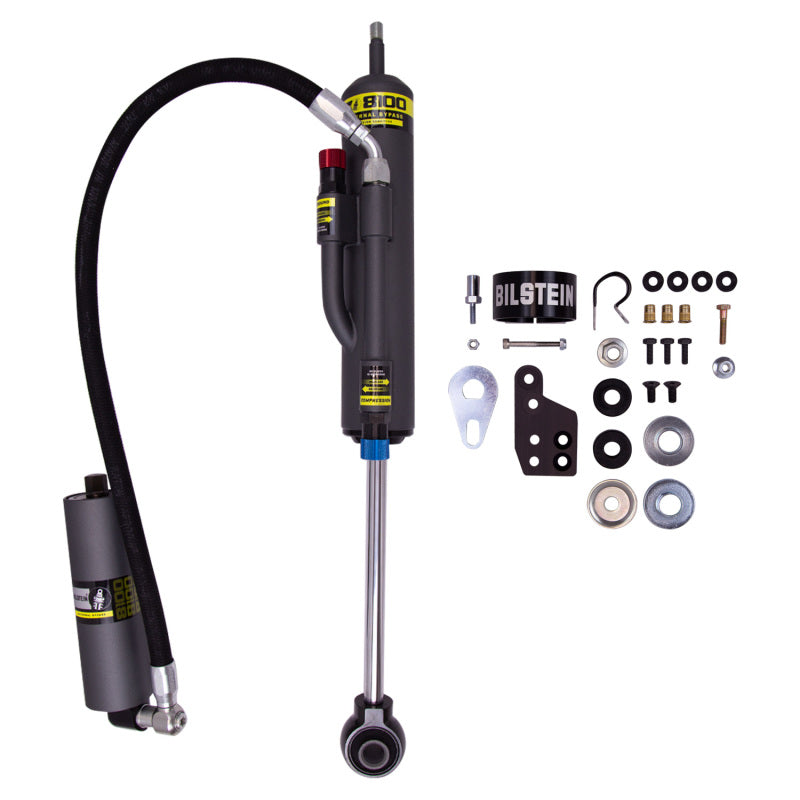

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle. Additional details: * Shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle * Remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment * Zinc plated finish * Non-coilover 60mm body diameter
Extended Description
- 60mm Shock Absorber
Application Summary
Toyota FJ Cruiser 2014-2007
Fitment
Fitment
Part Type
Suspension Shock Absorber
description
| aaia_ |
Suspension Shock Absorber |
|---|---|
| application_ |
Toyota FJ Cruiser 2014-2007 |
| label_ |
B8 8100 (Bypass) - Suspension Shock Absorber |
| market_ |
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
| product_ |
60mm Shock Absorber |
| product_ |
Toyota FJ 4x4; RR; 8100 Bypass; 0-1.5" |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8100 Series Bypass Shocks 25-288162 |
| brand | Bilstein |
| price | 1091 |
| blurb | Suspension Shock Absorber B8 8100 (Bypass) Toyota Toyota FJ Cruiser 2014-2007 |
| title | Bilstein B8 8100 Series Bypass Shocks |
| description | Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle. Additional details: * Shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle * Remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment * Zinc plated finish * Non-coilover 60mm body diameter |
item_row
| handle | BIL-25-288162 |
|---|---|
| item_ |
633731 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
|
| item_ |
25-288162 |
| item_ |
Bilstein 07-14 Toyota FJ Cruiser B8 8100 (Bypass) Rear Right Shock Absorber - 0-2in Lift |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860880976 |
| item_ |
1091.00 |
| item_ |
1189.90 |
| t14_ |
0 |
| mfr_ |
11 |
| dim_ |
21.80 |
| dim_ |
33.50 |
| dim_ |
11.88 |
| dim_ |
8.88 |
| shipping_ |
14.83 |
| item_ |
bil25-288162 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Manufacturer's Part Number | 25-288162 |
| Part Type | Shocks and Struts |
| Product Line | Bilstein B8 8100 Series Bypass Shocks |
| Ride Height | Stock/Lifted |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Lifted Amount Range (in.) | 0.00-2.00 in. |
| Extended Length (in.) | 24.09 |
| Collapsed Length (in.) | 14.72 |
| Internal Design | Monotube |
| Adjustable Valving | Yes |
| Gas Charged | Yes |
| Upper Mount | Stud |
| Lower Mount | Eyelet |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Boot Included | No |
| Body Diameter (in.) | 2.362 |
| Remanufactured | No |
| Quantity | Sold individually. |
