Bilstein B8 8100 Series Bypass Shocks 25-284584
Bilstein B8 8100 Series Bypass Shocks 25-284584
Low stock: 3 left
Couldn't load pickup availability
Tags
Product Description

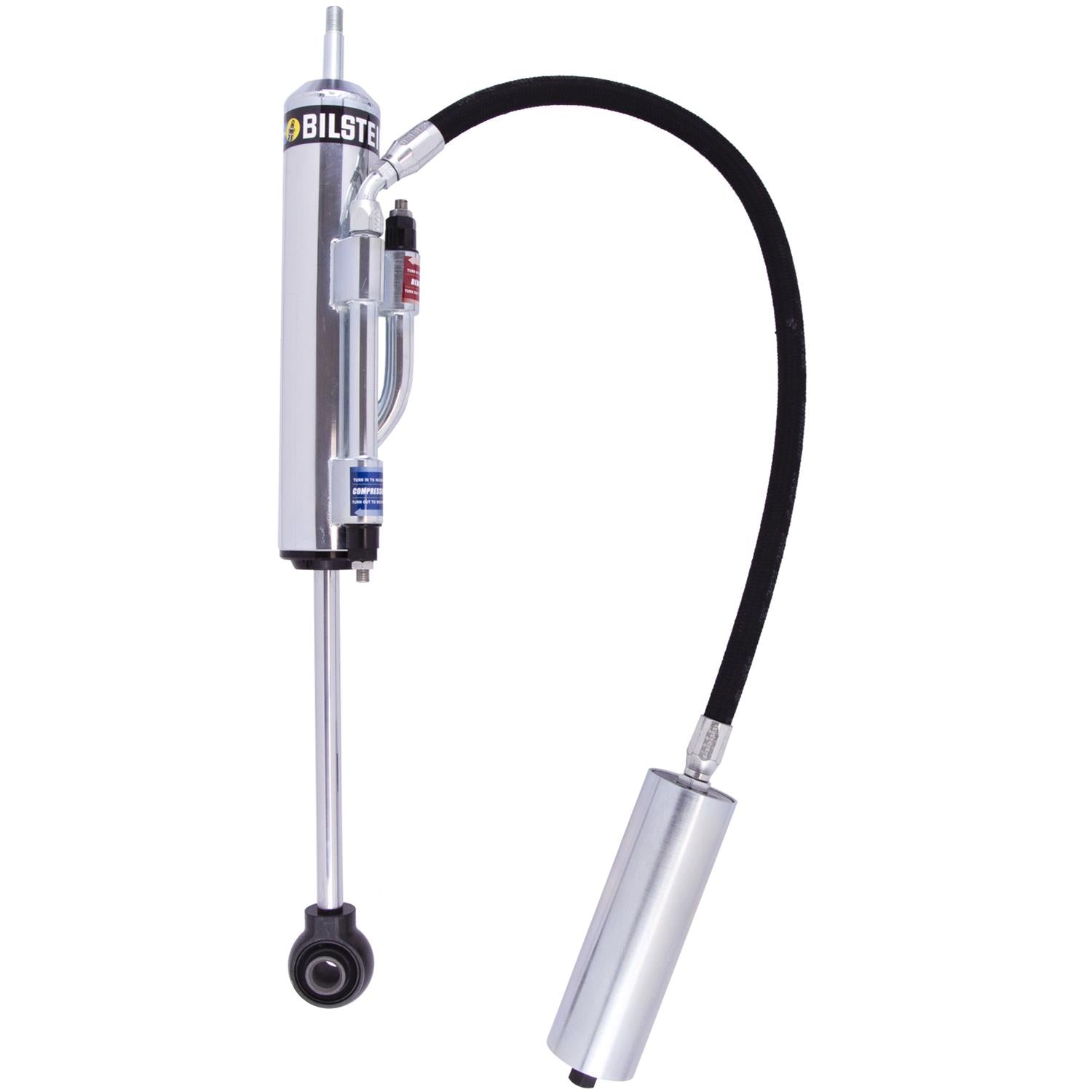

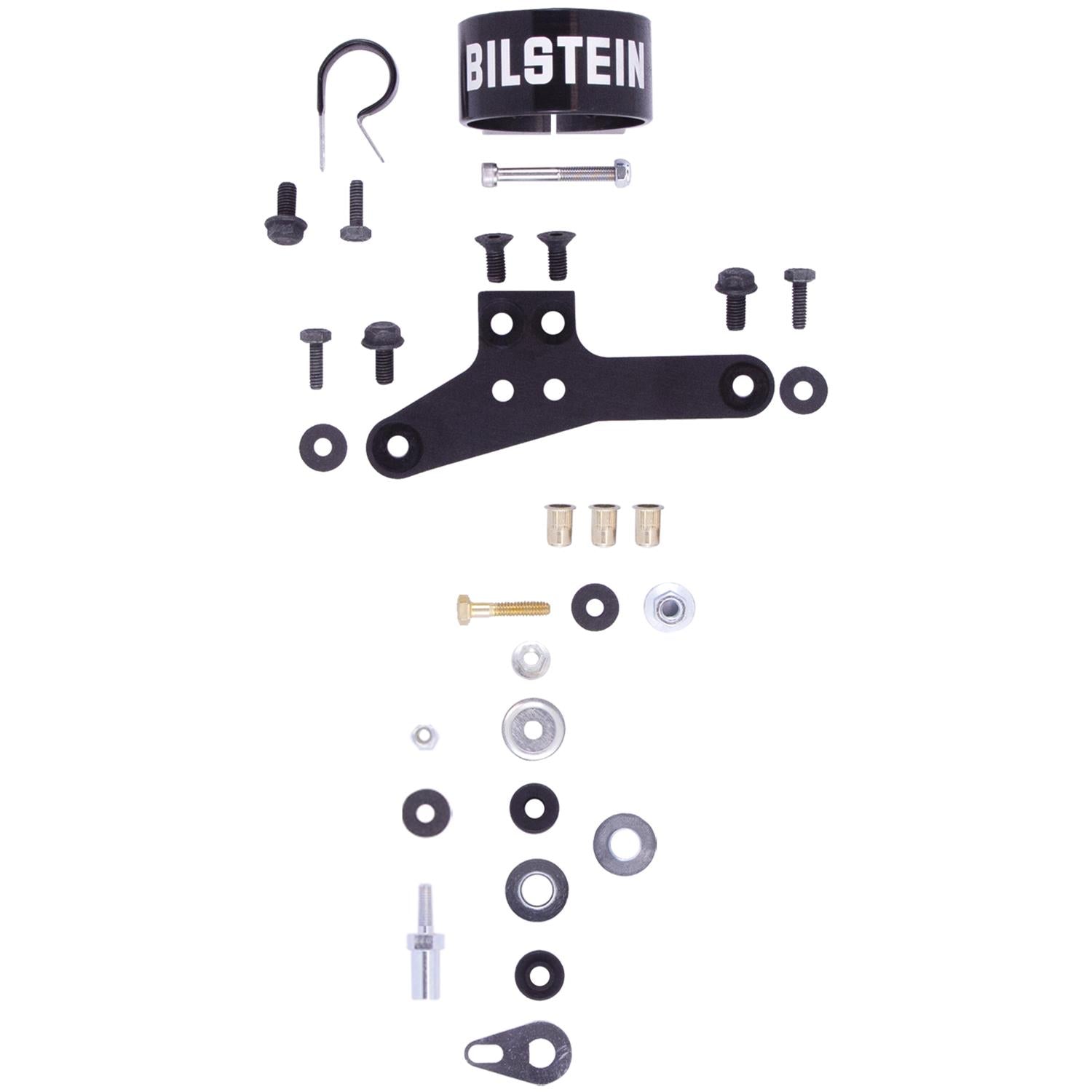

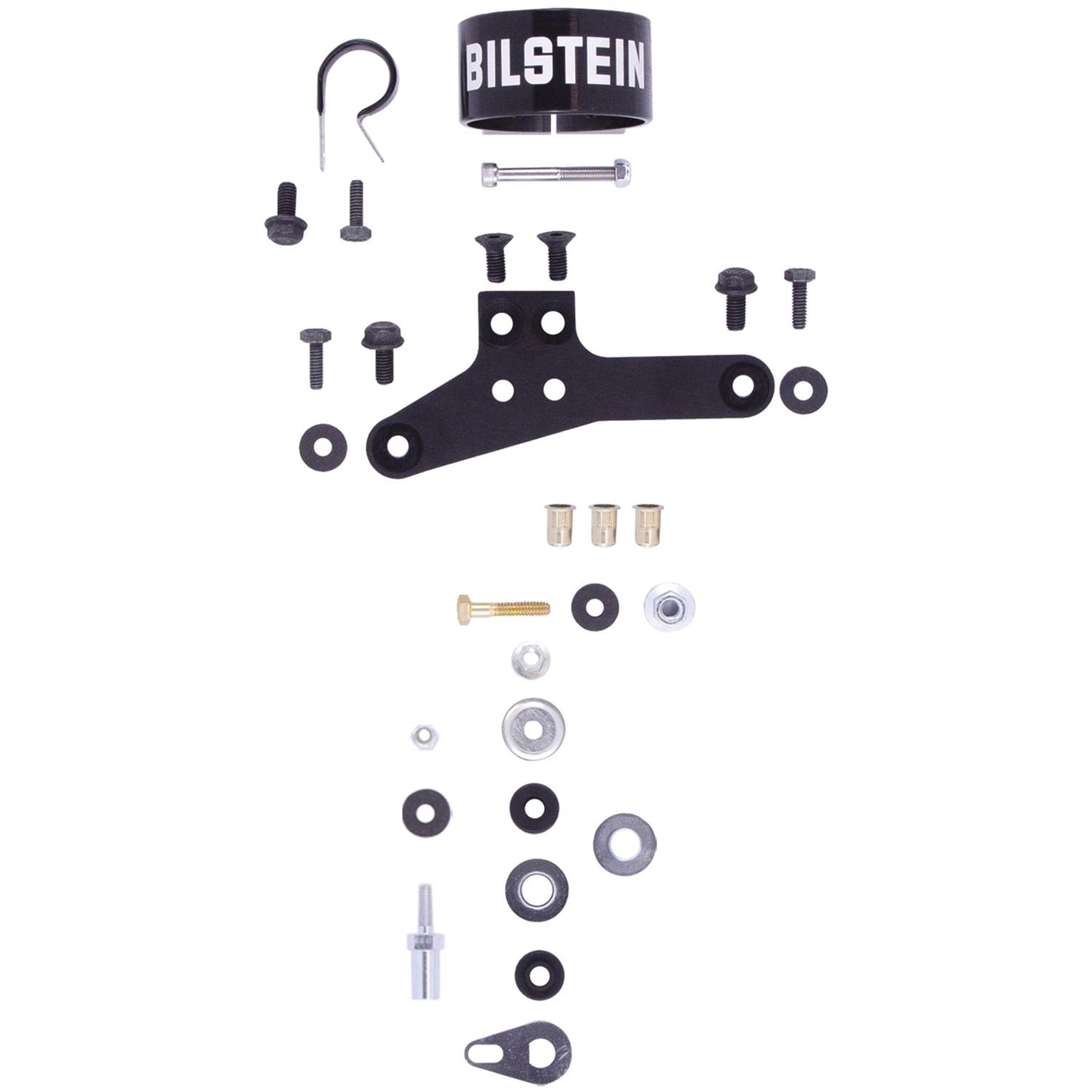

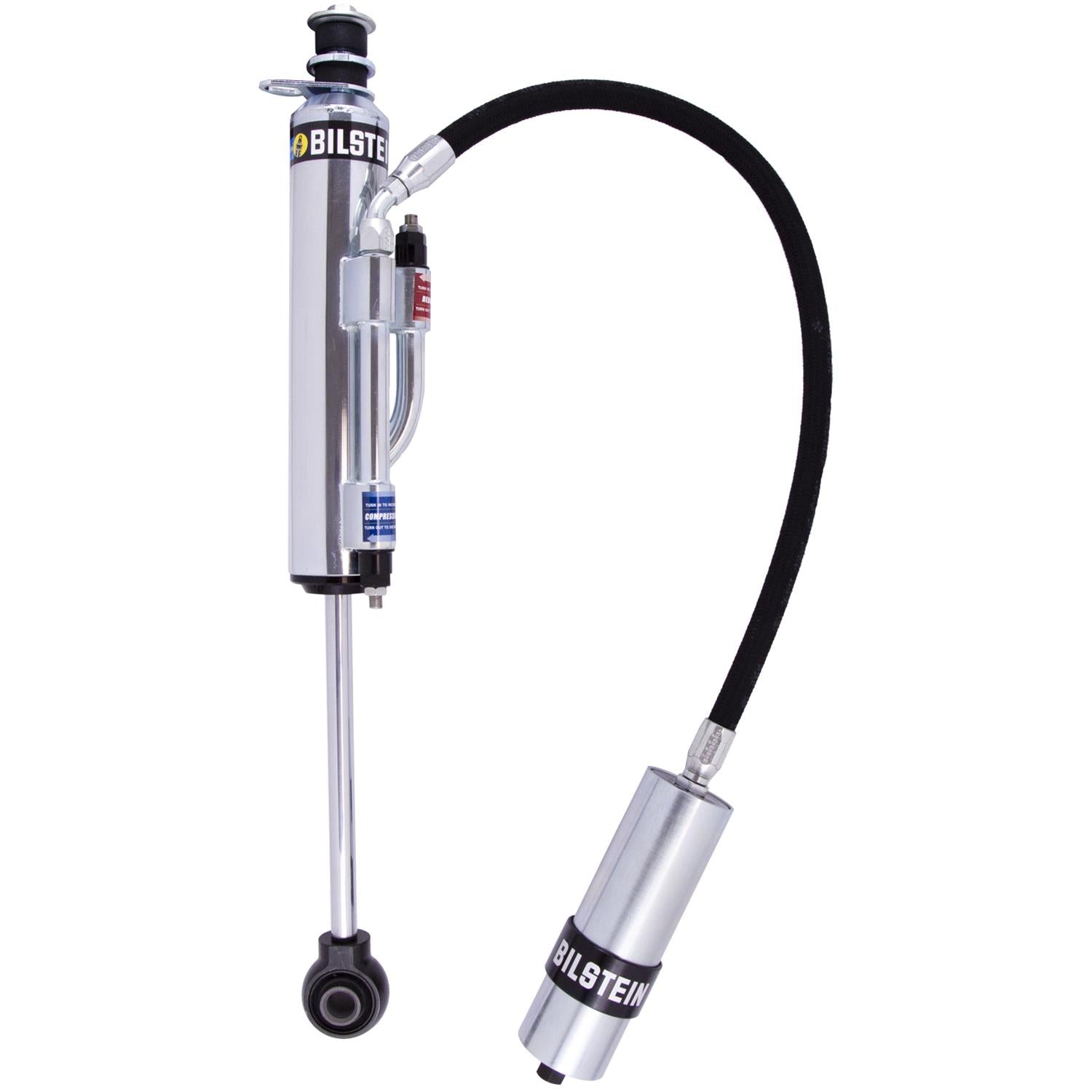

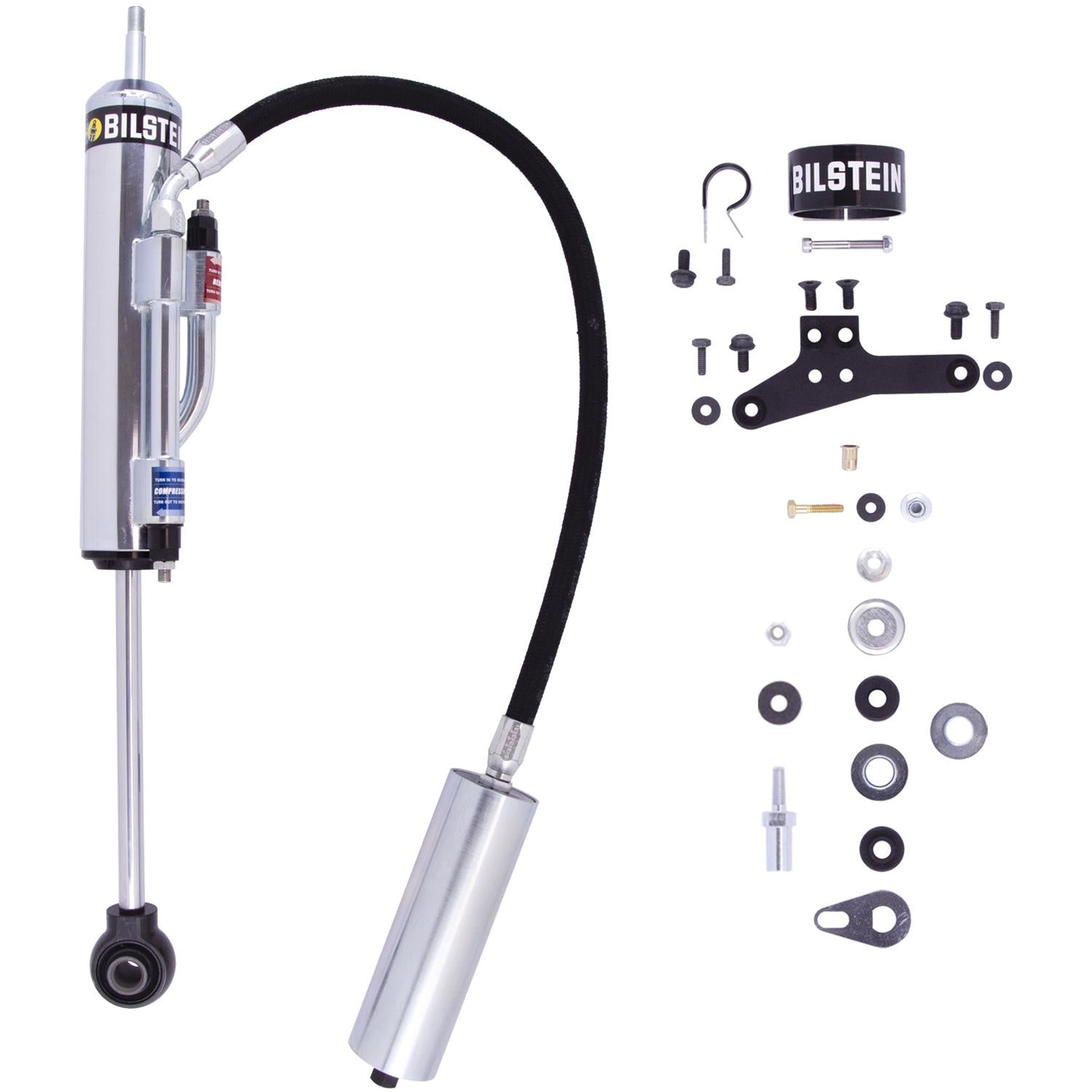

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle. Additional details: * Shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle * Remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment * Zinc plated finish * Non-coilover 60mm body diameter
Extended Description
- 60mm Shock Absorber
Application Summary
Lexus GX460 2021-2010, GX470 2009-2003, Toyota 4Runner 2021-2003
Fitment
Fitment
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Lexus GX460 2021-2010, GX470 2009-2003, Toyota 4Runner 2021-2003 |
| market_ |
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
| product_ |
60mm Shock Absorber |
| product_ |
Toyota 4Runner 4x4 ''10-; LR; 8100 Bypass |
| product_ |
B8 8100 (Bypass) - Shock Absorber |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8100 Series Bypass Shocks 25-284584 |
| brand | Bilstein |
| price | 1091 |
| blurb | Shocks and Struts, B8 8100 Series Bypass, Ride Height Adjustable, 0-2.00 in., Mono-Tube, Gas Charged, Rear Left, Toyota, Lexus, Each |
| title | Bilstein B8 8100 Series Bypass Shocks |
| description | Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle. Additional details: * Shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle * Remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment * Zinc plated finish * Non-coilover 60mm body diameter |
item_row
| handle | BIL-25-284584 |
|---|---|
| item_ |
360495 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a295c080320d73daaf96352438fce48f.JPG |
| item_ |
25-284584 |
| item_ |
Bilstein B8 8100 (Bypass) 2003-2020 Toyota 4Runner Rear Left Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860844534 |
| item_ |
1091.00 |
| item_ |
1189.90 |
| t14_ |
8 |
| mfr_ |
|
| dim_ |
20.30 |
| dim_ |
40.00 |
| dim_ |
11.60 |
| dim_ |
6.60 |
| shipping_ |
14.83 |
| item_ |
bil25-284584 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Fits models without kinetic dynamic suspension (KDSS). |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Stock/Lifted |
| Upper Mount | Stud |
| Product Line | Bilstein B8 8100 Series Bypass Shocks |
| Boot Included | No |
| Internal Design | Monotube |
| Ride Height Note | For specific ride height information please refer to your make and model under the application tab. |
| Adjustable Valving | Yes |
| Extended Length (in.) | 24.09 |
| Collapsed Length (in.) | 14.72 |
| Lifted Amount Range (in.) | 0.00-2.50 in. |
| Manufacturer's Part Number | 25-284584 |
