Bilstein B8 8100 Series Bypass Shocks 25-259018
Bilstein B8 8100 Series Bypass Shocks 25-259018
Low stock: 2 left
Couldn't load pickup availability
Tags
Product Description

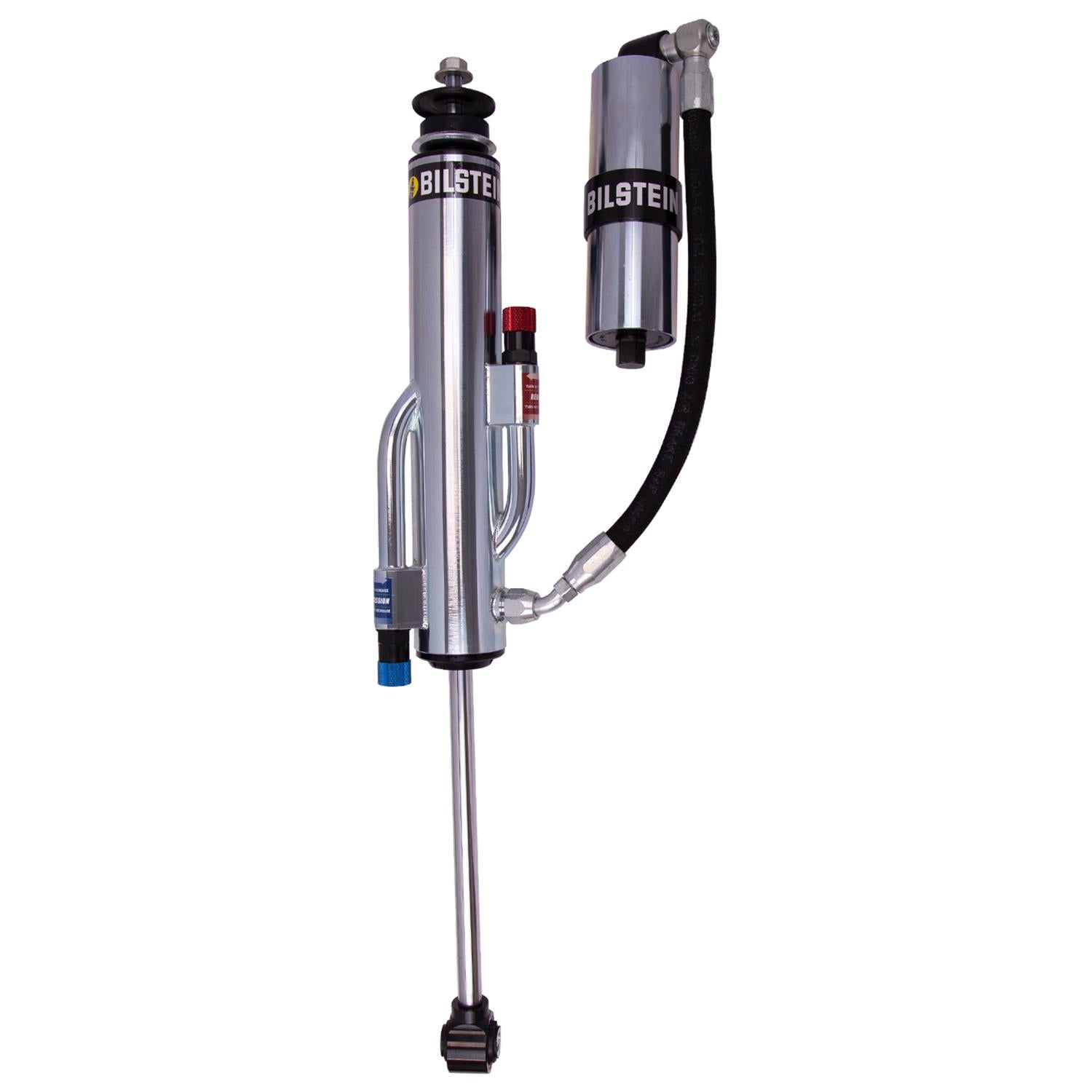

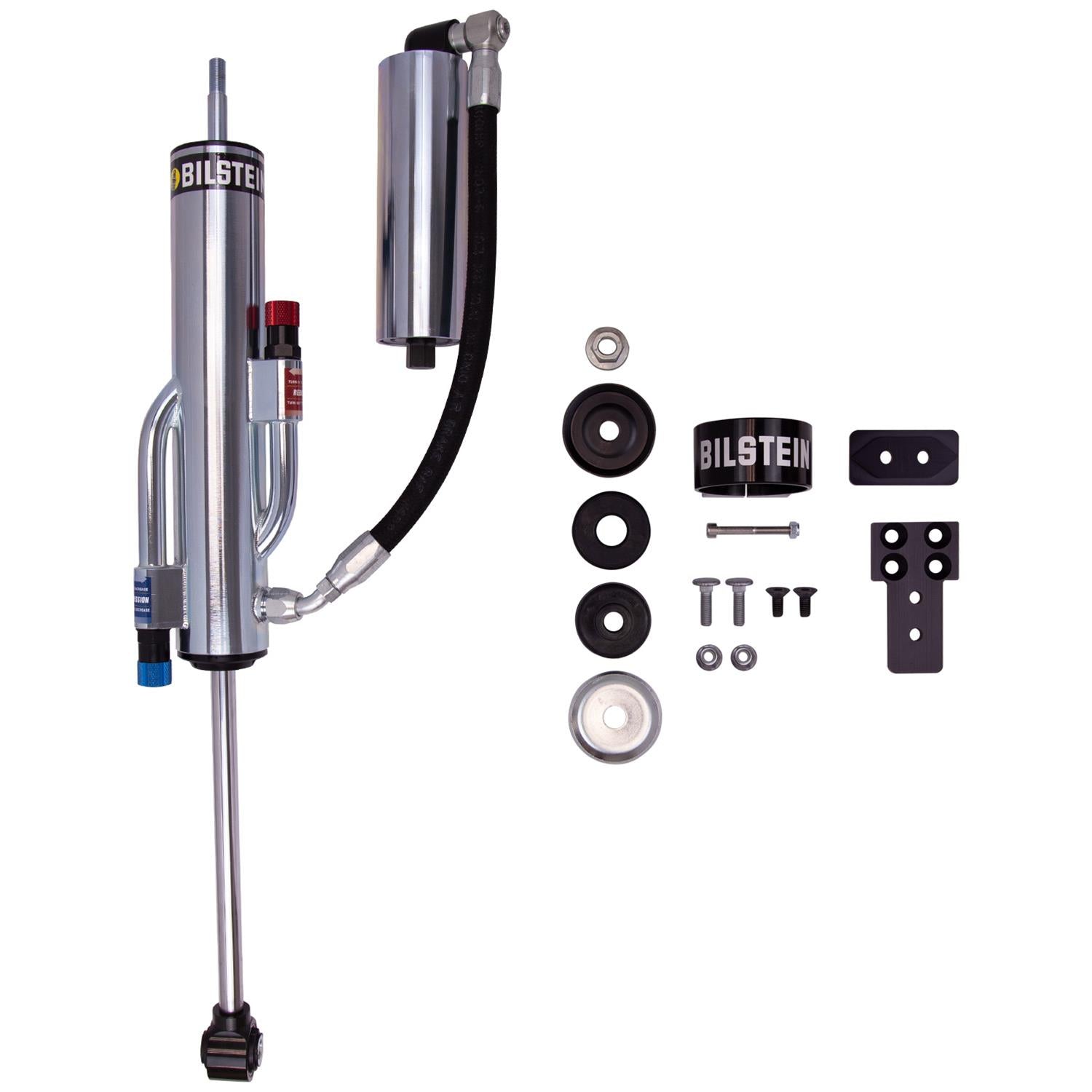

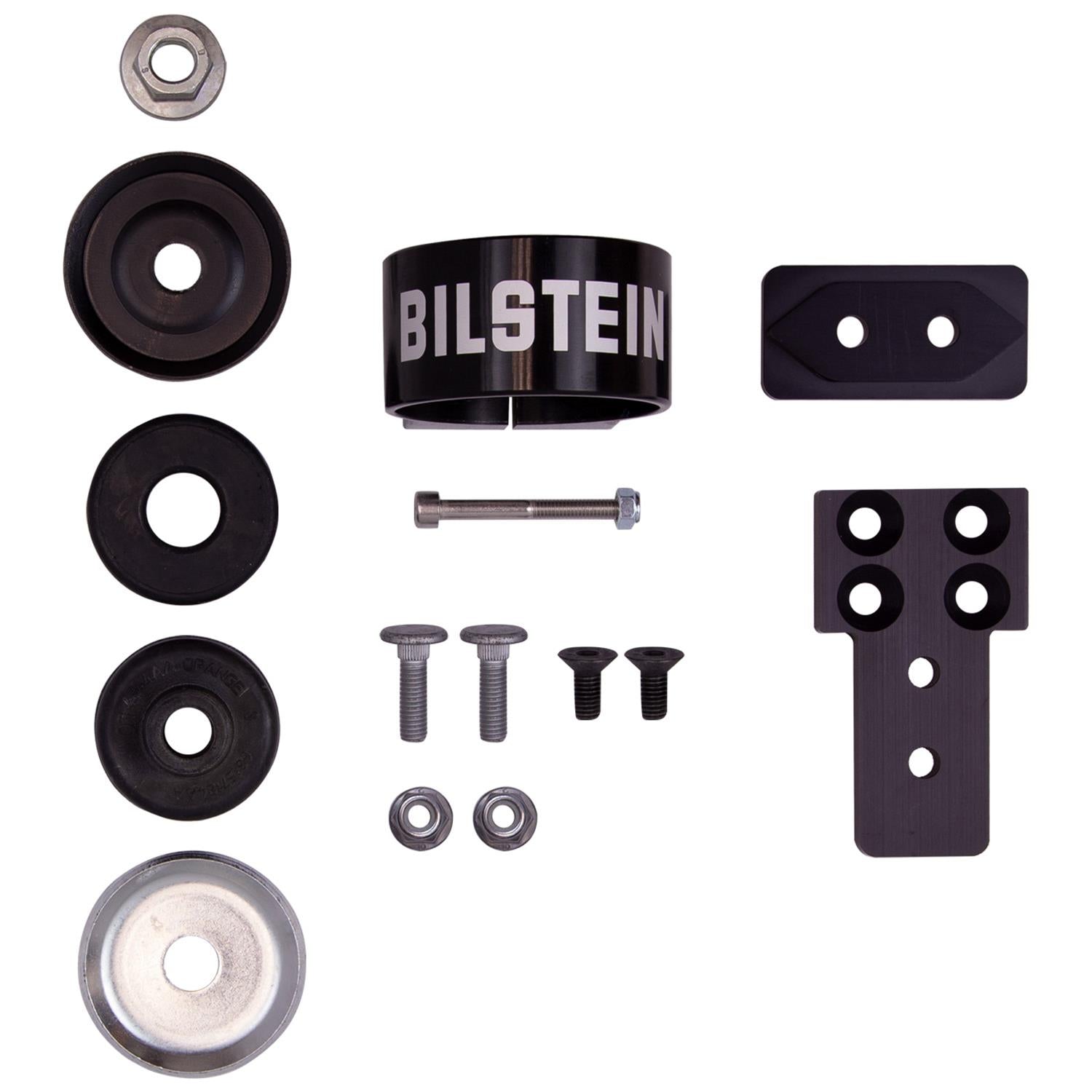

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle. Additional details: * Shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle * Remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment * Zinc plated finish * Non-coilover 60mm body diameter
Extended Description
- 60mm Shock Absorber
Application Summary
Ram 1500 2022-2019
Fitment
Fitment
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Ram 1500 2022-2019 |
| market_ |
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control. |
| product_ |
60mm Shock Absorber |
| product_ |
Ram 1500 4WD; ''19-;RR;5''7"bed;8100Bypass |
| product_ |
B8 8100 (Bypass) - Shock Absorber |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 8100 Series Bypass Shocks 25-259018 |
| brand | Bilstein |
| price | 1091 |
| blurb | Shock Absorber B8 8100 (Bypass) Ram 1500 2021-2019 |
| title | Bilstein B8 8100 Series Bypass Shocks |
| description | Bilstein B8 8100 Series bypass shocks are direct-fit, position-sensitive dampers for light trucks and SUVs. These motorsports-inspired shock absorbers utilize a dual tube externally adjustable bypass design. They feature "incremental flow" bypass adjusters, allowing for finite and incremental changes for rebound and compression. Bilstein B8 8100 bypass shocks will maximize your driver experience, offering unparalleled ride comfort and incredible bottom-out control. Many sizes and options are available; order the shocks recommended for your vehicle. Additional details: * Shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle * Remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for easy fitment * Zinc plated finish * Non-coilover 60mm body diameter |
item_row
| handle | BIL-25-259018 |
|---|---|
| item_ |
545974 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/2b5a2ab07d4e250e8f1490a6c23561c1.JPG |
| item_ |
25-259018 |
| item_ |
Bilstein 19-22 Dodge Ram 1500 B8 8100 (Bypass) Rear Right Shock Absorber - 0-2in Lift |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860866628 |
| item_ |
1091.00 |
| item_ |
1189.90 |
| t14_ |
2 |
| mfr_ |
4 |
| dim_ |
20.10 |
| dim_ |
39.50 |
| dim_ |
11.80 |
| dim_ |
6.60 |
| shipping_ |
14.83 |
| item_ |
bil25-259018 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Stock/Lifted |
| Upper Mount | Stud |
| Product Line | Bilstein B8 8100 Series Bypass Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | Yes |
| Body Diameter (in.) | 2.362 |
| Extended Length (in.) | 25.82 |
| Collapsed Length (in.) | 15.69 |
| Lifted Amount Range (in.) | 0.00-2.00 in. |
| Manufacturer's Part Number | 25-259018 |
