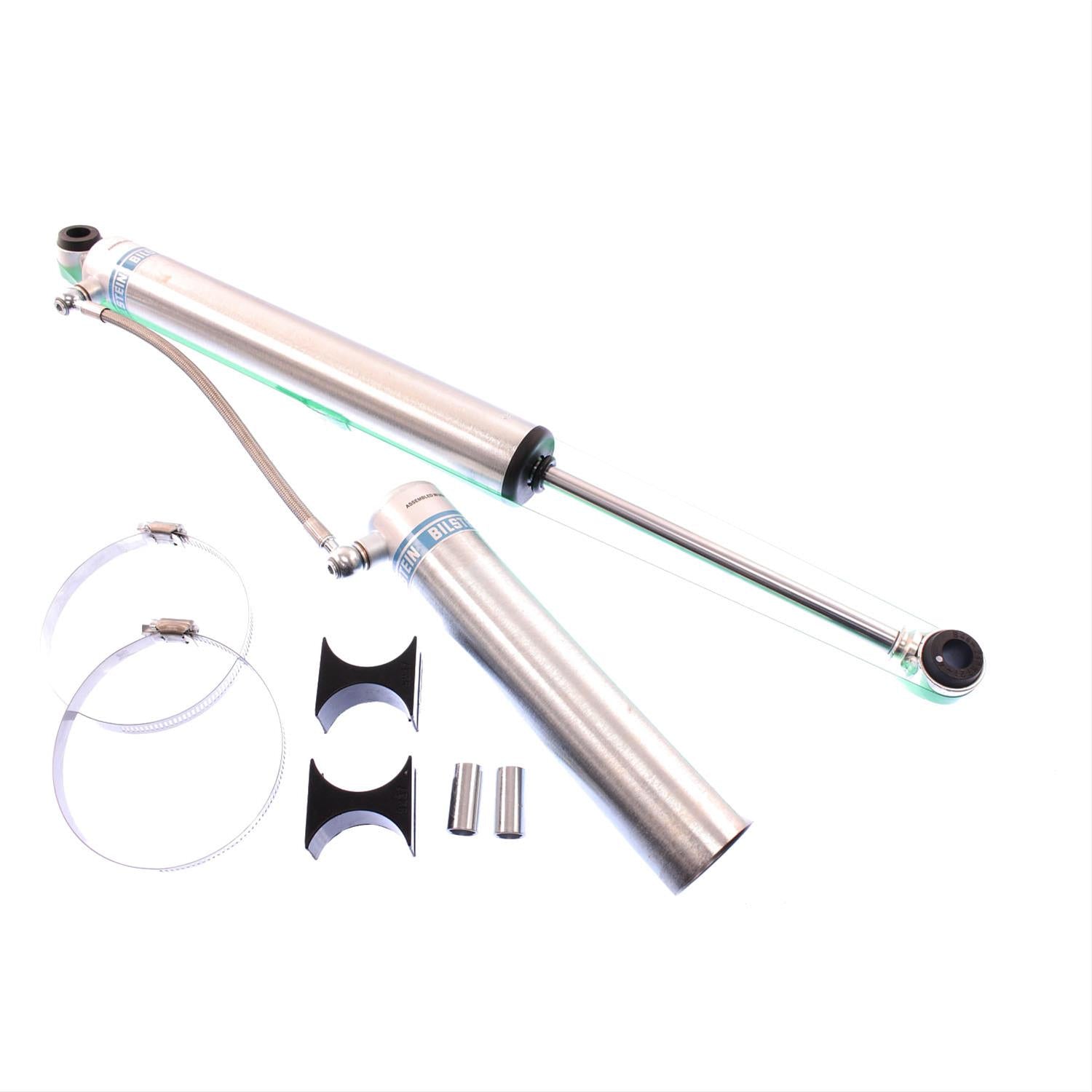

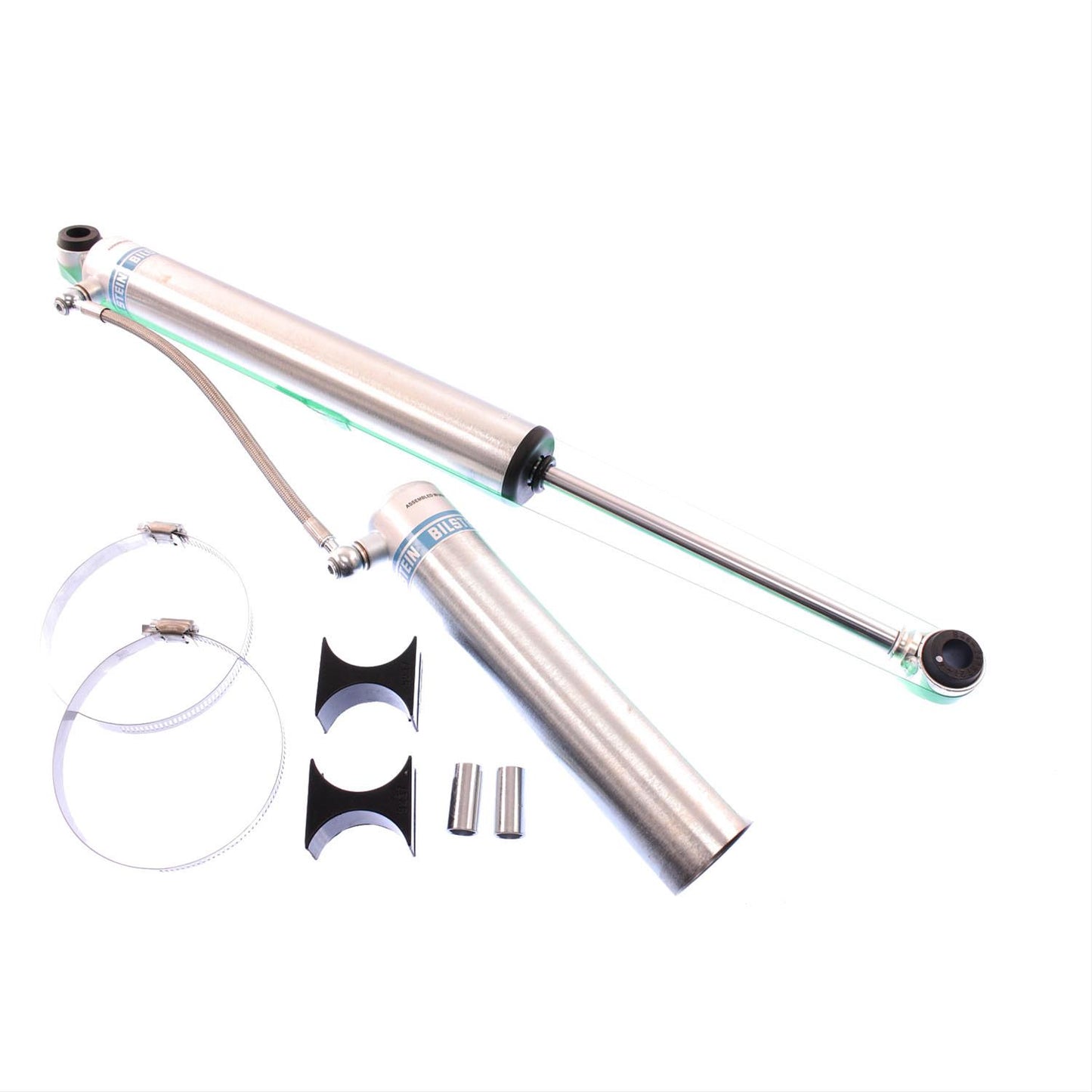

Bilstein B8 5160 Series Shocks 25-187717
Bilstein B8 5160 Series Shocks 25-187717
43 in stock
Couldn't load pickup availability
Product Description
Bilstein 5160 Series Stock Mount Remote Reservoir Shocks are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel. (zinc-plated steel body, Triple-C-Technology coating )
Bilstein B8 5160 Series stock-mount remote reservoir shocks feature the company's industry-leading monotube design, with a reservoir mounting configuration specifically designed for each application. Their unique digressive valving system instantly produces full damping capabilities for serious off-road performance and control. The remote reservoir dramatically increases shock oil capacity for excellent heat dissipation and damping sensitivity. A floating dividing piston is located in the reservoir of these shocks to offer increased wheel travel and more shaft movement. Special swivel banjo fittings on the reservoir hose allow for 360 degrees of rotation. Bilstein's exclusive Triple-C Technology finish provides the B8 5160 Series shocks with lasting great looks and easy care.
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
B8 5165 - Shock Absorber |
| market_ |
Bilstein 5160 Series Stock Mount Remote Reservoir Shocks are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel. (zinc-plated steel body, Triple-C-Technology coating ) |
| product_ |
5165 11.4" Short Body 255/70 |
| product_ |
B8 5165-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5165 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5160 Series Shocks 25-187717 |
| brand | Bilstein |
| price | 237 |
| blurb | Shock/Strut, 5160 Series, Monotube, 27.400 in. Extended, 16.140 in. Collapsed, Universal, Each |
| title | Bilstein B8 5160 Series Shocks |
| description | Bilstein B8 5160 Series stock-mount remote reservoir shocks feature the company's industry-leading monotube design, with a reservoir mounting configuration specifically designed for each application. Their unique digressive valving system instantly produces full damping capabilities for serious off-road performance and control. The remote reservoir dramatically increases shock oil capacity for excellent heat dissipation and damping sensitivity. A floating dividing piston is located in the reservoir of these shocks to offer increased wheel travel and more shaft movement. Special swivel banjo fittings on the reservoir hose allow for 360 degrees of rotation. Bilstein's exclusive Triple-C Technology finish provides the B8 5160 Series shocks with lasting great looks and easy care. |
item_row
| handle | BIL-25-187717 |
|---|---|
| item_ |
282850 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/7bc3b6a2d9b154f4093cc06d6aacd936.JPG |
| item_ |
25-187717 |
| item_ |
Bilstein 5160 Series 5165 11.4in. Short Body 255/70 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860649665 |
| item_ |
237.00 |
| item_ |
237.00 |
| t14_ |
15 |
| mfr_ |
100 |
| dim_ |
7.70 |
| dim_ |
27.00 |
| dim_ |
4.00 |
| dim_ |
4.00 |
| shipping_ |
14.52 |
| item_ |
bil25-187717 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Zinc plated, non-coil-over design. Compression @0.52m/s: 700, rebound @0.52m/s: 2,550. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Custom |
| Upper Mount | Eyelet |
| Product Line | Bilstein B8 5160 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Adjustable Valving | No |
| Extended Length (in.) | 27.40 |
| Collapsed Length (in.) | 16.14 |
| Manufacturer's Part Number | 25-187717 |
