Bilstein B8 5165 Series Shocks 25-176100
Bilstein B8 5165 Series Shocks 25-176100
4 in stock
Couldn't load pickup availability
Product Description
Bilstein 5160 Series Stock Mount Remote Reservoir Shocks are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel. (zinc-plated steel body, Triple-C-Technology coating )

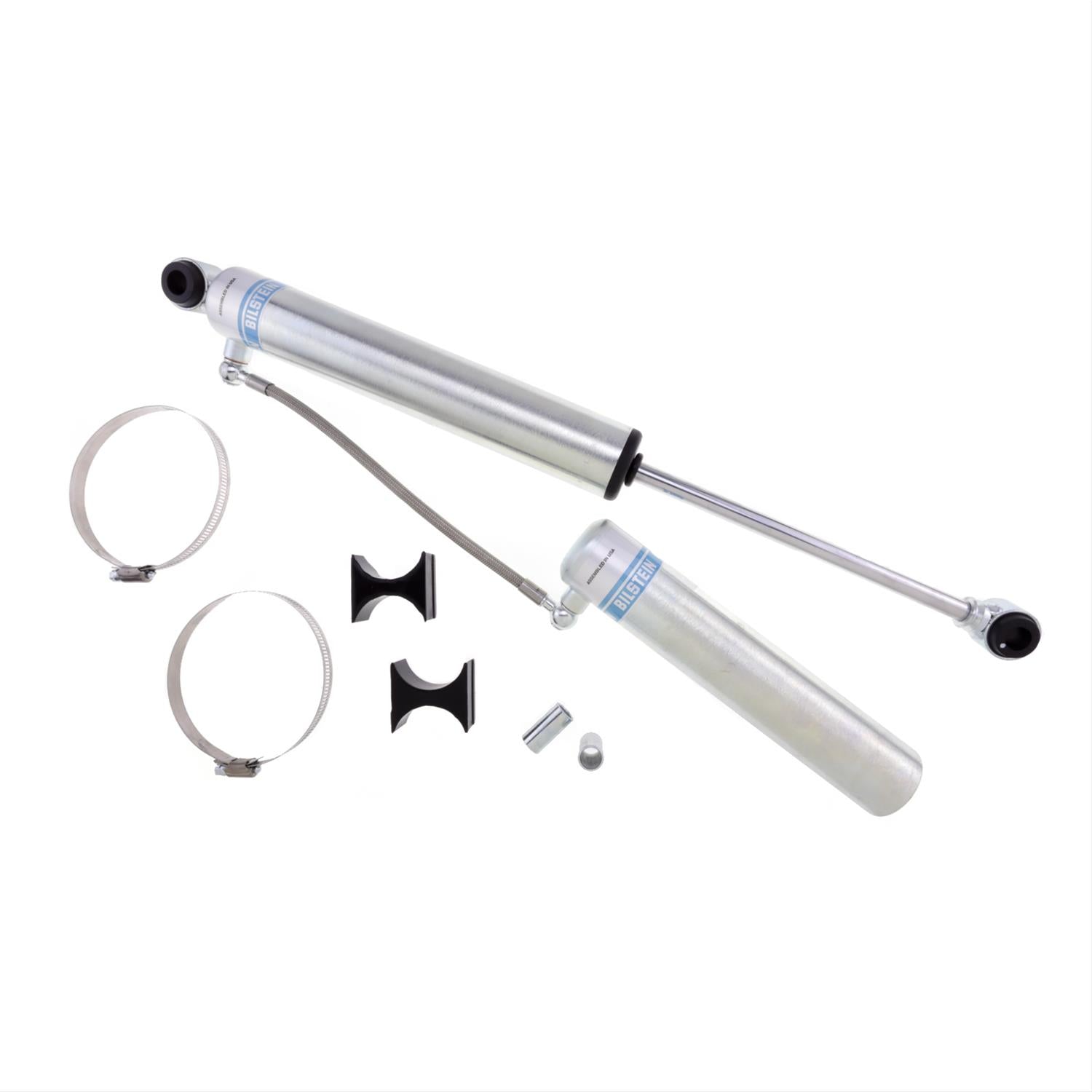

Bilstein B8 5165 Series shocks offer a universal fit, with the benefits of a remote reservoir. Your custom-lifted truck or SUV will gain an increase of shock oil capacity for greater heat dissipation and damping sensitivity. The 5165 shocks are a monotube design featuring a zinc finish with Bilstein's unique, multi-layer coating for extreme protection. Plus, their design allows for increased wheel travel and more shaft movement by locating the "floating" dividing piston in the reservoir. Additional features: * Special swivel banjo fittings on the reservoir hose allow for 360 degree rotation * Includes reservoir mounting kit and detailed instructions * Available in 5 in. to 14 in. travel lengths with various linear valvings
Application Summary
No Applications
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
No Applications |
| label_ |
B8 5165 - Shock Absorber |
| market_ |
Bilstein 5160 Series Stock Mount Remote Reservoir Shocks are direct-fit to each specific vehicle application, avoiding the fabrication generally associated with being able to run a high performance reservoir shock. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Benefits of the reservoir include increased cooling capacity and increased shock travel. (zinc-plated steel body, Triple-C-Technology coating ) |
| product_ |
5165 Series 9.5" Travel 360/80 |
| product_ |
B8 5165-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5165 |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5165 Series Shocks 25-176100 |
| brand | Bilstein |
| price | 237 |
| blurb | Shock, 5165 Series, Monotube, Each |
| title | Bilstein B8 5165 Series Shocks |
| description | Bilstein B8 5165 Series shocks offer a universal fit, with the benefits of a remote reservoir. Your custom-lifted truck or SUV will gain an increase of shock oil capacity for greater heat dissipation and damping sensitivity. The 5165 shocks are a monotube design featuring a zinc finish with Bilstein's unique, multi-layer coating for extreme protection. Plus, their design allows for increased wheel travel and more shaft movement by locating the "floating" dividing piston in the reservoir. Additional features: * Special swivel banjo fittings on the reservoir hose allow for 360 degree rotation * Includes reservoir mounting kit and detailed instructions * Available in 5 in. to 14 in. travel lengths with various linear valvings |
item_row
| handle | BIL-25-176100 |
|---|---|
| item_ |
282813 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a76639a19a602f6fdb3fe2d1f0ccb459.JPG |
| item_ |
25-176100 |
| item_ |
Bilstein 5160 Series 5165 Series 9.5in. Travel 360/80 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860661162 |
| item_ |
237.00 |
| item_ |
237.00 |
| t14_ |
15 |
| mfr_ |
0 |
| dim_ |
7.10 |
| dim_ |
27.20 |
| dim_ |
4.10 |
| dim_ |
4.10 |
| shipping_ |
14.52 |
| item_ |
bil25-176100 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Features 360/80 valving and 9.400 in. travel. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Custom |
| Upper Mount | Eyelet |
| Product Line | Bilstein B8 5165 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Adjustable Valving | No |
| Body Diameter (in.) | 1.811 |
| Extended Length (in.) | 23.60 |
| Collapsed Length (in.) | 14.21 |
| Manufacturer's Part Number | 25-176100 |
