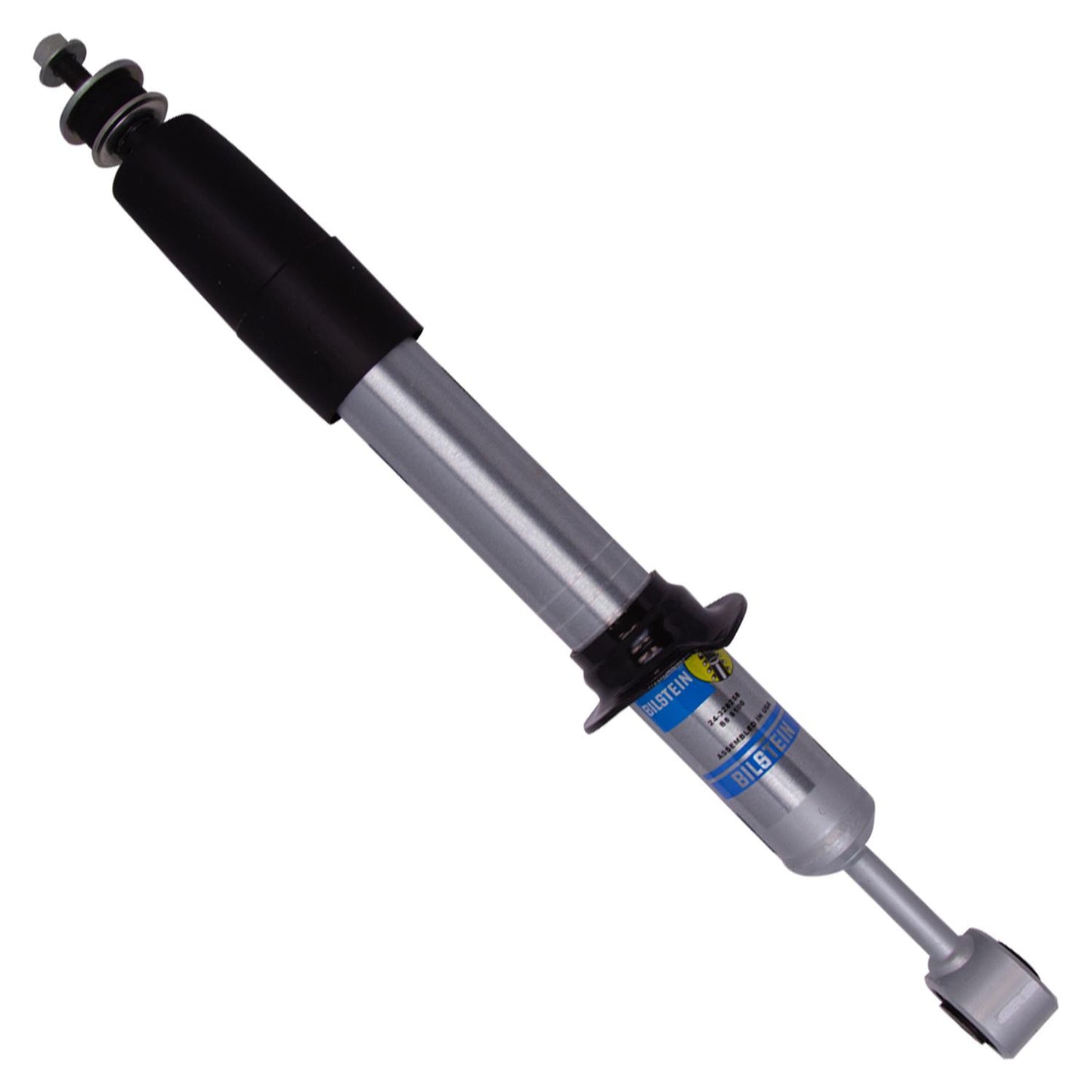

Bilstein B8 5100 Series Shocks 24-328258
Bilstein B8 5100 Series Shocks 24-328258
3146 in stock
Couldn't load pickup availability
Tags
Product Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Extended Description
- 46mm Monotube Shock Absorber
Application Summary
Lexus GX460 2022-2010, Toyota 4Runner 2022-2010, FJ Cruiser 2014-2010
Fitment
Fitment
Part Type
Suspension Shock Absorber
description
| aaia_ |
Suspension Shock Absorber |
|---|---|
| application_ |
Lexus GX460 2022-2010, Toyota 4Runner 2022-2010, FJ Cruiser 2014-2010 |
| label_ |
B8 5100 (Ride Height Adjustable) - Shock Absorber |
| market_ |
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
Toyota FJ/4Runner ''10+; F; B8 5100; 2.5" |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 24-328258 |
| brand | Bilstein |
| price | 157 |
| blurb | Shock, 5100 Series, Monotube, Front, Gas Charged, Mono Tube, Zinc Plated, Lexus, Toyota, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-24-328258 |
|---|---|
| item_ |
546123 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/bfb8001ab925ca47d3a397fcfe729fb3.JPG |
| item_ |
24-328258 |
| item_ |
Bilstein B8 5100 Series 10-14 Toyota FJ Crusier/10-22 4Runner Front Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860896977 |
| item_ |
157.00 |
| item_ |
218.90 |
| t14_ |
397 |
| mfr_ |
874 |
| dim_ |
6.30 |
| dim_ |
26.00 |
| dim_ |
3.50 |
| dim_ |
3.50 |
| shipping_ |
14.83 |
| item_ |
bil24-328258 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Spring Seat Included. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Lifted |
| Upper Mount | Stud |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | No |
| Body Diameter (in.) | 1.811 |
| Extended Length (in.) | 22.31 |
| Collapsed Length (in.) | 17.50 |
| Lifted Amount Range (in.) | 0.00-2.50 in. |
| Manufacturer's Part Number | 24-328258 |
