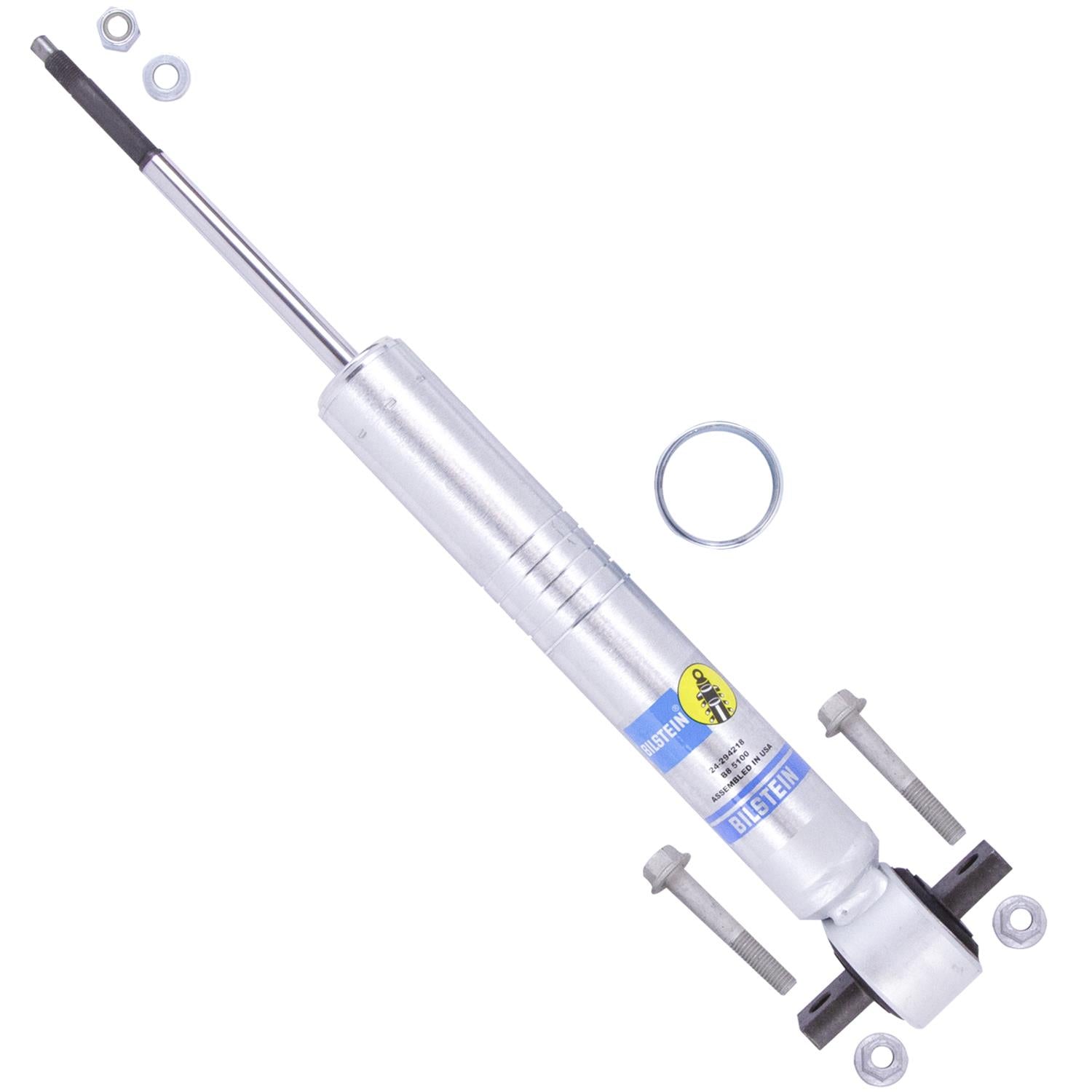

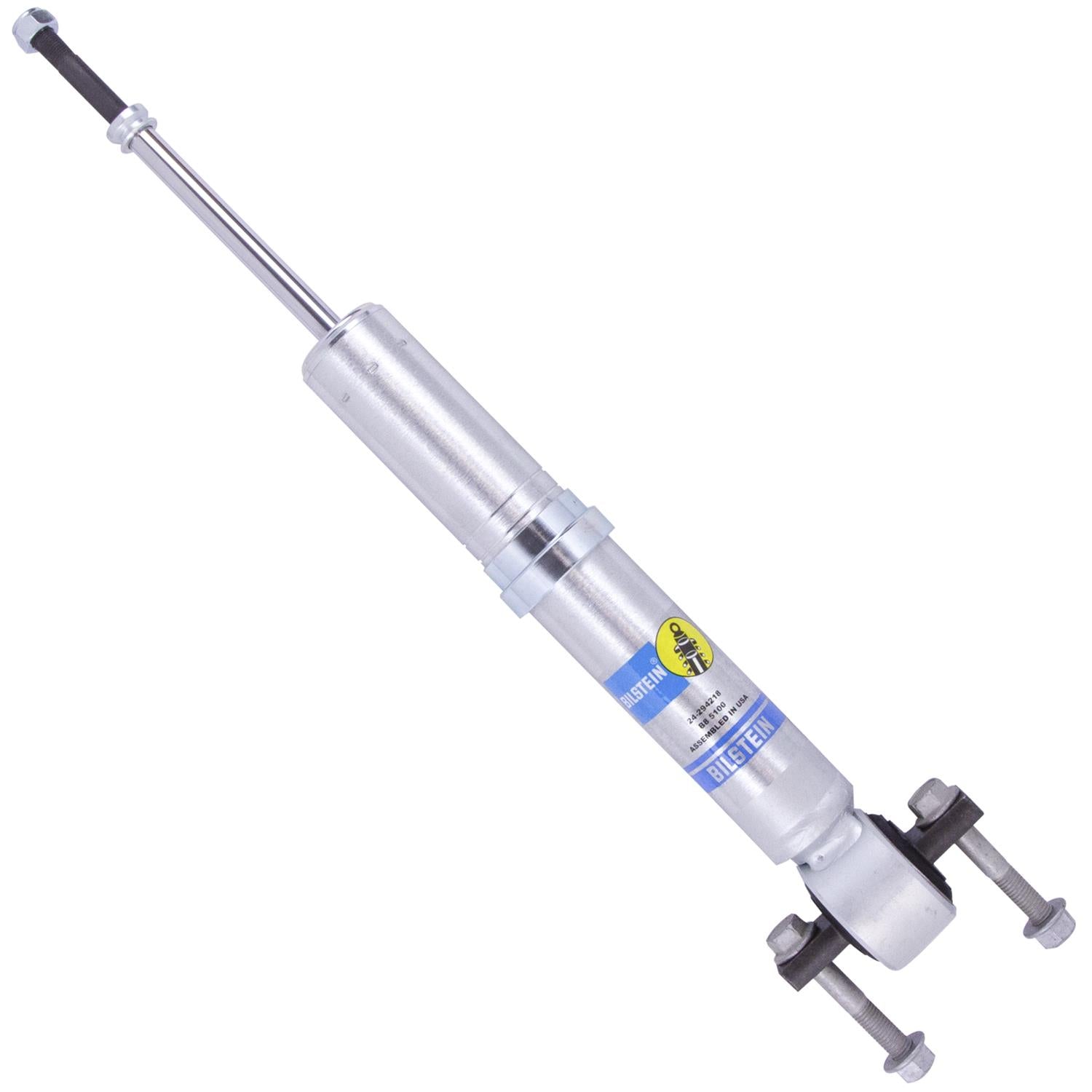

Bilstein B8 5100 Series Shocks 24-294218
Bilstein B8 5100 Series Shocks 24-294218
254 in stock
Couldn't load pickup availability
Tags
Product Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Extended Description
- 46mm Monotube Shock Absorber
Application Summary
Ford Ranger 2021-2019
Fitment
Fitment
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Ford Ranger 2021-2019 |
| market_ |
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
Ford Ranger 19+; F; 0-2.5" lift; B8 5100 |
| product_ |
B8 5100 (Ride Height Adjustable) - Shock Absorber |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 24-294218 |
| brand | Bilstein |
| price | 157 |
| blurb | Shocks/Struts, B8 5100 Series, Monotube, Front, Ford, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-24-294218 |
|---|---|
| item_ |
374948 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/edf450d43e549c0b79fa7a91b8f68429.JPG |
| item_ |
24-294218 |
| item_ |
Bilstein B8 5100 Series 19-20 Ford Ranger 46mm Monotube (Ride Height Adjustable) Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860861562 |
| item_ |
157.00 |
| item_ |
218.90 |
| t14_ |
18 |
| mfr_ |
471 |
| dim_ |
7.60 |
| dim_ |
27.00 |
| dim_ |
4.00 |
| dim_ |
4.00 |
| shipping_ |
14.52 |
| item_ |
bil24-294218 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Shock has four preset spring pre-load settings. See the attached instructions for more details. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Ride Height | Stock/Lifted |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | No |
| Body Diameter (in.) | 1.811 |
| Extended Length (in.) | 19.26 |
| Collapsed Length (in.) | 14.59 |
| Lifted Amount Range (in.) | 0.00-2.50 in. |
| Manufacturer's Part Number | 24-294218 |
