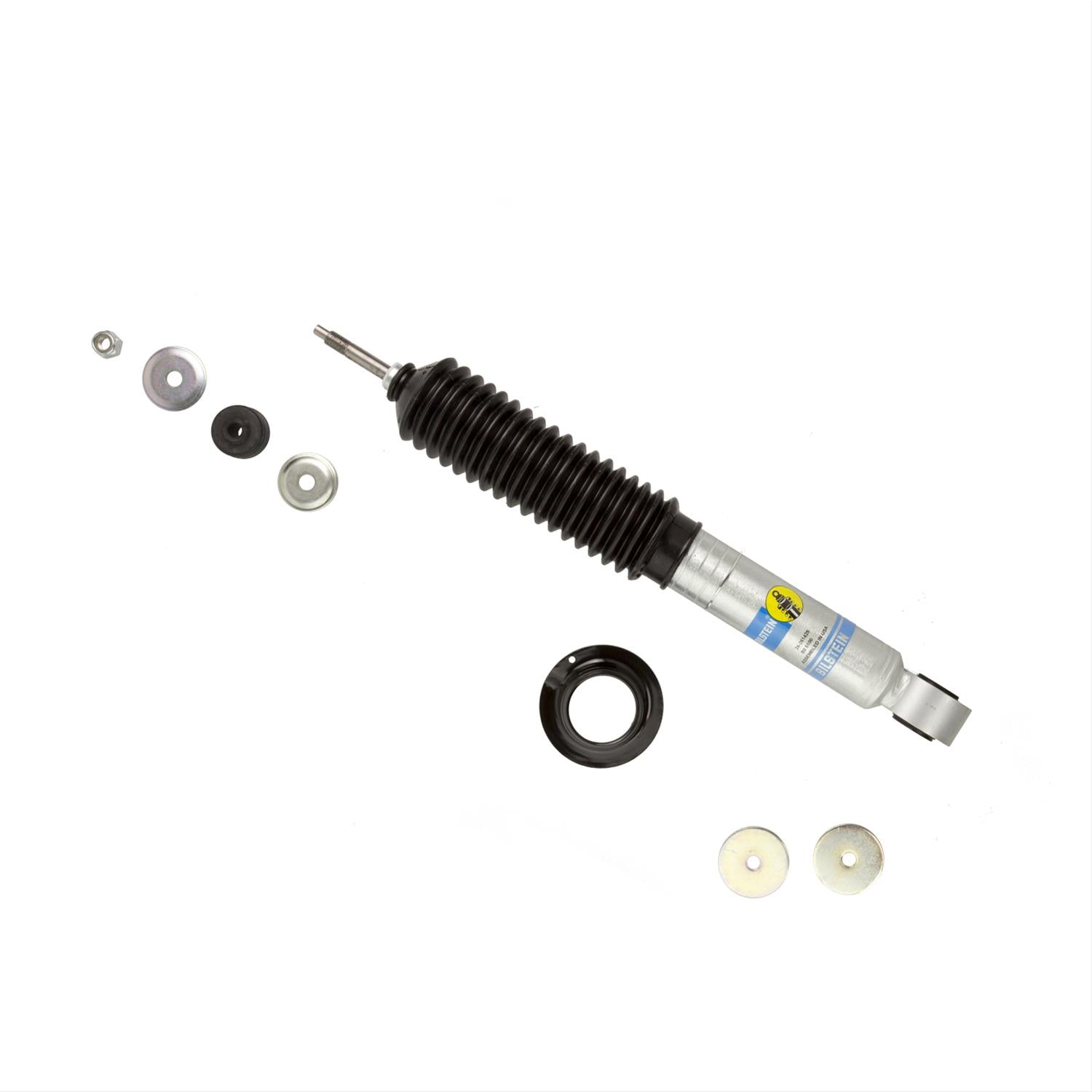

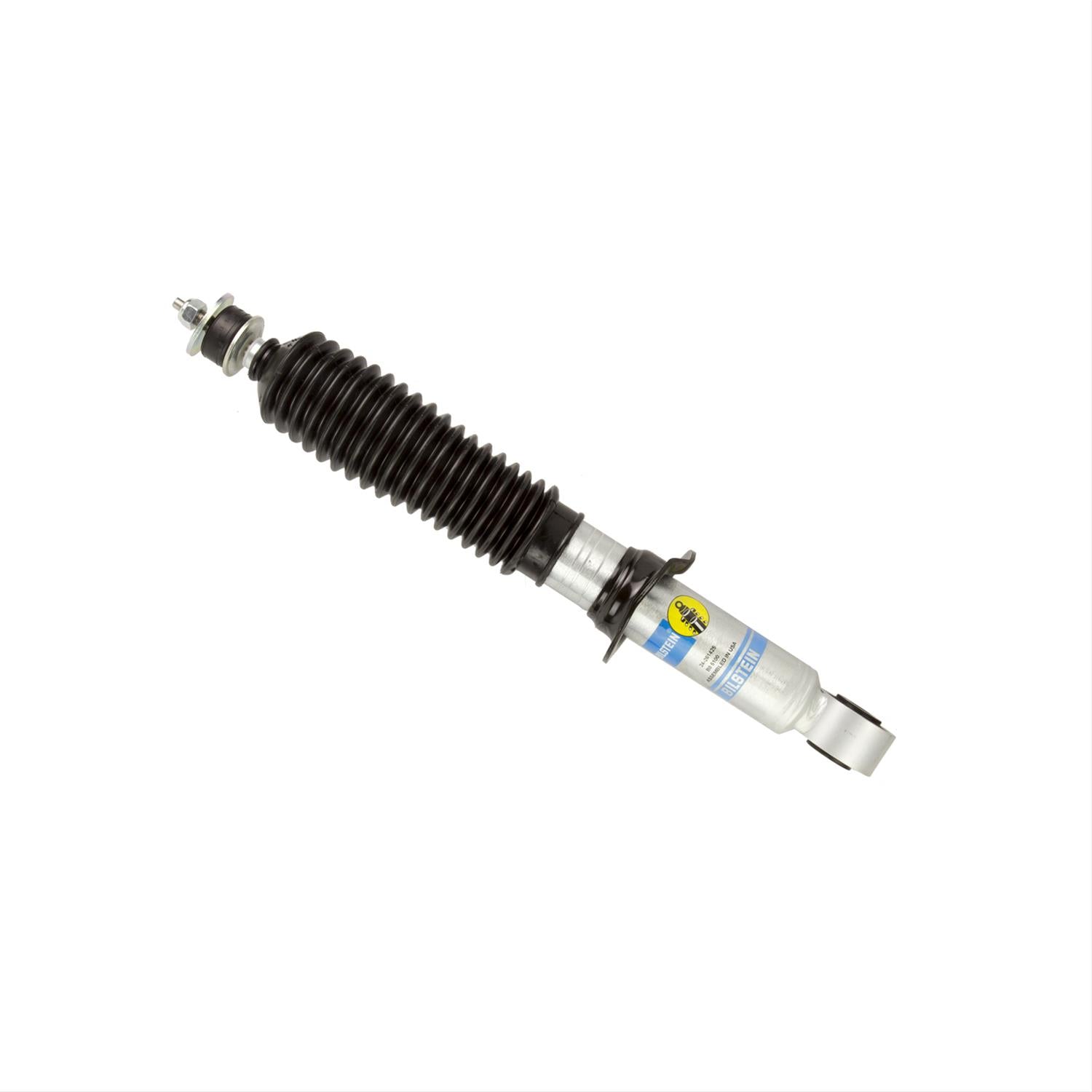

Bilstein B8 5100 Series Shocks 24-261425
Bilstein B8 5100 Series Shocks 24-261425
2920 in stock
Couldn't load pickup availability
Tags
Product Description
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front coilover style suspension. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. The Bilstein B8 5100 (Ride Height Adjustable) shock absorber provides increased wheel travel and improved handling and feature a zinc-plated steel body for resistance to harsh off-road elements.
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Extended Description
- 46mm Monotube Shock Absorber
Application Summary
Toyota Tundra 2006-2000
Fitment
Fitment
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Toyota Tundra 2006-2000 |
| label_ |
B8 5100 (Ride Height Adjustable) - Shock Absorber |
| market_ |
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV''s with a front coilover style suspension. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. The Bilstein B8 5100 (Ride Height Adjustable) shock absorber provides increased wheel travel and improved handling and feature a zinc-plated steel body for resistance to harsh off-road elements. |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
Toyota Tundra 00-06; F; B8-5100 |
| product_ |
24-261425 |
| product_ |
Shock |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 24-261425 |
| brand | Bilstein |
| price | 157 |
| blurb | Shock, 5100 Series, Monotube, Front, Toyota, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-24-261425 |
|---|---|
| item_ |
78634 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/9b054d96e3e3c967c72ced06793dd696.JPG |
| item_ |
24-261425 |
| item_ |
Bilstein 5100 Series 2000 Toyota Tundra Base Front 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860783765 |
| item_ |
157.00 |
| item_ |
218.90 |
| t14_ |
384 |
| mfr_ |
83 |
| dim_ |
6.80 |
| dim_ |
26.50 |
| dim_ |
3.60 |
| dim_ |
3.50 |
| shipping_ |
14.83 |
| item_ |
bil24-261425 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Verifying |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Ride height adjustable. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Boot Color | Black |
| Gas Charged | Yes |
| Ride Height | Stock/Lifted |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | Yes |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | Yes |
| Lifted Amount Range (in.) | 0.00-2.80 in. |
| Manufacturer's Part Number | 24-261425 |
