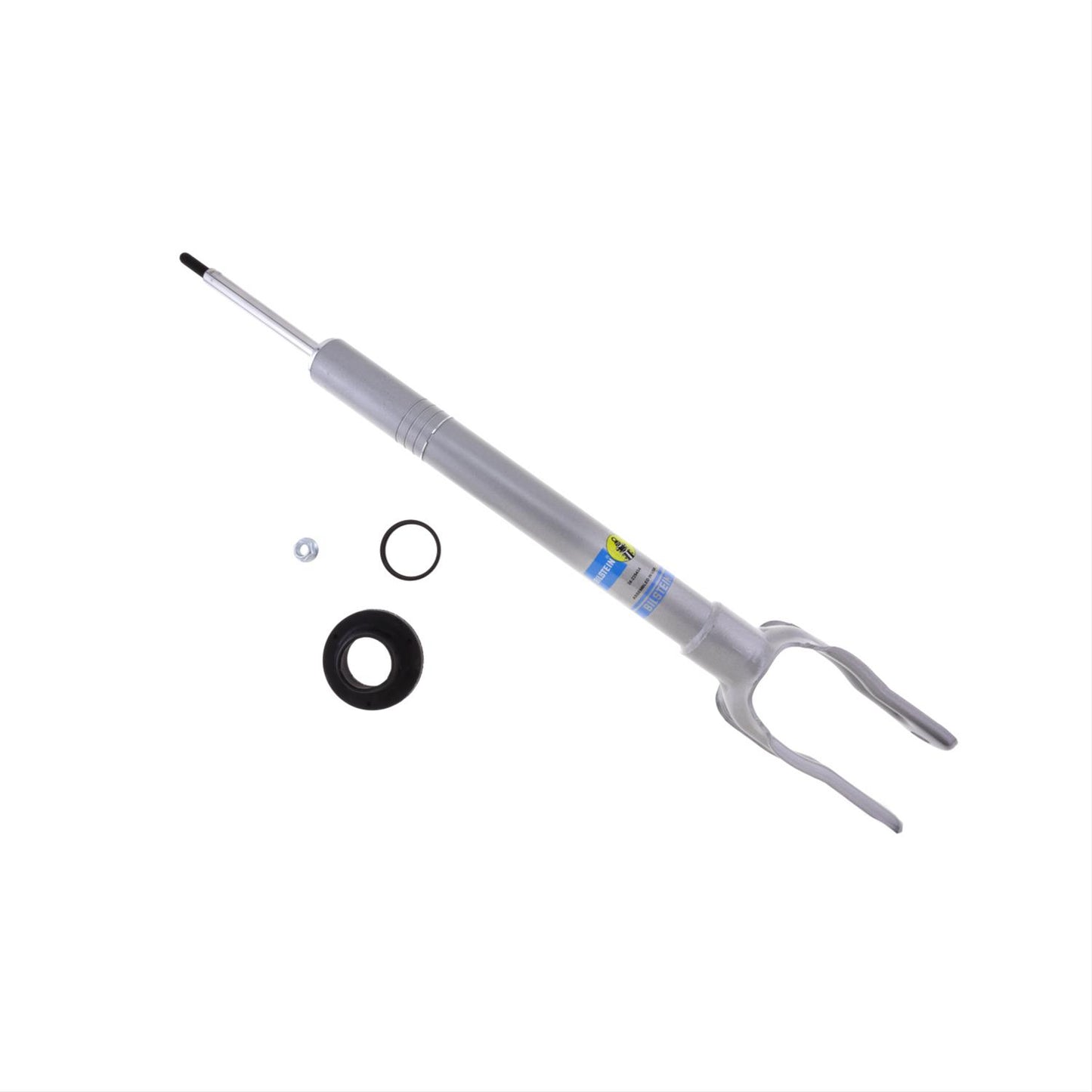

Bilstein B8 5100 Series Shocks 24-225434
Bilstein B8 5100 Series Shocks 24-225434
292 in stock
Couldn't load pickup availability
Tags
Product Description
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating)
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Application Summary
Jeep Grand Cherokee 2015-2011
Fitment
Fitment
Part Type
Shock Absorber
Additional Information 2
- Jeep Grand Cherokee 2014-2011
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Jeep Grand Cherokee 2015-2011 |
| associated_ |
Jeep Grand Cherokee 2014-2011 |
| label_ |
46mm Monotube Shock Absorber |
| market_ |
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating) |
| product_ |
Jeep Grand Cherokee 2011; F; 5100 Series |
| product_ |
B8 5100 (Ride Height Adjustable)-Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5100 (Ride Height Adjustable) |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 24-225434 |
| brand | Bilstein |
| price | 161 |
| blurb | Shocks and Struts, B8 5100 Series Shocks, Lifted Ride Height, 0.00-2.00 in. Lifted Amount Range, Monotube, Adjustable Valving, Front, Jeep, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-24-225434 |
|---|---|
| item_ |
4362297 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a59c0aa97af1c3299eda317d207901c0.JPG |
| item_ |
24-225434 |
| item_ |
Bilstein 5100 Series 11-14 Jeep Grand Cherokee Front 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860713984 |
| item_ |
161.00 |
| item_ |
225.00 |
| t14_ |
0 |
| mfr_ |
0 |
| dim_ |
11.40 |
| dim_ |
35.20 |
| dim_ |
6.30 |
| dim_ |
6.00 |
| shipping_ |
14.83 |
| item_ |
bil24-225434 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Snap ring grooved body coilover. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Clevis |
| Ride Height | Lifted |
| Upper Mount | Stud |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | No |
| Internal Design | Monotube |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | Yes |
| Extended Length (in.) | 32.09 |
| Collapsed Length (in.) | 26.28 |
| Lifted Amount Range (in.) | 0.00-2.00 in. |
| Manufacturer's Part Number | 24-225434 |
