Bilstein B8 5100 Series Shocks 24-187466
Bilstein B8 5100 Series Shocks 24-187466
Low stock: 1 left
Couldn't load pickup availability
Tags
Product Description

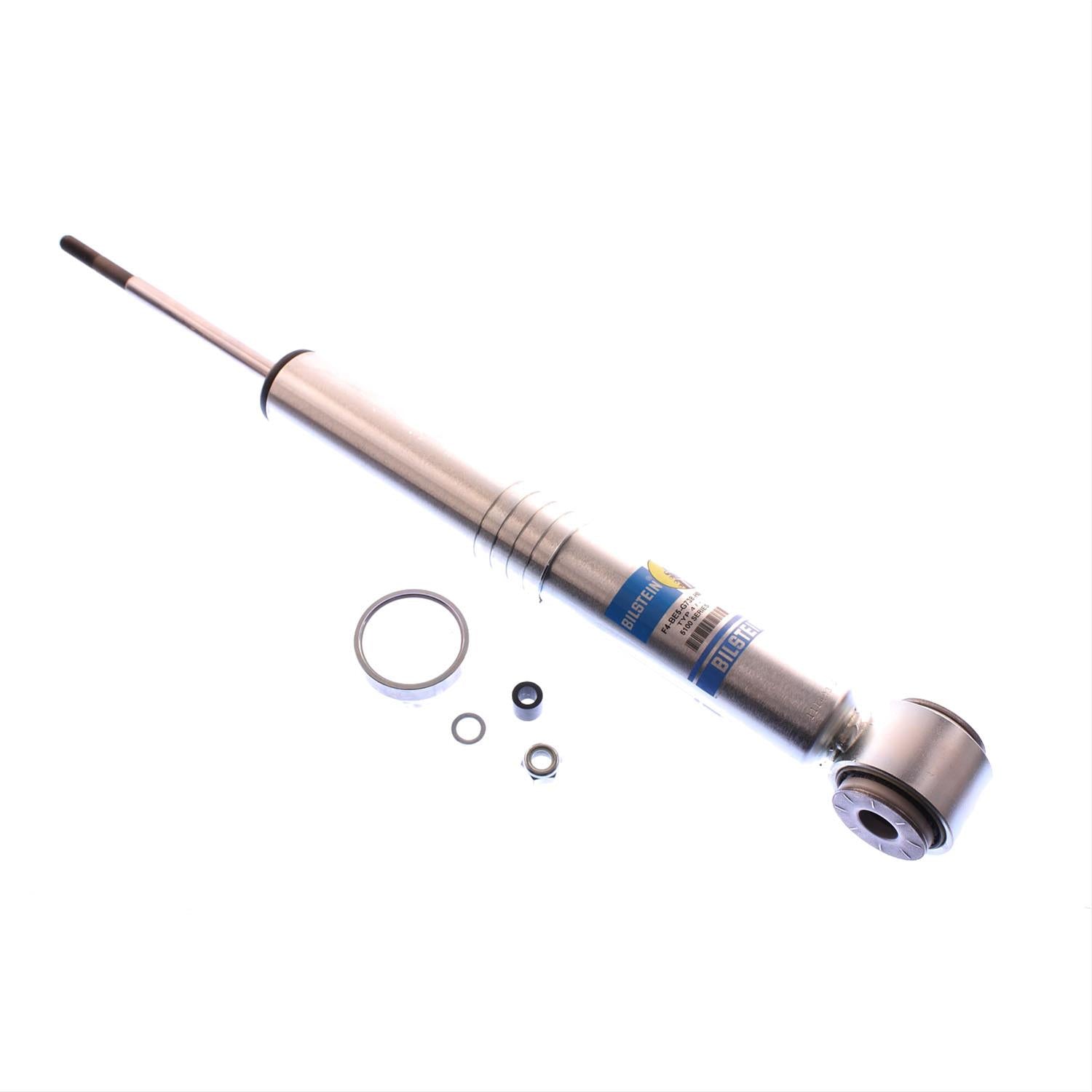

Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating)
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Application Summary
Ford F-150 2013-2009
Fitment
Fitment
Part Type
Shock Absorber
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Ford F-150 2013-2009 |
| label_ |
B8 5100 (Ride Height Adjustable) - Shock Absorber |
| market_ |
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating) |
| product_ |
FORD F150 2WD; 2009-; 5100 Series; F |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5100 (Ride Height Adjustable) |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 24-187466 |
| brand | Bilstein |
| price | 157 |
| blurb | Shocks and Struts, B8 5100 Series Shocks, Stock/Lifted Ride Height, 0.00-2.50 in. Lifted Amount Range, Monotube, Adjustable Valving, Front, Ford, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-24-187466 |
|---|---|
| item_ |
282768 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/9c9bf39e5b393d8318c3031566833aa7.JPG |
| item_ |
24-187466 |
| item_ |
Bilstein 5100 Series 2009 Ford F-150 Flotillera Front 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860650685 |
| item_ |
157.00 |
| item_ |
218.90 |
| t14_ |
44 |
| mfr_ |
107 |
| dim_ |
6.20 |
| dim_ |
27.10 |
| dim_ |
3.00 |
| dim_ |
3.00 |
| shipping_ |
14.83 |
| item_ |
bil24-187466 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Snap ring grooved body coilover. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Eyelet |
| Ride Height | Stock/Lifted |
| Upper Mount | Stud |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | Yes |
| Body Diameter (in.) | 1.181 |
| Extended Length (in.) | 21.91 |
| Collapsed Length (in.) | 16.22 |
| Lifted Amount Range (in.) | 0.00-2.50 in. |
| Manufacturer's Part Number | 24-187466 |
