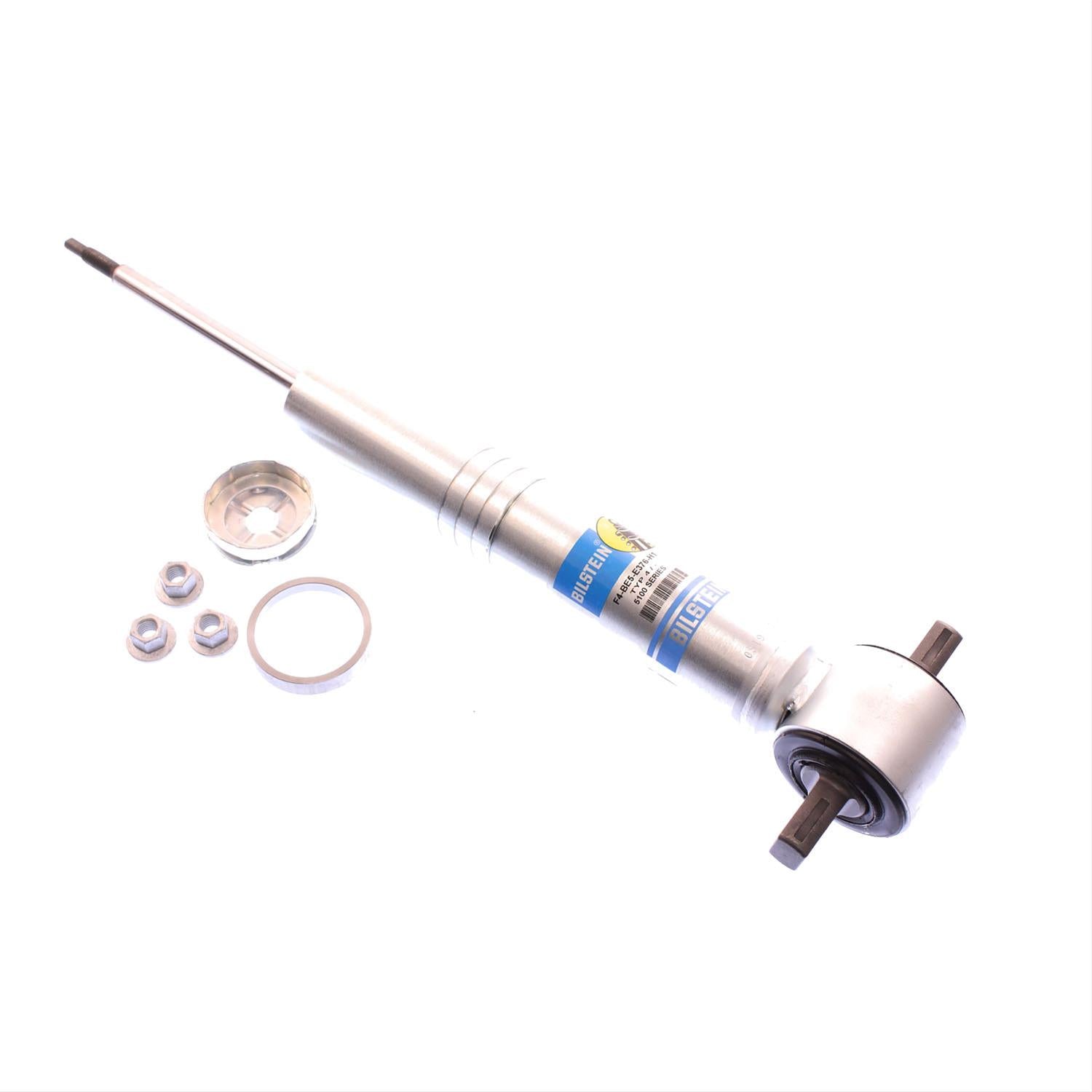

Bilstein B8 5100 Series Shocks 24-186940
Bilstein B8 5100 Series Shocks 24-186940
1231 in stock
Couldn't load pickup availability
Tags
Product Description
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating)
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression
Application Summary
Chevrolet Avalanche 2013-2007, Silverado 1500 2013-2007, Suburban 1500 2014-2007, Tahoe 2014-2007, GMC Sierra 1500 2013-2007, Yukon 2014-2007, Yukon XL 1500 2014-2007
Fitment
Fitment
Part Type
Shock Absorber
Additional Information 2
- Chevrolet Avalanche 2013-2007
- Silverado 1500 2013-2007
- Suburban 1500 2014-2007
- Tahoe 2014-2007
- GMC Sierra 1500 2013-2007
- Yukon 2014-2007
- Yukon XL 1500 2014-2007
description
| aaia_ |
Shock Absorber |
|---|---|
| application_ |
Chevrolet Avalanche 2013-2007, Silverado 1500 2013-2007, Suburban 1500 2014-2007, Tahoe 2014-2007, GMC Sierra 1500 2013-2007, Yukon 2014-2007, Yukon XL 1500 2014-2007 |
| associated_ |
Chevrolet Avalanche 2013-2007; Silverado 1500 2013-2007; Suburban 1500 2014-2007; Tahoe 2014-2007; GMC Sierra 1500 2013-2007; Yukon 2014-2007; Yukon XL 1500 2014-2007 |
| label_ |
B8 5100 (Ride Height Adjustable) - Shock Absorber |
| market_ |
Bilstein 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup suspensions. The monotube shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Multiple snap-ring grooves in the shock body allow for different spring seat positions, providing 0"-2.5" of front end lift, depending on application. Provides increased wheel travel and improved handling! (zinc-plated steel body, Triple-C-Technology coating) |
| product_ |
GM C/K 1500 front 5100 Series |
| product_ |
46mm Monotube Shock Absorber |
| product_ |
Shock |
| shipping_ |
B8 5100 (Ride Height Adjustable) |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Bilstein B8 5100 Series Shocks 24-186940 |
| brand | Bilstein |
| price | 157 |
| blurb | Shock, 5100 Series, Monotube, Front, Chevy, GMC, Each |
| title | Bilstein B8 5100 Series Shocks |
| description | Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control—on and off the road. These shocks also have split compression and rebound valving tuned for each specific application. Order the model designed for your year/make/model. Additional features: * 2 in. seamless extruded tube * 14mm centerless-ground, case-hardened, chromed, and super-polished rod * 46mm Bilstein digressive piston * Self-adjusting, deflective-disc independent rebound and compression |
item_row
| handle | BIL-24-186940 |
|---|---|
| item_ |
282744 |
| brand_ |
126 |
| brand_ |
Bilstein |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/5f95be290aac5cb6539fec97dd533fbd.JPG |
| item_ |
24-186940 |
| item_ |
Bilstein 5100 Series 2012 GMC Sierra 1500 XFE Front 46mm Monotube Shock Absorber |
| item_ |
Shocks & Structs |
| item_ |
Shocks and Struts |
| item_ |
651860640167 |
| item_ |
157.00 |
| item_ |
218.90 |
| t14_ |
1944 |
| mfr_ |
381 |
| dim_ |
7.00 |
| dim_ |
26.80 |
| dim_ |
4.50 |
| dim_ |
4.00 |
| shipping_ |
14.83 |
| item_ |
bil24-186940 |
| taxonomy_ |
5383 |
| collection_ |
273964662826 |
| collection_ |
Shocks & Structs |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| Brand | Bilstein |
|---|---|
| Notes | Shock has 4 preset spring pre-load settings. |
| Quantity | Sold individually. |
| Part Type | Shocks and Struts |
| Gas Charged | Yes |
| Lower Mount | Bar pin |
| Ride Height | Stock/Lifted |
| Upper Mount | Stud |
| Product Line | Bilstein B8 5100 Series Shocks |
| Boot Included | No |
| Bushing Color | Black |
| Internal Design | Monotube |
| Bushing Material | Rubber |
| Ride Height Note | Additional ride height information may be available for your vehicle, please refer to the app tab. |
| Adjustable Valving | No |
| Extended Length (in.) | 18.48 |
| Collapsed Length (in.) | 12.95 |
| Manufacturer's Part Number | 24-186940 |
