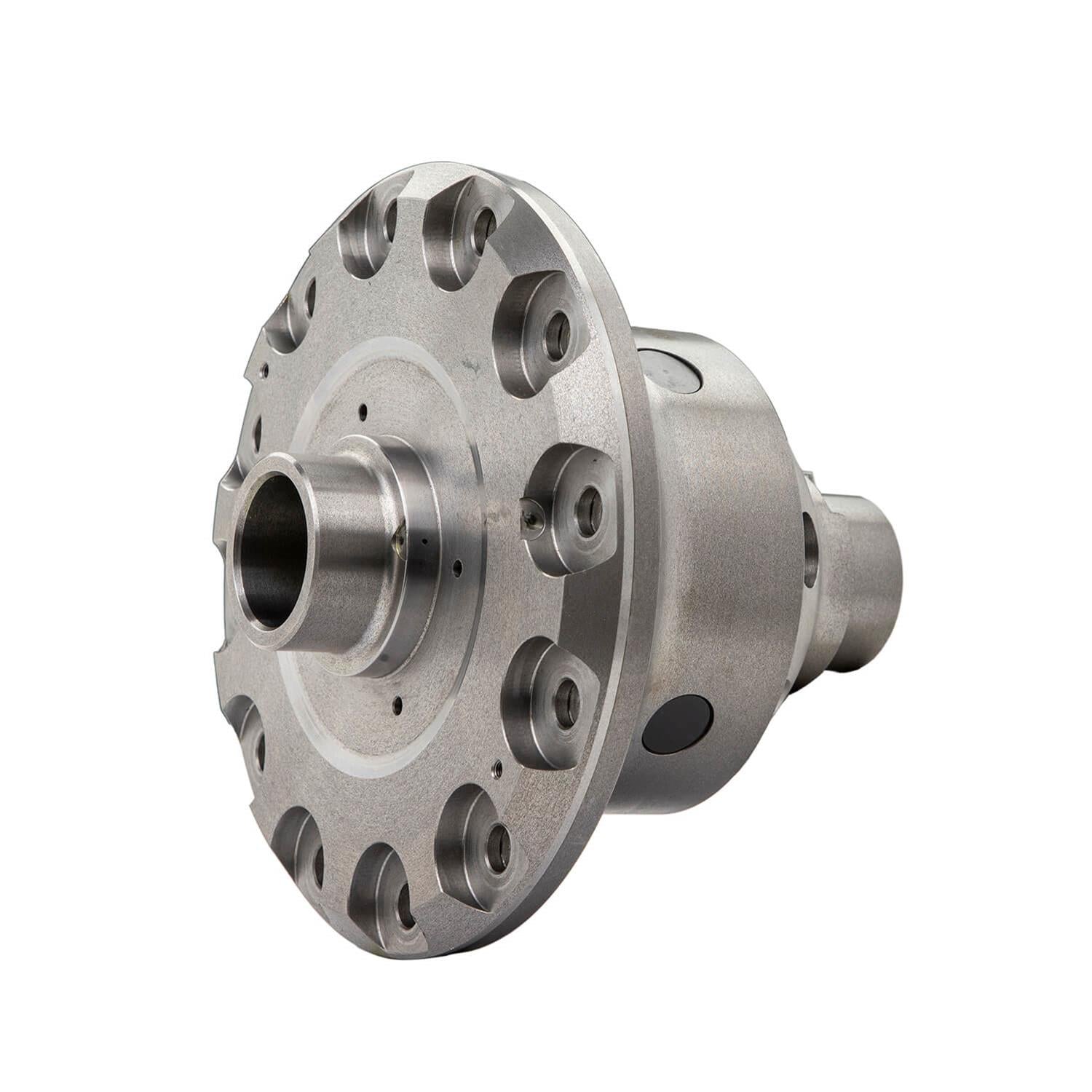

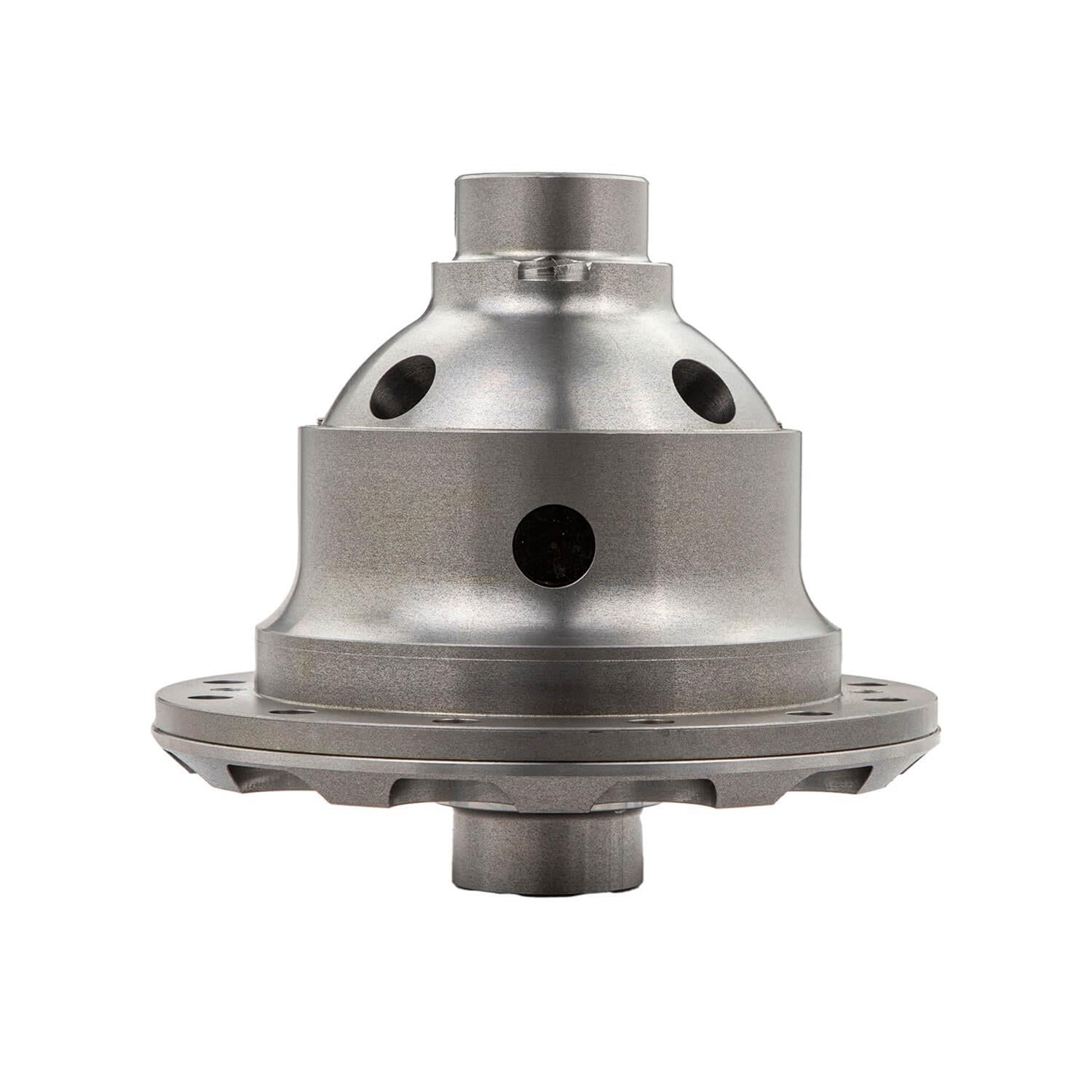

ARB Air Locker Differentials RD172

ARB Air Locker Differentials RD172

$1,689.54 AUD
$1,407.95 AUD $1,689.54 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

5 in stock

Product Description

With our improved two piece design available right across the range, along with the addition of forged gears and an industry leading five year warranty, ARB Air Lockers are now better built and better backed than ever before. Created to provide 100 percent traction on demand, without sacrificing any of your vehicles highway driving performance, ARB Air Lockers employ a 12 volt ARB Air Compressor designed to activate (and deactivate) a solid and durable locking mechanism inside the differential. This gives you the traction you need, when you need it, all at the flip of a switch and all within the comfort of the drivers seat. The advantage of the ARB Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional open differential. In addition to providing outright improvements to a 4x4s off road capabilities, the Air Locker offers significant environmental benefits. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.

A 4x4 and traction go hand-in-hand; however, standard (open) differentials allow each wheel to turn independently to eliminate binding in turns. Off-road, this becomes a problem as engine power takes the path of least resistance—to the wheel with little or no traction. Limited slip differentials offer some improvement, but too often the slipping is not "limited" enough to maintain forward progress. Automatic locking differentials also have disadvantages; noisy when disengaging, they can also upset on-highway driving characteristics. Created to provide traction on demand, without sacrificing highway driving performance, ARB Air Locker differentials employ a 12 V ARB air compressor (sold separately) to pneumatically operate a solid and durable locking mechanism inside the differential. When activated, the Air Locker prevents the differential gears from rotating and the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional open differential. ARB Air Lockers are available in over 100 configurations for a wide range of vehicles and can be installed in both front and rear axles. Installation should be performed by a qualified differential technician, although no special tools or skills are required, apart from those necessary for fitting a standard differential. ARB also offers three compressor models suitable for Air Locker operation, two of which can be used to inflate tires and operate other equipment. Additional features of ARB Air Lockers include: * Vastly improved traction means less reliance on momentum, reducing the likelihood of vehicle damage * Easy, convenient operation without leaving the comfort and safety of the driver's seat * Ultra durable and extremely strong; only the highest quality materials used in construction * Patented gear technology and 2-piece design ensures optimal locking strength * Forged gears provide superior strength and durability * Incredibly simple, yet effective, design employs minimal moving parts for maximum reliability * Thoroughly tested and proven * Most sold as kits with differential, activation switch, solenoid valve, air line, and bulkhead fittings * Front and rear Air Lockers available for most makes and models * For 4WD and 2WD applications * Easy maintenance; no special additives required * Also offered in ARB Traction Packs that include two Air Lockers, a compressor, and accessories for tire inflation

Extended Description

  • ARB Air Locker Differential

  • Shaft Spline 35

  • Low Speed

  • Dana 70/80

Application Summary

LOW SPD S/N....

Fitment

Dodge B300 1975–1980 Dodge B350 1981–1994 Dodge B3500 1995–1998 Dodge D100 1988–1989 Dodge D150 1988–1993 Dodge D250 1981–1993 Dodge D300 1975–1980 Dodge D350 1981–1993 Dodge Ram 2500 1994–2003 Dodge Ram 3500 1994–2003 Dodge W100 1988–1989 Dodge W150 1988–1993 Dodge W200 1975 Dodge W250 1981–1984, 1988–1993 Dodge W300 1975–1978 Dodge W350 1981–1993 Dodge B300 Van 1971–1974 Dodge D300 Pickup 1970–1974 Dodge W200 Pickup 1970–1974 Dodge W300 Pickup 1970–1974
Chevrolet C30 1976–1986 Chevrolet C3500 1988–2000 Chevrolet G30 1996 Chevrolet K30 1977–1986 Chevrolet K30 Pickup 1970–1974
GMC C35 1975–1978 GMC C3500 1988–2000 GMC K35 1977–1978 GMC K3500 1988–2000 GMC C35/C3500 Pickup 1974
Ford E-350 Econoline 1975–1998 Ford E-350 Super Duty 1999–2010 Ford E-350 Club Wagon 2003–2005 Ford E-350 Econoline Club Wagon 1977–2002 Ford F-350 1970–1997 Ford F-350 Super Duty 1999–2016

Part Type

Differential

Overview

Brand ARB

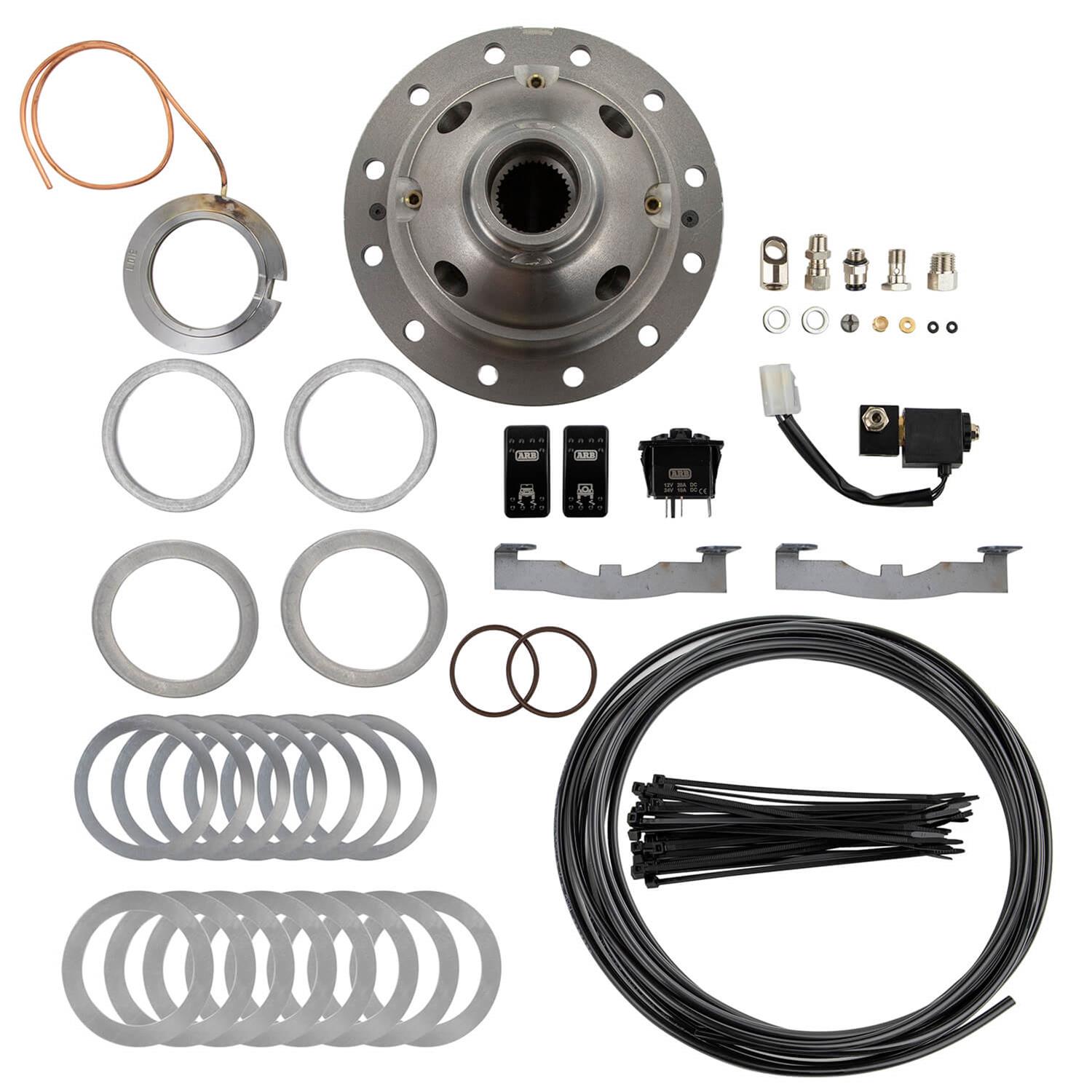

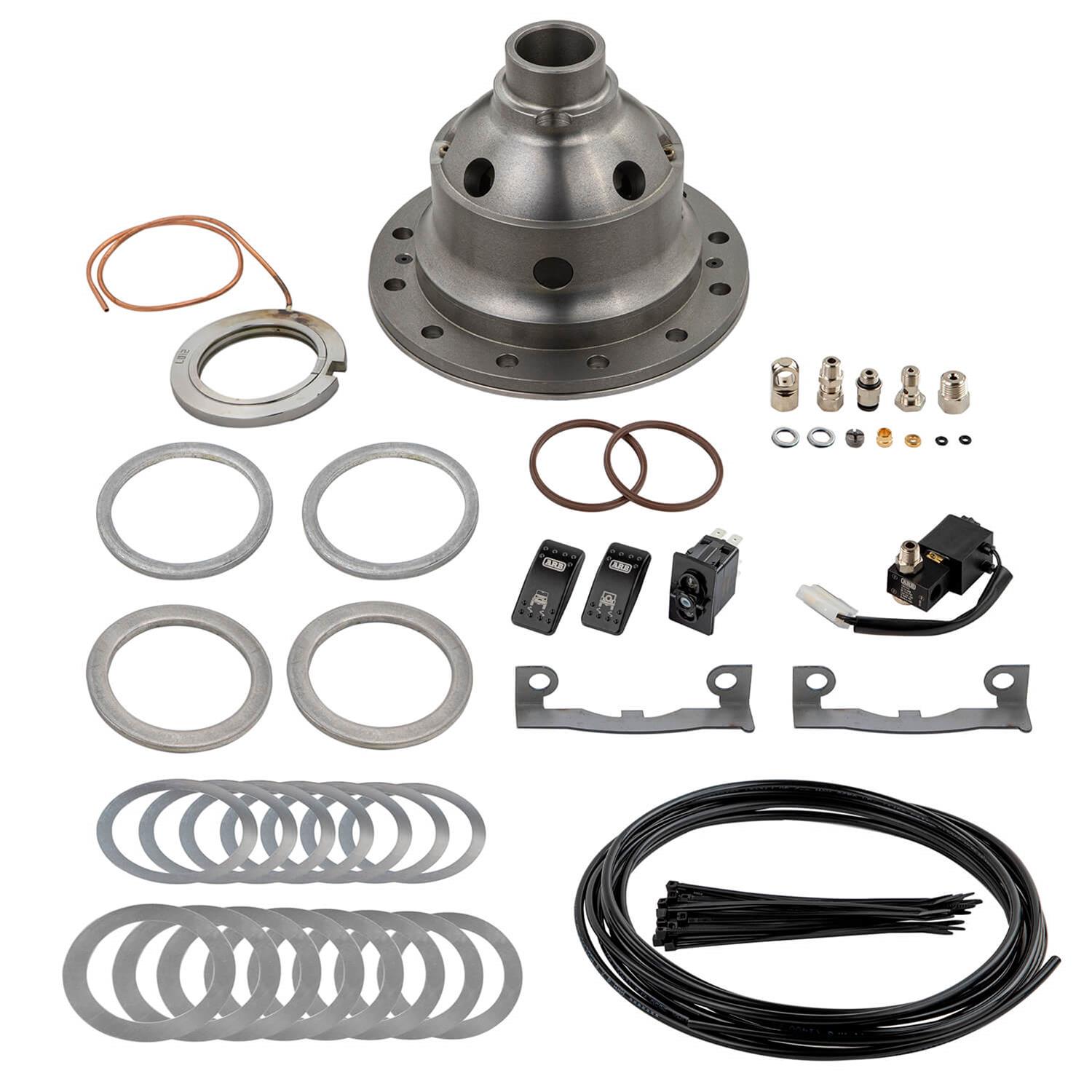

Quantity Sold as a kit.
Part Type Differential Carriers
Product Line ARB Air Locker Differentials
Carrier Series 3
Carrier Material Nodular iron
Aftermarket Carrier Style Air locker
Carrier Bearings Included No
Axle Shaft Spline Quantity 35
Manufacturer's Part Number RD172
Differential Case Design Type Dana 70/80
