ARB Portable Twin High Performance Air Compressors CKMTP12
ARB Portable Twin High Performance Air Compressors CKMTP12
552 in stock
Couldn't load pickup availability
Product Description

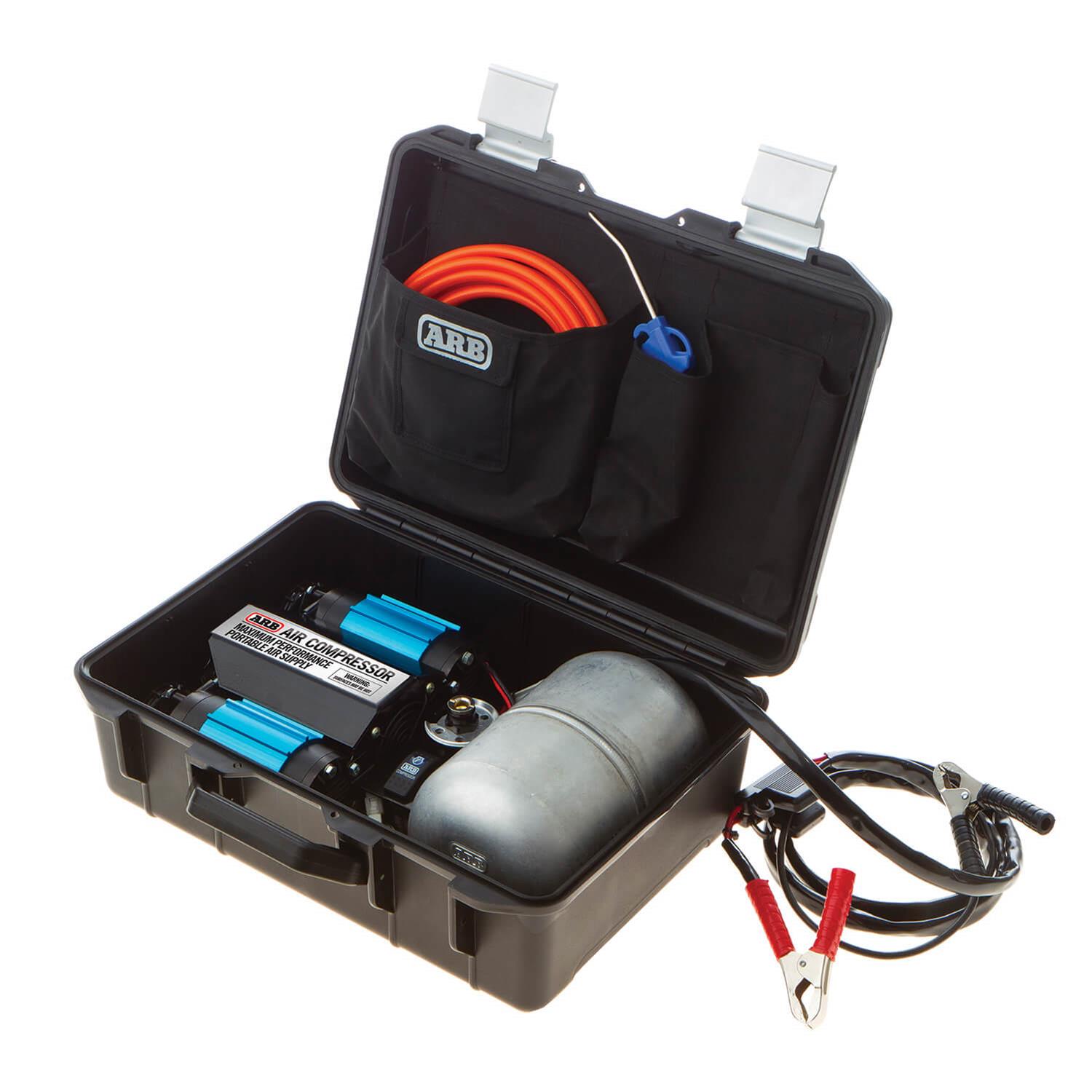

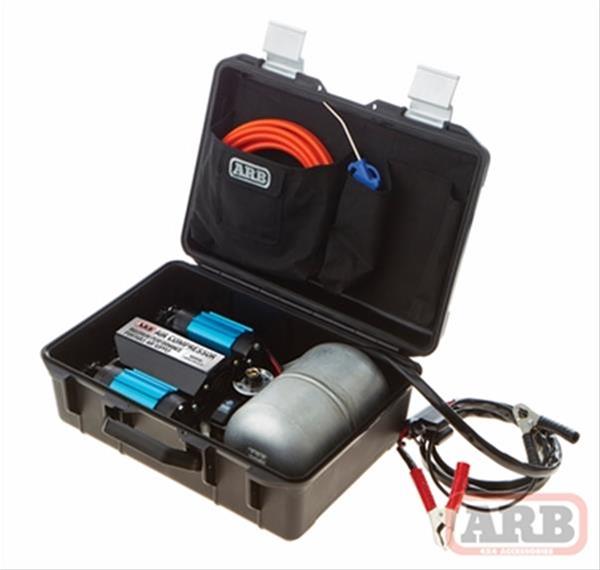

ARB's new CKMTP12 twin portable air compressor was designed to fill the market need for a compact sized yet high performance compressed air source for rapid inflation of large tires as well as the high volume air needs of most air powered tools. The ARB CKMTP12 is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions.
ARB twin portable air compressors are compact high-output pneumatic sources that permit rapid inflation of large tires, as well as the high-volume air needs of most air-powered tools. They're designed, built, and tested to commercial/industrial standards to survive harsh and demanding conditions. ARB twin portable air compressors feature: * Ultra-compact twin motor, dual-cylinder design for high flow * Integrated aluminum air tank and pressure switch regulates pressure between 135 psi (930kPa) and 150 psi (1030kPa), which suits most air-powered tools * Mounted in a waterproof carry case constructed from a durable impact-resistant polymer—with convenient compartments for storing the air hose and other compressor accessories * Ducted IP55 sealed brushed DC cooling fan and anodized aluminum motor mounting brackets effectively dissipate heat from the motors, heads, and electronics, allowing for a 100 percent duty cycle (under room temperature conditions) * Fully serviceable with replacement parts * Built with sealed components for moisture and dust resistance * Hard-anodized cylinder bores and PTFE-impregnated carbon fiber piston seals for reduced friction and maximum trouble-free life * Motors are thermal cut-out protected against damage caused by extreme temperature use * High-density and high-flow washable sintered bronze air filter element * Pressure switch and relay-equipped electrical system prevents run-on when not filling, or any damage to compressor or hoses as a result of the pressure generated from a kinked air line * Over-pressure safety valve-equipped as a back-up protection from either pressure switch failure, thermal over-pressure generated in a hot vehicle, or accidental connection to an external high-pressure source
Extended Description
- ARB Twin Air Compressor Kit
- Portable
- 12V
- Includes Carry Case
- 20 Ft. Air Hose
Application Summary
Part Type
Shop Air Compressor
description
| aaia_ |
Shop Air Compressor |
|---|---|
| market_ |
ARB''s new CKMTP12 twin portable air compressor was designed to fill the market need for a compact sized yet high performance compressed air source for rapid inflation of large tires as well as the high volume air needs of most air powered tools. The ARB CKMTP12 is a world class recreational product designed and built to commercial/industrial standards to survive harsh and demanding outback conditions. |
| product_ |
ARB Twin Air Compressor Kit; Portable; 12V; Includes Carry Case; 20 Ft. Air Hose; |
| product_ |
ARB Air Compressor |
| product_ |
Air Compressor |
s_item
| department | Tools & Shop Equipment |
|---|---|
| section | Shop Equipment |
| name | ARB Portable Twin High Performance Air Compressors CKMTP12 |
| brand | ARB |
| price | 990 |
| blurb | Air Compressor, Portable Twin High Performance Air Compressors, 12 V DC, 150 psi, Tank, Each |
| title | ARB Portable Twin High Performance Air Compressors |
| description | ARB twin portable air compressors are compact high-output pneumatic sources that permit rapid inflation of large tires, as well as the high-volume air needs of most air-powered tools. They're designed, built, and tested to commercial/industrial standards to survive harsh and demanding conditions. ARB twin portable air compressors feature: * Ultra-compact twin motor, dual-cylinder design for high flow * Integrated aluminum air tank and pressure switch regulates pressure between 135 psi (930kPa) and 150 psi (1030kPa), which suits most air-powered tools * Mounted in a waterproof carry case constructed from a durable impact-resistant polymer—with convenient compartments for storing the air hose and other compressor accessories * Ducted IP55 sealed brushed DC cooling fan and anodized aluminum motor mounting brackets effectively dissipate heat from the motors, heads, and electronics, allowing for a 100 percent duty cycle (under room temperature conditions) * Fully serviceable with replacement parts * Built with sealed components for moisture and dust resistance * Hard-anodized cylinder bores and PTFE-impregnated carbon fiber piston seals for reduced friction and maximum trouble-free life * Motors are thermal cut-out protected against damage caused by extreme temperature use * High-density and high-flow washable sintered bronze air filter element * Pressure switch and relay-equipped electrical system prevents run-on when not filling, or any damage to compressor or hoses as a result of the pressure generated from a kinked air line * Over-pressure safety valve-equipped as a back-up protection from either pressure switch failure, thermal over-pressure generated in a hot vehicle, or accidental connection to an external high-pressure source |
item_row
| handle | ARB-CKMTP12 |
|---|---|
| item_ |
221380 |
| brand_ |
291 |
| brand_ |
ARB |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/a6e93c30cf35040ab6bd5f8c54beeb67.JPG |
| item_ |
CKMTP12 |
| item_ |
ARB Compressor Twin Portable 12V |
| item_ |
Suspension (Other) |
| item_ |
Air Compressor Systems |
| item_ |
9332018003850 |
| item_ |
990.00 |
| item_ |
990.00 |
| t14_ |
861 |
| mfr_ |
|
| dim_ |
34.50 |
| dim_ |
19.40 |
| dim_ |
13.90 |
| dim_ |
7.60 |
| shipping_ |
15.49 |
| item_ |
arbCKMTP12 |
| taxonomy_ |
5383 |
| collection_ |
273964630058 |
| collection_ |
Suspension (Other) |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
Overview
| CFM | 4.68 @ 29 psi |
|---|---|
| Brand | ARB |
| Quantity | Sold individually. |
| Part Type | Air Compressors, General Use |
| Product Line | ARB Portable Twin High Performance Air Compressors |
| Case Included | Yes |
| Tank Capacity | 1 gallon |
| Tank Included | Yes |
| Compressor Type | Portable, horizontal |
| Air Lines Included | Yes |
| Compressor Pump Style | Single stage |
| Maximum Pressure (psi) | 150 psi |
| Compressor Power Source | 12 V DC |
| Pressure Gauge Included | No |
| Manufacturer's Part Number | CKMTP12 |
| Mounting Brackets Included | Yes |
| Compressor Pump Lubrication | Oil free |
