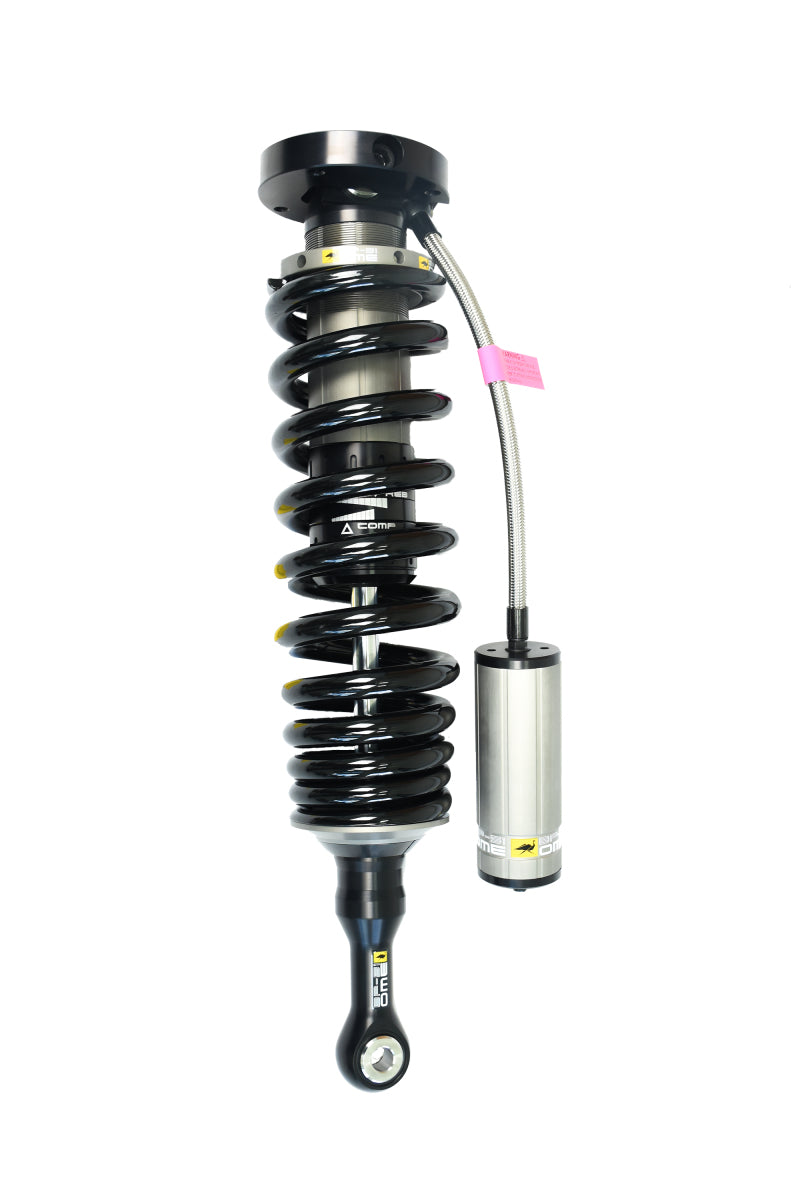

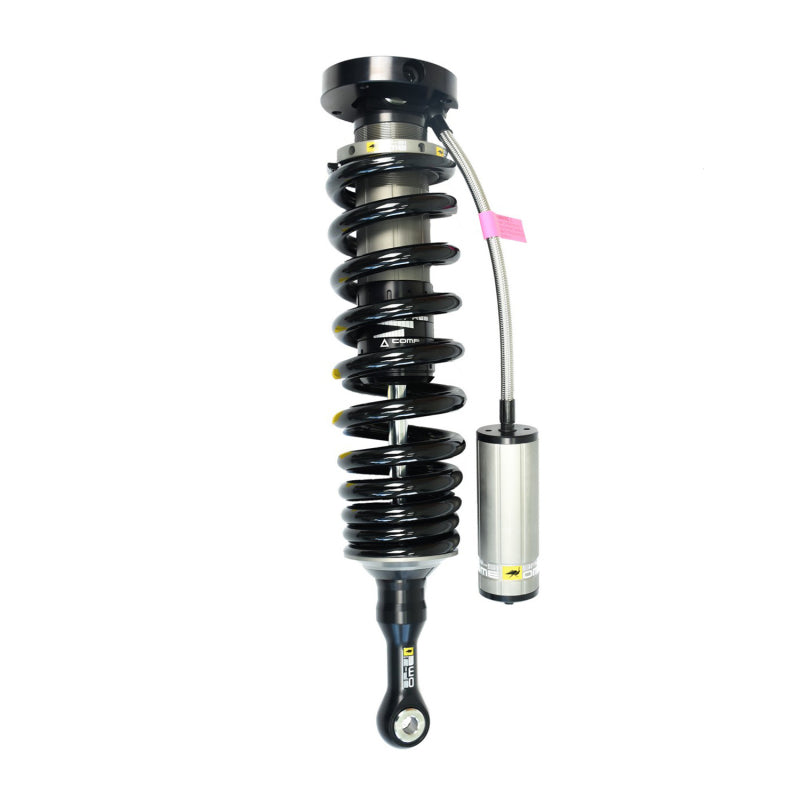

Old Man Emu BP-51 Coilovers BP5190003L
Old Man Emu BP-51 Coilovers BP5190003L
9 in stock
Couldn't load pickup availability
Tags
Product Description
Bring race technology to your adventures with Old Man Emu's BP-51 Suspension system, featuring revolutionary patent-pending technology developed to deliver unparalleled on and off road performance. For use on coil over models, BP-51 employs high-quality X5K grade steel coils that incorporate application-specific design. Because they are engineered, developed, tested and manufactured entirely in-house by the Old Man Emu team, ARB can guarantee the highest possible quality. All Old Man Emu Suspension systems come with a 3-year warranty.
Old Man Emu BP-51 coilovers deliver high performance shock absorption for the front of your vehicle. Preloaded with Old Man Emu coils, these revolutionary coilovers are set to the appropriate lift height for vehicles fitted with a bumper and winch. The spring preload will need to be adjusted to compensate for a lighter total weight vehicle. But, of course, OME BP-51 coilovers provide the independent adjustability of both rebound and compression to deliver the ultimate in both comfort and control, on or off-road. Inside and outside features of Old Man Emu BP-51 coilovers: * Body, reservoir, and components are crafted from 6061 T-6 aluminum * Type 3, 40 micron hard anodized finish * High-quality X5K grade steel coil * High-flow fittings with -6 high-temperature PTFE hose * Large PTFE-lined spherical bearings * High-pressure nitrogen reservoir with aluminum, anodized floating piston * Adjustable spring preload/ride height * 19mm hard chromed ground shaft * Quality oversized rubber bushings * High-temperature Viton® and PTFE seal pack * 51mm bore diameter body * Patent pending bypass, shim controlled, position sensitive damping * High performance, high-viscosity index oil * 1900 MPA polished, high-strength, high-fatigue shims * Kidney bypass ports * Multiple compression and rebound bypass zones
Extended Description
- Sport Shock
- Bypass Coil Over
Application Summary
S/N.LC200 FR LH
Fitment
Fitment
Part Type
description
| application_ |
S/N.LC200 FR LH |
|---|---|
| market_ |
Bring race technology to your adventures with Old Man Emu''s BP-51 Suspension system, featuring revolutionary patent-pending technology developed to deliver unparalleled on and off road performance. For use on coil over models, BP-51 employs high-quality X5K grade steel coils that incorporate application-specific design. Because they are engineered, developed, tested and manufactured entirely in-house by the Old Man Emu team, ARB can guarantee the highest possible quality. All Old Man Emu Suspension systems come with a 3-year warranty. |
| product_ |
Sport Shock; Bypass Coil Over; |
| product_ |
OME BP51 COILOVER |
| product_ |
Sport Shock |
| product_ |
BP-51 Coilover |
s_item
| department | Chassis & Suspension |
|---|---|
| section | Suspension Components |
| name | Old Man Emu BP-51 Coilovers BP5190003L |
| brand | Old Man Emu |
| price | 862 |
| blurb | Shocks and Struts Sport Shock; Bypass Coil Over; |
| title | Old Man Emu BP-51 Coilovers |
| description | Old Man Emu BP-51 coilovers deliver high performance shock absorption for the front of your vehicle. Preloaded with Old Man Emu coils, these revolutionary coilovers are set to the appropriate lift height for vehicles fitted with a bumper and winch. The spring preload will need to be adjusted to compensate for a lighter total weight vehicle. But, of course, OME BP-51 coilovers provide the independent adjustability of both rebound and compression to deliver the ultimate in both comfort and control, on or off-road. Inside and outside features of Old Man Emu BP-51 coilovers: * Body, reservoir, and components are crafted from 6061 T-6 aluminum * Type 3, 40 micron hard anodized finish * High-quality X5K grade steel coil * High-flow fittings with -6 high-temperature PTFE hose * Large PTFE-lined spherical bearings * High-pressure nitrogen reservoir with aluminum, anodized floating piston * Adjustable spring preload/ride height * 19mm hard chromed ground shaft * Quality oversized rubber bushings * High-temperature Viton® and PTFE seal pack * 51mm bore diameter body * Patent pending bypass, shim controlled, position sensitive damping * High performance, high-viscosity index oil * 1900 MPA polished, high-strength, high-fatigue shims * Kidney bypass ports * Multiple compression and rebound bypass zones |
item_row
| handle | ARB-BP5190003L |
|---|---|
| item_ |
221299 |
| brand_ |
291 |
| brand_ |
ARB |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/e4eca11e8fdef07587219524e1c052a0.JPG |
| item_ |
BP5190003L |
| item_ |
ARB / OME Bp51 Coilover S/N..Lc200 Fr Lh |
| item_ |
Springs & Coils |
| item_ |
Coilovers |
| item_ |
9332018029089 |
| item_ |
862.00 |
| item_ |
862.00 |
| t14_ |
13 |
| mfr_ |
|
| dim_ |
35.20 |
| dim_ |
29.20 |
| dim_ |
9.40 |
| dim_ |
6.10 |
| shipping_ |
17.25 |
| item_ |
arbBP5190003L |
| taxonomy_ |
5383 |
| collection_ |
273964728362 |
| collection_ |
Springs & Coils |
| status | Active |
| item_ |
1 |
| item_ |
Suspension |
| productTaxonomy | 5383 |
| bodyHtml | Fits:
ARB BP5190003L Coilovers Bring race technology to your adventures with Old Man Emu's BP-51 Suspension system, featuring revolutionary patent-pending technology developed to deliver unparalleled on and off road performance. For use on coil over models, BP-51 employs high-quality X5K grade steel coils that incorporate application-specific design. Because they are engineered, developed, tested and manufactured entirely in-house by the Old Man Emu team, ARB can guarantee the highest possible quality. All Old Man Emu Suspension systems come with a 3-year warranty. Old Man Emu BP-51 coilovers deliver high performance shock absorption for the front of your vehicle. Preloaded with Old Man Emu coils, these revolutionary coilovers are set to the appropriate lift height for vehicles fitted with a bumper and winch. The spring preload will need to be adjusted to compensate for a lighter total weight vehicle. But, of course, OME BP-51 coilovers provide the independent adjustability of both rebound and compression to deliver the ultimate in both comfort and control, on or off-road.
Inside and outside features of Old Man Emu BP-51 coilovers:
* Body, reservoir, and components are crafted from 6061 T-6 aluminum
* Type 3, 40 micron hard anodized finish
* High-quality X5K grade steel coil
* High-flow fittings with -6 high-temperature PTFE hose
* Large PTFE-lined spherical bearings
* High-pressure nitrogen reservoir with aluminum, anodized floating piston
* Adjustable spring preload/ride height
* 19mm hard chromed ground shaft
* Quality oversized rubber bushings
* High-temperature Viton® and PTFE seal pack
* 51mm bore diameter body
* Patent pending bypass, shim controlled, position sensitive damping
* High performance, high-viscosity index oil
* 1900 MPA polished, high-strength, high-fatigue shims
* Kidney bypass ports
* Multiple compression and rebound bypass zones |
Overview
| Brand | Old Man Emu |
|---|---|
| Manufacturer's Part Number | BP5190003L |
| Part Type | Coilover Shocks and Struts |
| Product Line | Old Man Emu BP-51 Coilovers |
| Coilover Shock Type | Double-adjustable |
| Shock Body Material | Aluminum |
| Shock Body Finish | Black anodized |
| Adjustable Valving | Yes |
| Number of Valving Selections | 10 |
| Upper Mount | Stud |
| Lower Mount | Spherical rod end |
| Internal Design | Monotube |
| Gas Charged | Yes |
| Coilover Springs Included | Yes |
| Spring Finish | Black |
| Adjustable Mounting Bracket Included | No |
| Hardware Included | Yes |
| Quantity | Sold individually. |
