ARB AR40 V2 Intensity LED Light Bars AR40CV2
ARB AR40 V2 Intensity LED Light Bars AR40CV2
Low stock: 2 left
Couldn't load pickup availability
Product Description
The ARB Intensity V2 Light bar is a substantial upgrade from its predecessor, the Iconic Australian lightbar. It produces clean crisp light with refined color temp on the led that helps reduce eye strain and fatigue for long-distance driving and reaches amazing distances down the road to improve safety. It is an excellent choice to provide good lighting for distance as well as width. The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incoporates the latest in LED technolgy using OSRAM GIANTS and advanced optics via the latest Hyperspot? technology in our combo configuration, a further refined design for our flood confgurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot opitcs combined into one light bar. Hyperspot? is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens.

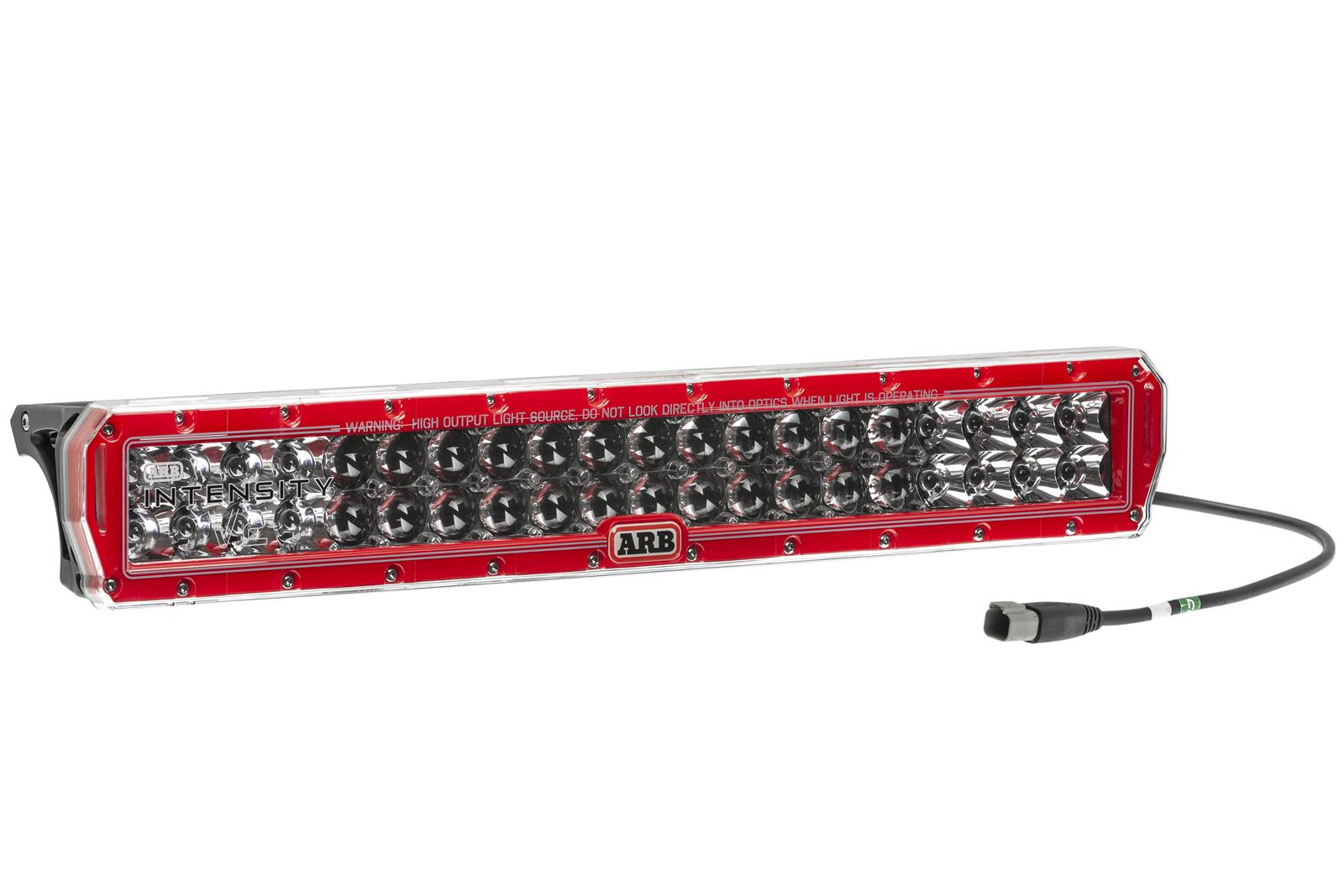

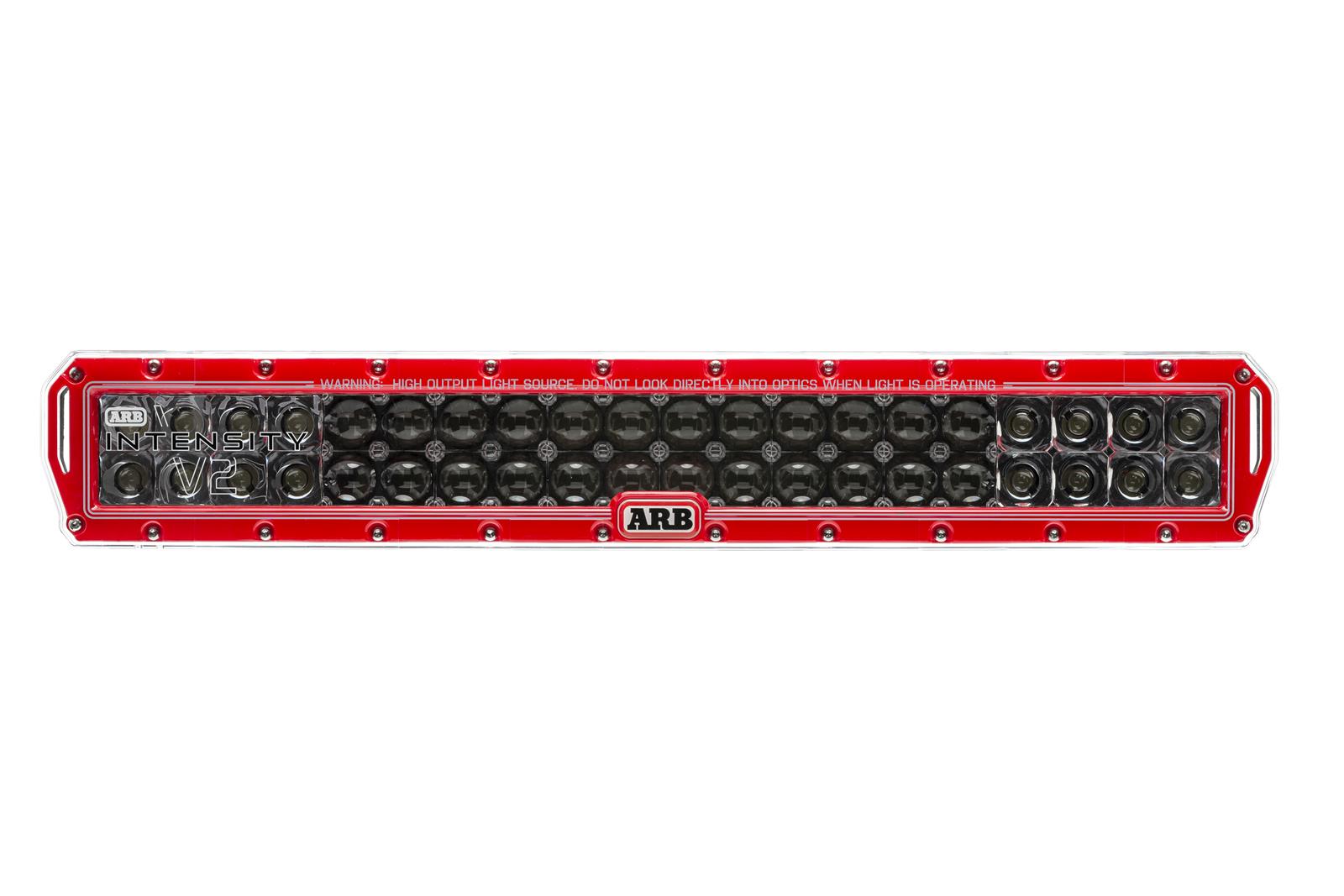

The AR40 V2 intensity LED light bars by ARB utilizes Hyperspot optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powdercoated, extruded aluminum body with high-pressure die-cast end caps. Refined optics used to focus and intensify the light output, as well as drive the OSRAM LEDs a great distance down the road, the Hyperspot technology also maintains clarity in the beam and controls the beam pattern to the correct area without spilling into unnecessary areas. For an integrated fit to your vehicle, different mounting kits are designed specifically for ARB bumpers and are available in three sizes to cater for different tube diameters. Each kit incorporates stainless steel fasteners. Select the AR40 V2 intensity LED light bar kit for your application needs. Key features and benefits: * High output OSRAM LEDs * Polycarbonate and hard-coated for scratch and UV resistance, the light covers protect your intensity light bar from the elements and are available in clear, amber, and solid black * Vibration tested to MIL810-STDG * Dust and waterproof to IP68 rating * Over and under voltage protection * Gore breather and integrated active thermal management * All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminum and steel * For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of an ARB bumper or a roof rack
Extended Description
- Intensity V2 Light Bar Kit
- Combination Flood
- And Spot Light Spread
Application Summary
V2 COMBO LIGHT BAR
Part Type
Light Bar
description
| aaia_ |
Light Bar |
|---|---|
| application_ |
V2 COMBO LIGHT BAR |
| market_ |
The ARB Intensity V2 Light bar is a substantial upgrade from its predecessor, the Iconic Australian lightbar. It produces clean crisp light with refined color temp on the led that helps reduce eye strain and fatigue for long-distance driving and reaches amazing distances down the road to improve safety. It is an excellent choice to provide good lighting for distance as well as width. The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incoporates the latest in LED technolgy using OSRAM GIANTS and advanced optics via the latest Hyperspot? technology in our combo configuration, a further refined design for our flood confgurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot opitcs combined into one light bar. Hyperspot? is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens. |
| product_ |
Intensity V2 Light Bar Kit; Combination Flood; And Spot Light Spread; |
| product_ |
ARB INTENSITY V2 40 LED COM LB |
| product_ |
Intensity V2 Light Bar Kit |
| product_ |
LED Light Bar |
s_item
| department | Lights & Lighting |
|---|---|
| section | Off-Road Lighting |
| name | ARB AR40 V2 Intensity LED Light Bars AR40CV2 |
| brand | ARB |
| price | 662 |
| blurb | ARB Intensity V2 Light Bar; Combination Flood and Spot Light Spread; |
| title | ARB AR40 V2 Intensity LED Light Bars |
| description | The AR40 V2 intensity LED light bars by ARB utilizes Hyperspot optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powdercoated, extruded aluminum body with high-pressure die-cast end caps. Refined optics used to focus and intensify the light output, as well as drive the OSRAM LEDs a great distance down the road, the Hyperspot technology also maintains clarity in the beam and controls the beam pattern to the correct area without spilling into unnecessary areas. For an integrated fit to your vehicle, different mounting kits are designed specifically for ARB bumpers and are available in three sizes to cater for different tube diameters. Each kit incorporates stainless steel fasteners. Select the AR40 V2 intensity LED light bar kit for your application needs. Key features and benefits: * High output OSRAM LEDs * Polycarbonate and hard-coated for scratch and UV resistance, the light covers protect your intensity light bar from the elements and are available in clear, amber, and solid black * Vibration tested to MIL810-STDG * Dust and waterproof to IP68 rating * Over and under voltage protection * Gore breather and integrated active thermal management * All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminum and steel * For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of an ARB bumper or a roof rack |
item_row
| handle | ARB-AR40CV2 |
|---|---|
| item_ |
425127 |
| brand_ |
291 |
| brand_ |
ARB |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/12845e18540b894946fbe4a4090195d8.JPG |
| item_ |
AR40CV2 |
| item_ |
ARB Intensity V2 Light Bar Combination |
| item_ |
Lights |
| item_ |
Driving Lights |
| item_ |
9332018077998 |
| item_ |
662.00 |
| item_ |
662.00 |
| t14_ |
4 |
| mfr_ |
|
| dim_ |
10.80 |
| dim_ |
23.10 |
| dim_ |
7.30 |
| dim_ |
6.30 |
| shipping_ |
15.86 |
| item_ |
arbAR40CV2 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | ARB AR40CV2 Driving Lights The ARB Intensity V2 Light bar is a substantial upgrade from its predecessor, the Iconic Australian lightbar. It produces clean crisp light with refined color temp on the led that helps reduce eye strain and fatigue for long-distance driving and reaches amazing distances down the road to improve safety. It is an excellent choice to provide good lighting for distance as well as width. The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incoporates the latest in LED technolgy using OSRAM GIANTS and advanced optics via the latest Hyperspot? technology in our combo configuration, a further refined design for our flood confgurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot opitcs combined into one light bar. Hyperspot? is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens. The AR40 V2 intensity LED light bars by ARB utilizes Hyperspot optics and advanced flood optics to intensify the light output of the 40 OSRAM LEDs (2 rows of 20) encased in a virtually indestructible polycarbonate lens and powdercoated, extruded aluminum body with high-pressure die-cast end caps. Refined optics used to focus and intensify the light output, as well as drive the OSRAM LEDs a great distance down the road, the Hyperspot technology also maintains clarity in the beam and controls the beam pattern to the correct area without spilling into unnecessary areas. For an integrated fit to your vehicle, different mounting kits are designed specifically for ARB bumpers and are available in three sizes to cater for different tube diameters. Each kit incorporates stainless steel fasteners. Select the AR40 V2 intensity LED light bar kit for your application needs.
Key features and benefits:
* High output OSRAM LEDs
* Polycarbonate and hard-coated for scratch and UV resistance, the light covers protect your intensity light bar from the elements and are available in clear, amber, and solid black
* Vibration tested to MIL810-STDG
* Dust and waterproof to IP68 rating
* Over and under voltage protection
* Gore breather and integrated active thermal management
* All fasteners are manufactured from stainless steel, with mounting hardware manufactured from a combination of aluminum and steel
* For increased versatility, an alternative to the bull bar mount is the pedestal mounting kit, enabling fitment to the pan of an ARB bumper or a roof rack |
Overview
| Brand | ARB |
|---|---|
| Notes | ARB Intensity V2 Light Bar only. |
| Watts | 305.0 watts |
| Lumens | 25,080 |
| Amp Draw | 21.00 amps |
| Quantity | Sold individually. |
| Bulb Type | LED |
| Part Type | Light Bars, Light Pods and Fog Lights |
| Bulb Color | White |
| Lens Color | Clear |
| Light Type | Light bar |
| Beam Pattern | 20/6 degree |
| Optics Style | Flood/Spot |
| Product Line | ARB AR40 V2 Intensity LED Light Bars |
| Beam Distance | 926.00 m |
| Housing Color | Black powdercoated |
| Light Bar Type | Straight dual row |
| Number of LEDs | 40 |
| Relay Included | No |
| Maximum Voltage | 36 V |
| Housing Material | Aluminum |
| Hardware Included | Yes |
| Light Bar Size (in.) | 22 in. |
| Light Cover Included | No |
| Wiring Harness Included | No |
| Manufacturer's Part Number | AR40CV2 |
