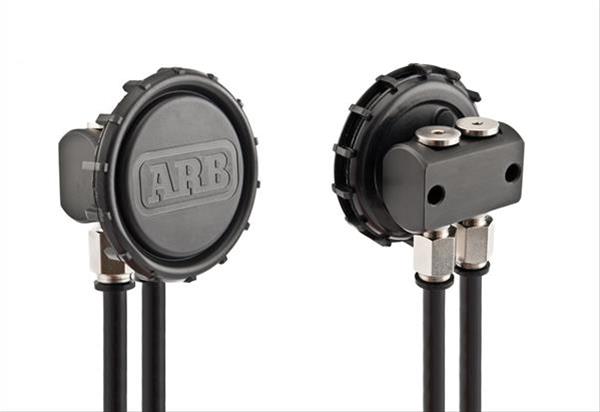

ARB Differential Breather Kits 170112
ARB Differential Breather Kits 170112
69 in stock
Couldn't load pickup availability
Tags
Product Description
A differential/axle breather serves the important purpose on a 4WD vehicle of venting the air pressure in drivetrain assemblies such as the differential, transmission and transfer cases. Many drivetrain assemblies are fitted with a breather from the factory. These factory breathers are usually a one-way valve mounted directly to the housing or remotely on a short tube. There are many short comings to this style and the ARB Differential Breather Kit is designed to eliminate these by providing a high flow, zero back pressure, zero vacuum breather system. The kit is intended to replace your factory breathers and contains enough fittings and tubing to connect at least two drivetrain assemblies. More tubing and push-in fittings can be purchased separately to connect up to four assemblies to the central manifold.
ARB differential breather kits are important to vent air pressure in drivetrain assemblies, and they eliminate the shortcomings of your factory breathers—especially when driving through water crossings. ARB units are high-flow, zero backpressure, zero vacuum breather systems. Each features a high-flow air filter within a central manifold that will allow up to four drivetrain assemblies to be vented to one central location--ideally somewhere on the vehicle that will be above the water level at all times. ARB differential breather kits are intended to replace your factory breathers and contain enough fittings and tubing to connect at least two drivetrain assemblies. Additional features and benefits include: * Axle breather manifold is machined from billet aluminum and anodized, making it lightweight and resistant to the elements * The manifolds have four axle breather ports, allowing for 1-4 breather lines to be connected * Very compact design, allowing them to be installed in virtually any location * The kits come with self-tapping screws, but the manifold mounting holes are large enough to allow mounting using an M6 (1/4 in.) bolt or stud, which is the common size in most vehicle engine bays * The air filters are the ARB compressor air filters, which are splash-resistant with washable high-flow sintered bronze filter cartridges * 8mm polyethylene tubing is flexible, oil-resistant, water-resistant, and heat-resistant * 8mm tubing has been selected over the standard 6mm tubing to improve the airflow and reduce the chance of oil blockages in long breather lines * 8mm push-in fittings make installation simple and fast * Kits include anodized aluminum manifold with 5 ports (breather lines and air filter) and 2 mounting holes, air filter assembly, fittings, plugs, polyethylene tubing, screws, and cable ties
Extended Description

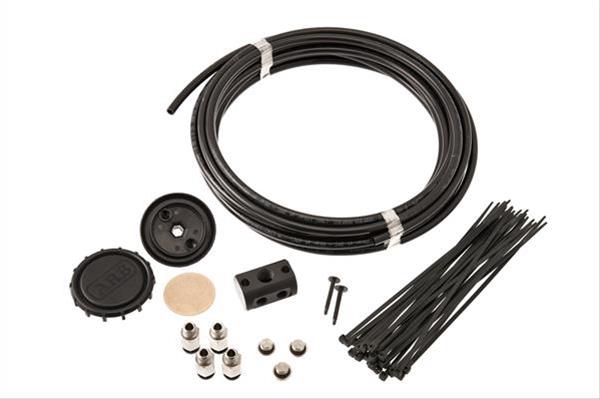

- ARB Differential Breather Kit
- Includes Manifold
- 4 Ports To Connect Up To 4 Breather Lines
- Air Filter Port
- Air Filter Assy
- Push In Fittings
- Plugs
- Tubing
- Screws
- Cable Ties
Application Summary
Fitment
Fitment
Part Type
Axle Vent Tube
description
| aaia_ |
Axle Vent Tube |
|---|---|
| market_ |
A differential/axle breather serves the important purpose on a 4WD vehicle of venting the air pressure in drivetrain assemblies such as the differential, transmission and transfer cases. Many drivetrain assemblies are fitted with a breather from the factory. These factory breathers are usually a one-way valve mounted directly to the housing or remotely on a short tube. There are many short comings to this style and the ARB Differential Breather Kit is designed to eliminate these by providing a high flow, zero back pressure, zero vacuum breather system. The kit is intended to replace your factory breathers and contains enough fittings and tubing to connect at least two drivetrain assemblies. More tubing and push-in fittings can be purchased separately to connect up to four assemblies to the central manifold. |
| product_ |
ARB Differential Breather Kit; Includes Manifold; 4 Ports To Connect Up To 4 Breather Lines; Air Filter Port; Air Filter Assy; Push In Fittings; Plugs; Tubing; Screws; Cable Ties; |
| product_ |
DIFFERENTIAL BREATHER KIT |
| product_ |
Diff Breather Kit |
s_item
| department | Transmission & Drivetrain |
|---|---|
| section | Differential & Rear-End Components |
| name | ARB Differential Breather Kits 170112 |
| brand | ARB |
| price | 82 |
| blurb | Differential Vents, Aluminum, Black, Kit |
| title | ARB Differential Breather Kits |
| description | ARB differential breather kits are important to vent air pressure in drivetrain assemblies, and they eliminate the shortcomings of your factory breathers—especially when driving through water crossings. ARB units are high-flow, zero backpressure, zero vacuum breather systems. Each features a high-flow air filter within a central manifold that will allow up to four drivetrain assemblies to be vented to one central location--ideally somewhere on the vehicle that will be above the water level at all times. ARB differential breather kits are intended to replace your factory breathers and contain enough fittings and tubing to connect at least two drivetrain assemblies. Additional features and benefits include: * Axle breather manifold is machined from billet aluminum and anodized, making it lightweight and resistant to the elements * The manifolds have four axle breather ports, allowing for 1-4 breather lines to be connected * Very compact design, allowing them to be installed in virtually any location * The kits come with self-tapping screws, but the manifold mounting holes are large enough to allow mounting using an M6 (1/4 in.) bolt or stud, which is the common size in most vehicle engine bays * The air filters are the ARB compressor air filters, which are splash-resistant with washable high-flow sintered bronze filter cartridges * 8mm polyethylene tubing is flexible, oil-resistant, water-resistant, and heat-resistant * 8mm tubing has been selected over the standard 6mm tubing to improve the airflow and reduce the chance of oil blockages in long breather lines * 8mm push-in fittings make installation simple and fast * Kits include anodized aluminum manifold with 5 ports (breather lines and air filter) and 2 mounting holes, air filter assembly, fittings, plugs, polyethylene tubing, screws, and cable ties |
item_row
| handle | ARB-170112 |
|---|---|
| item_ |
218842 |
| brand_ |
291 |
| brand_ |
ARB |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/9ec83403da555d8309684dbe67841711.JPG |
| item_ |
170112 |
| item_ |
ARB Differential Breather Kit |
| item_ |
Drivetrain |
| item_ |
Differentials |
| item_ |
9332018027375 |
| item_ |
82.00 |
| item_ |
82.00 |
| t14_ |
220 |
| mfr_ |
|
| dim_ |
1.30 |
| dim_ |
8.40 |
| dim_ |
7.90 |
| dim_ |
2.30 |
| shipping_ |
15.86 |
| item_ |
arb170112 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Fits:
ARB 170112 Differentials A differential/axle breather serves the important purpose on a 4WD vehicle of venting the air pressure in drivetrain assemblies such as the differential, transmission and transfer cases. Many drivetrain assemblies are fitted with a breather from the factory. These factory breathers are usually a one-way valve mounted directly to the housing or remotely on a short tube. There are many short comings to this style and the ARB Differential Breather Kit is designed to eliminate these by providing a high flow, zero back pressure, zero vacuum breather system. The kit is intended to replace your factory breathers and contains enough fittings and tubing to connect at least two drivetrain assemblies. More tubing and push-in fittings can be purchased separately to connect up to four assemblies to the central manifold. ARB differential breather kits are important to vent air pressure in drivetrain assemblies, and they eliminate the shortcomings of your factory breathers—especially when driving through water crossings. ARB units are high-flow, zero backpressure, zero vacuum breather systems. Each features a high-flow air filter within a central manifold that will allow up to four drivetrain assemblies to be vented to one central location--ideally somewhere on the vehicle that will be above the water level at all times. ARB differential breather kits are intended to replace your factory breathers and contain enough fittings and tubing to connect at least two drivetrain assemblies.
Additional features and benefits include:
* Axle breather manifold is machined from billet aluminum and anodized, making it lightweight and resistant to the elements
* The manifolds have four axle breather ports, allowing for 1-4 breather lines to be connected
* Very compact design, allowing them to be installed in virtually any location
* The kits come with self-tapping screws, but the manifold mounting holes are large enough to allow mounting using an M6 (1/4 in.) bolt or stud, which is the common size in most vehicle engine bays
* The air filters are the ARB compressor air filters, which are splash-resistant with washable high-flow sintered bronze filter cartridges
* 8mm polyethylene tubing is flexible, oil-resistant, water-resistant, and heat-resistant
* 8mm tubing has been selected over the standard 6mm tubing to improve the airflow and reduce the chance of oil blockages in long breather lines
* 8mm push-in fittings make installation simple and fast
* Kits include anodized aluminum manifold with 5 ports (breather lines and air filter) and 2 mounting holes, air filter assembly, fittings, plugs, polyethylene tubing, screws, and cable ties |
Overview
| Brand | ARB |
|---|---|
| Quantity | Sold as a kit. |
| Part Type | Differential Vents |
| Product Line | ARB Differential Breather Kits |
| Differential Vent Color | Black |
| Differential Vent Material | Aluminum |
| Manufacturer's Part Number | 170112 |
