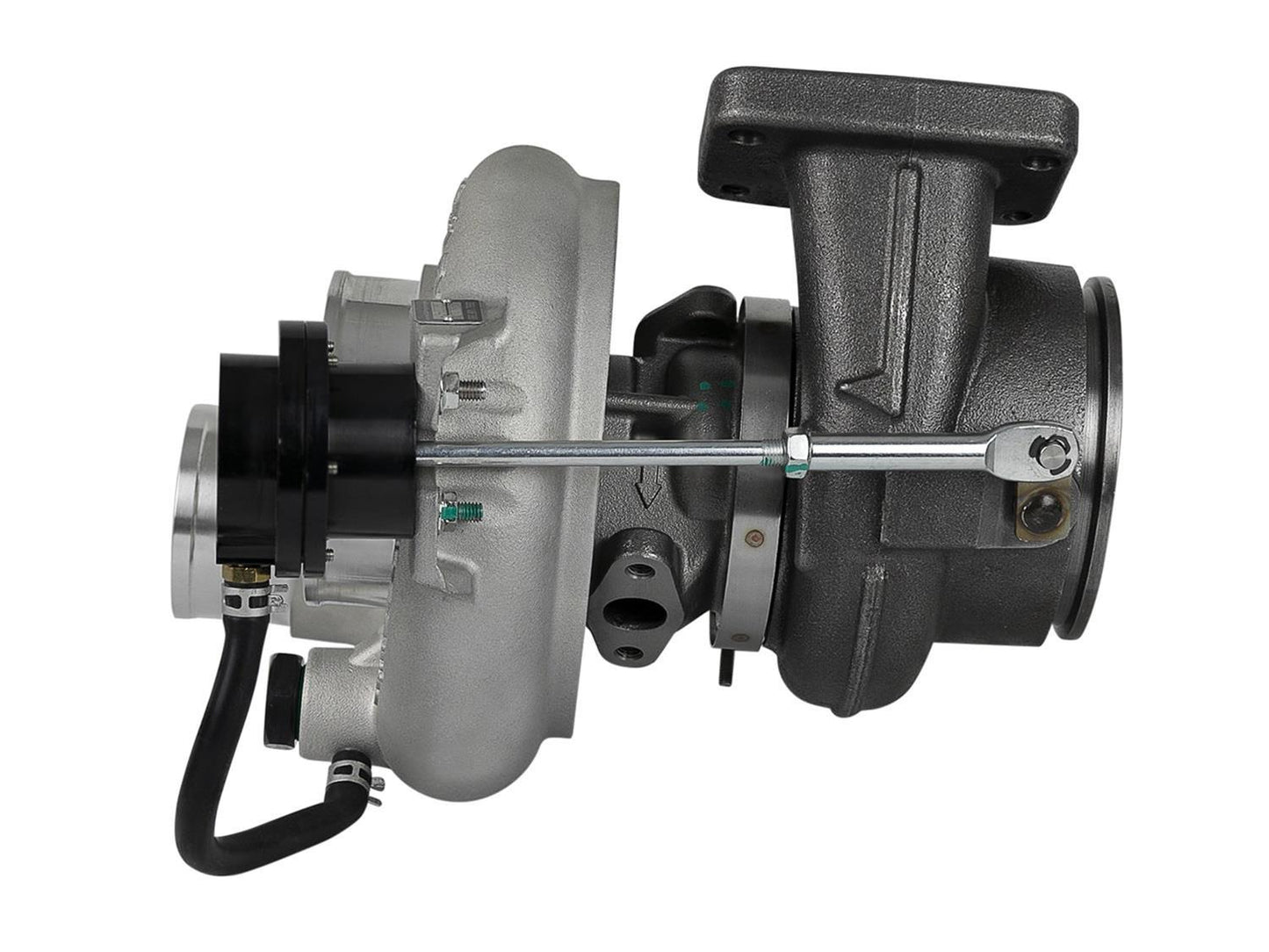

aFe BladeRunner Turbochargers 46-60052-1
aFe BladeRunner Turbochargers 46-60052-1
Out of stock
Couldn't load pickup availability
Tags
Product Description
Specifications: Compressor Inducer - 60 mm/Trim: 45 Compressor Exducer - 89.7 mm Turbine Inducer - 65 mm Turbine Exducer - 58 mm Turbo Housing: 12 CM2. Billet Wheel: The compressor features a gold anodized 7/14 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo. Compressor: The compressor features a light-weight billet aluminum compressor wheel with a 60mm inducer and 89.7mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator. Direct Replacement: This turbo can be installed on 2003-2007 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.
Maximize your diesel truck's performance and pulling power with aFe BladeRunner turbochargers. The turbochargers are optimized for maximum boost response, as well as overall power. The compressor housings are made of premium cast aluminum and feature a ported shroud design that eliminates dangerous compressor surge. Each of these turbochargers feature specifically designed trims that are aimed at maximizing power and throttle response for your given power goal. For maximum boost response and the ultimate torque delivery, aFe BladeRunner turbochargers will help you get there. Order the model that is best suited to your application needs.
Extended Description
- BladeRunner GT Series Turbocharger Dodge Diesel Trucks 03-07 L6-5.9L (td)
Application Summary
Dodge Diesel Trucks 03-07 L6-5.9L (td)
Fitment
Fitment
Part Type
Available to Order
description
| aaia_ |
Available to Order |
|---|---|
| application_ |
Dodge Diesel Trucks 03-07 L6-5.9L (td) |
| market_ |
Specifications: Compressor Inducer - 60 mm/Trim: 45 Compressor Exducer - 89.7 mm Turbine Inducer - 65 mm Turbine Exducer - 58 mm Turbo Housing: 12 CM2. Billet Wheel: The compressor features a gold anodized 7/14 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo. Compressor: The compressor features a light-weight billet aluminum compressor wheel with a 60mm inducer and 89.7mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator. Direct Replacement: This turbo can be installed on 2003-2007 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical. |
| product_ |
BladeRunner GT Series Turbocharger Dodge Diesel Trucks 03-07 L6-5.9L (td) |
| product_ |
BladeRunner GT Series Turbocharger |
| product_ |
Turbocharger |
s_item
| department | Air & Fuel Delivery |
|---|---|
| section | Superchargers & Turbochargers |
| name | aFe BladeRunner Turbochargers 46-60052-1 |
| brand | AFE Power |
| price | 1681.21 |
| blurb | Turbocharger, BladeRunner, 60mm Compressor Inducer, 58mm Turbine Exducer, Dodge, Diesel, Each |
| title | aFe BladeRunner Turbochargers |
| description | Maximize your diesel truck's performance and pulling power with aFe BladeRunner turbochargers. The turbochargers are optimized for maximum boost response, as well as overall power. The compressor housings are made of premium cast aluminum and feature a ported shroud design that eliminates dangerous compressor surge. Each of these turbochargers feature specifically designed trims that are aimed at maximizing power and throttle response for your given power goal. For maximum boost response and the ultimate torque delivery, aFe BladeRunner turbochargers will help you get there. Order the model that is best suited to your application needs. |
item_row
| handle | AFE-46-60052-1 |
|---|---|
| item_ |
97738 |
| brand_ |
2 |
| brand_ |
aFe |
| item_ |
https://d32vzsop7y1h3k.cloudfront.net/455699ade5068965f1781619c044a61c.JPG |
| item_ |
46-60052-1 |
| item_ |
aFe Bladerunner Turbochargers Dodge Diesel Trucks 03-07 L6-5.9L (td) |
| item_ |
Forced Induction |
| item_ |
Turbo Kits |
| item_ |
802959465080 |
| item_ |
1988.00 |
| item_ |
|
| t14_ |
0 |
| mfr_ |
7 |
| dim_ |
29.00 |
| dim_ |
14.00 |
| dim_ |
14.00 |
| dim_ |
12.00 |
| shipping_ |
16.18 |
| item_ |
afe46-60052-1 |
| taxonomy_ |
|
| collection_ |
|
| collection_ |
|
| status | Active |
| item_ |
1 |
| bodyHtml | Fits:
aFe 46-60052-1 Turbo Kits Specifications: Compressor Inducer - 60 mm/Trim: 45 Compressor Exducer - 89.7 mm Turbine Inducer - 65 mm Turbine Exducer - 58 mm Turbo Housing: 12 CM2. Billet Wheel: The compressor features a gold anodized 7/14 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker "spool-up" and higher air flow than the stock turbo. Compressor: The compressor features a light-weight billet aluminum compressor wheel with a 60mm inducer and 89.7mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator. Direct Replacement: This turbo can be installed on 2003-2007 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical. Maximize your diesel truck's performance and pulling power with aFe BladeRunner turbochargers. The turbochargers are optimized for maximum boost response, as well as overall power. The compressor housings are made of premium cast aluminum and feature a ported shroud design that eliminates dangerous compressor surge. Each of these turbochargers feature specifically designed trims that are aimed at maximizing power and throttle response for your given power goal. For maximum boost response and the ultimate torque delivery, aFe BladeRunner turbochargers will help you get there. Order the model that is best suited to your application needs. |
Overview
| Brand | AFE Power |
|---|---|
| Quantity | Sold individually. |
| Part Type | Turbochargers |
| Volute Type | Open |
| Product Line | aFe BladeRunner Turbochargers |
| Remanufactured | No |
| Wastegate Location | Internal |
| Turbocharger Cooling | Oil |
| Compressor Wheel Trim | 45 |
| Oil Adapters Included | No |
| Turbine Housing Finish | Natural |
| Compressor Outlet Style | Slip fit |
| Intake Adapter Included | No |
| Compressor Housing Color | Natural |
| Exhaust Adapter Included | Yes |
| Turbine Housing Included | Yes |
| Turbine Housing Material | Cast iron |
| Ported Compressor Housing | No |
| Manufacturer's Part Number | 46-60052-1 |
| Turbine Wheel Exducer Size | 58.00mm |
| Turbocharger Bearing Style | Journal bearing |
| Compressor Housing Included | Yes |
| Compressor Housing Material | Aluminum |
| Wastegate Actuator Included | Yes |
| Turbine Housing Inlet Flange | Stock |
| Compressor Wheel Construction | Billet aluminum |
| Compressor Wheel Inducer Size | 60.00mm |
| Turbine Housing Outlet Flange | V-band |
